Thetford Argent Stainless Sink Left Hand User Manual

Sink& Bowls
 Original User Manual

Introduction

This is the user manual for your Thetford bowl or sink. Read the safety instructions and information on use and maintenance of the bowl or sink carefully before continuing. This will enable you to use the bowl or sink safely and efficiently. Retain this manual for future reference. This document is version SINS2050/1121-V02 of the user manual. Please visit www.thetford.com for the most recent version.

Symbols

The following symbols are used in this manual:
Warning. Risk of serious injury and/or damage.
Caution. Risk of injury and/or damage.
Attention. Important information.
Note. Additional information.

Safety

  The glass lid may snap shut towards the end of lowering due to the travel-lock action of the hinges. Make sure all fingers are clear of the appliance when closing the lid.

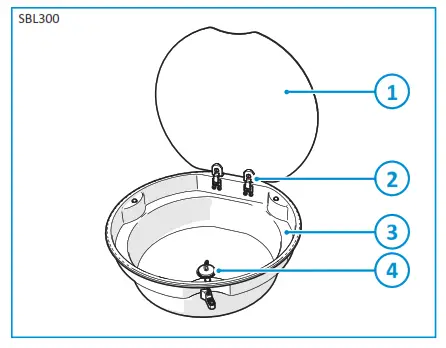

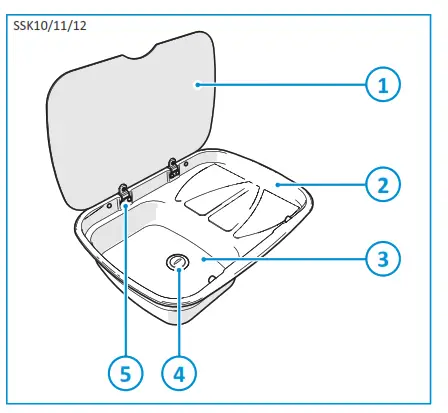

Main components

1. Lid
2. Hinges*
3. Sink
4. Sink plug (optional)
   1. Lid
   2. Drainer place
   3. Sink
   4. Sink plug (optional)
   5. Hinges*

Lids can be removed.
Waste units are not supplied by Thetford.
The location or presence of the parts and the shape of the sink depend on the type of  sink you have.

Before use

Before using the appliance:

• Ensure that all packaging materials have been removed.
• Clean the appliance with warm water and household detergent and dry carefully with a soft cloth.

Maintenance and cleaning

Thetford recommends an annual inspection service by an approved service centre. Between annual servicing, clean the appliance regularly after use.

• Always remove any spills or contamination immediately after use with soap and hot water. Towel dry the surface with a soft cloth.
• Use anon-abrasive multi-purpose cream cleaner and a nylon scourer pad to clean more stubborn dirt or grease.
• Use a proprietary stainless steel cleaner or polish to remove superficial surface scratching.

Hard water or soft water may leave a brown or white film in the sink. Dry the sink after use with a soft cloth to avoid this. Clean the sink well at least once a week with a cloth and household detergent.
Do not use abrasive cleaners, metal scouring pads or hard brushes. They could damage the appliance.
Do not leave wet cloths, cleaning pads, residues of food or cleaning products or other dirt to dry on the surface. It can cause pitting, marking or even rusting.
Always clean in the direction of the brushed finish and not across the grain.
Cleaning agents containing bleach should not be left in contact with stainless steel.
Mineral content in water (such as iron or lime scale) can affect the appearance of the metal.
Remove any spillage from the glass lid before opening the lid.
To preserve the appearance of the appliance, do not store plastic bowls or mats in the sink.

Servicing

All servicing must be carried out by an approved competent person.
For service, please contact your authorised local Service Centre giving details of the model and serial number on the data badge plus date of purchase.

Putting in storage

• Close the lid, if present.
• Wipe the appliance clean and dry.

Technical specifications

Table 1: Bowl specifications

Disposal

Your product has been designed and manufactured with high quality materials and components, which can be recycled and reused. When your product has reached its end of life, dispose of the product according to the local rules. Do not dispose of the product with the normal household waste. The correct disposal of your old product will help prevent potential negative consequences to the environment and human health.

Questions

If you have questions about your product, parts, accessories or authorised services:

• Visit www.thetford.com.
• If you cannot solve a problem, contact the authorised local Service Centre or Thetford Customer Service in your country.

Warranty

For our warranty clause, please refer to the conditions mentioned on www.thetford-europe.com/service/warranty. For more information, please contact the Thetford Customer Service in your country.
