Spidocook WSPG0015 Glass ceramic Contact Grill User Manual

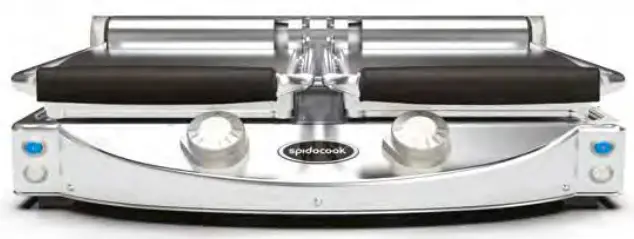

SPIDOGLASS

GLASS CERAMIC CONTACT COOKING SYSTEMS

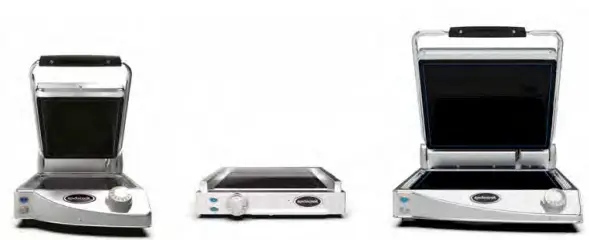

The SPIDOGLASS™ grills are perfect for fast food restaurants and can be a valuable tool in the kitchen. The glass ceramic contact grills can cook many products from sandwiches and focaccia to grilled meat or vegetables, providing excellent results.

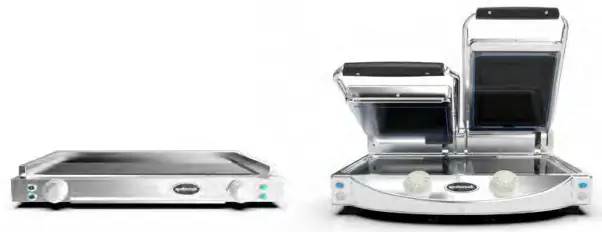

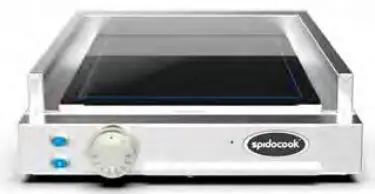

SPIDOFLAT

GLASS CERAMIC CONTACT COOKING SYSTEMS

The new glass-ceramic SPIDOFLAT™ cook meat, fish and vegetables homogeneously. The flavors remain intact even if different foods are grilled in sequence. They are certainly safe in use and easy to clean, giving obvious benefits in terms of energy savings and increased productivity

The benefit of the grill and the FryTop

COOKING QUALITY
Uniform heat distribution
The combination of glass ceramic tops an innovative heating system guarantees uniform heat in both the centre and at the sides of the cooking surface and ensures the food‘s original flavour is maintained.

MAXIMUM VERSATILITY
400°C to cook what you want
The possibility of reaching 400°C allows you to not only heat up panini and toasted sandwiches, but also to cook a wide variety of different food, such as fish, meat, vegetables, eggs etc.

SAVING TIME AND ENERGY *
Reduced time and more annual energy savings.
Working speed and thermal efficiency allow savings of up to 60% in the thermal increase times and therefore also in annual energy consumption.
* It refers only to SPIDOGLASS™ grill

EASY CLEANING AND MAINTENANCE
Easy to clean and always ready to use
No smoke during cooking, simple and effective cleaning after use, specific products to maintain maximum performance over time.

Cooking quality

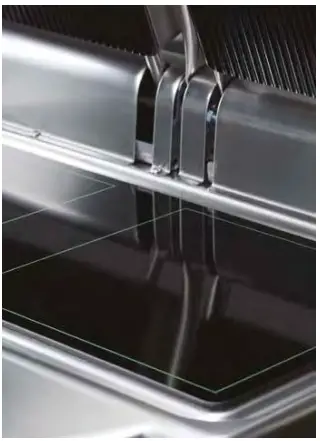

GLASS CERAMIC
THE BEST SURFACE FOR COOKING

• RESISTANCE
• NO SMOKE
• EASY CLEANING

Glass ceramic is the perfect material for contact cooking. Resistant to impact and thermal shock, impermeable to smells and tastes, it does not absorb the taste of food and allows different products to be cooked one after the other while maintaining their taste and fragrance.

Thanks to the non-stick features of the material, the smoke generated during cooking is greatly reduced and the cleaning operations are simple and quick, eliminating the risk of unpleasant odours due to food residues on the cooking surfaces.

SPECIAL HEATING BOX
PERFORMANCE AND SPEED WITHOUT COMPROMISE

• COMBINED HEATING
• UNIFORM HEAT
• FAST HEATING

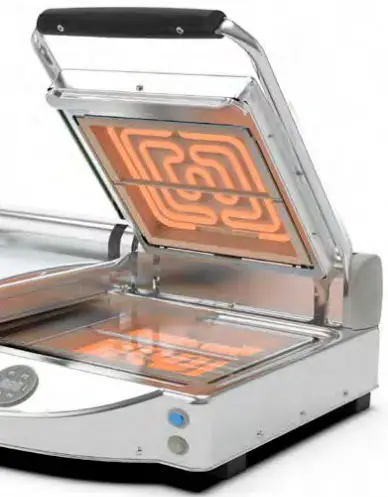

SHB Plus technology uses non-armoured heating elements that allow cooking with a mixed heating system, by contact and by infrared radiation.

The shape of the heating filament has been specially developed to guarantee a uniform heat distribution over the entire plate, both in the centre and at the sides. The filament reaches a temperature of 800°C, at which the emission of infrared rays occurs. The glass ceramic tops allow a pre-established amount to filter through, which reaches and warms the food directly at the core.

The SHB Plus technology quickly reaches a maximum temperature of 400°C on the plate, thus reducing thermal increase times by more than 60%.

Maximum versatility

HIGH TEMPERATURES
400°C MEANS COOKING WHAT YOU WANT

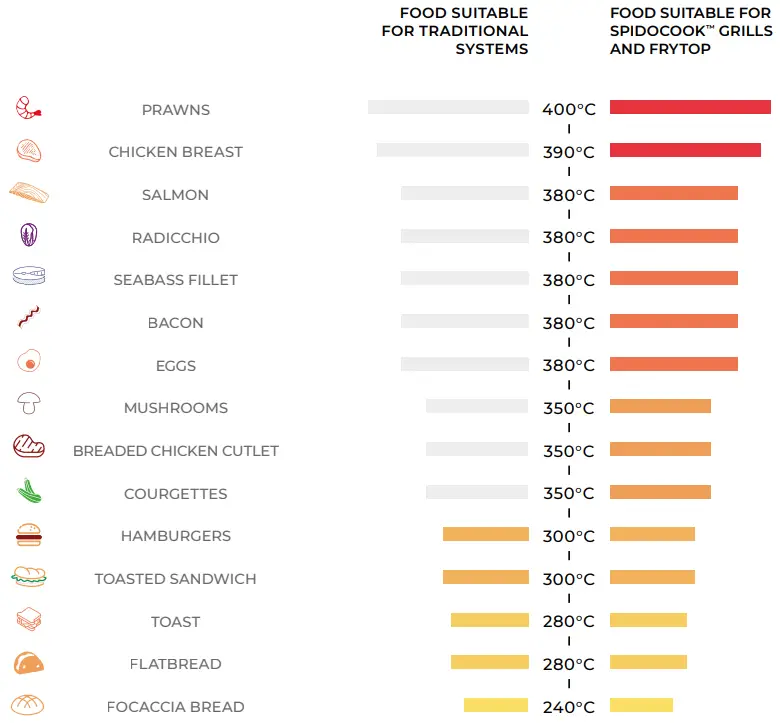

Why limit yourself just to heating up panini, wraps and toasted sandwiches?

Today, Spidocook™ products offer a real contact cooking system that lets you prepare a complete menu for your clients: tasty beef burgers, delicate pieces of salmon, delicious seasonal vegetables, sophisticated prawns, soft and tender chicken fillets and crispy bacon.

Each of these foods needs a correct cooking temperature, in all cases higher than those available with traditional products. SPIDOGLASS™ and SPIDOFLAT™ contact cooking systems can reach a temperature of 400°C, providing you the versatility needed to expand your business.

Time and energy savings

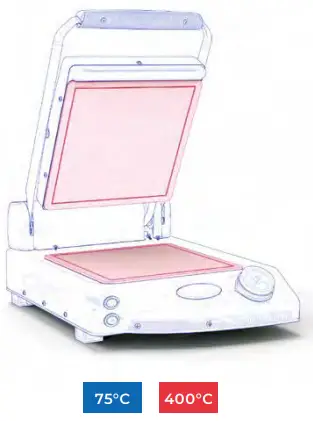

HIGH EFFICIENCY INSULATION
EFFICIENCY FOR YOUR BUSINESS, SAFETY FOR YOUR TEAM

• HIGH THERMAL INSULATION
• QUICK THERMAL INCREASE TIME
• REDUCED ENERGY CONSUMPTION

The Protek.SAFE technology eliminates unnecessary energy loss, reducing energy consumption to a minimum and therefore allowing all the heating energy to be concentrated on the cooking surface, with obvious benefits also for the safety of those who work with the product.

SPIDOGLASS™ electric contact cooking systems significantly increase the heating speed of the plates without needing more power. The high thermal insulation minimizes energy consumption during standby cycles, making the product always ready for any request without sacrificing the energy efficiency of your business.

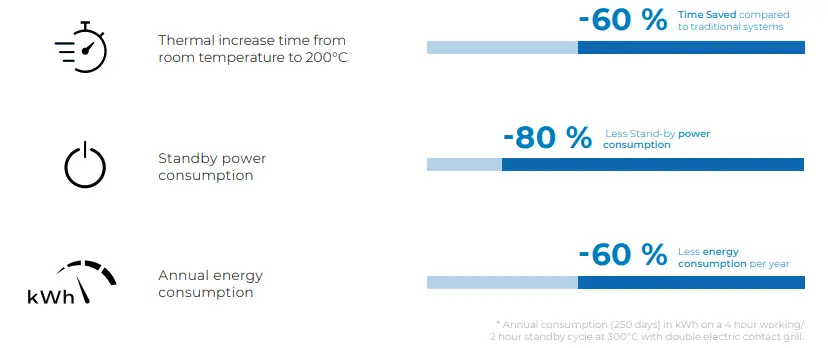

TIME AND ENERGY SAVINGS
SPIDOGLASS™ GRILLS COMPARED TO TRADITIONAL SYSTEMS

Easy cleaning and maintenance

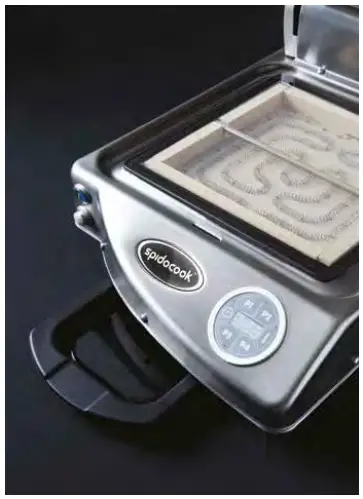

MAINTENANCE
HYGIENE AND CLEANING

• NON-STICK GLASS CERAMIC
• REMOVABLE TRAY
• DEDICATED ACCESSORIES

The difficulties in cleaning cooking plates using traditional technologies make it very hard to completely remove food residues, which remain in contact with the surface, and become a source of smoke during subsequent cooking and, in general, of unpleasant odours.

SPIDOCOOK™ products use glass ceramic plates, a smooth non-stick and non-porous material that allows you to remove food residues simply and effectively, thus preventing unpleasant odours and providing maximum hygiene.

The rounded liquid overflow channel, which is around the outer edge of the cooking surface, allows residues and liquids to be easily conveyed to a removable tray, to further facilitate cleaning operations.

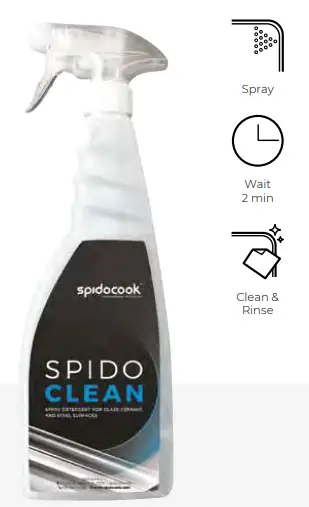

SPECIFIC CLEANING ACCESSORIES
KEEP PERFORMANCE CONSTANT OVER TIME

Specially developed and tested, SpidoClean spray detergent is the perfect product for cleaning the plates and steel structure of the Spidocook™ products. The combined use with the scraper supplied with the electric contact cooking system guarantees fast and effective cleaning and hygiene.

Thanks to SpidoClean, with just a few steps at the end of each day you can always have a ready to use electric contact cooking system, that maintains its performance over time.

MODEL: SpidoClean
TYPE: Spray detergent
CONTENTS: 750 ml
QTY FOR PACKAGING: 12 bottles

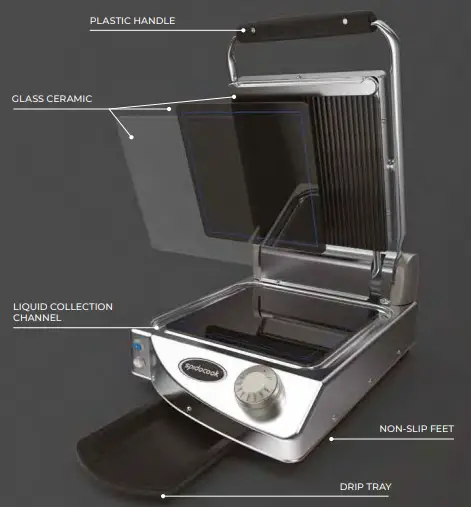

Details make the difference

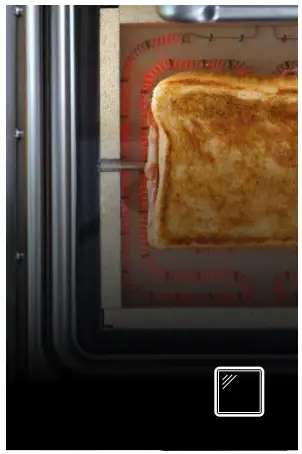

Transparent cooking surface

SMOOTH

The transparent plate surface allows through the majority of the infrared rays (20% contact cooking – 80% infrared cooking), and therefore provides external surfaces with greater crispiness.

Black cooking surface

SMOOTH AND RIBBED

The black plate surface, in the smooth and ribbed versions, is less transparent to infrared rays (cooking by 80% contact – 20% infrared cooking), ensuring faster heating of the food core and a more uniform internal temperature.

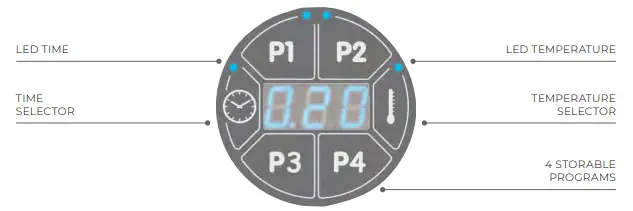

SPIDOTOUCH™

ALL THE BENEFITS OF SPIDOGLASS™ GLASS CERAMIC CONTACT COOKING SYSTEMS WITH A DIGITAL CONTROL TO MAXIMIZE REPEATABILITY AND PRODUCTIVITY OF COOKING OPERATIONS.

SIMPLE AND EASY OPERATIONS

1. Power ON
   • Turn ON the plate
   • The plate will start to heat until reaching the pre-set Temperature of 250° C
   • If a different temperature is not set, the system keeps the temperature at 250 ° C until the product is switched off.
2. Parameters setting
   Temperature
   • Set the Temperature by repeatedly pushing or holding down the button until the desired temperature appears on the screen (the value is saved when the LED «D2» stops flashing).
     Time
   • Set the Time by repeatedly pushing or holding down the button until the desired time appears on the screen (the value is saved when the LED «D1» stops flashing)
3. Program Storage & Use
   • Set the time and temperature parameters as described previously.
   • Press and hold the button P1, P2 , P3 or P4 for at least 3 seconds to store the program
   • Successful operation is confirmed by LED «D3» lighting on for 1 sec and buzzer sounds.
   • Once memorized, the program can be started any time by pressing the corresponding button (P1 or P2 or P3 or P4)

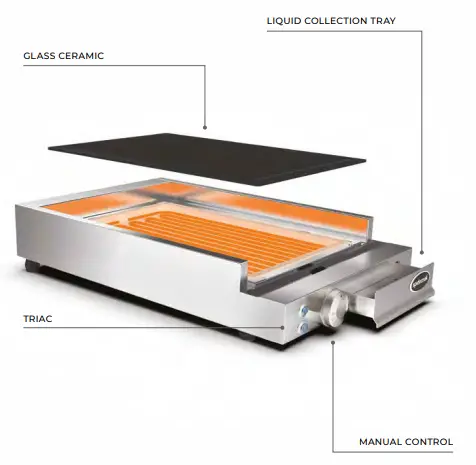

Details make the difference

Black cooking surface

SMOOTH

The black plate surface filters the majority of the infrared rays (20% contact cooking – 80% infrared cooking), and therefore provides external surfaces with greater crispiness.

Models and data

The ECO versions are custom designed to reduce the installed power (2kW instead of 3kW) and to offer further energy savings in their use, maintaining the performance characteristics. They are particularly suitable even for those installations where there are limits in the total power available.

SPIDOGLASS™

BLACK SMOOTH SURFACES

SINGLE GRILL		SP 010 P	SP 010 E
	Control	MANUAL	DIGITAL
	Plate size	N° 1 250 x 250 mm	N° 1 250 x 250 mm
	Frequency	50 / 60 Hz	50 / 60 Hz
	Voltage	230 V~ 1N	230 V~ 1N
	Power	1,5 kW	1,5 kW
	Maximum temperature	400 °C	350 °C
	Dimensions w x d x h	331 x 458 x 176	331 x 458 x 176
	Packaging dimensions w x d x h	373 x 535 x 265	373 x 535 x 265
	Net weight	10 Kg	10 Kg
	Gross weight	11,1 Kg	11,1 Kg
	EAN Code	8029212015499	8029212015451
Qty per pallet		24	24

MEDIUM GRILL		SP 015 P	SP 015       ECO
	Control	MANUAL	MANUAL
	Plate size	N° 1 400 x 300 mm	N° 1 400 x 300 mm
	Frequency	50 / 60 Hz	50 / 60 Hz
	Voltage	230 V~ 1N	230 V~ 1N
	Power	3 kW	2 kW
	Maximum temperature	400 °C	400 °C
	Dimensions w x d x h	481 x 457 x 182	481 x 457 x 182
	Packaging dimensions w x d x h	540 x 527 x 254	540 x 527 x 254
	Net weight	14,9 Kg	14,9 Kg
	Gross weight	16 Kg	16 Kg
	EAN Code	8029212016472	8029212016465
Qty per pallet		12	12

DOUBLE GRILL		SP 020 P	SP 020    ECO	SP 020 E
	Control	MANUAL	MANUAL	DIGITAL
	Plate size	N° 2 250 x 250 mm	N° 2 250 x 250 mm	N° 2 250 x 250 mm
	Frequency	50 / 60 Hz	50 / 60 Hz	50 / 60 Hz
	Voltage	230 V~ 1N	230 V~ 1N	230 V~ 1N
	Power	3 kW	2 kW	3 kW
	Maximum temperature	400 °C	400 °C	350 °C
	Dimensions w x d x h	619 x 458 x 176	619 x 458 x 176	619 x 458 x 176
	Packaging dimensions w x d x h	665 x 535 x 265	665 x 535 x 265	665 x 535 x 265
	Net weight	17 Kg	17 Kg	17 Kg
	Gross weight	19,4 Kg	19,4 Kg	19,4 Kg
	EAN Code	8029212015581	8029212015543	8029212015550
Qty per pallet		12	12	12

SPIDOFLAT™

SPIDOFLAT™

SpidoClean™

Spidocook™ S.r.l.

Via dell’Artigianato n°2
35010 Vigodarzere (PD) Italy
[email protected]
www.spidocook.com

LI1787A0.D00 – Printed: 10-2019
