THE FITNESS EARBUDS
USER MANUAL
INTRODUCTION
Welcome to your new Paycon Fitness Earbuds!
We are Payson. We create carefully crafted wireless audio products for go-getters who need tech that keeps up with them. We teamed up with expert engineers, leading taste-makers, and platinum artists to design products you’ll love to use.
We believe in the early risers and the one-more-milers of the world. Premium audio, inspired by you.
Before using your product, we strongly encourage you to fully read through this user guide. You can also visit our support center at www.rayconglobal.com/support. This web page has more specific guidelines and helpful videos for you to navigate your product. For the best performance, charge fully before first use.
Pairing ID: The Fitness Earbuds International Manual
For international versions of the manual, please visit www.rayconglobal.com/support.

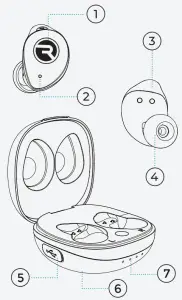

UNIT AT A GLANCE
- Touch Controls
- LED Indicator /Microphone
- Perfect Fit Stabilizer
- Gel Tips
- Charging Port
- Wireless Charging Capsule
- Battery Indicator
FEATURES AT A GLANCE
PERFECT FIT STABILIZERS
Perfect fit stabilizers make sure your Fitness Earbuds stay put even while you’re on the move.
IPX7 WATERPROOF
Tough conditions don’t get in the way of your workouts, they definitely won’t get in the way of your tunes because the Fitness Earbuds are IPX7 waterproof.
54 HOURS OF BATTERY LIFE
You don’t have time to wait around for a charge, that’s why the Fitness Earbuds have 54 Hours of battery life.
AWARENESS MODE
Stay focused on your workout but in tune with your surroundings with Awareness Mode.
VIVID VOICE TECHNOLOGY
Make your voice heard loud and clear even while you’re breaking a sweat with Vivid Voice Technology.
THREE SOUND PROFILES
Three Sound Profiles keep your workouts exciting by keeping the sound fresh.
QUICK START GUIDE
1. Take your earbuds out of the capsule. Both earbuds will connect to each other automatically.
2. From the source device, go to Bluetooth Settings, search for “The Fitness Earbuds” to pair, and select it to pair.
3. Enjoy your Paycon Fitness Earbuds!
CHARGING YOUR DEVICE

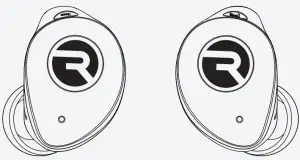

1. Charging the Earbuds
Place Earbuds in the capsule.

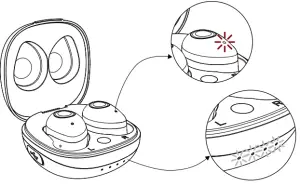

Charging
While charging, the lights on the earbuds will be red, and the lights on the capsule will be white.

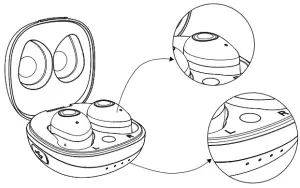

Fully Charged
Your earbuds are fully charged when the lights on both your earbuds and capsule turn off.
Call / Play: About 9 hours
Total battery life: About 54 hours

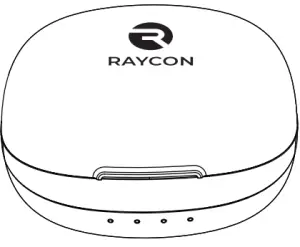

2. Charging The Capsule
Connect with Type-C cable

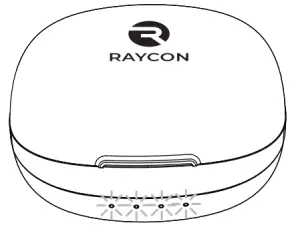

Charging
While charging, the lights on the capsule will blink white.
Fully Charged When fully charged, lights will turn off.
A fully charged capsule can completely recharge the earbuds up to S times before needing to recharge the capsule.
Wireless Charging: Simply place the case on any Qi-compatible charging mat.
FUNCTIONS

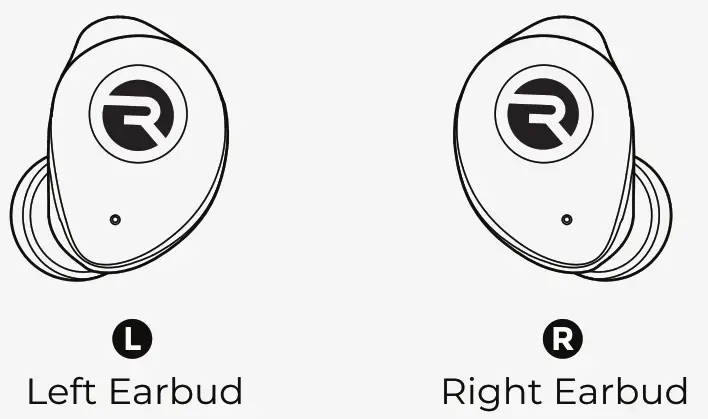

Control audio and other functions by tapping the logo R on the earbud
Media Player Control
Tap R for Volume Up
Tap L for Volume Down
Tap L/R 2 times for Play/Pause
Tap R 3 times for Next
Tap L 3 times for the Previous L/R 4 times to Activate Voice Assistant
Phone Call Control
Tap L/R 2 times for Answer/End Call
Hold L/R for 3 secs to Reject Call
Switch Control
Hold L/R for 3 secs or remove from capsule to Power On. Hold L/R for 10 secs or place earbuds in the charging capsule to Power Off.
SOUND PROFILES
Your sound, your way! As our sound profiles were crafted by artists and producers at the top of the industry, you’re in good hands.
PURE SOUND – Our most refined sound, perfect clarity to hear every single note.
BALANCED SOUND – A leveled sound that is great for all-around performance and warmth.
BASS SOUND – Our bass-boosted sound, great for songs with strong beats and a go-to for bass lovers.
Hold L for 3 secs to toggle between Sound Profiles
AWARENESS MODE
AWARENESS MODE Hear what’s happening around you.
Hold R for 3 secs to toggle Awareness Mode On/Off
HOW TO CHANGE GEL TIPS
Choose and install the gel tip that gives you the most comfortable and secure fit.

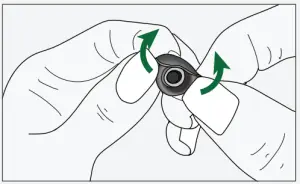

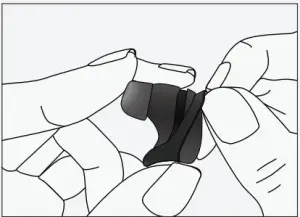

Flip the gel tip inside out.

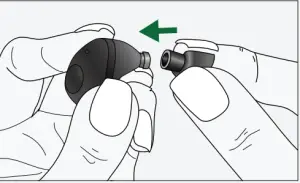

Align gel tip with earbuds and insert it.

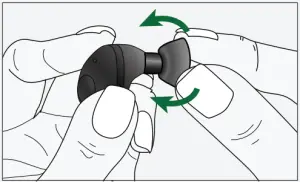

Flip the gel tip back to front.

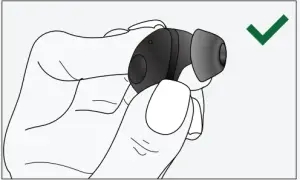

Make sure it is securely attached before you use it.

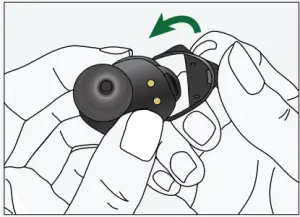

HOW TO CHANGE STABILIZERS
Ensure the stabilizer corresponds with the correct earbud.
Secure the inner hook of the stabilizer into the groove at the top of the earbud.
Guide the stabilizer into place.

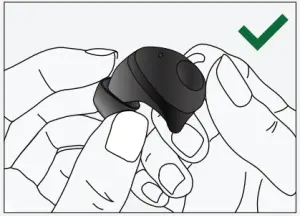

Ensure the stabilizer is fully secure before use.

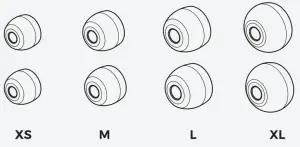

GEL TIPS
Customize your fit. Select the right size gel tip for you! Keep gel tips clean to ensure a great listening experience.
PERFECT FIT STABILIZERS
Find the Perfect Fit. Select the right size stabilizer for you!

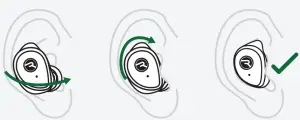

THE PERFECT FIT SHOULD LOOK LIKE THIS
Insert the earbuds into your ear.
Rotate The earbuds slightly forward.
The perfect fit should look like this.
SAFETY GUIDELINES
Please follow the safety guidelines below at all times when operating or caring for your device.
-Be wary of any edges, uneven surfaces, and metal parts, including on accessories and product packaging, to prevent any possible injury or damage.
-Listen to music at a proper volume to avoid damaging your hearing and the earbuds.
-Do not store in high temperatures, such as in a hot vehicle or in direct sunlight.
-Do not expose the earbuds or any of their supplied parts to rain or other liquids for extended periods of time. Follow IPX7 Rating Guidelines.
-If wet or submerged, please wipe dry as best possible before charging earbuds or capsules.
-Do not drop or cause undue impact to the earbuds.
-Do not modify, repair, or dismantle the product on your own.
-Do not use any diluent or volatile liquid to clean the product.
-Do not use the product in a hazardous location.
FAQ & ADDITIONAL RESOURCES
Visit: www.rayconglobal.com/support.
SUPPORT
If your device is not functioning correctly, please visit www.rayconglobal.com/support for customer support, and we will be more than happy to help you.
LIMITED WARRANTY
Visit: www.rayconglobal.com/warranty.
SPECIFICATIONS
Model Number: RBE74S
Bluetooth Name: The Fitness Earbuds
RDID: D745-21E-Q321
Bluetooth Version: 5.2
Power Input: DC 5V/1A
Capsule Battery Capacity: 3.7V/600mAh
Call / Play Time: About 9 hours
Charging Time: About 1-hour
Support Profiles: HSP/HFP/A2DP/AVRCP
Sensitivity: 102±3dB
Frequency Response Range: 20-20000Hz
Bluetooth Range: Up to 10 Meters
FCC WARNING
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure statement. The device can be used in portable exposure conditions without restriction
IC Caution:
– English: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
FCC ID: 2AZOV-PBE745 IC: 27185-PSE745
