Faithfull Ceramic Fan Heater Fppheat2kwc Instructions

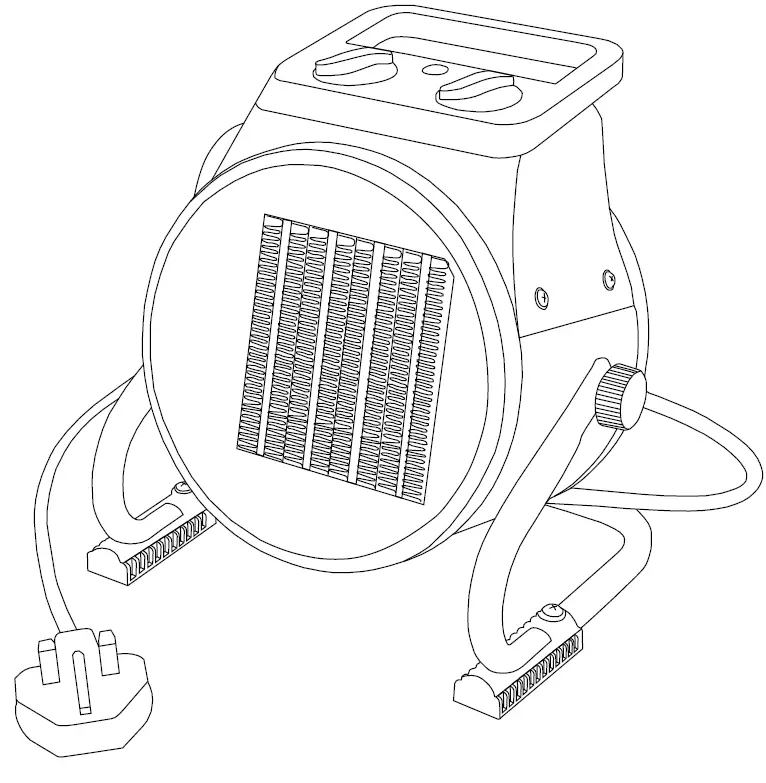

FAITHFULL Ceramic Fan Heater FPPHEAT2KWC

IMPORTANT: Read these instructions fully before using the fan heater. Retain these instructions for future reference.

This fan heater is designed for use in homes, garages, warehouses or workshops and incorporates an adjustable thermostat which allows the user to select the required temperature for the room in use.
Once set the internal thermostat will monitor the surrounding air temperature and controls the heating elements ensuring the heater maintains the desired room temperature. The self-resetting thermal cut-out will switch off the heater to ensure safety in the event of overheating.

When using the heater for the first time, you may notice an odor and some minor fumes. This is quite normal and will cease after a short time.

Specifications

• Product Code: FPPHEAT2KWC
• Waterproof of Class: IP20
• Voltage: 220-240V ~
• Power: 2000 Watts
• Current: 8.3-9.1A
• Required Fuse: 13A
• Settings: 1-2KW
• Self-resetting Thermostat: 65°C
• Product Dimensions: 160x210x221
• N.W (KG): 1.7

Precautions Prior to Use

• This fan heater is not suitable for use outdoors, in bathrooms, shower rooms, near swimming pools or in other damp environments.
• This heater will become very hot and should be placed at a safe distance from any flammable objects or anything that could interfere with or cover the fan.
• The heater must not be used in rooms where flammable liquids or gases are in use or stored.
• This heater must not be located immediately below a socket or other electrical outlet that may prevent access to it.
• Always connect the fan heater directly to a socket when possible, if an extension lead must be used it should be as short as possible, fully unwound and capable of carrying the load required.
• Do not use an external timer to operate this heater.
• You should not connect other appliances to the same socket as the fan heater unless you are confident you are not exceeding the load capacity.
• Make sure heater is never left unattended and away from children and animals.
• Do not place the heater on moving vehicles or any surface where the unit could tip over or be accidently disturbed.

NOTE: This product is only suitable for well insulated spaces or occasional use.

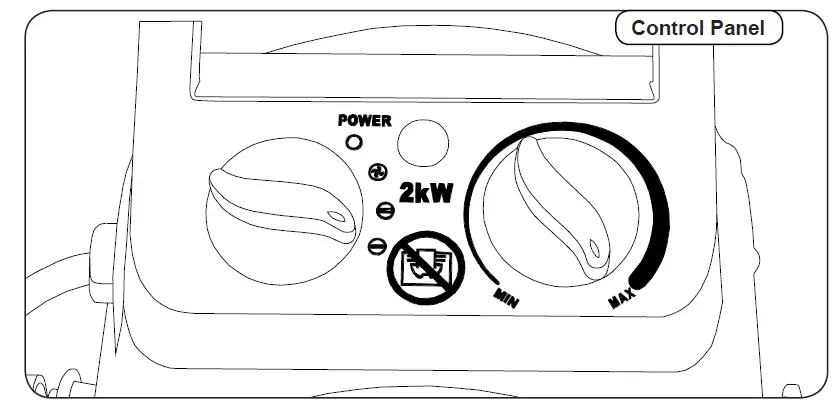

Operating Instructions

Left Control:

Clockwise: Off / Fan Only / Heat (1-2KW)
Position the fan heater so that it stands upright on a firm surface and at a safe distance from all flammable objects.
Ensure the heater is set to the off position and then connect to the mains outlet.
Switch on the mains supply.
Set the thermostat knob to the MAX and then select required output power mode. (FAN-1KW-2KW

Right Control:

Clockwise: Thermostat Dial Low / High
The fan heater will switch on, when the room reaches the required temperature turn down the thermostat until the heating element stops working. Once the ther-mostat has been set it will regulate the room temperature, as the temperature decreases the heating element will restart ensuring a constant room temperature. The fan and heater will now start and stop automatically.
Before switching off the heater, please turn the thermostat to MIN position and turn the selector to the fan position, let the appliance cool down for two minutes then turn off the heater, isolate the mains and pull out the plug.

Trouble Shooting

Cleaning
Disconnect the heater from the mains by removing the plug from the power outlet. If the product has been in use allow it to cool down completely before commencing any work. If the enclosure is dirty, wipe with dry soft cloth. Do not use water and never use solvents to clean the heater. Ensure the heater has been allowed to cool down completely.

Storage
If the heater is to be stored, ensure it has fully cooled down and is placed in a clean, dry area.

Maintenace
Any repairs undertaken must be carried out by a qualified electrician.

Contents and Construction

1x Ceramic Fan Heater. Supplied complete with 1.4m H05VV-F 3G 1.00mm cable and approved B/S1363/A molded plug.
The main unit and frame are constructed from steel plate and protected with a heat-resistant powder coating.

• The heater must never be left unattended while in use and should only be operated in accordance with the instructions provided.
• The user must fully understand all the hazards associated with the use of this heater. The heater should not be operated by minors or persons that are unfamiliar with the operating instructions.
• Do not cover the heater at any time.
• Do not operate the heater with wet hands.
• Parts of this product will become very hot and can cause serious burns if touched. Extra attention must be paid if children, vulnerable people or animals are present, they should be kept away from the heater and continuously supervised when it is in use or when cooling down.
• Children should never be allowed to play with or near this appliance.

NOTE:
If the heater stops completely due to the self-resetting thermal cut-out operating. Unplug the heater from the power supply and allow it to cool for ten minutes. This will prevent the heater starting unexpectedly.
It is essential that you read the instructions contained in this manual before using the heater for the first time. Failure to follow these instructions could result in damage to the heater, property damage or personal injury. This manual should be stored safely for future reference.

WEEE Disposal
Waste electrical production should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
