Breitling Ab0136251b1s1 Super Chronomat B01 44 Stainless Steel Watch Instructions

INSTRUCTIONS FOR USE

SUPER CHRONOMAT B01 44

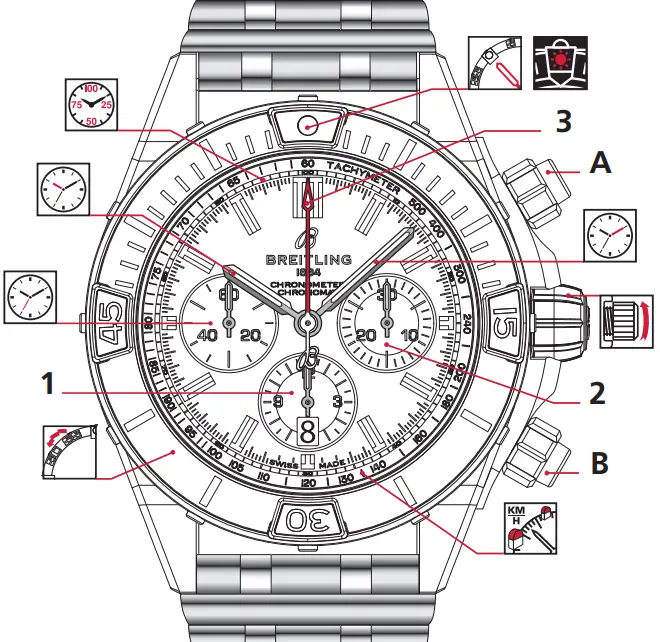

Hour hand	1 Chronograph hour totalizer	A Start / Stop push-piece	Tachymetric scale
Minute hand	2 Chronograph minute totalizer	B Reset push-piece	Bezel
Seconds hand	3 Chronograph seconds hand	1/100th H dial	Minute marker

Sapphire-protected Super-LumiNova® dot

PREPARATION FOR USE

WINDING – TIME-SETTING

1. Unscrew the water-resistant crown counter-clockwise. Wind the watch by approximately 40 clockwise turns of the crown.

2.  Pull the crown out to position 2, turn it clockwise to adjust the calendar to the day prior to the activation date.

3. Pull the crown out to position 3. Turn the hands forward until the correct date jumps into place, at midnight. Then adjust the hour and minute.

4.  Push the crown back into position 1. Press it gently, turning it gently clockwise, then tighten it again until you feel some resistance.


Do not force!

USING THE CHRONOGRAPH
I. MEASURING A SINGLE SHORT TIME
Your chronograph is equipped with safety push-pieces, which ensure enhanced water resistance and provide eff active protection against shocks. Consequently, the push-pieces can only be operated after unscrewing the retaining ring.

NB: it is recommended to keep the push-pieces screwed in when the chronograph is not in use.

1. Press pushpiece A to start the chronograph. Hand 3 keeps track of the measured time in seconds.
2. Stop the measurement by pressing pushpiece A once more. The measurement is made in hours (totalizer 1), minutes (totalizer
   2), seconds and 1 /4 of a second (hand 3).
3.  Reset the chronograph to zero by pressing pushpiece B.

II. MEASURING AND INTERRUPTED SHORT TIME

1.  Press pushpiece A to start the chronograph. Hand 3 shows the measurement in seconds.
2. To interrupt the measurement, press pushpiece A once more.
   To restart the time measurement, press pushpiece A. This procedure makes it possible to add up several short times.
3. The chronograph is reset to zero by pressing pushpiece B, once the fi nal measurement has been stopped.

SPECIAL CHARACTERISTICS

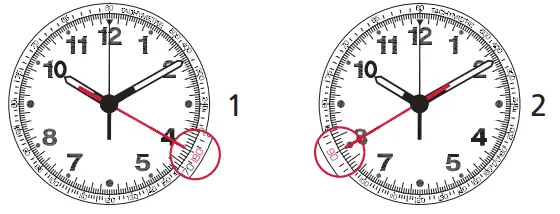

USING THE TACHOMETER
The tachometer is the graduation on the dial or flange of your Breitling chronograph enabling you to determine average speeds or hourly productivity rates, based on an observation period of fewer than 60 seconds.

1.  Average speed
   Using the chronograph to measure the time required to cover a kilometer or a mile. The final position of the second hand indicates the average speed. If it takes 20 seconds to cover 1 km or 1 mile, the scale respectively indicates an average speed of 180 km/h or 180 miles/h.
2. Hourly productivity rate
   Measuring the time required to produce 1 unit. If the chronograph is stopped at 40 seconds, the tachometric scale indicates 90, corresponding to an hourly productivity rate of 90 units.

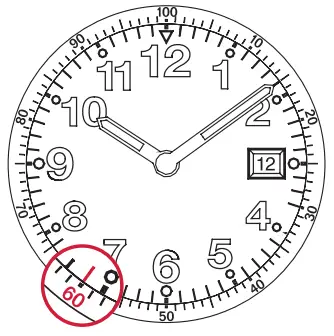

1 /100 the H DIAL
Your Breitling chronometer is equipped with a scale dividing the hour into hundredths, thus making it easier to read off the minutes on a decimal base.
E.g.: 0.6h = 36 minutes

SUN COMPASS
Your Breitling chronometer may be used as a sun compass, thus enabling you to determine North and South. For regions that have instated daylight saving time, subtract one hour when aligning the watch.

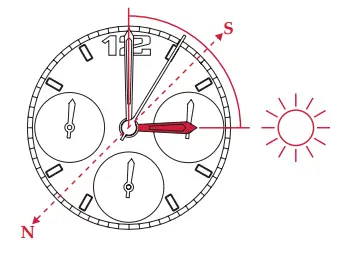

In the Northern Hemisphere
Point the hour hand precisely towards the sun. In relation to the watch dial, the point located midway between the current time and
12 o’clock indicates South, North being exactly opposite.

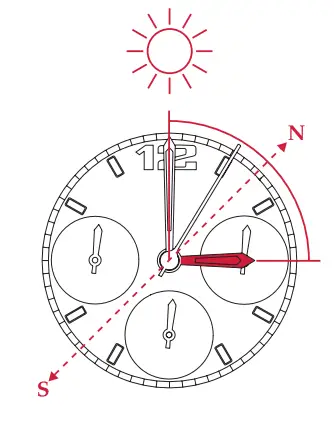

In the Southern Hemisphere
Point the hour-marker located at 12 o’clock on the dial precisely towards the sun. In relation to the watch dial, the point located
midway between the current time and 12 o’clock indicates North, South being exactly the opposite.

MAINTENANCE

Your Breitling chronometer is a sophisticated instrument that is constantly subjected to a wide variety of stresses and strains. Within a very small volume, a large number of components contribute to handling all the functions. Their mechanical action inevitably leads to a certain amount of wear and tear, which may be controlled by maintenance consisting of relubrication and replacing worn components. Like any precision measurement instrument, your watch must be regularly maintained in order to function at its highest level of potential: the frequency of this operation varies according to actual use. Breitling or your authorized retailer will be happy to handle the procedure.

WATER RESISTANCE
The movement of your chronometer is protected by a complex case fi tted with gaskets to ensure its water resistance. Under the infl uence of various external agents – perspiration, chlorinated or saltwater, cosmetics, fragrances, or dust – these gaskets gradually deteriorate. That is why water resistance cannot be permanently guaranteed. If used intensively in water, we recommend having an
annual water-resistance check conducted. In any event, such an appraisal must be done every two years. This operation, which takes only a few minutes may be conducted by a Breitling authorized maintenance center, or by an authorized retailer (www.breitling.com).

Breitling models are water-resistant to varying degrees. The extent of the water resistance, expressed in meters (M), is a standard value and does not indicate an absolute immersion depth. The crown and push-pieces must not under any circumstances be operated underwater or when the watch is wet. The table below indicates the conditions in which your watch may reasonably be used, according to its degree of water resistance:

ACTIVITIES /DEGREE OF WATER RESISTANCE	3 bar/30 M/100 FT	5 bar/50 M/165 FT	10 bar/100 M/330 FT	50 bar/500 M/1650 FT+
Splashing
Shower, swimming, surface water sports
Water-skiing, dives, snorkeling
Diving

If your watch is equipped with a screw-lock crown, ensure that this is locked before any use in water. This also applies to screw-lock push-pieces.

USEFUL TIPS
Breitling genuine leather straps are crafted with the most refi ned materials and represent extremely high-quality products. Like all objects in natural skin (shoes, gloves, etc.), their length of life varies considerably, according to the conditions in which they are worn. ln particular, water, cosmetics, and perspiration accelerate the aging process. A metal or synthetic Breitling bracelet is thus better suited to activities involving frequent contact with water or moisture.

Breitling metal cases and bracelets are made from fi nest alloys and guarantee sturdiness and wearer comfort. Regular cleaning by
rinsing and brushing in clean water will keep your watch shiny. This operation is strongly recommended after each immersion in salty
or chlorinated water. For watches fi tted with a leather strap, the same advice applies, as well as avoiding getting the strap wet.

WHAT TO AVOID
Like any valuable objects, Breitling chronometers deserve special care. It is important to protect them from jarring and knocks by hard objects, and not to expose them to chemical products, solvents, dangerous gases, or magnetic fi eds. Moreover, your Breitling chronometer is designed to run smoothly at temperatures ranging between 0°C and 50°C.

This booklet is completely made from residues of sugar cane instead of wood. The paper is biodegradable, compostable, and recyclable.

Printed in Switzerland
