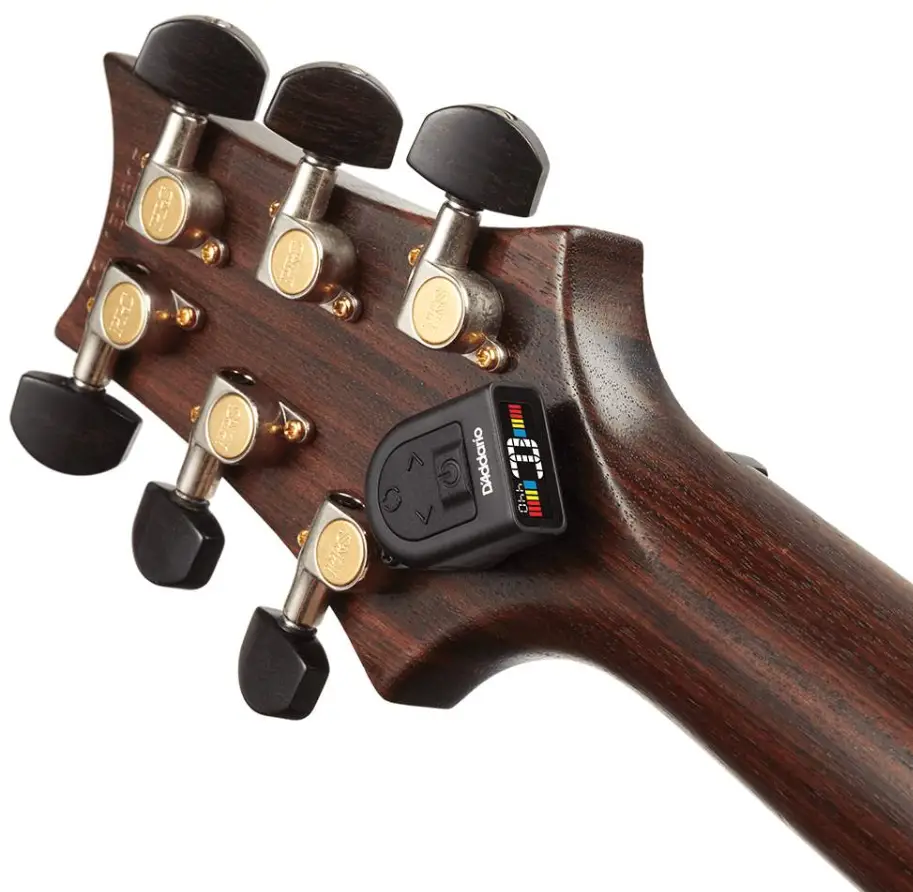

D ADDARIO PW-CT-21 Micro Clip-Free Tuner

D ADDARIO PW-CT-21 Micro Clip-Free Tuner

The ultimate in discreet tuning, the Micro Clip-Free Tuner features a full-color display with four selectable viewing angles (2 vertical, 2 horizontal) in an attractive, compact design. The included clip-free mount attaches directly to your instrument’s tuning machine (screws included) so your tuner is always at hand and visible only to you.

INSTRUCTIONS

  1. Attach tuner to included mount using the keyhole interlock.
  2. Remove screw from instrument’s tuning machine of your choice.
  3. Align tuner mount with tuning machine’s screw holes.
  4. Use one of the included screws to secure mount to tuning machine (match diameter of original screw, two sizes included). Do not over tighten.
  5. Rotate tuner for best viewing angle.

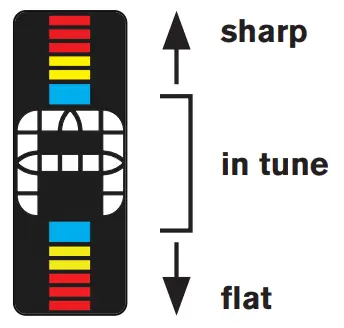

  • Vertical View
    Vertical View

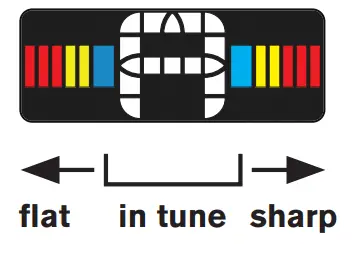

  • Horizontal View
    Horizontal View

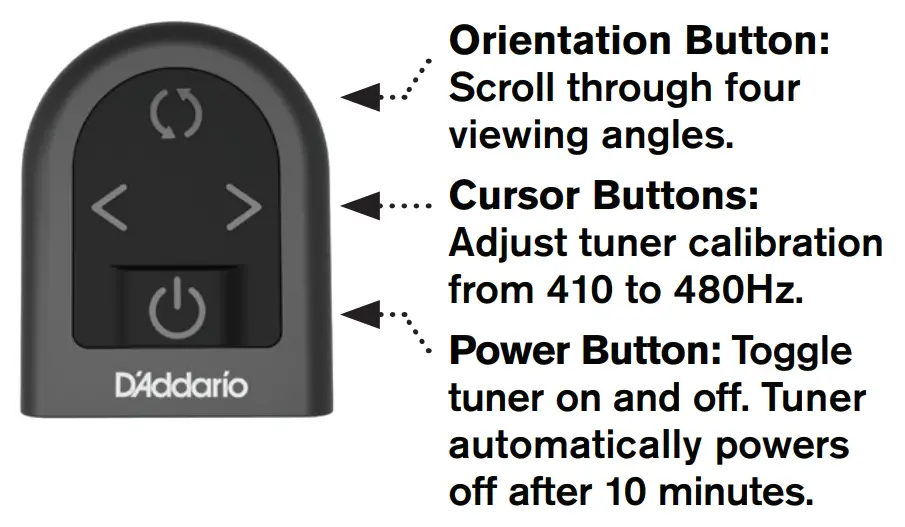

Function Button

Logo
