Joerns Oxford Ultrafine/ Ultrafine Lite Deluxe Leg Sling Instruction Manual

User Instruction Manual
Oxford ® UltraFine / UltraFine Lite Deluxe Leg Sling
To avoid injury, read user manual prior to use.
For alternative languages, contact your authorized service provider.Oxford ®
UltraFine /UltraFine Lite Deluxe Leg Sling

Introduction

The Oxford ® UltraFine Deluxe Leg sling incorporates flared leg sections for increased patient comfort and support. Integrated, low-friction rip-stop nylon to the leg sections ensures easier application. Available with or without head support and a choice of material options.
Special Sling Orders
On occasions, material, dimensional, and other changes outside of the standard specification are requested.
Please be advised, that aside of any model-specific references, fitting, washing and safety guidelines remain applicable. If you are in any doubt, please contact your authorized Oxford service agent or Joerns Healthcare directly.
Statement of Intended Use
A sling is an item of moving and handling equipment that is used with a mechanical lift in order to facilitate the transfer of a patient. It comprises a specially designed and constructed piece of fabric that is placed under and/or around a patient before being attached to the spreader bar/cradle of a lift to raise, transfer and lower the patient. When selected and used correctly, a sling and lift combination will achieve a safer transfer and reduce the risks associated with manual handling.
It is the responsibility of a competent person to conduct a thorough risk assessment prior to using any sling, to ensure that the sling choice, method of positioning in the sling, and procedure for transfer has been correctly determined for the patient. For further guidance, please contact your authorized Oxford Service Provider or Joerns Healthcare.
FOR USE WITH PASSIVE LIFTS ONLY.
Expected Service Life
The expected service life of an Oxford sling will vary dependent on use and following the care and washing instructions provided in the user guide. Factors such as wash temperature, detergents, frequency of use and patient weight will impact on the lifetime of your sling. Joerns Healthcare recommends that slings are checked each and every time prior to use to ensure the safety of the patient. Bleached, torn, cut, frayed or broken slings are unsafe and must be discarded and replaced. It is a requirement under LOLER (Lifting Operations and Lifting Equipment Regulations 1998) that slings are thoroughly checked and passed fit for use. For further advice, please contact your authorized Oxford Service Provider or Joerns Healthcare. Serious Incident Reporting
In the event of a serious incident taking place during the use of this product, affecting the patient and/or caregiver, it must be reported to the product manufacturer or authorized distributor. Should the incident take place within the European Union (EU), it must also be reported to the local competent authority within the member state.
WARNING

• OXFORD RECOMMENDS THE USE OF GENUINE OXFORD PARTS. Oxford sling and lift products are designed to be compatible with one another. For country-specific guidance on sling use and compatibility, please refer to the sling label or contact your local market distributor or Joerns Healthcare.
• For the safety of the patient and carer; before using a sling a full risk assessment must be conducted to ensure that the correct sling choice, method of positioning in the sling and procedure for transfer has been determined for the patient.
• CHECK sling and stitching before each use. Using bleached, torn, cut, frayed or broken slings is unsafe and could result in serious injury or death to the patient.
• DO NOT alter slings. Destroy and discard worn slings.
• NEVER leave a patient unattended.
• DO NOT exceed the rated capacity of the sling or lift.
• DO NOT attempt to re-position a patient by pulling on the sling loops.

WARNING – DETACHABLE SLING STRAPS
If your sling has detachable straps, it is critical to ensure they are securely attached to the sling prior to lifting a patient. Failure to do so may result in injury to the patient and/or caregiver. Feed each individual strap through the color-coded loop on the sling. Next, feed the strap through the ‘D’ ring and pull it back on itself. Ensure the strap is securely attached to the sling and repeat for the remaining straps.

Fitting the Sling from a Seated Position

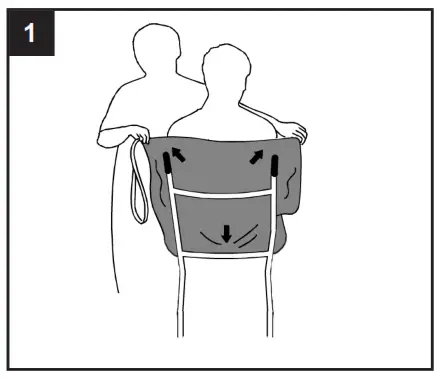

Make sure the positioning straps and sling identification label are on the outside of the sling. Feed the sling down the back of the patient, leaving the aperture at the base of the spine. Check the sling is square across the shoulders.

Whilst ensuring that the leg section is not twisted, carefully feed it under and up between the patient’s legs. Repeat this procedure for the other leg. Cross strap A through strap B.

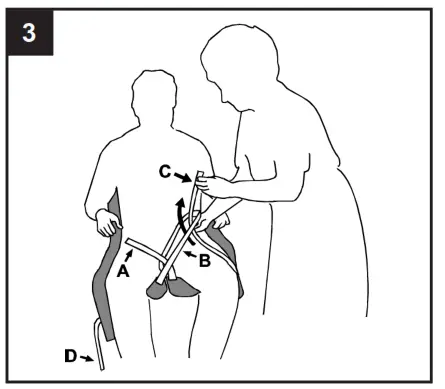

Pass strap C up through strap B then repeat for the other leg using strap D through strap A. Check the sling is smooth under the patient and the position is comfortable.

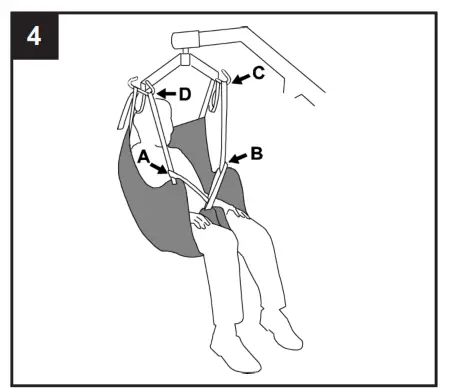

Move the hoist into position and attach the leg straps to the front hooks on the spreader. Next attach the shoulder straps to maintain an upright seated position. The lift may move towards the patient as you do this. When reseating the client, use the sling positioning handles to help achieve a safe and comfortable position.
NOTE: Sling positioning handles are designed for turning a patient only and must not be used for lifting.

Fitting the Sling from a Lying Position

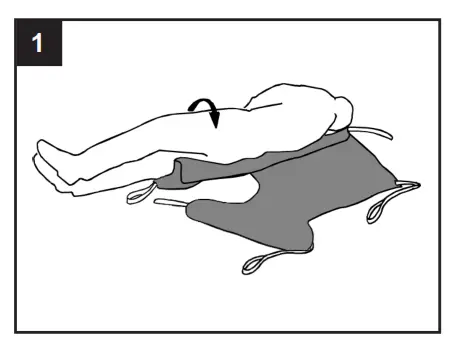

Safely position the client onto the sling, ensuring that the sling aperture is at the base of the spine.
NOTE: For added safety and support, Joerns Healthcare recommends the use of head support when lifting from the floor.
IMPORTANT: ENSURE THAT YOUR CLIENT’S HEAD IS SUPPORTED AT ALL TIMES DURING TRANSFER.

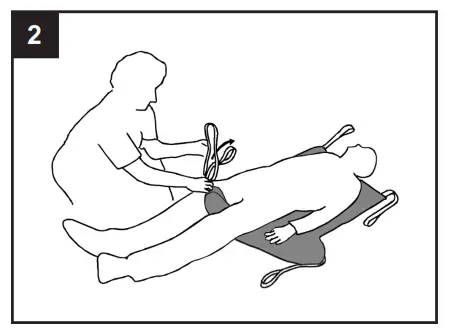

Carefully feed the leg sections under and up between the patient’s legs, ensuring that the sling is positioned comfortably and not twisted or creased under the thighs. Configure the leg straps in the same manner as with the seated position (step 3). Next, proceed to attach the sling to the spreader bar in the same manner as with the seated position (step 4). NOTE: The longer you attach the shoulder straps, the more reclined the client will be.

Attachment of the Head Support Strap

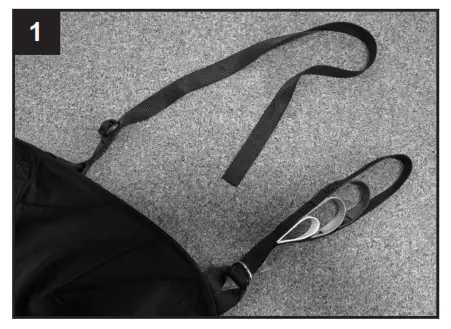

Head support strap unattached.

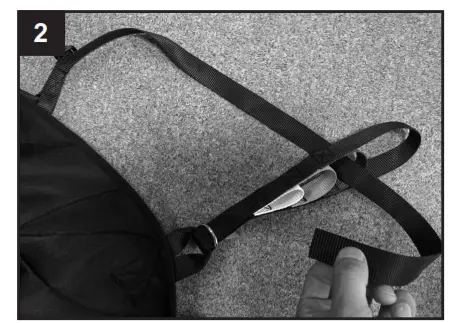

Loop the head support strap through a loop in the shoulder strap as shown. Ideally, the chosen loop on the shoulder strap will be the one in use to ensure a taught/secure fit during use. Blue has been selected in this example.Feed the end of the head support strap up through the plastic clip as shown.

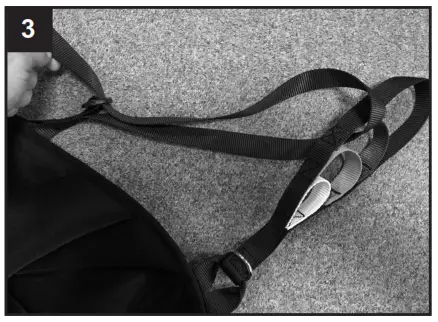

Feed it back through the opposite side of the plastic clip.

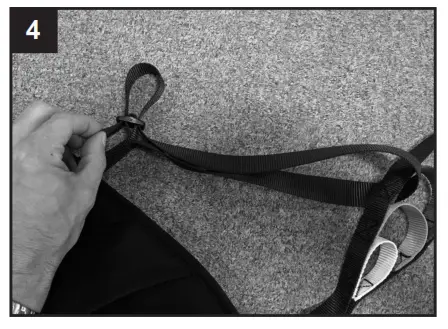

Pull through to secure and adjust the tension as necessary during use.

Technical Specifications

MD This product is a Medical Device in accordance with EU Medical Device Regulation 2017/745.

Sizing & Safe Working Load

For more information on sling dimensions, please contact us. For guidance on sling application, visit www.oxfordslingselector.co.uk.

Washing Instructions & Safety Checks

	Machine wash at 85ºC.
	DO NOT wash with bleach. Bleach will damage the sling’s material and make it unsafe for use.
	Cool tumble dry, air dry or dry at very low temperature.
	DO NOT dry clean.

https://joerns.co.uk/download/oxford-sling-safety-checks/

WARNING Slings can suffer damage during washing and drying and should be checked carefully before each use. Scan QR code or click here for important sling safety
checks and information.
PLEASE NOTE: Additional slings are available to meet individual patient needs. We advise that you always seek the advice of a trained clinician, authorized Oxford distributor or Joerns Healthcare prior to purchase or use.

End of Life Disposal

Slings and associated material accessories should be sorted as combustible waste in accordance with local or national regulations.

Joerns Healthcare Limited
Drakes Broughton Business Park, Worcester Road
Drakes Broughton, Pershore, Worcestershire
WR10 2AG United Kingdom
Tel: 0844 811 1156
• Fax: 0844 811 1157
[email protected]
• www.joerns.co.uk
© 2020, Joerns Healthcare • 6110203 Rev B • DCO20-0058
