YETI ARC Cycle Frame
CONGRATULATIONS ON YOUR PURCHASE OF A NEW YETI.
We are confident your new bicycle will exceed your expectations for value, performance, and ride quality. Each frameset and component has been custom specified and designed to enhance your riding experience. Whether you are a beginner cyclist, or a seasoned pro, your Yeti bicycle will provide endless hours of twowheeled fun.
This model specific manual is designed to be used in conjunction with the general Yeti Owner’s Manual and the manuals supplied by the suspension manufacturers. If you did not receive the Yeti owner’s manual or the manual provided by the suspension manufacturer, download the materials off the Internet, or contact your local dealer. Bicycling can be a hazardous activity even under the best of circumstances. Proper maintenance of your bicycle is your responsibility and when done properly helps reduce the risk of injury and damage to your bicycle.
This manual outlines basic setup and maintenance recommendations of your new Yeti. Because it is impossible to anticipate every situation or condition that may occur during the assembly, setup, and maintenance of your bicycle, Yeti recommends that all service and repairs be performed by your local authorized Yeti Dealer.
This manual contains many “Warnings” and “Cautions” concerning the consequences of failure to maintain or inspect your bicycle. The word “Warning” indicates a potentially hazardous situation in which , if not avoided, could result in serious injury or death.
The word “Caution” indicates a potentially hazardous situation in which, if not avoided may result in minor injuries or damage to your bicycle or a component of your bicycle. Be sure to read and understand all of the Warnings and Cautions listed in the manual
WARNING: Make sure you review and understand the warnings, instructions, and content of this manual and accompanying manuals for your bicycle.
WARNING: Technological advances have made bicycles and bicycle components more complex and the pace of innovation is increasing. It is impossible for this manual or the accompanying manuals to provide all the information required to properly repair and/or maintain your bicycle. In order to help minimize the chances of an injury, it is critical for you to have work performed by an authorized Yeti retailer.
THE LOWDOWN ON THE ARC AND ITS FEATURES
FRAME FEATURES
- MODERN GEO TO ELEVATE HOW HARDTAILS CAN BE RIDDEN

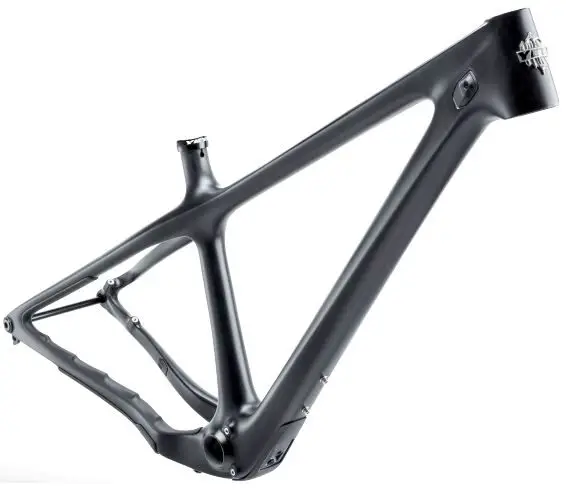

Cutting-edge, high modulus carbon is hand laid to create our Turq Series frames. That same stiffness and efficiency can also be found in our Carbon Series frame sets. - HIGH MODULUS CARBON FIBER MAIN FRAME AND SWING ARM
The ARC does away with the front derailleur mount, making it a 1x drive specific frame. - INTEGRATED 2-BOLT ISCG-05 MOUNTS
2-bolt ISCG-05 chain guide mounts are there for you in case you need extra drivetrain security for rowdy sections. - INTEGRATED 41MM / 52MM TAPERED HEADTUBE
Designed around 130mm of travel, the ARC comes with the latest Fox Racing Shox 34 front fork. - CUSTOM DOWN TUBE PROTECTOR AND RIBBED CHAIN GUARDS TO DECREASE CHAIN SLAP NOISE
Custom seatstay, chainstay and down tube guards keep the ride quiet while protecting the frame. - RATTLE-FREE CABLE PORT ASSEMBLY SECURES CABLES AND HOSES TOPROVIDE A SILENT RIDE
The ARC is designed with rattle-free cable ports and internally molded cable routing tubes keeping the bike quiet and clean looking while reducing cable rub and overall maintenance. - INTERNALLY MOLDED CARBON TUBES FOR HASSLE-FREE CABLE ROUTING AND A QUIET BIKE
Configurable routing ports that provide a clean look to your frame when you ditch the cables and go wireless. - INTEGRATED AXLE AND UNIVERSAL DERAILLEUR HANGER SYSTEM
Dedicated 12 x 148 Boost dropouts with SRAM’s universal derailleur hanger provide strength, stiffness and easy hanger and wheel installation. - BOOST HUB SPACING, FRONT AND REAR
- DUAL WATERBOTTLE MOUNTING LOCATIONS
- UNINTERRUPTED SEAT TUBE FOR COMPATIBILITY WITH WITH LONGER TRAVEL DROPPER POSTS
GEOMETRY
| FIT | |
| SMALL | 5’1″ (155 cm) – 5’7″ (170 cm) |
| MEDIUM | 5’5″ (165 cm) – 5’11” (180 cm) |
| LARGE | 5’10” (178 cm) – 6’3″ (191 cm) |
| X-LARGE | 6’1″ (185 cm) – 6’7″ (200 cm) |

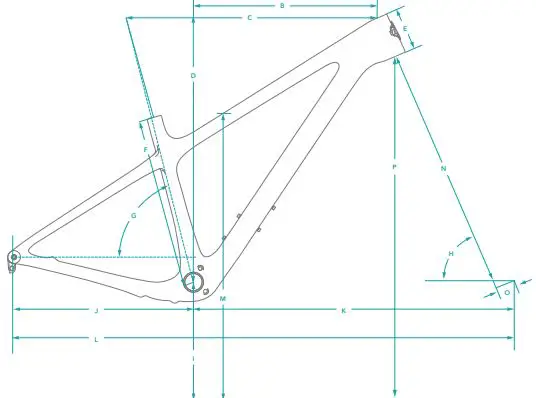

130MM FORK
| SM | MD | LG | XL | ||
| A | SEAT TUBE LENGTH | 380.0 | 410.0 | 450.0 | 495.0 |
| B | EFF. TOP TUBE LENGTH | 577.4 | 604.3 | 626.0 | 653.4 |
| C | HEAD TUBE ANGLE˚ | 67.0 | 67.0 | 67.0 | 67.0 |
| D | EFF. SEAT TUBE ANGLE˚ | 76.0 | 76.0 | 76.0 | 76.0 |
| E | CHAINSTAY LENGTH | 433.0 | 433.0 | 433.0 | 433.0 |
| F | WHEELBASE | 1143.5 | 1171.5 | 1194.2 | 1223.1 |
| G | EST. BB HEIGHT | 310.0 | 310.0 | 310.0 | 310.0 |
| H | STANDOVER | 723.0 | 722.0 | 720.0 | 720.0 |
| I | HEAD TUBE LENGTH | 95.0 | 102.9 | 109.6 | 119.6 |
| J | FORK (AXLE TO CROWN) | 543.7 | 543.7 | 543.7 | 543.7 |
| K | FORK OFFSET | 44.0 | 44.0 | 44.0 | 44.0 |
| L | STACK | 631.7 | 638.9 | 645.1 | 654.3 |
| M | REACH | 420.0 | 445.0 | 465.0 | 490.0 |
| N | FRONT CENTER | 710.5 | 738.5 | 761.2 | 790.1 |
| O | VERTICAL FORK TRAVEL | 119.7 | 119.7 | 119.7 | 119.7 |
*All measurements are in millimeters
KEEP YOUR YETI FRESH AND CLEAN
MAINTENANCE OVERVIEW
Following these guidelines will help maintain the performance of your bicycle and prevent more serious problems from arising. It is important to remember that service intervals can vary depending on climate, trail conditions and riding frequency. Servicing your bike requires special knowledge and tools. If you are unsure about working on your own bicycle, contact your authorized Yeti Dealer for more information on general bicycle maintenance.
|
SCHEDULE | BEFORE EACH RIDE | MONTHLY | 3 MONTHS | ANNUALLY |
| Clean and lube chain | • | |||
| Check tire pressure | • | |||
| Clean bike of mud and debris | • | |||
| Check brake function | • | |||
| Ensure all cable ends are covered with crimped cable end caps | • | |||
| Check rims for deformations or cracks | • | |||
| Check for loose bolts and tighten, if necessary | • | |||
| Check headset and tighten/loosen, if necessary | • | |||
| Check / replace brake pads | • | |||
| Check tires for wear | • | |||
| Check spoke tension, retention, if necessary | • | |||
| Check chain for wear, replace if necessary | • | |||
| Complete tune-up performed by an authorized Yeti Dealer | • |
TORQUE
Yeti strongly recommends using a torque wrench when assembling your frame. Torque specifications for individual parts on the ARC are listed below, as well as in the step by step assembly instructions later in the manual. For general bicycle maintenance please consult the torque specifications of the component you are adjusting.
KEY TORQUE SPECS
| ITEM # | DESCRIPTION | TORQUE (NM) |
| 300030010 | SHCS, M5 X 0.8, 16L | 4-5 |
| 300030177 | Screw, FH, M4 X 0.7, 25L | 2-3 |
| 300030174 | Screw, FH, M4 X 0.7, 15L | 3 |
| 300030173 | Screw, FH, M4 X 0.7, 10L | 2-3 |
| 300030162 | Universal hanger stopper | 5 |
| 300060080 | SRAM Universal hanger | 25 |
EXPLODED VIEW PARTS LIST
| ITEM # | PART # | DESCRIPTION | QTY |
| 1 | ARC FRAME ASSEMBLY | 1 | |
| 1.3 | 400100209 | DOWN TUBE GUARD, ARC | 1 |
| 1.4 | 400100210 | CS/SS PROTCTOR, ARC | 1 |
| 1.5 | 400100211 | CS LOWER PROTECTOR, ARC | 1 |
| 2 | HARDTAIL ASSEMBLY PARTS | 1 | |
| 2.1 | 300030148 | WASHER 5.1 X 8.9 X 1.0 MM | 4 |
| 2.2 | 300030010 | SHCS, M5 X 0.8, 16L | 4 |
| 2.3 | 300060078 | ASSEMBLY, YETI SEAT CLAMP, BOLT ON, 31.6 | 1 |
| 2.4 | 300060080 | SRAM UNIVERSAL HANGER | 1 |
| 2.5 | 300030162* | UNIVERSAL HANGER STOPPER | 1 |
| 2.6 | 300030173 | SCREW, FH, M4 X 0.7, 10L | 1 |
| 2.7 | 300040518 | COVER-CABLE PORT, SINGLE, RIGHT EXIT | 1 |
| 2.8 | 300040521 | CLAMP, HT PORT SINGLE, PA6 | 2 |
| 2.9 | 300040523 | COVER, HT PORT, BLIND, PA6 | 1 |
| 2.10 | 100425009 | AXLE, M12X1 X 174L, BOLT-ON, BLACK | 1 |
| 2.11 | 300040524 | CABLE PORT COVER, HEAD TUBE, 2 PIECE | 2 |
| 2.12 | 300040522 | CLAMP, HT PORT DOUBLE, PA6 | 1 |
| 2.13 | 300030177 | SCREW, FH, M4 X 0.7, 25L | 2 |
| 2.14 | 300040519 | CABLE PORT COVER, DOWN TUBE | 1 |
| 2.15 | 300040514 | CLAMP-LOWER PORT | 1 |
| 2.16 | 300030174 | SCREW, FH, M4 X 0.7, 15L | 2 |

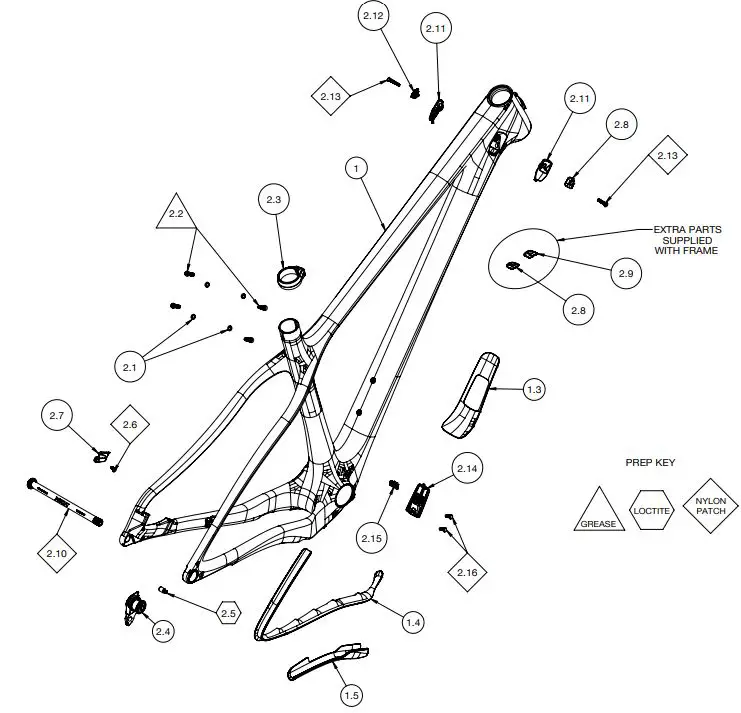

EXPLODED VIEW
FRAME ASSEMBLY
YETI TIPS
Make sure your tools are in good condition. A worn allen key can round the hex on a bolt not allowing for proper torque.
Torque settings are listed throughout the instructions and on page 10 of this manual. It is important to prep all bolt threads. The instructions denote whether to use a Loctite compound or grease. Reference Exploded View for assembly part locations listed in parentheses.
WARNING: Service on Yeti bicycles requires special knowledge and tools. Yeti Cycles recommends that all service and
TOOLS NEEDED
- 2.5mm allen key
- mm allen key
- 8mm allen key
- Torque wrench

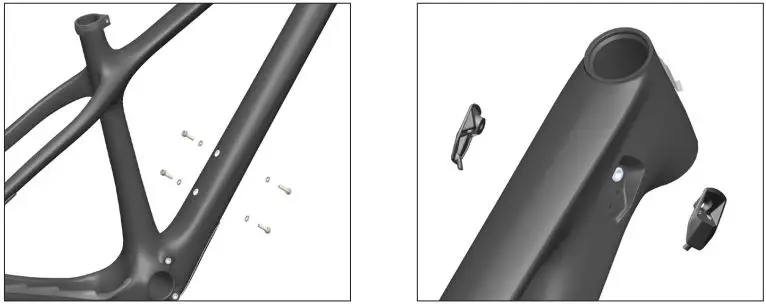

- Grease 4x H20 Bolts (2.2) and install with washers (2.1) to frame downtube. Torque: 4-5 Nm
- Place a Head Tube Cable Port Cover (2.11) into each recess behind the head tube.
- Place a Double Port Clamp (2.12) into the non-drive side cover and a Single Port Clamp (2.11) into the drive-side cover. Secure with M4 x 25L screws.
Tighten until snug. Hardware can be torqued to 2-3 Nm after housing installation. - ssemble a Lower Port Clamp (2.15) to the Down Tube Port Cover (2.14) using a Flat Head M4 x 16L screw. Hardware can be torqued to 2-3 Nm after housing installation.

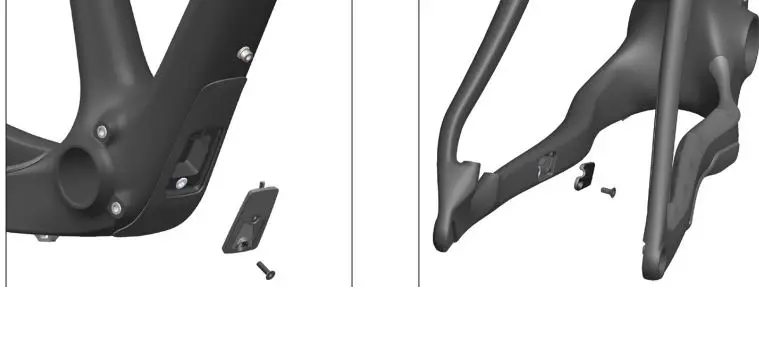

- Install the Down Tube Port Cover (2.14) into the frame with a Flat Head M4 x 16L screw (2.16). Torque: 3 Nm
- Install the Chainstay Cable Port Cover (2.7) to the non-drive side chainstay port and secure with Flat Head M4 x 10L.
Hardware can be torqued to 2-3 Nm after housing installation

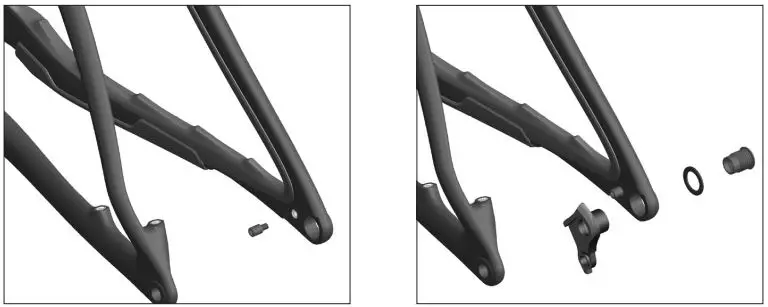

- Apply Blue Loctite 243 to threads of the Hanger Stop Bolt (2.5).
Install Stop Bolt into rear dropout.
Some bikes will not require a UDH stop bolt.
Torque: 5 Nm - Install Universal Hanger (2.4) into frame. Do not use grease. Note that hanger cap bolt is REVERSE THREADED. Torque: 25 Nm
- Note that different Port Clamps may be used for different configurations of shifter and dropper seatpost. An extra single-port and blank cover are provided depending on your needs.
FRAME ASSEMBLY IS COMPLETE
REBUILD KITS
| 200020368 | ARC MASTER REBUILD KIT | |
| 300030162 | STOP BOLT, UNI HANGER | 1 |
| 300030173 | CAP SCREW, FH, M4 x 0.7, 10L | 1 |
| 300030174 | CAP SCREW, FH, M4 x 0.7, 16L | 2 |
| 300030177 | CAP SCREW, FH, M4 x 0.7, 25L | 2 |
| 300040514 | CLAMP, DT CABLE PORT | 1 |
| 300040518 | CABLE PORT COVER, REAR CHANSTAY | 1 |
| 300040519 | CABLE PORT COVER, DOWN TUBE | 1 |
| 300040521 | CLAMP, HT PORT, SINGLE | 2 |
| 300040522 | CLAMP, HT PORT, DOUBLE | 1 |
| 300040523 | COVER, HT, NO PORT | 1 |
| 300040524 | CABLE PORT COVER, HT | 2 |
|
400100213 |
ARC PROTECTOR KIT | |
| 400100211 | CS LOWER PROTECTOR, ARC | 1 |
| 400100210 | CS/SS PROTCTOR, ARC | 1 |
| 400100209 | DT GUARD, ARC | 1 |
|
HANGER | ||
| 300060080 | SRAM UNIVERSAL HANGER, 20190506 | 1 |
|
AXLE | ||
| 100425009 | REAR AXLE 148×12 UDH BLACK | 1 |
FOX TRANSFER POST INSERTION GUIDE

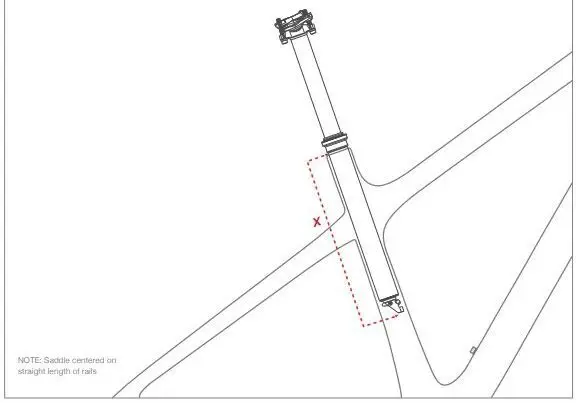

Measure from top of seattube to bottom of dropper post as shown below (measurements in mm)
| FOX TRANSFER | ||||
| POST SIZE | 125 | 150 | 175 | |
| FRAME SIZE | SMALL | 228 | 258 | 290 |
| MEDIUM | 228 | 258 | 290 | |
| LARGE | 228 | 258 | 290 | |
| X-LARGE | 228 | 258 | 290 | |
| MAX INSERTION (ST top to widget) | ||||
For more information on Yetis Cycle’s Shock Setup guide, visit https://shocksetup.yeticycles.com/bikes
YETI ARC | OWNER’S MANUAL
LIFETIME WARRANTY
HERE’S EVERYTHING YOU NEED TO KNOW ABOUT OUR LIFETIME WARRANTY:
All 2019 (or newer) frames, including the Switch Infinity, are covered for life against damage due to manufacturing defects for the original purchaser. Paint and finish are covered for 1-year. We will repair or replace, at our discretion, any frame we deem defective. There are a few conditions: you must register it online at yeticycles.com and you must take it to an authorized Yeti Cycles dealer for processing. Warranty does not cover damage due to ordinary wear and tear, neglect or intentional destruction. From a slingshot or your truck.
If you happen to have a crash or non-warranty situation, we’ll get you back on the trail with a reasonable replacement price. Same conditions as above.
Lifetime Warranty applies to all 2019 and newer frames (including the SB100). Model year 2018 and older frames will be covered under our previous warranty (5-year or 2-year based on time of purchase).
Simple as that. No fine print.
DISCLAIMER
YETI Cycles is not responsible for any damages to you or others arising from riding, transporting or other use of your bicycle. In the event that your frame breaks or malfunctions, YETI Cycles shall have no liability or obligation beyond the repair or replacement of your frame pursuant to the terms outlined in the warranty.
*If you have a warranty concern, please contact your authorized Yeti Cycles dealer.
YETI CYCLES
621 Corporate Circle, Unit B Golden, CO 80401
(p) 303-278-6909 (f) 303-278-6906 yeticycles.com
BUSINESS HOURS
Monday-Friday 8AM-11:30AM
1:00PM-5:30PM (MST)
