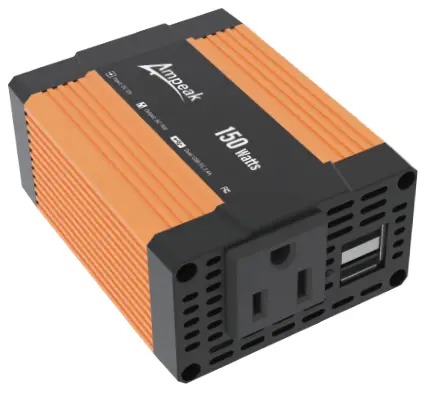

Ampeak 150W Safe Power Inverter

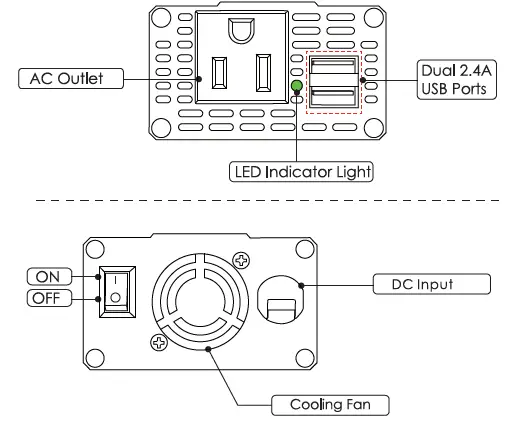

Overview
Inverter Operation
- Insert the inverter’s DC plug into the vehicle’s 12-Volt cigarette lighter socket.
- Plug your AC product into the 110-Volt AC outlet on the Inverter, switch AC product on.

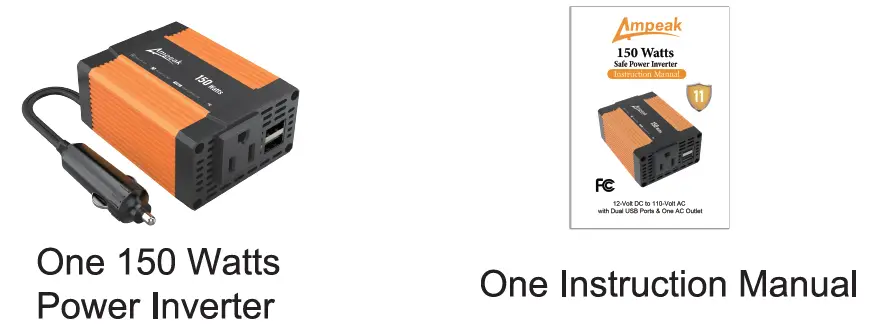

What is included
Specifications
Battery Input:
| 1 | Continuous Input Voltage: 12V |
| 2 | DC Voltage Input Range: DC 11V- 15V |
| 3 | DC Input Low Voltage Warning: 10.5t 0.5V |
| 4 | DC In put Lo w Vo lt age Shutd ow n: 9 .5 Vt 0.5V |
| 5 | DC Input Low Voltage Reoovary: 11.5V±0.5V |
| 6 | DC Input Overvoltage Pro tection: 16V±0.SV |
| 7 | No -Load Input Voltage: 12V |
| 8 | Input DC Fuse . 25A |
Inverter Output:
| 1 | AC OLitput v oI1;:igc: AC 1oov-12ov |
| 2 | Output Conti nuous Power: 150 Watl.S |
| 3 | O u tput Overloa d Powe r: >180 Watts |
| 4 | OutputSurge P01′.1er : 300 Wans |
| 5 | AC Outpu t Fre quency : 60 t 1Hz |
| 6 | O ut put Voltaoe Waveform: Modified Sine Wave |
| 7 | Full LoadEfficiency: •% |
| 8 | Inv erter O ve rh ea t P rotect ion: Int erna l Elect ron i c Components of Inverter Temperature > 105u C / 221u F |
| 9 | USB Output Voltage: SV |
| 10 | USB Output Current: Dual 2.4A |
| 11 | Operating Temperature: -10″C/14°F – 40 C/104 °F |
| 12 | Advice Storage Temperature: -20″C/-4GF-6 5c Cl 149° F |
Protections
| Prot ection Nam e | Audible Alarm | |
| 1 | Ba ll ery Low Vol tage Warnings | lnput Voltage:10.5 ±0.SV Alarm Sound ·01 or (2 Sounds) Continuous Alarm for 30 Seconds |
| 2 | Battery Low Voltage Protection | lnput Voltage: 9.5Vt 0.5V Alarm Sound •01 rn• ( 2 Sound s) Co n t inuo us Alarm for 60 Seconds |
| 3 | Battery Over Vonage Proteclion | Input Voltage: 16Vt 0.5V Alarm Sound· 0 1 DI DI” (3 Sounds ) Co n tinuous Alarm for 60 Seconds |
| 4 |
Output Overload Protection | Output Wattage>180W Alarm Sound •0 1 DI DI DI” (4 Sounds) Continuous Alarm for 60 Seconds Alk>w Two Recovery , Program locked Permanently in the ThirdTime |
| 5 | Output Over Current Protection | Output Electric Current>1.65 Amps Alarm Sound “DI DI 01 DI “(4 Sounds) Continuous Alarm for 60 Seconds |
| 6 | Output Short Circuit Protection | Alarm Sound “DI DI DI DI” (4 Sounds) Continuous Alarm for 60 Seconds |
| 7 | Inverter Overheat Proteclion | Internal Electronic Components of Inverter Temperature >105 °C.122 1 ° F Alarm Sound “DI” (1 Sound) Continuous Alarm for 30 Seconds |
| 8 | Inverter Overcool Protection | LED lndicalor lighlis Red |
| 9 | Inverter Low Voltage Protection | LEOIndicatolrightisRed |
| 10 | Inverter Over Voltage Pmteclion | LEDlndlcalor lightIs Red |
| 11 | USS Short Circuit Protection | NoAlarm Remind USB Ports Stop Working |

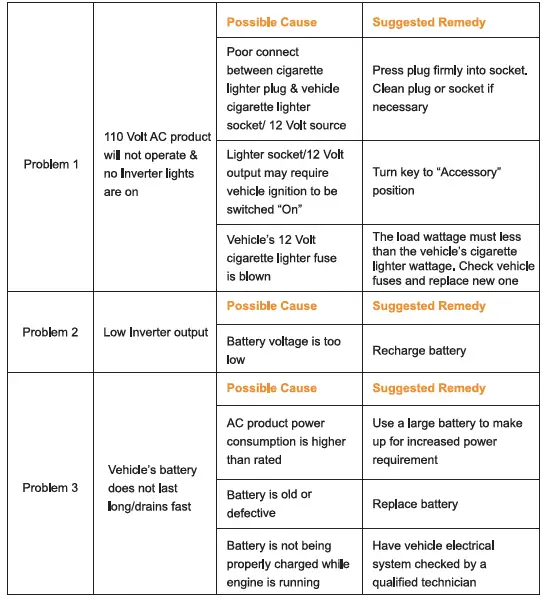

Troubleshooting
LED Lights
- The ON/OFF switch will send 110 Volts of AC power output to the Inverter’s AC Outlet when switched ON.
- The green LED indicates AC power is present at the AC Outlet and the inverter is operating normally.
- The red light LED indicates that the inverter in protections
LIMITED WARRANTY
18-Month Limited Warranty Policy
18-Month Limited Warranty Policy is the only one that applies to this unit, and it sets forth all the responsibilities of Ampeak. There is no other warranty, other than those described herein. Any implied warranty of merchant ability or fitness for a particular purpose on this unit is limited in duration to the duration of this warranty. This unit is warranted to the original purchaser only to be free of defects in materials and workmanship for 18-month from the date of purchase without additional charge. The warranty does not extend to subsequent purchasers or users. Ampeak will not be responsible for any amount of damage in excess of the retail purchase price of the unit under any circumstances. Incidental and consequential damages are specifically excluded from coverage under this warranty. This unit is not intended for commercial use. This warranty does not apply to damage to units from misuse or incorrect installation/connection. Misuse includes wiring or connecting to improper polarity power sources.
RETURN/REPAIR POLICY
If you are experiencing any problems with your unit, please contact Ampeak Customer Service Department at: [email protected] returning the product to Amazon. After speaking to a customer service representative, if products are deemed non-working or malfunctioning, the product may be returned to amazon within 30 days of original purchase. Any defective unit that is returned to Amazon within 30 days of the date of purchase will be replaced free of charge or fully refunded at the buyer’s option. If such a unit is returned more than 30 days but less than 18-month from the purchase date, the manufacturer will repair the unit or at its option, replace it, free of charge. If the unit is repaired, new or reconditioned replacement parts may be used, at the manufacturer’s option. A unit may be replaced with a new or reconditioned unit of the same or comparable design. The repaired or replaced unit will then be warranted under the terms of the remainder of the warranty period.
LIMITATIONS
This warranty does not cover accessories, such as adapters and batteries, damage or defects resulting from normal wear and tear(including chips, scratches, abrasions, discoloration, or fading due to usage or exposure to sunlight), accidents, damage during shipping to our service facility, alterations, unauthorized use or repair, neglect, misuse, abuse, failure to follow instructions for care and maintenance, fire and flood.
IMPORTANT SAFETY INFORMATION SAFETY STATEMENT
It is the responsibility of the owner to make sure all personnel read this manual prior to using the device. It is also the responsibility of the device owner to keep this manual intact and in a convenient location for all to see and read. If the manual or product labels are lost or not legible, contact Ampeak for replacements or an electronic edition If the operator is not fluent in English, the product and safety instructions shall be read and discussed with the operator in the operator’s native language by the purchaser owned or his designee, making sure that the operator comprehends its contents.
READ ALL WARNINGS AND FOLLOW ALL INSTRUCTIONS BEFORE OPERATING THIS PRODUCT!
WARNING: RISK OF SHOCK, FIRE, AND EXPLOSION.
The inverter produces the same potentially lethal AC power as normal household outlets. It is suggested that you treat it as a normal AC outlet.
- DO NOT insert foreign objects into the AC outlet, the USB port, or the ventilation hole
- DO NOT use this product where there are flammable fumes or gases, such as in the bilge of a gasoline-powered boat, or near propane tanks.
- NEVER smoke or allow a spark or flame in the vicinity of the engine or batteries.
- Make sure the inverter wiring is of proper size and rating and in good condition.
- Operating the inverter with damaged wiring may void warranty.
- DO NOT attempt to fix the unit by disassembling or modification. You can cause self-injury and disassemble and modifying the unit will void your warranty.
- Disconnect DC power source from the inverter, before attempting to service, clean, or operate on any circuits connected to the inverter. Simply turning OFF the switch of the inverter will not disconnect the power, thereby causing electric shock.
- Never connect the inverter to any power distribution systems or branch circuits.
- DO NOT make any electrical connections or disconnections in areas designated as ignition protected. This unit is NOT approved for ignition-protected areas.
- Connect the unit to a power source with a normal output of 12v DC ONLY. 6V battery voltages are too low and 24V battery voltages are too high. which will damage the unit.
- DO NOT use the inverter in temperatures above -10°C/14°F~40°C /104°F
- DO NOT expose this product to water, rain, snow, condensation, or spray.
- DO NOT connect the unit to live AC power circuits or there will be damage to the inverter.
- DO NOT connect any AC device which has its neutral conductor connected to the ground to the unit.
- DO NOT use the inverter with medical devices since it is not approved for medical applications.
- DO NOT permanently install the unit in the engine compartment. Certain chargers for small nickel-cadmium batteries can be damaged if connected to the inverter.
- DO NOT use the inverter beyond its rated wattage capacity. Add the total watts of all connected appliances and be sure the total is less than the inverter’s capacity.
This product may contain one or more chemicals known to the state of California to cause cancer and birth defects or other reproductive harm. Wash hands thoroughly after handling.
NOTE:
If you are unsure about using your rechargeable appliance with the inverter, contact the Ampeak: [email protected] to determine the rechargeable appliances’ compatibility with the inverter.
