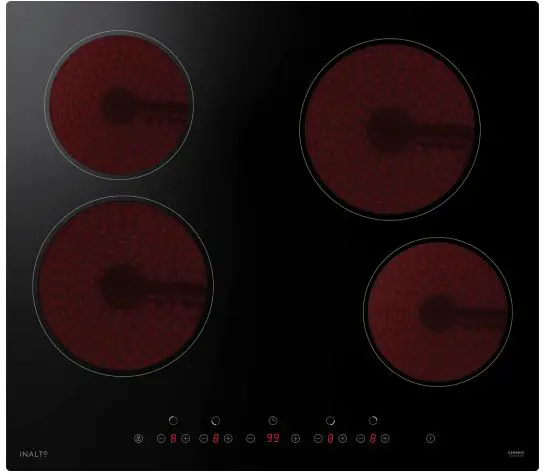

INALTo ICC604TB1 60cm Ceramic Cooktop

INALTo-ICC604TB1-60cm-Ceramic-Cooktop-PRODUCT

FEATURES

  • 4 Cooking Zones,
  • Front Touch Controls,
  • 9 Power Levels,
  • 99 Minute Timer,
  • Residual Heat Indicators
  • Durable Ceramic Glass with Beveled Edges,
  • Child Lock

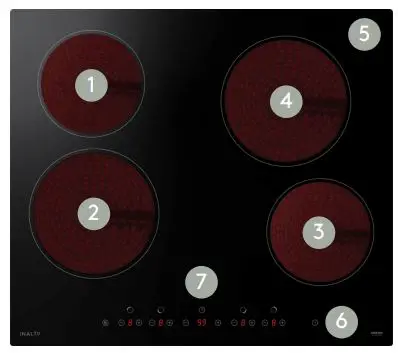

YOUR COOKTOP

Legend:

  1. Max. 1200 W zone
  2.  Max. 1800 W zone
  3.  Max. 1200 W zone
  4.  Max. 1800 W zone
  5.  Glass plate
  6.  ON / OFF
  7.  Control panel

USING YOUR COOKTOP

To start cooking:

  • Touch the “ON/OFF” control and all the indicators will show “-”.
  • Make sure the bottom of the pan and the surface of the cooking zone are clean and dry.
  • Then place a suitable pan on the cooking zone that you wish to use.
  • Select a heat setting by touching the “-” or “+” button controls. The options range from 0–9. You can modify this temperature at any time during cooking.
    To end cooking:
  • Turn a specific cooking zone off by scrolling down to “0” or touching the “-” and “+” controls at the same time.
  • Alternatively, turn the whole cooktop off by touching the ON/OFF control.
  • After a cooking zone is turned off, the corresponding indicator will show “H” until the zone has cooled to a safe temperature.
    Note: For further operation instructions refer to pages 10–12 of your user manual.

DETAILS

Dimensions (W, D, H mm): 590 × 520 × 55 Built-in Dimensions (W, D mm): 560 × 490 Warranty: 3 Years (2 + 1 on registration)

SUPPORT

Telephone: 1300 11 4357
Email: [email protected]
