Metal Gate
> gate with no extensions fits: 73cm – 82cm
> gate with 1x 10cm extension fits: 83cm – 92cm

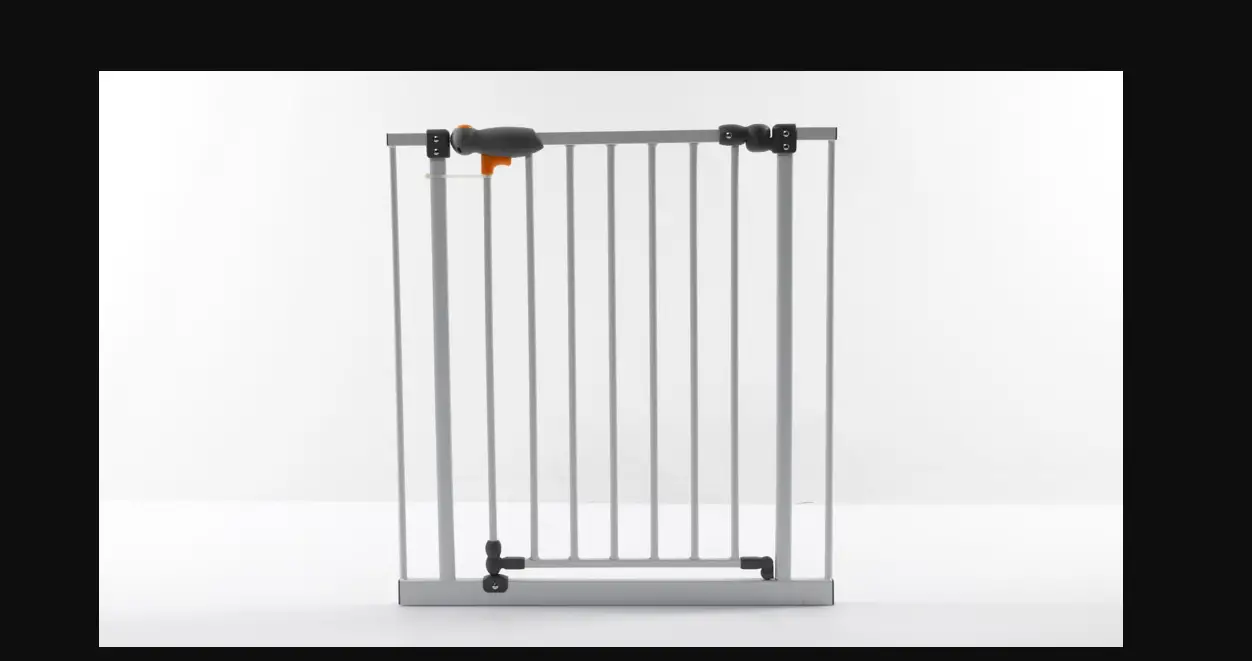

> gate with 2x 10cm extensions fits: 93cm – 102cm
Instruction Manual
SCAN HERE FOR MORE INFORMATION ON INSTALLATION OR SPARE PARTS.
OR VISIT:
CHILDSAFETYHELP.COM.AU
IMPORTANT! READ AND FOLLOW THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE.
THIS PRODUCT CONFORMS TO EN1930:2011
WARNINGS
WARNINGS
| WARNING | To prevent serious injury or death, securely install gate or enclosure and use according to manufacturer’s instructions. |
| WARNING | Never leave child unattended when using this product. |
| WARNING | Incorrect installation can be dangerous. |
| WARNING | Do not use the safety barrier if any components are damaged, missing or disassembled. |
| WARNING | The safety barrier must not be fitted across windows. |
| WARNING | Never use with a child able to climb over or dislodge/open the safety barrier which may cause danger. |
| WARNING | Never install this product on glass doors. Install this product against reliable doors or walls. |
| WARNING | To prevent falls, never use this product at the top of stairs. |
| WARNING | If the safety barrier is used at the bottom of the stairs, it should be positioned at the front of the lowest tread possible. |
| WARNING | To prevent injury, do not put any goods which can be grabbed by children or pets near this product. |
| WARNING | Before using this product, carefully inspect for any loose parts and whether any parts need to be tightened. |
| WARNING | Ensure the product to be installed is horizontal and flat on the floor. |
| WARNING | This product is intended for use with children from 6 to 24 months or small to medium pets. |
| WARNING | Regularly check that the safety barrier is properly installed and secure. |
| WARNING | Any additional or replacement parts should be obtained from Kmart Australia Ltd. |
| WARNING | Barrier must be fitted between rigid surfaces such as plaster board, timber or hardwall. |
| WARNING | Always check that the safety barrier is correctly closed. |
| WARNING | Use only with the locking/latching mechanism securely engaged. |
| WARNING | This safety barrier is for domestic use only. |
| WARNING | Never use without mounting cups. |
| WARNING | This safety barrier has a manual closing system. |
| WARNING | This safety barrier must be fitted between a rigid surface such as doorways, walls or stair posts along with wall cups secured with screws. |

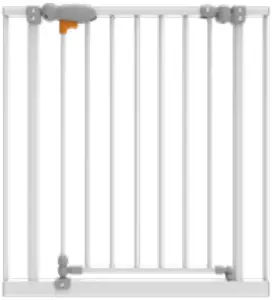

PARTS
INCLUDES
1 x Safety Gate 2 x 10cm Gate Extensions
4 x Adjuster Bolts 4 x Screws 4 x Adhesive Pads
4 x Adjuster Screws 4 x Extension Pins 4 x Mounting Cups
INSTALLATION
NOTE

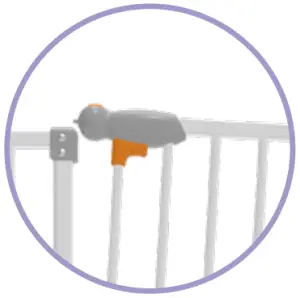

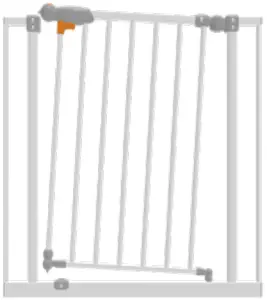

When you unpack the gate, you may notice a gap at the door opening. This is normal with pressure mounted gates and the gap will disappear when it is installed correctly.
INSTALLATION
GATE PLACEMENT
Gate must be installed in a structurally sound opening. Ensure mounting surface (wall, door frame, stair etc.) is strong, rigid and has an even surface.
If using gate on a stairway, it must be placed on the lowest step.

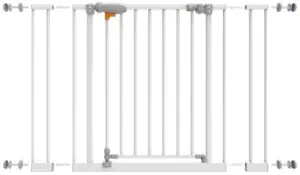

EXTENSIONS
1. Measure the space to be enclosed. You may need to use extensions.
Gate with no extensions fits: 73cm – 82cm
Gate with 1x 10cm extension fits: 83cm – 92cm
Gate with 2x 10cm extension fits: 93cm – 102cm
Note: Only use one extension on each side of gate.
INSTALLATION
INSIDE OPENING OR DOORWAY

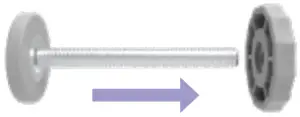

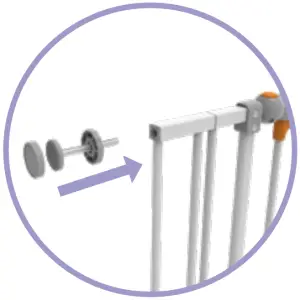

1. Screw Adjuster Bolts and Screws together and then place into mounting holes in each corner of gate.

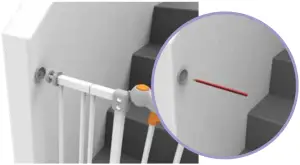

2. Place the gate in opening and ensure the bottom rail is completely flat on the floor and the Mounting Cups are directly above each other. Mark the position of each Mounting Cup on the wall and/or stair post.

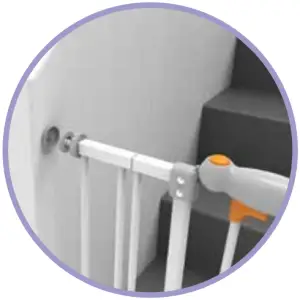

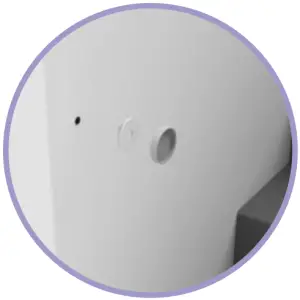

3. Stick the Mounting Cups in position with the Adhesive Pads and then place gate into position.

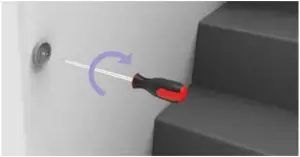

For added security, fix each cup to the wall using a small Phillips head screwdriver (not included) and the Screws provided.
The gate must only be fixed to a solid and secure surface. If unsure, check with a qualified builder or trades person that the installation you intend is suitable and safe within the chosen location.

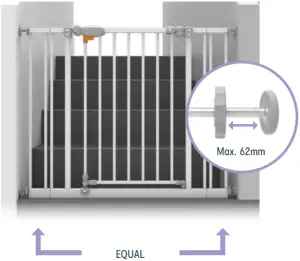

4. Align gate with Mounting Cups and tighten Adjuster Screws by turning clockwise, starting with the bottom Adjuster Screws, then tighten the top screws. Tighten equally until there is only a 1.5mm gap in the locking mechanism. Regularly check tension of all mounting bolts and adjust if required.
Note: Do not extend Adjuster Bolts more than 62mm.
OPERATION

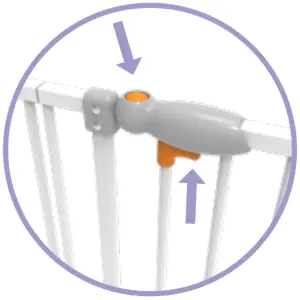

HOW TO OPEN

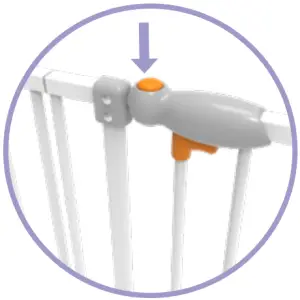

1. Using one hand, place thumb on the button and grip gate with fingers.
2. Press button with thumb and squeeze index finger.
3. Open gate in either direction. The safety gate has a manual closing system. Always check gate is properly closed.
Note: If gate is open and excessive pressure is applied, (such as standing or swinging on gate) structural damage may occur.
OPERATION
CLEANING INSTRUCTIONS
Simply use a soft damp cloth to wipe gate and dry thoroughly after cleaning. Do not use chemical or abrasive cleaners.
IMAGES/DRAWINGS IN THE MANUAL ARE FOR VISUAL PURPOSES ONLY.
ACTUAL PRODUCT MAY VARY SLIGHTLY. THE MANUFACTURER RESERVES THE RIGHT TO CHANGE ANY SPECIFICATION OR FEATURE WITHOUT PRIOR NOTICE.
KEYCODE: 42-197-096
MADE IN CHINA
© KMART AUSTRALIA LIMITED
FOR AU / NZ: IMPORTED FOR KMART STORES IN AUSTRALIA AND NEW ZEALAND.
KMART AUSTRALIA – 690 SPRINGVALE ROAD, MULGRAVE, VIC 3170 AUSTRALIA.
KMART NEW ZEALAND – REGIONAL OFFICE CIO KMART PAPATOETOE STORE, HUNTERS PLAZA, GREAT SOUTH ROAD, PAPATOETOE, AUCKLAND, NEW ZEALAND.
KMART CUSTOMER SERVICE
AU: 1800 124125 NZ: 0800 945 995
AFTER SALES SUPPORT:
AU: 03 9005 0127 NZ: 0800 945 995
WWW.CHILDSAFETYHELP.COM.AU
