Faber Fvc X-cyclone 151 Cordless Vacuum Cleaner Instruction Manual

FVC X-CYCLONE 151 Cordless Vacuum Cleaner
Instruction Manual
CORDLESS VACUUM
FVC X-CYCLONE 151

VOLTAGE : 220-240V FREQUENCY : 50/60Hz
INSTRUCTIONS MANUAL
PLEASE READ THIS INSTRUCTIONS MANUAL CAREFULLY BEFORE USING THIS PRODUCT

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precaution should always READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE)

1. The Vacuum Cleaner is an electric appliance. It must be used in accordance with the operating conditions of the instructions. This instructions should be kept properly for future reference.
2. Check and confirm that the vacuum cleaner voltage must be consistent with the supply voltage.
3. It is strictly forbidden to inhale the following objects, otherwise it may damage the vacuum cleaner or cause fire.
   – heating objects, such as carbon fire etc
   – large cuts of sharp fragments, such as glasses etc
   – harmful substances, water & liquids ( solvents, corrosive, etc )
   – flammable and explosive goods, such as gasoline, alcohol products
4. When cleaning, repairing or temporarily not use the vacuum cleaner, the power supply must be turn off. When the power supply is cut off, pull the power cord and pull  the plug out by holding the plastic part of the plug by hand.
5. Remember do not immerse the main vacuum cleaner in water, avouid approaching to heating equipment or exposure to the sun to avoid fire.
6. Do not let children play with the vacuum cleaner to avoid accidents
7. If there is a drop, bvious damage or abnormal operation, please do not continue using the vacuum cleaner, and prompt send it to the service department designed by our company for repair.
8. Avoid running for a long time in the condition of the suction inlet is bloacked, to avoid damage to the motor and heat generation of the vacuum cleaner.
9. To avoid danger, if the adapter is damaged, you must purchase the factoryspecified charging adapter.
10. When the vacuum cleaner does not use for a long time, it is recommended to charge it once every three months. Before the product is scrapped, the battery must be taken out and safety recycled. Do not discard it.
    WARNING : Only allow to use a delicated adapter. During charging, it needs to be ventilated and heat-dissipated. It is strictly prohibited to be placed in a high temperature environment above 50 degrees. It is strictly forbidden to rely on fire source to avoid explosion. The battery pack cannot be detachable.

PARAMETER

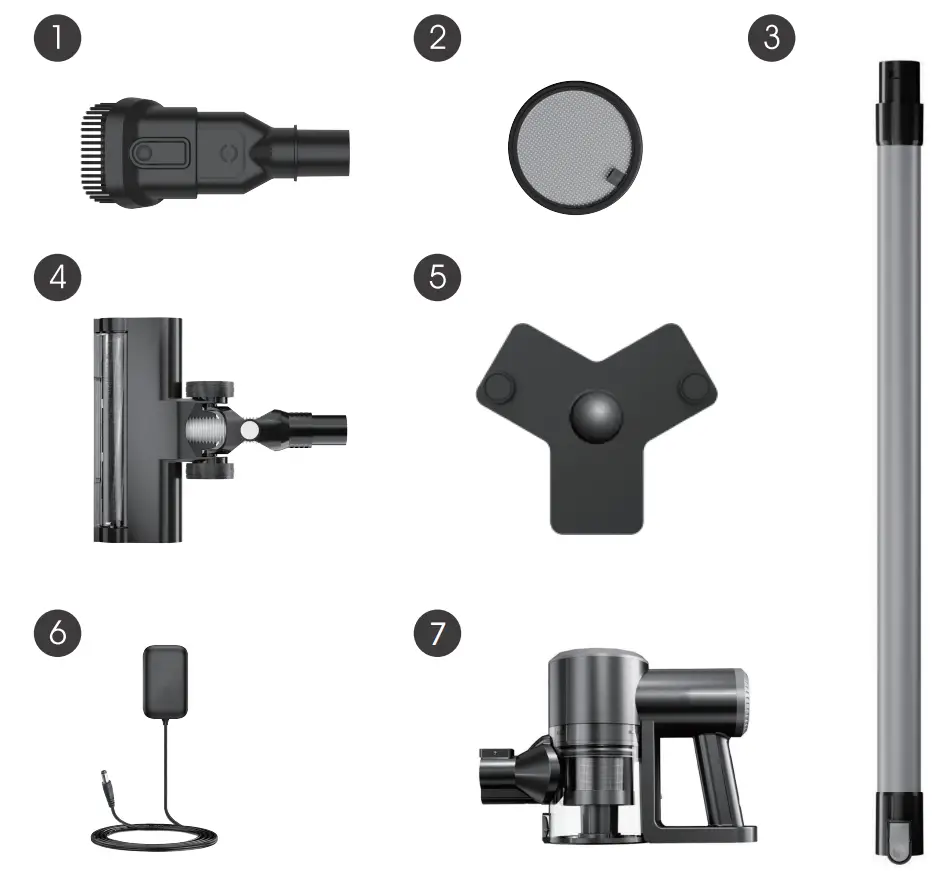

PRODUCT PARTS LIST

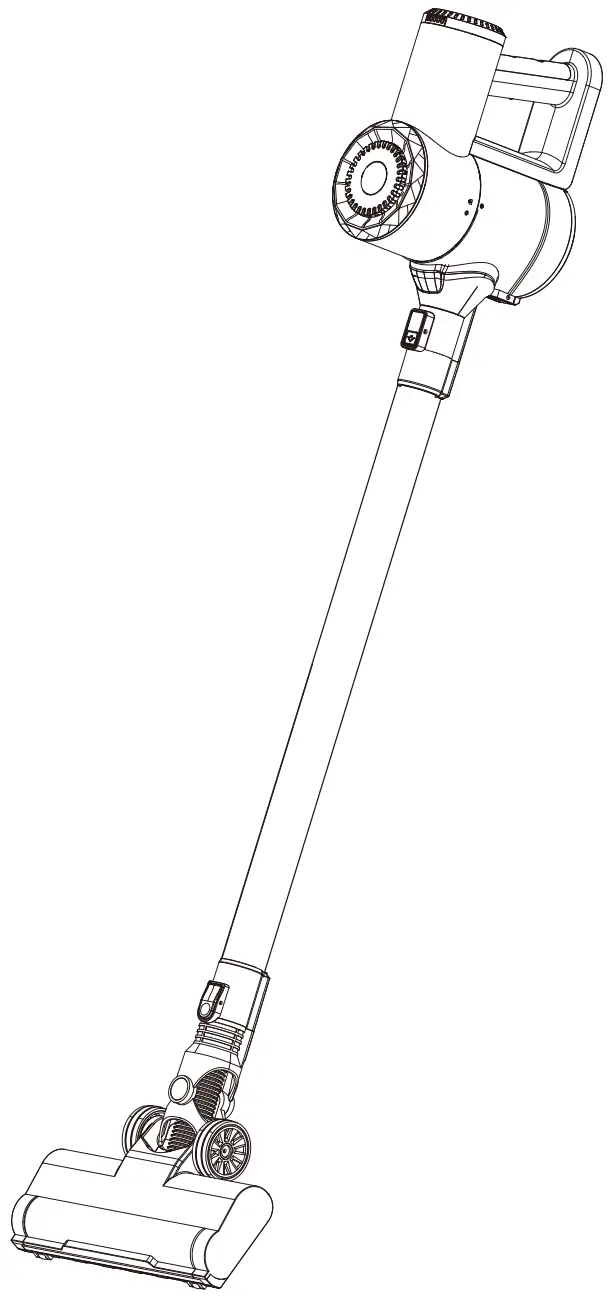

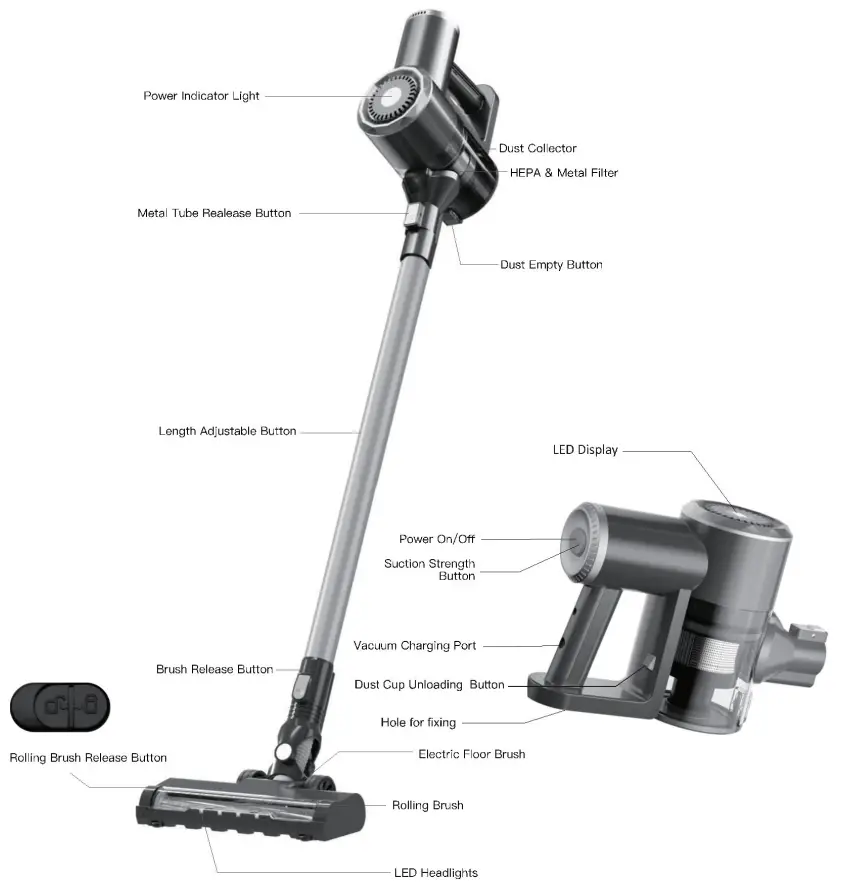

OVERVIEW

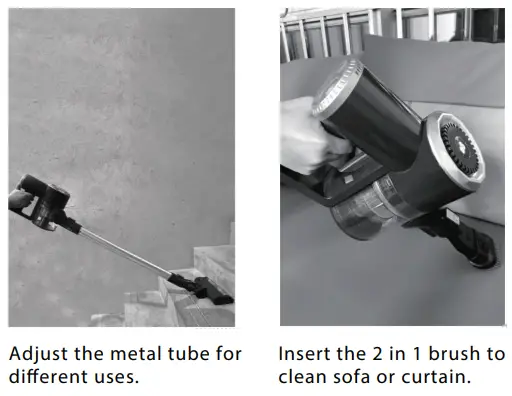

GENERAL USAGE AND SAFETY GUIDELINES

ASSEMBLING

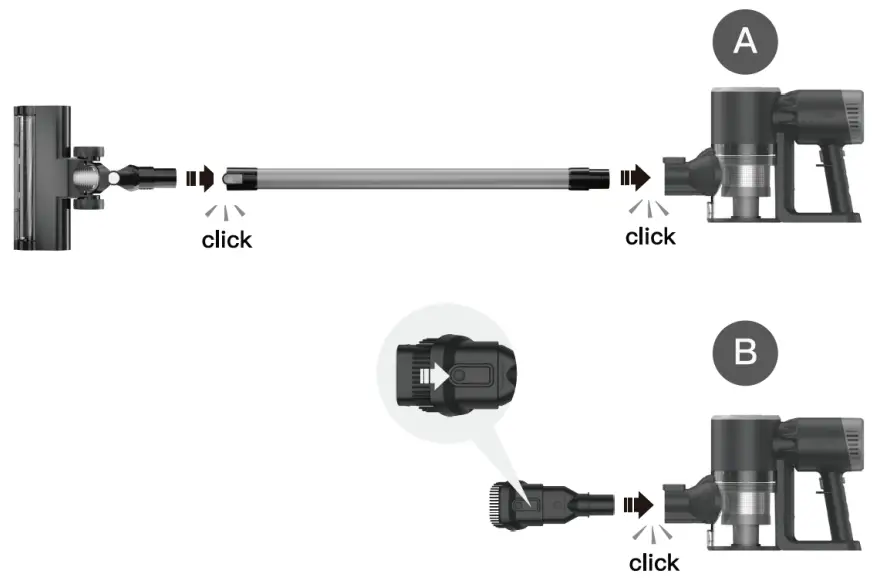

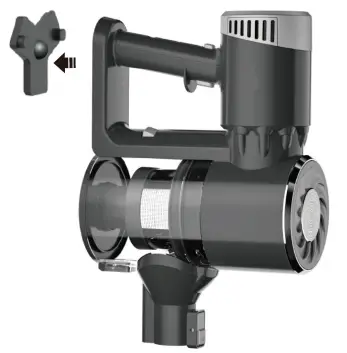

– Attach difierent accessories for difierent tasks as illustrated.
– Install vacuum cleaner in the right direction to avoid airflow issues or not working.

USING
Before use, make sure
– the power supply is suficient
– the duct collector & filter are cleaned, dried and fixed in place.

CLEANING & MAINTAINING
– Please make sure the dust collector is aligned.
– Do not tilt the filter while is in operation.
DUST CUP CLEANING

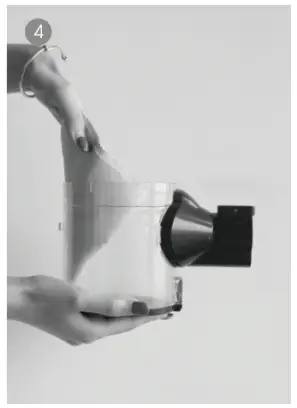

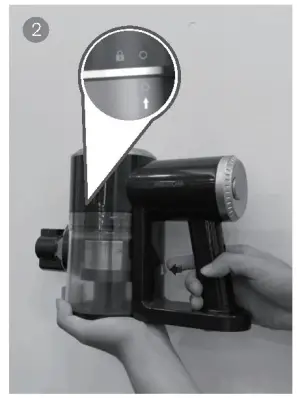

Press the dust collector release button to empty.First, hold the vacuum cleaner, then press the dust cup unloading button while rotating the dust cup, and align the vacuum cleaner “ O ” with “”, finally take off the dust cup

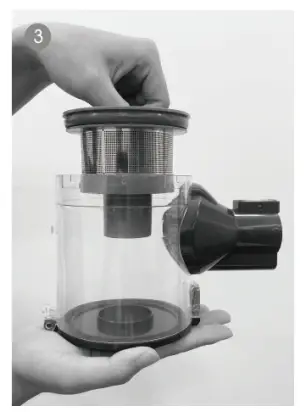

Take over the HEPA filter and metal filter from dust cup.

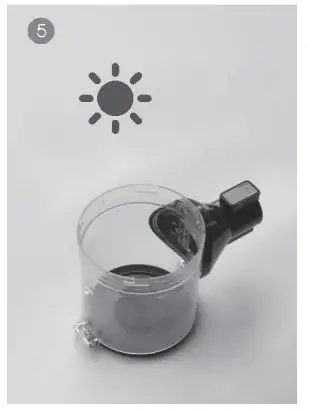

Clean the dust cup by using a damp cloth with a mild detergent.Air dry before placing back in the vacuum cleaner

 FILTER CLEANING

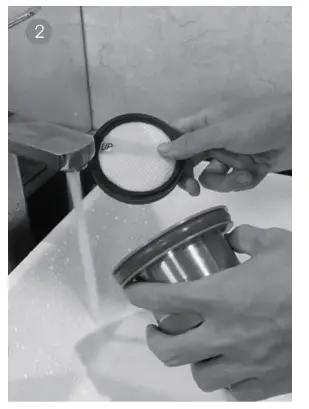

Take over the filter and metal filter dust cup.Indeed, clean with water and a mild detergent.Air dry the cutton filter and metal filter until completely dry before placing back in the vacuum cleaner.

Put the filters to dust collector after cleaning. Rotate dust collector and align “ ” with “”, then fix it in place.

CLEAN THE ROLLING BRUSHES
– Make sure the power is off, do not use sharp tools when cleaning the rolling brush to avoid damage

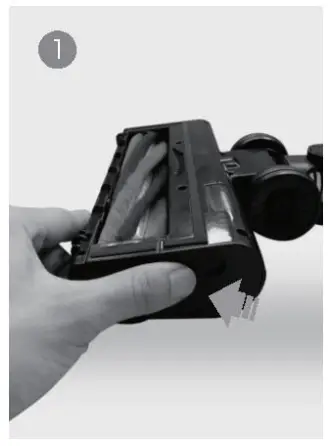

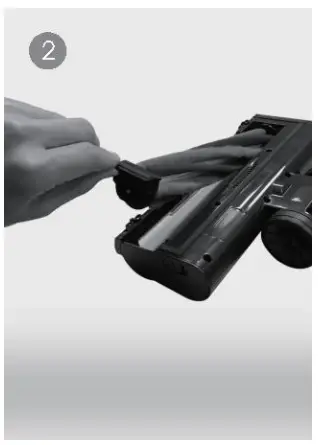

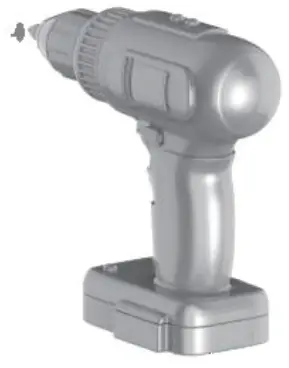

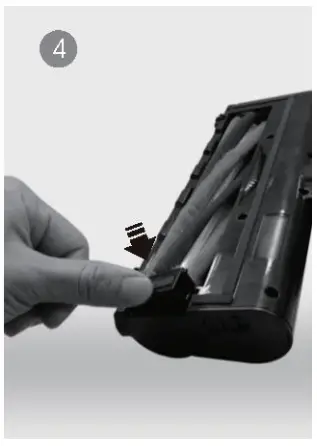

Press the rolling brush release button and open it up	Take out the rolling brush.	Remove the cords and hairds on it.	Putting the brush back and fix it in position.

WALL MOUNTING

Measure the distance between the bracket holes first.

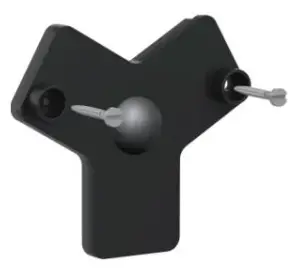

Drill 2 holes as measured width, secure the back plate using the appropriate fixings

Align the vacuum cleaner at the raised point of the bracket and hang it.
The package contains adhensive pads that can be used ti install the bracket, but it is recommended to use screws to fix it more firmly.

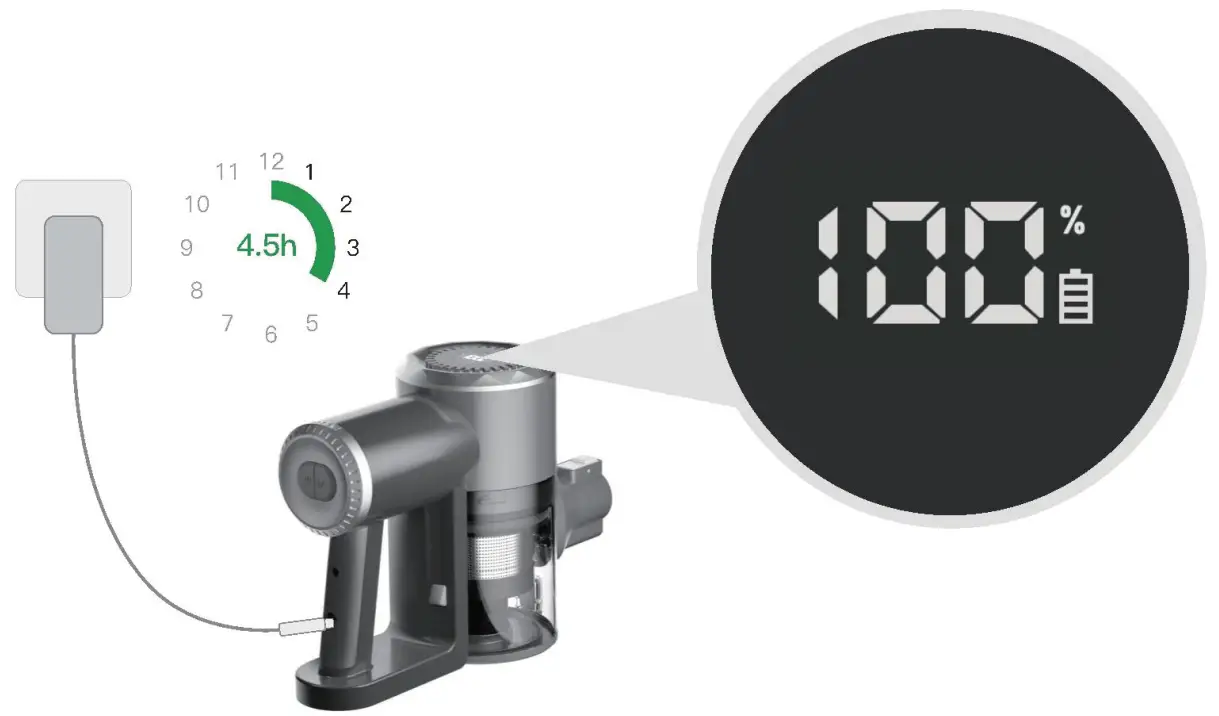

CHARGING

1. Whole machine charging

TROUBLESHOOTING
If it still doesn’t work with the following solution, please contact service center

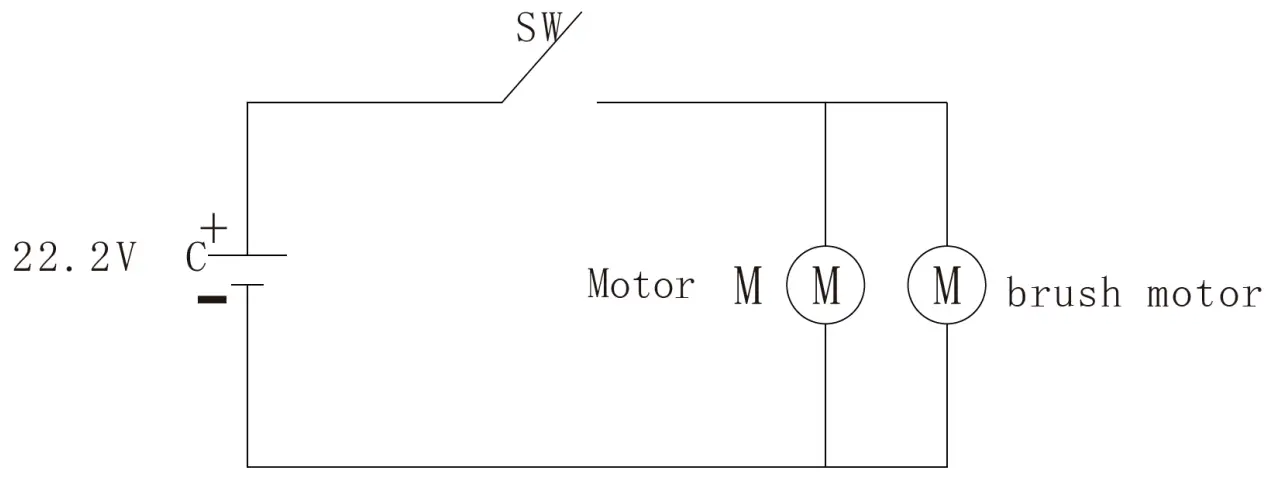

CIRCUIT DIAGRAM

SERVICE OF DOUBLE-INSULATED APPLIANCES
A double-insulated appliance is marked with one or more of the following : The words “ DOUBLE INSULATION ” or “ DOUBLE INSULATED ” or the double insulation symbol.

In a double-insulated appliance, two systems of insulation are provided instead of grounding.
No grounding means is provided on a double-insulated appliance, nor should a means for grounding be added to the appliance. Servicing a double-insulated appliance  required extreme care and knowledge of the system, and should be done only by qualified service personnel.
Replacement parts for a double-insulated appliance must be identical to the parts they replace.
Polarization instructions.
To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will it in a polarized outlet only one way. If the plug  does not it fully in the outlet, reverse the plug. If it still does not it, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.
