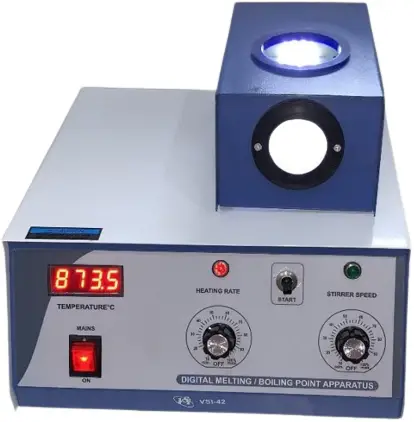

VSI-41 Digital Melting-Boiling Point Apparatus Instructions
Product Overview
SALIENT FEATURES
- Extremely Useful for Pharmaceutical Use
- Highly Accurate & Easy to Operate
- Cylindrical Silicon Oil-Bath
- Built-in Magnetic Stirrer with Electronic Speed Controller for Uniform Heating
- Electronic Controller for Adjusting the Heating Rate
- Digital Display of Temperature with PT-100 Probe
- Glare-Free Background Light with Adjustable Light Intensity
- Provision for Holding the Melting Point Display

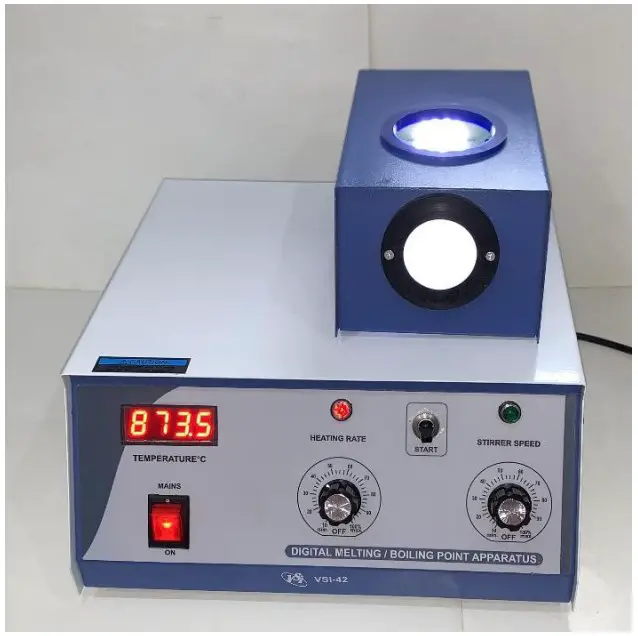

The Digital Melting/Boiling Point Apparatus (VSI-41 & VSI-42) is designed for quick & accurate measurement of melting points and for checking the melting range of the solid samples. The Digital Melting Point Apparatus consists of silicon oil bath of about 200 ml capacity, covered with Teflon cover, fitted with a special type of oil immersion heater. The Digital Melting Point Apparatus consists of in-built magnetic stirrer, with indicator for precisely adjusting the rate of heating of silicon oil-bath, an On/Off switch, a pilot lamp, with fitted magnifying glass, a temperature probe and a glare free background illuminator.
The temperature is indicated on a digital display readable in 1.0oC (In VSI-41) and 0.1oC (In VSI-42). These instruments are useful in Chemical Industries, Pharmaceutical Industries, Petrochemical Industries, Food, Plastic and various other Industries, Research & Technical Institutions
TECHNICAL SPECIFICATIONS
| MODEL | VSI-41 | VSI-42 |
| Temperature Range | 2oC above Room Temp. to 300oC | 2oC above Room Temp. to 300oC |
| Readability | 1oC | 0.1oC |
| Display | 4 digit Seven Segment LED Display | 4 digit Seven Segment LED Display |
| Capillary Glass Tube –for Melting Point | 100mm long, 0.8 to 1.1mm internaldiameter | 100mm long, 0.8 to 1.1mm internaldiameter |
| Glass Tube – forBoiling Point | 6 x 75mm. Glass Tube | 6 x 75mm. Glass Tube |
| Sample Size | Fine powder properly dried at a temperature considerably below its melting point, 4 to6mm. high | Fine powder properly dried at a temperature considerably below its meltingpoint, 4 to 6mm. high |
| Oil-Bath | Silicon Oil Bath Beaker-200ml. capacity with Teflon cover fitted with oil immersion heater. It is having three holes – one for holding the capillaries, one for boiling point tube and one for the Temp.Probe/thermometer | Silicon Oil Bath Beaker-200ml. capacity with Teflon cover fitted with oil immersion heater. It is having three holes – one for holding the capillaries, one for boiling point tube and one for the Temp.Probe/thermometer |
| Stirrer Speed Control | Electronic | Electronic |
| Temperature Probe | PT-100 | PT-100 |
| Power Supply | 230V + 10%, 50Hz AC | 230V + 10%, 50Hz AC |
| STANDARD ACCESSORIES | A Box of 100 Capillaries, Bottle of Silicon Oil-250ml., Magnetic Capsule, Glass CylindricalBeaker with Teflon cover fitted with immersion Heater, Temperature Probe and Instruction Manual. Tubes for Liquid Sample (6x75mm) – 3 Nos. (Optional on demand). | |
Appearance & Specifications are subject to change due to continuous development.
