HORNBLASTERS 156A3A15DB3C Electric Air Pressure Gauge
ELECTRIC AIR PRESSURE GAUGE
- Units type: Pressure Per Square Inch (PSI)
- Air pressure gauge display: digital type 0 ~ 200 psi ; analog led 0 ~ 200 psi
- If pressure exceeds the display range, digital display will show psi of 200 psi
- If air pressure PSI is higher than 200 psi for 3 sec or more, the digital number will flash for warning
- LED analog indicator (there are 20 pcs of led light around the side)
| 0~100 psi | 101~150 psi | 151~200 psi |
| Red led x 10 pcs | Yellow led x 5 pcs | Green color x 5 pcs |
Function:
- Turn on and turn off the engine: red, yellow, and green led will scan once.
- Display voltage of battery fuction: Turn ignition key to run, display battery voltage for 60 sec.
- Display fucton: Display air pressure value, number and led color will correspond.

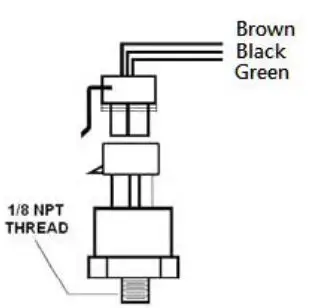

Air Pressure Sensor
Installation instructions:
- Black – air press sensor wire (black)
- Green – air press sensor wire (green)
- Brown – air press sensor wire (brown)
- Do not over tighten sensor (12-14 ft/lbs)
Air Pressure Gauge
Installation instructions:
- Red – Connect to 12V Ingition Positive (Keyed Power On)
- Yellow – Connect to Battery Positive (+)
- Black – Connect to Ground (-) (Splits into two separate leads, ground both to the same point)
- Green – Connect to air pressure sensor green wire
- Brown – Connect to air pressure sensor brown wire
