Artis Wireless Bluetooth Party Speaker User Manual

Artis MS304 Wireless Bluetooth Party Speaker User Manual

Points to note before use

• Unpack the device carefully
• Make sure no accessories are left in the box
• Keep away from direct sunlight
• Keep away from Water
• Keep out of roach of children.

Box Contents

1 x BT Speaker
1 x All Function Remote
1 x Charging Cable
1 x Wireless Mic
1 x User Manual

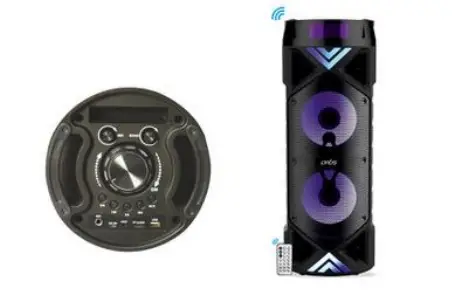

Description of Parts

BT Connection

• Power on the product or press MODE button to enter into BT mode.
• Open mobile devices (Cell phones, computers, etc ) in BT mode, search for BT devices, when it appears the item pairing name (BT SPEAKER).
• After the device has been paired successfully for the first time, it will connect automatically around 10 seconds to the devices which connected before when next time use.
  (Note: Each product could connect to one BT device only.)

TWS (Dual Speaker) Pairing

• Connect your phone / Bluetooth Device to one speaker first Switch on the second speaker and put it in Bluetooth mode. Once in bluetooth mode double click the play / pause button of the second speaker to enter TWS pairing mode it will automatically connect with the first speaker. Now you can use both speakers as stereo speakers

1. Mode:
Short press for switching among BT, TF CARD, USB, LINE IN, FM
Long press for LED lights on/off

2.
Play the previous music under BT, TF card and USB mode.
Play previous radio station under FM mode.

3.
Short press for music play/pause
Long press for radio station automatic searching under FM mode.

4.
Play to next music under BT, TF card and USB mode
Play next radio station under FM mode.

5. DC 5V:
Charge Jack for builtin battery.
When DC SVcable plugs in, The LED lights up

6. AUX:
AUX IN can connect to PC, mp3, Phone or CD walkman

7. OFF/ON:
Speaker power off / Speaker power on

8. USB Port:
Support USB and can play MP3 and WAV format music in U disk

9. TF card Port:
Support TF CARD and can play MP3 and WAV format music in CARD

10. Mic:
Put on the wireless Mic, to connect to the Speaker

Specifications

• BT Version: 5.0
• BT Range: 10m Max.
• Battery Capacity: 3600mAh
• Input: 5V/1A Micro USB
• Playback time: 3 Hours*
• Max USB/TF Card input: 32GB
• Sensitivity: 90db
• Freq. Response: 150Hz-18Khz
• Tweeter: 3″ x 1
• Subwoofer: 6.5″ x 2
• Impedance: 4Ω – Subwoofer
• Impedance: 2.5Ω – Tweeter

Functions

1. Product dimensions: 230*215*572mm
2. Built-in MP3 digital decoder for decoding and playing Mp3 files, it brings you perfect sound quality.
3. External TF card and USB socket to enjoy music.
4. With mini control key for selections and volume adjustment easy to operate.
5. Micro SD integrated charging, supply with charging cable.
6. Built-in low power/low distortion 15W*2, 6.5″*2 Hi-Fi speaker, with low distortion power amplifier. Bass control, It gives you high fidelity and original sound.
7. Built-in 3600MAH rechargeable battery, large capacity rechargeable battery which you can enjoy longer playing time.
8. Digital LED display shows working status.
9. FM digital radio {87.5-108MHz}, listen to the latest news and music.
10. Can connect to any audio output equipment, such as mobile phones/MP3/MP4/laptops etc.
