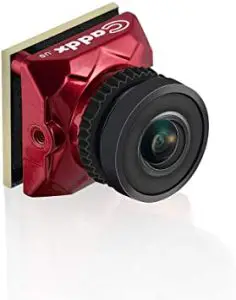

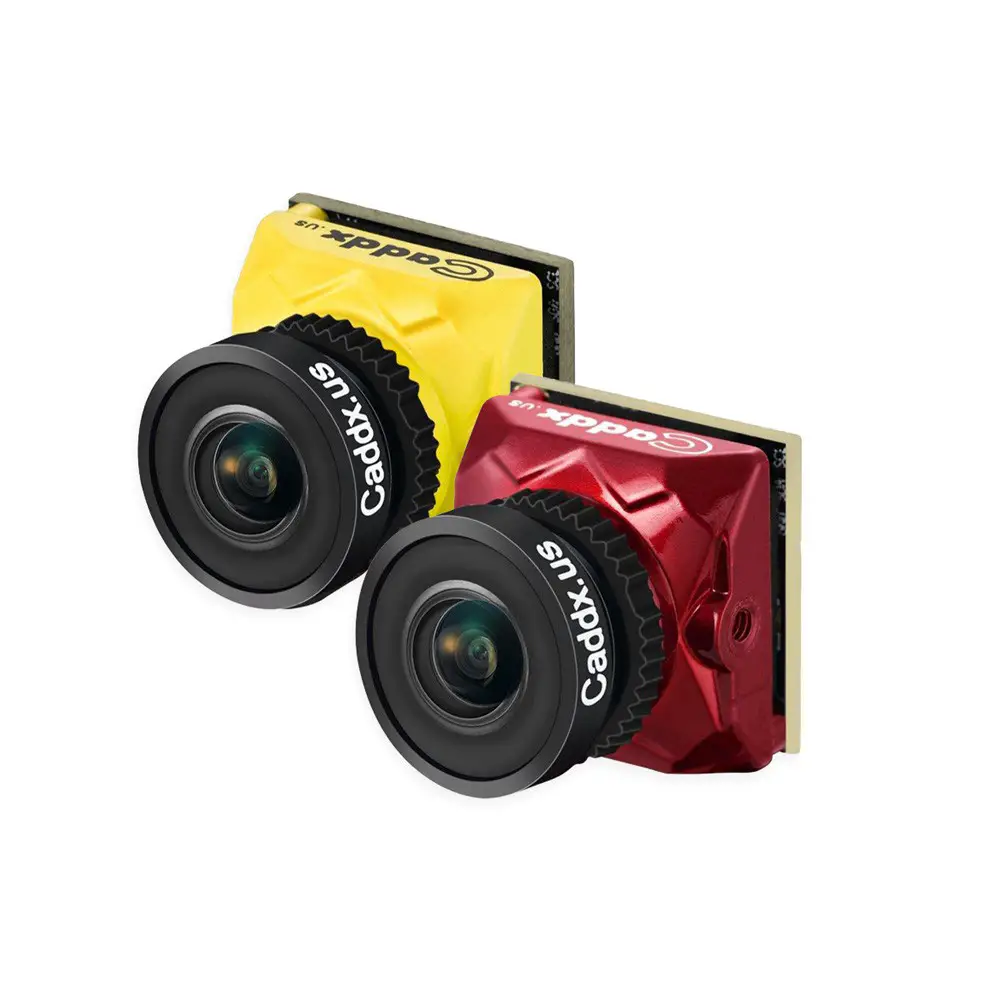

Caddx Ratel User Manual

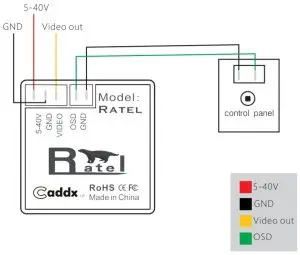

Connection
Disconnect the 5D-OSD menu panel after OSD setting.

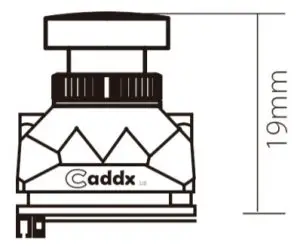

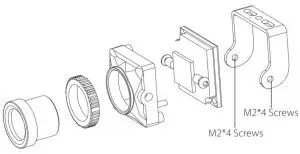

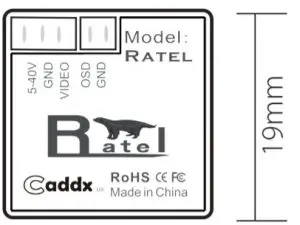

Dimensions and Installation
Turbo Micro Ratel
| Model | Caddx Ratel |
| Image Sensor | 1/.18″ Inch starlight HDR sensor |
| Horizontal Resolution | 1200TVL |
| TV System | NTSC & PAL (changeable) |
| IMAGE | 16:9 & 4:3 (changeable) |
| WDR | Super WDR （HDR) |
| Min. Illumination | Starlight |
| Lens | 1.66mm,2.1mm |
| Synchronization | Internal |
| Electronic Shutter | PAL: 1/50~100,000; NTSC: 1/60~100,000 |
| S/N Ratio | >60dB (AGC OFF) |
| Video Output | CVBS |
| Camera OSD | Separate OSD |
| DNR | 3-DNR |
| LANGUAGE | ENG/FRANCE/RUS/SPA/PU/KOREA/CHN/JAPAN |
| Day/Night | Auto/Color/B&W/EXT |
| Dimensions | 19mm*19mm*19mm |
| Wide Power Input | DC 5-40V |
| Work Temperature | -20℃~+60℃ |
| Work Humidity | 20%~80% |
| Weight | 8g (N.W.)/ 40.5g (G.W.) |
| AE |  |
| WB | |
| Day and Night | |
| Image Enhange | |
| Video setting | |
| Language | <English> |
| Rest | |
| Save Exit | |
| Exit |
Language <English>
Auto Exposure
| Exposure | |
| Brightness | <13> |
| Exposure Mode | <BLC> |
| BLC | <4> |
| Advanced | |
| Return | |
Brightness Exposure Mode (Global/Blc) BLC(1-8)
Auto Exposure
| AE Advanced | |
| Shutter Ctrl | <Manual> |
| Shutter | <1/1000> |
| Gain CTRL | <manual> |
| Analog Gain | <5> |
| Digital Gain | <10> |
| Return | |
Shutter Ctrl (Manual/Auto) Shutter (1/25/150/1/100/1/250/1/500/1/1000/1/2000/1/5000/1/1/10000 Gain ctrl (Manual/Auto) Analog gain (1-16) Digtal gain(1-15)
White Balance
| WB | |
| Mode | <MWB> |
| Rgain | <7> |
| Bgain | <12> |
| Return |
Mode (ATW/MWB) Rgain (0-32) Bgain (0-32)
| Day night | |
| Mode | <EXT> |
| Return | |
Mode(BW/Auto/color/ext)
Image enhance
| Image enhance | |
| Contrast | <Manual> |
| Value | <35> |
| Sharpness | <Manual> |
| Value | <5> |
| Color gain | <Manual> |
| Value | <10> |
| 3DNR | <Manual> |
| Value | <22> |
| Return | |
Contrast(Manual/Auto) Value(0-40) Sharpness (Manual/auto) Value(0-16)color gain (manual/auto) Value(0-30) 3DNR(manual/auto) Value(0-30)
Video Setting
| Video Setting | |
| Video Standard | <PAL> |
| Image Ratio | <16:9> |
| WDR | <Open> |
| Return | |
Video standard (pal/ntsc) image ratio(16:9/4:3) WDR(open/close/ext)
