TRIXIE Wooden indoor pet home with plattform
PARTS LIST
Item No | Color | Measurement | |

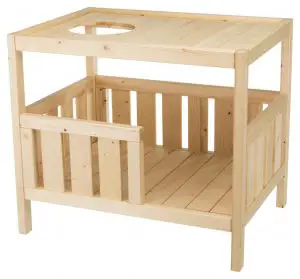

| 44119 | Wooden indoor pet home with platform | brown | 24 × 17.9 × 20.9 in. (61 × 45.5 × 53 cm) |
| Pos No | Description | Measurement | Quantity | Item No. |

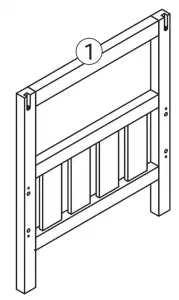

Pos. 1 | Side panel, left | 17.75 X 20.75 X 0.75 in. (45.5 x 53 x 2.5 cm) | 1 | 44119-10 |

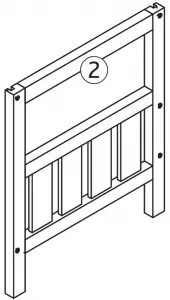

Pos.2 | Side panel, right | 17.75 X 20 .75 X 0.75 in. (45.5 x 53 x 2.5 cm) | 1 | 44119-11 |

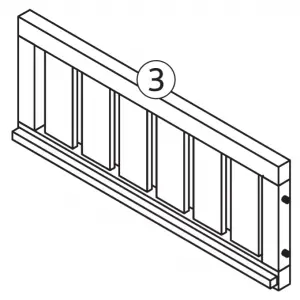

Pos.3 | Back panel | 22 X 9 X 0.75 in. (56 x 23 x 2.5 cm) | 1 | 44119-12 |

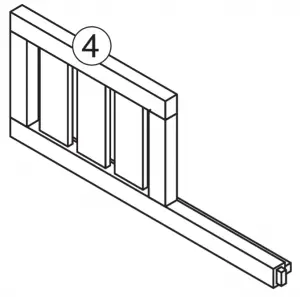

Pos.4 | Front panel | 22.25 X 9 X 0.75 in. (57 x 23 x 2.5 cm) | 1 | 44119-13 |

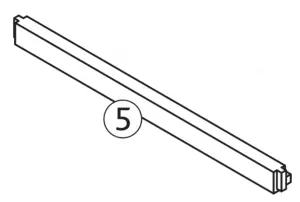

Pos.5 | Support | 22.75 X 1.5 X 0.75 in. (58 x 4 x 2.5 cm) | 1 | 44119-14 |

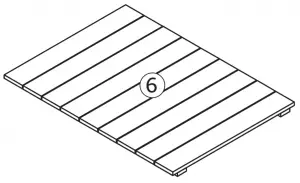

Pos.6 | Bottom plate | 21.75 X 15.5 X 0.25 in. (55.5 x 40 x 1 cm) | 1 | 44119-20 |

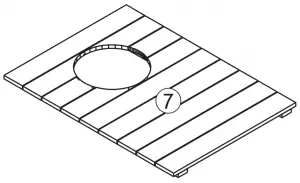

Pos. 7 | Roof part | 21.75 X 15.5 X 0.25 in. (55 .5 x 40 x 1 cm) | 1 | 44119-21 |

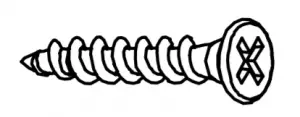

Pos . a |  Countersunk screw | 0 0.137 X 1.574 in. (0 3.5 x 40 mm) | 11+1 | 44119-30 |

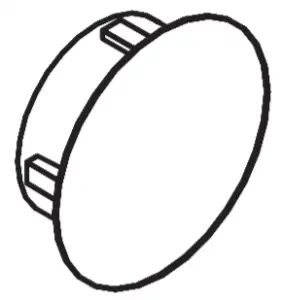

Pos . b |  Cover | 11+1 |

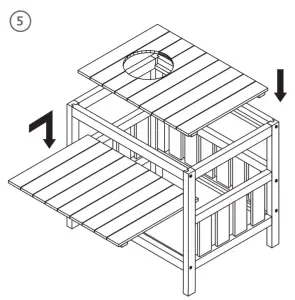

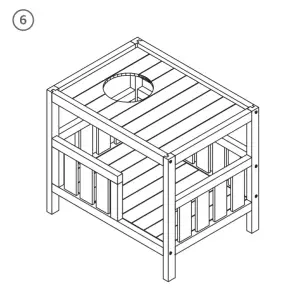

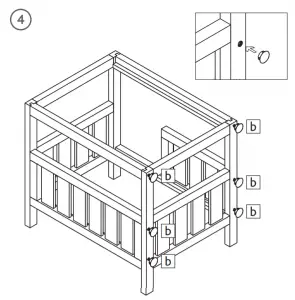

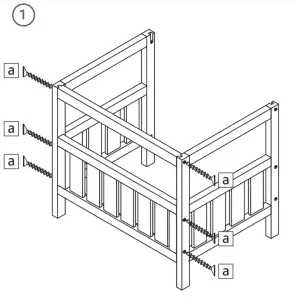

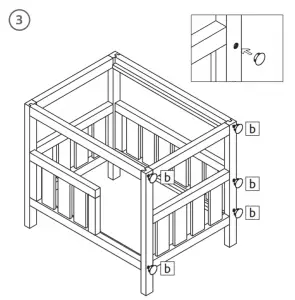

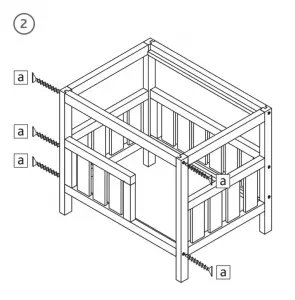

ASSEMBLY
