Fitting instructions
832184
230V/50Hz 18 not changeable
 | 18 W 2.200 lm |
 | 60W 2.900 lm |
 | LED-Board |
| t | 25.000h |
| Tk | 2.700-5.000 K |
 | 15.000 x |
 | <0,5s |
 | dimmable with rrc |

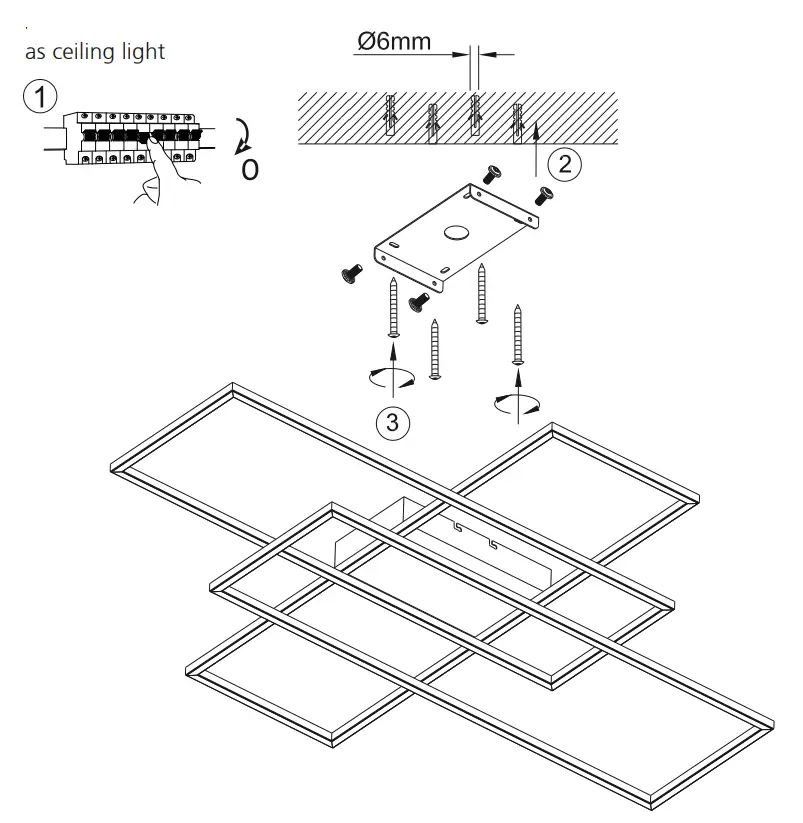

fitting

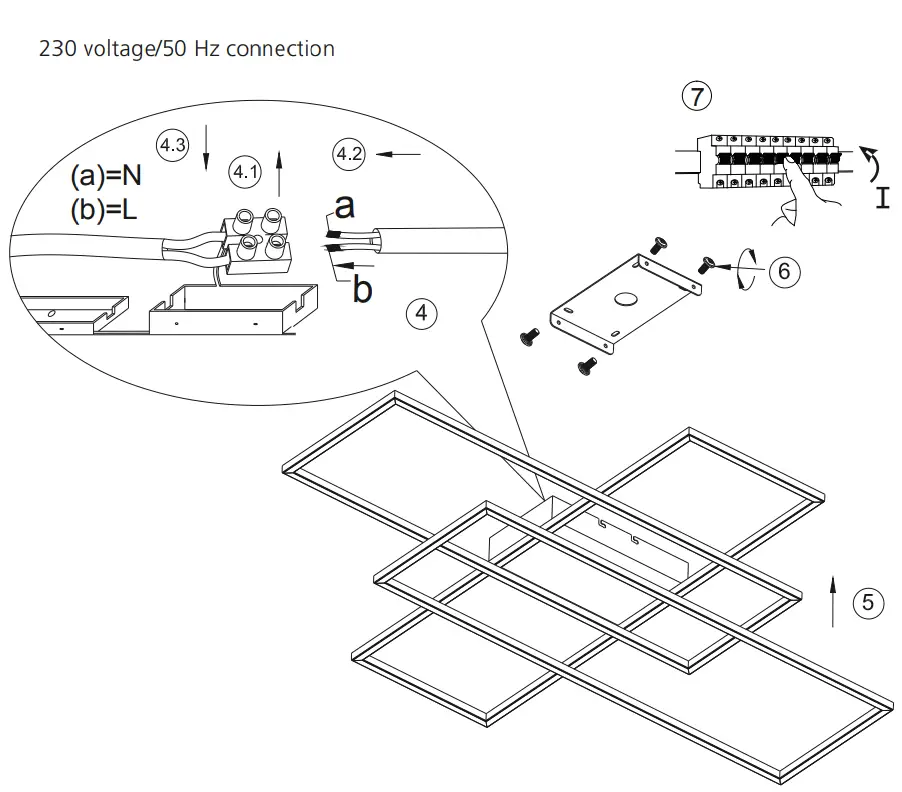

electrical connection

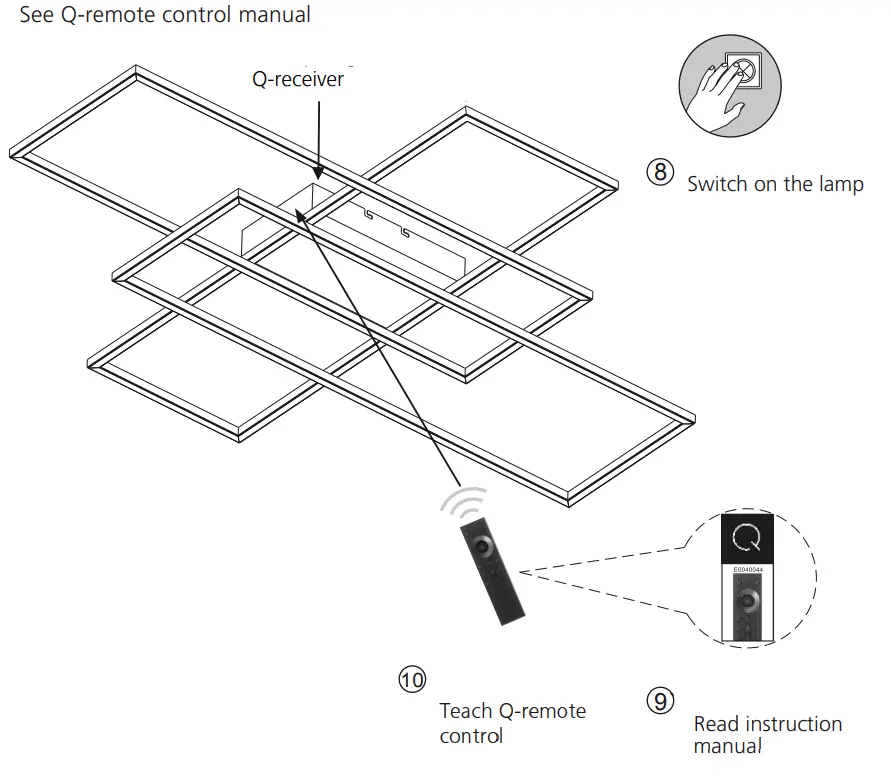

teach remote control
 |  |
| https://www.paul-neuhaus.de/cms-wAssets/img/Videos/Q/Q-Funktionsfilm_DE.mp4 | http://q.paul-neuhaus.de/ |

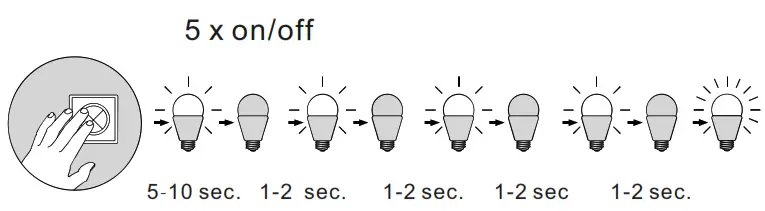

Reset
Reset the lamp, factory new
This device fulfills the fundamental requirements of Directive 2014/53/EU (Radio Equipment Directive) of the European Parliament and of the Council of the European Union dated 16.04.2014 on items of radio equipment and the mutual recognition of their conformity.
The full declaration of conformity can be requested from the address given below.
Paul Neuhaus GmbH
Olakenweg 36 – D-59457 Werl
Telefon: +49(0)2922-9721-0
Telefax: +49(0)2922-9721-9120
E-mail: [email protected]
https://scm.paul-neuhaus.de/public/conformity/
