Netpeppers Futura Launch Lead User Guide

NETPEPPERS Futura Launch Lead

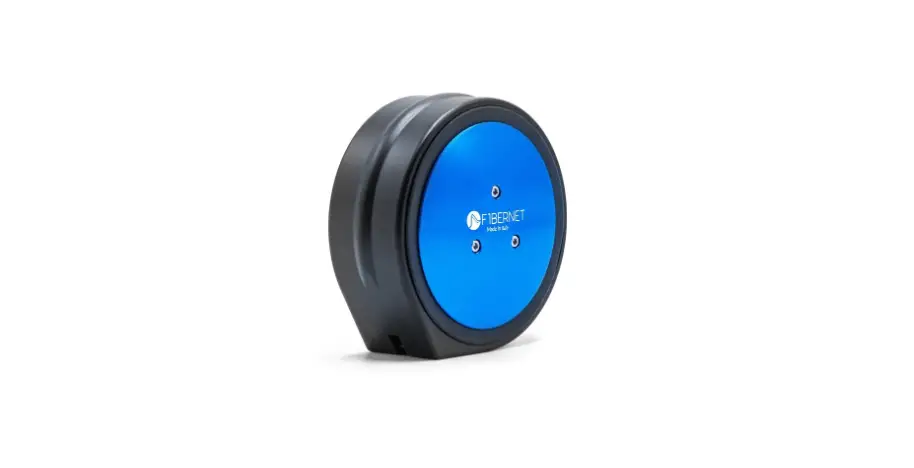

Futura Launch Lead

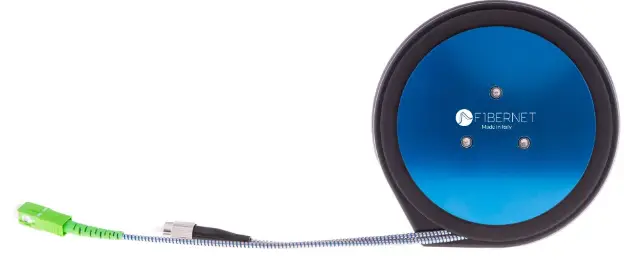

The Futura Launch Lead is a fiber optic cable that allows for the launch of signal in a fiber optic link. It is designed to provide reliable and high-performance signal transmission for a suitable number of insertions.

Opening and Closing Futura

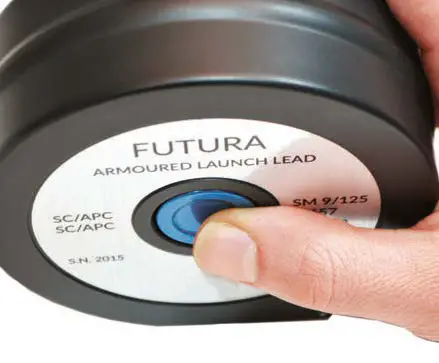

1. To open, push the button below.
2. To close, roll in the external cables clockwise and strictly.

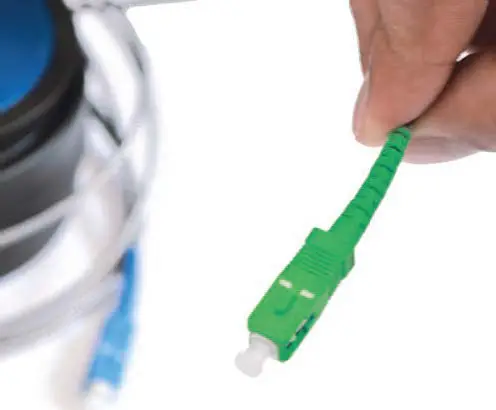

3. Keep connectors inside the fiber lead with one hand.

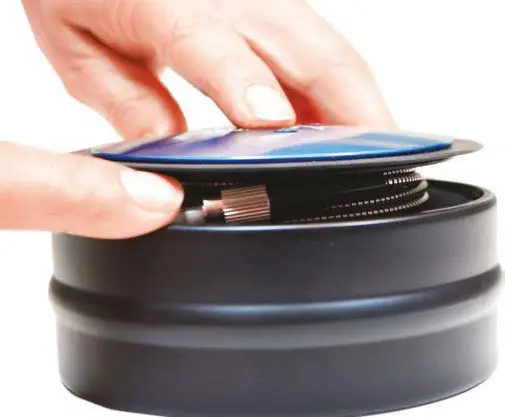

4. Keeping the connectors inside, press down the cover.

Cleaning Futura’s Connectors

To maintain the reliability and performance of the connectors, it is recommended to clean them before and after every use. Follow these steps:

1. Disconnect the cable from the device.
2. Gently wipe the connectors with a clean, dry cloth.
3. If necessary, use a cleaning solution specifically designed for fiber optic connectors.
4. Gently re-connect the cable to the device.

Using Futura’s Magnet

The Futura Launch Lead comes equipped with a magnet that can be used to hold the cable in place during use. Follow these steps:

1. Find a suitable location for the magnet on the device.
2. Attach the magnet to the device.
3. Place the cable on the magnet to hold it in place during use.

If you have any further questions or concerns about using the Futura Launch Lead, please contact Net Peppers GmbH at Phone:
+49-89-219097300 or Email: [email protected], or visit their website at www.netpeppers.com.

QUICK GUIDE

OPENING AND CLOSING FUTURA

STEP 1

• To open, push the button below

STEP 2

• To close, roll in the external cables clockwise and strictly

STEP 3

• Keep connectors inside the fi beerhead with one hand

STEP 4

• Keeping the connectors inside, press down the cover

MATERIAL INCLUDED

• Futura launch lead
• Magnet
• Necklace
• 10 dust caps for each connector
• Soft case
• Shoulder strap
• Test report
• Quick Guide

CLEANING FUTURA’S CONNECTORS

STEP 1

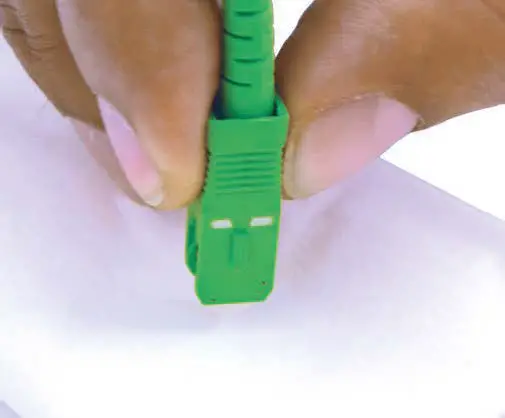

• Before and after testing operations, always clean up the ferule with a tissue drenched in isopropyl alcohol

STEP 2

• Cover the cleaned ferule with its dust cap

USING FUTURA’S MAGNET

STEP 1

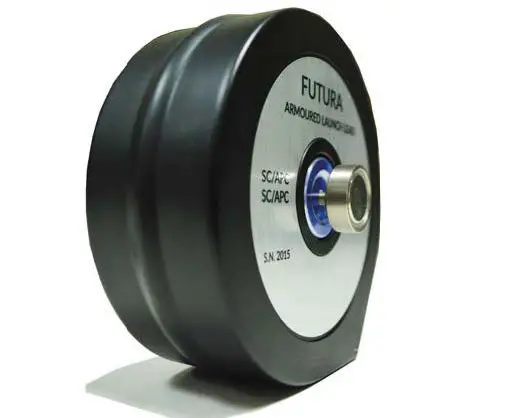

• Tight the magnet on the central button until it is seated

STEP 2

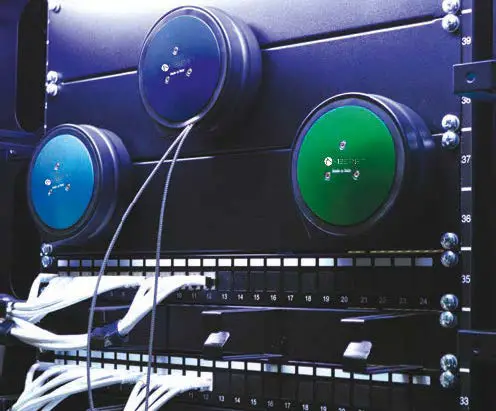

• Attach Futura magnetically onto the rack for a hands-free use.

Net Peppers GmbH
Brunnleitenstr. 12
82284 Grafrath www.netpeppers.com
Phone: +49-89-219097300
Email: [email protected]

2022 Net Peppers GmbH. All rights, errors and changes reserved. The Net Peppers logo is a trademark of Net Peppers GmbH.
