TP-Link ER605 V2 Wired Gigabit VPN Router
Highlights
- 1 Gigabit WAN port, 2 Gigabit LAN ports, 2 Gigabit WAN/LAN ports, and 1 USB2.0 port (supports USB LTE dongle) provide high-speed wired connectivity
- Supports multiple VPN protocols, including IPSec, L2TP, PPTP, and OpenVPN. Up to 20 IPSec VPN tunnels, 16 L2TP VPN tunnels, 16 PPTP VPN tunnels, and 16 OpenVPN tunnels are simultaneously supported
- SPI firewall and DoS defense protect your network from most known Internet attacks
- Professional 4 KV lightning protection keeps your investment safe and sound
Omada Solution

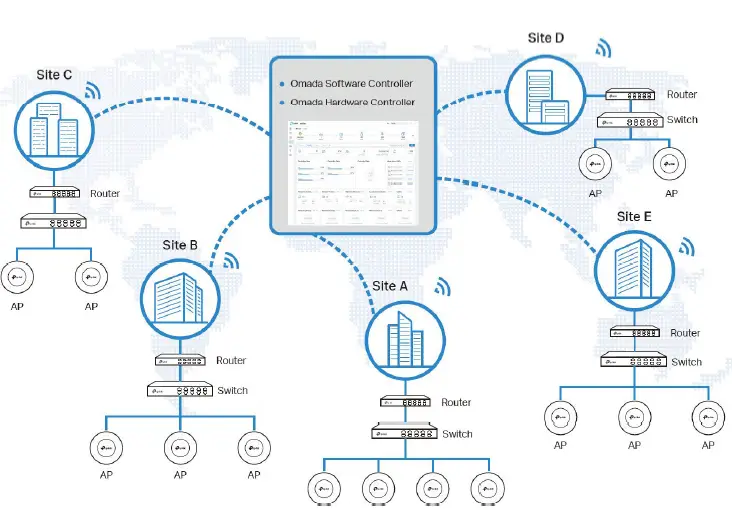

Software Defined Networking (SDN) with Cloud Access
Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network——all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

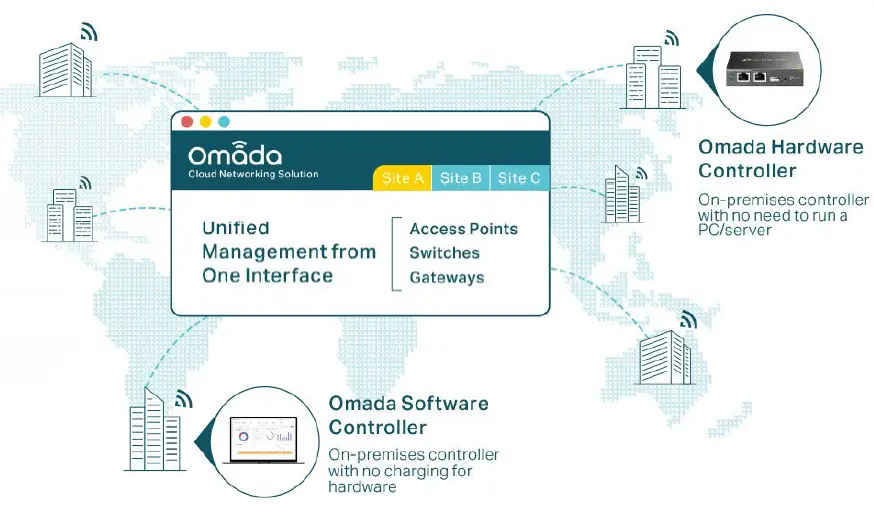

Hassle-Free Centralized Cloud Management
100% centralized cloud management of the whole network from different sites——all controlled from a single interface anywhere, anytime.
- No Additional Training Needed
- Unlimited Scalability
- Batch Management
- Devices still work even when Not Connected to the Cloud

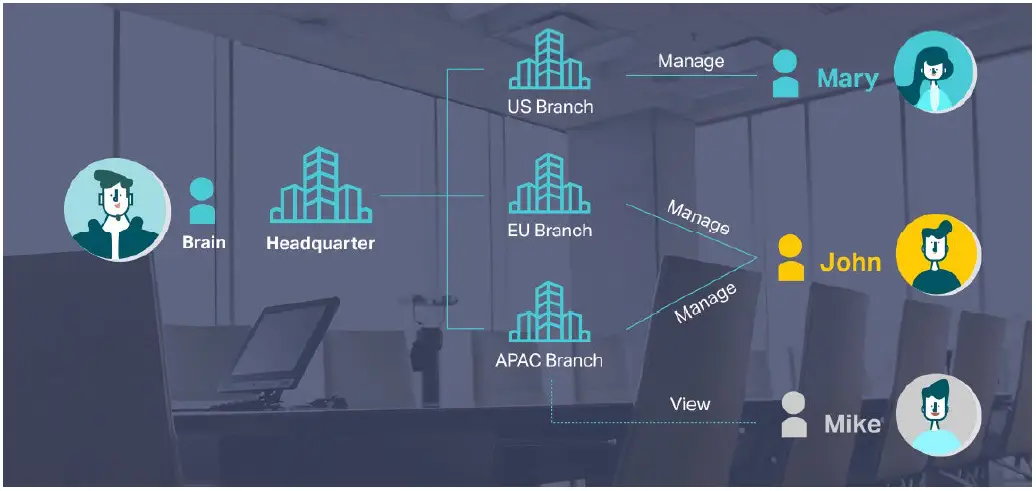

Assign Different Management Roles
Multi-user privilege assignment is available to increase management efficiency and security. Multi-person management, multi-level permissions, and the ability to add admins as needed, enable flexible network operation and maintenance.

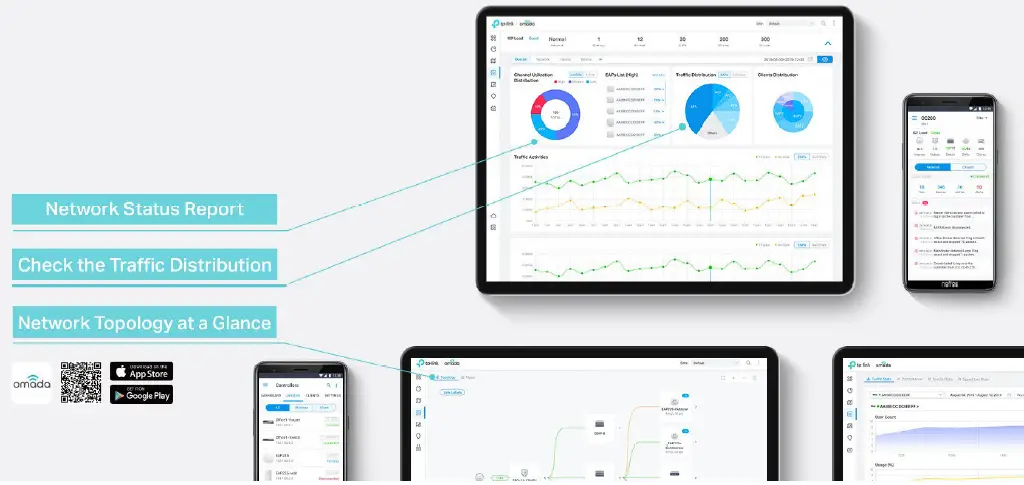

Easy and Intelligent Network Monitoring
The easy-to-use dashboard makes it easy to see your real-time network status; check network usage and traffic distribution; receive network condition logs, abnormal event warnings, and notifications; or even track key data for better business results. Network topology helps IP admins quickly see and troubleshoot connections at a glance.
Important Instructions
Comprehensive Protection for the Whole Network

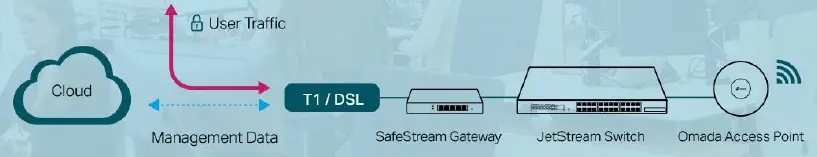

Better Protection for Users’ Privacy
TP-Link Omada separates network management data from user data, with no user traffic passing through the cloud, ensuring better protection for users’ privacy.
Abundant Security Functions
Powerful firewalls and advanced security functions further protect the network and data.
Specifications
| Model | ER605 V2 | |

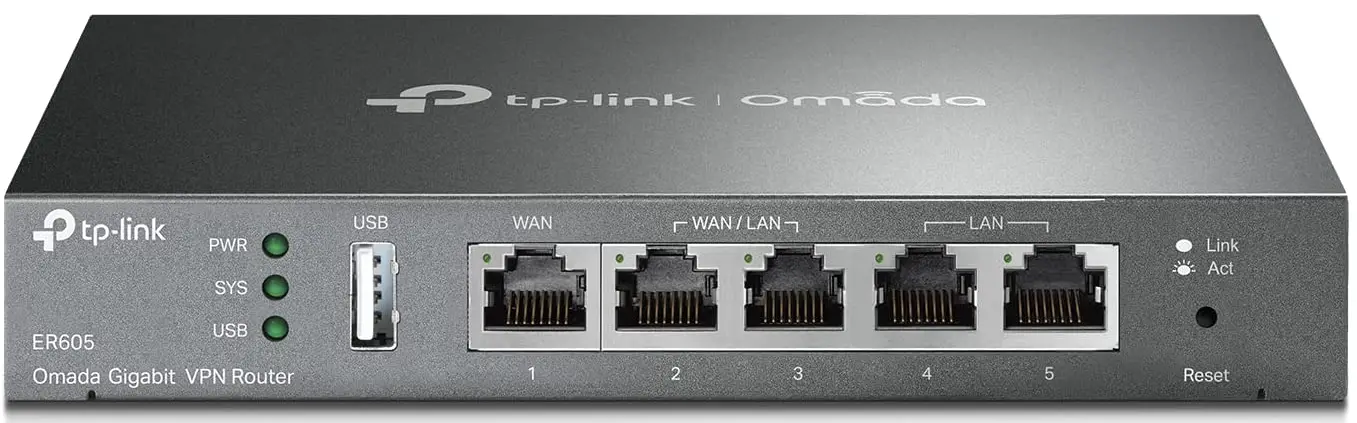

| Product Picture | | |
| Product Description | Omada Gigabit VPN Router | |
|
Hardware | Standards and Protocols | IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3x, IEEE 802.1q TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP |
| Interface | 1 Gigabit WAN port 2 Gigabit LAN/WAN ports 2 Gigabit LAN ports | |
| USB | 1 USB2.0 (supports USB LTE dongle1) | |
|
Network Media | 10BASE-T: UTP category 3, 4, 5 cables (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) 1000BASE-T: UTP category 5e, 6 cables (Max 100 m) | |
| Button | Reset Button | |
| Power Supply | External 12 V/1 A DC Adapter | |
| Flash | 128 MB NAND | |
| DRAM | 256 MB DDR | |
| LED | PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB | |
| Power Consumption (max.) | 7.94 W | |
| Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) | |
|
SDN Support | Hardware Controller (OC200/OC300) | Automatic Device Discovery Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule Captive Portal Configuration |
| Software Controller | ||
|
Performance2 | Concurrent Session | 150,000 |
| New Sessions /Second | 2,600 | |
| Static IP NAT Throughput | Upload: 945.77 Mbps; Download: 938.79 Mbps Bi-Directional: 1808.29 Mbps | |
| DHCP NAT Throughput | Upload: 945.54 Mbps; Download: 945.66 Mbps Bi-Directional: 1802.77 Mbps | |
| PPPoE NAT Throughput | Upload 939.71Mbps; Download: 939.43 Mbps Bi-Directional: 1788.54 Mbps | |
| L2TP NAT Throughput | Upload: 815.55 Mbps; Download: 835.59 Mbps Bi-Directional: 903.13 Mbps | |
| PPTP NAT Throughput | Upload: 813.23 Mbps; Download: 850.91 Mbps Bi-Directional: 894.41 Mbps | |
| 66 Byte Packet forwarding rate | Upload/Download: 954.50 Mbps Bi-Directional: 1130.00 Mbps | |
| 1518 Byte Packet forwarding rate | Upload/Download: 997.50 Mbps Bi-Directional: 1965.00 Mbps | |
- For the compatibility list, visit https://tp-link.com/er605/compatibility/
- Rated specifications are based on test results using software version ER605(UN)_V2_2.1.2 Build Device performance may vary as a result of the actual scenario.
| Model | ER605 V2 | |
|
Performance1 | IPSec VPN Throughput | ESP-SHA1-AES256: 259.78 Mbps ESP-SHA256-AES256: 260.81 Mbps ESP-SHA384-AES256: 37.65 Mbps ESP-SHA512-AES256: 38.32 Mbps |
| WireGuard VPN | 130.96 Mbps | |
| OpenVPN | 21.70 Mbps | |
| GRE | Unencrypted: 359.74 Mbps Encrypted: 78.11 Mbps | |
| L2TP VPN Throughput | Unencrypted: 640.99 Mbps Encrypted: 77.31 Mbps | |
| PPTP VPN Throughput | Unencrypted: 759.55 Mbps Encrypted: 75.80 Mbps | |
|
Basic Functions |
WAN Connection Type | Static IP Dynamic IP PPPoE (supports MRU Configuration) PPTP L2TP |
|
DHCP | DHCP Server DHCPv6 PD Server (only in Standalone Mode) DHCP Options Customization DHCP Address Reservation Multi-IP Interfaces Multi-Net DHCP | |
| MAC Clone | Modify WAN/LAN MAC Address2 | |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode | |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non- Address mode | |
| stateful ACL | √ | |
| mDNS Repeater | √ | |
| Quality of Service | √ | |
| Bridge VLAN | √ | |
| VLAN | 802.1Q VLAN | |
|
Transmission | Load Balance | Intelligent Load Balance Application Optimized Routing Link Backup (Timing, Failover) Online Detection |
|
NAT | One-to-One NAT Multi-Net NAT Virtual Server Port Triggering3 NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG UPnP | |
| Routing | Static Routing Policy Routing RIP3 OSPF3 | |
- Rated specifications are based on test results using software version ER605(UN)_V2_2.1.2 Build Device performance may vary as a result of the actual scenario.
- LAN MAC Address can be modified only in a Standalone
- Port Triggering, RIP, and OSPF are supported only in Standalone
| Model | ER605 V2 | |
| Transmission | Session Limit | IP-based Session Limit |
| Bandwidth Control | IP-based Bandwidth Control | |
|
VPN |
IPSec VPN | 20 IPSec VPN Tunnels LAN-to-LAN, Client-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256, SHA2-384 and SHA2-512 Encryption Algorithm IPsec Failover IKE v1/v2 MD5, SHA1 Authentication Algorithm, SHA2 Authentication Algorithm NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS) |
| PPTP VPN | PPTP VPN Server PPTP VPN Client (10)1 16 Tunnels PPTP with MPPE Encryption | |
| L2TP VPN | L2TP VPN Server L2TP VPN Client (10)1 16 Tunnels L2TP over IPSec | |
| GRE | Only in Standalone Mode | |
| WireGuard VPN | √ | |
|
OpenVPN | OpenVPN Server OpenVPN Client (10)1 16 OpenVPN Tunnels “Certificate + Account” Mode Full Mode | |
|
Security | Attack Defense | TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN |
| Filtering | Web Group Filtering2 URL Filtering Web Security2 | |
| DNS Proxy | DNSSEC, DoH, and DoT | |
| ARP Inspection | Sending GARP Packets3 ARP Scanning3 IP-MAC Binding | |
| Access Control | Source/Destination IP-Based Access Control | |
- ER605 can work as a VPN client and can connect with up to 10 VPN
- Web Group Filtering and Web Security are supported only in Standalone
- Sending GARP Packets and ARP Scanning are supported only in Standalone
| Model | ER605 V2 | |
|
Authentication |
Web Authentication | No Authentication Simple Password1 Hotspot (Local User / Voucher1 / SMS1 / Radius1) External Radius Server External Portal Sever1 LDAP2 |
|
Management | Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
|
Maintenance | Web Management Interface Remote Management Export & Import Configuration SNMP v1/v2c/v3 Diagnostics (Ping & Traceroute)3 NTP Synchronize3 Port Mirroring CLI (only in Standalone Mode) Syslog Support | |
|
Others | Certification | CE, FCC, RoHS |
| Package Contents | ER605, Power Adapter, RJ-45 Ethernet Cable, Quick Installation Guide | |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 MAC OS, NetWare, UNIX or Linux | |
| Environment | Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) Operating Humidity: 10% to 90% non-condensing Storage Humidity: 5% to 90% non-condensing | |
- The following web authentication methods are supported only in Controller Mode: Simple Password, Voucher, SMS, Radius, and External Portal Server.
- LDAP is supported only in Standalone Mode.
- Diagnostics (Ping & Traceroute) and NTP Synchronize are supported only in Standalone Mode.
- Some models featured in this guide may be unavailable in your country or region. Visit the TP-Link website for local sales information: www.tp-link.com.
- Specifications are subject to change without notice. All brands and product names are trademarks or registered trademarks of their respective holders. © 2023 TP-Link
FAQ’s
What is the TP-Link ER605 V2 Wired Gigabit VPN Router?
The TP-Link ER605 V2 is a wired gigabit VPN router designed for small to medium-sized businesses. It offers high-speed wired connections, advanced VPN functionality, and robust security features.
What are the key features of the TP-Link ER605 V2 router?
The key features of the TP-Link ER605 V2 router include gigabit Ethernet ports, support for multiple VPN protocols, advanced security features, VLAN support, and intuitive web-based management.
How many gigabit Ethernet ports does the TP-Link ER605 V2 router have?
The TP-Link ER605 V2 router has five gigabit Ethernet ports, including one WAN (Wide Area Network) port for connecting to the internet and four LAN (Local Area Network) ports for connecting devices within your network.
Does the TP-Link ER605 V2 support VPN (Virtual Private Network) connections?
Yes, the TP-Link ER605 V2 router supports VPN connections. It offers support for multiple VPN protocols, including IPsec, PPTP, and L2TP, allowing you to establish secure remote connections to your network.
Can the TP-Link ER605 V2 router handle multiple VPN tunnels simultaneously?
Yes, the TP-Link ER605 V2 router is capable of handling multiple VPN tunnels simultaneously. This enables secure remote access for multiple users or branch offices.
What type of security features does the TP-Link ER605 V2 router provide?
The TP-Link ER605 V2 router provides robust security features, including firewall protection, DoS defense, IP/MAC/URL filtering, and secure VPN encryption. These features help safeguard your network against various threats.
Does the TP-Link ER605 V2 router support VLANs (Virtual Local Area Networks)?
Yes, the TP-Link ER605 V2 router supports VLANs. VLAN support allows you to create separate virtual networks within your physical network, providing enhanced security and network segmentation.
Can I manage the TP-Link ER605 V2 router remotely?
Yes, you can manage the TP-Link ER605 V2 router remotely. It provides a web-based management interface that allows you to access and configure the router settings from any computer or device connected to your network.
Does the TP-Link ER605 V2 router support Quality of Service (QoS)?
Yes, the TP-Link ER605 V2 router supports Quality of Service (QoS). This feature enables you to prioritize certain types of network traffic, such as VoIP or video streaming, for better performance and reduced latency.
Is the TP-Link ER605 V2 router rack-mountable?
Yes, the TP-Link ER605 V2 router is designed to be rack-mountable. It comes with rack-mount brackets, allowing you to install it in a standard network rack.
What is the maximum throughput of the TP-Link ER605 V2 router?
The TP-Link ER605 V2 router offers a maximum throughput of up to 1 Gbps (gigabit per second), providing fast and reliable network connectivity.
Does the TP-Link ER605 V2 router support IPv6?
Yes, the TP-Link ER605 V2 router supports IPv6, the latest version of the Internet Protocol. It ensures compatibility with IPv6 networks and devices.
Can I set up a guest network with the TP-Link ER605 V2 router?
Yes, the TP-Link ER605 V2 router allows you to set up a guest network. This feature enables you to create a separate network for guests to access the internet while keeping your main network secure.
Does the TP-Link ER605 V2 router support port forwarding?
Yes, the TP-Link ER605 V2 router supports port forwarding. You can configure specific ports to be forwarded to devices within your network, allowing external access to services such as web servers or IP cameras.
Is the TP-Link ER605 V2 router compatible with Dynamic DNS (DDNS)?
Yes, the TP-Link ER605 V2 router is compatible with Dynamic DNS (DDNS). It allows you to associate a domain name with your router's IP address, making it easier to access your network remotely.
