Ds18 Cf-x6tpneo 6.5 Inch Neodymium Marine Towers Owner's Manual

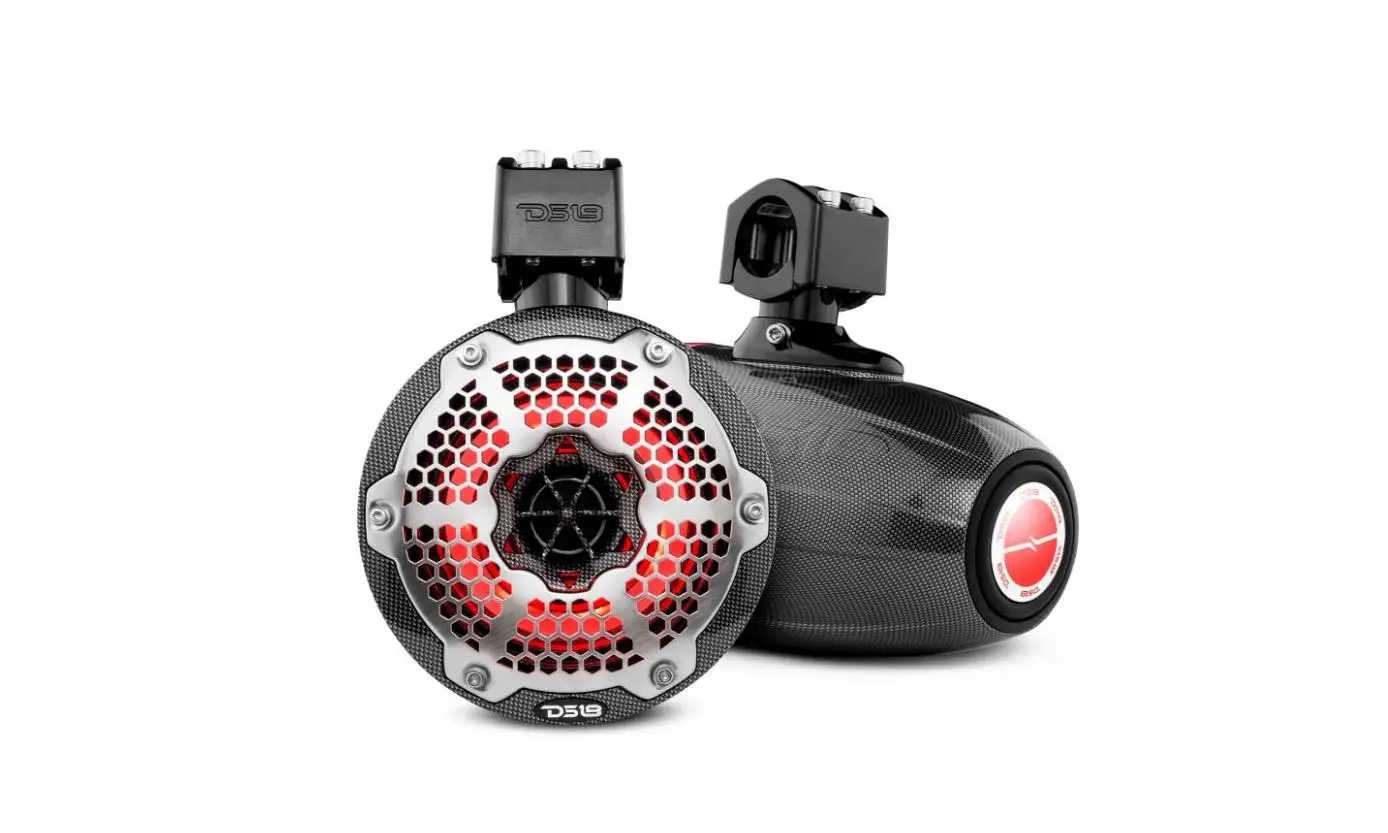

CF-X6TPneo 6.5 Inch Neodymium Marine Towers

Product Information

Product Usage Instructions

Installation

1. Choose a suitable location for mounting the CF-X6TPneo
   Wakeboard Pod Tower Speaker.
2. Ensure that the mounting surface is stable and secure.
3. Attach the speaker to the mounting surface using appropriate
   screws or clamps.
4. Make sure the speaker is firmly attached and stable.

Wiring and Connections

1. Connect the positive (+) terminal of the speaker to the
   positive (+) terminal of your audio source.
2. Connect the negative (-) terminal of the speaker to the
   negative (-) terminal of your audio source.
3. Ensure that all connections are secure and properly
   insulated.

Powering On and Adjustments

1. Ensure that the audio source is turned off.
2. Connect the power supply to the CF-X6TPneo Wakeboard Pod Tower
   Speaker.
3. Turn on the audio source and adjust the volume to a suitable
   level.
4. Use the RGB LED controls, if available, to adjust the lighting
   settings according to your preference.

Maintenance and Care

• Regularly clean the speaker using a soft cloth and mild
  detergent. Avoid using abrasive cleaners.
• Inspect the speaker for any signs of damage or wear. Replace
  any damaged parts immediately.
• Store the speaker in a dry and safe place when not in use.

OWNER’S MANUAL
CF-X6TPneo
6.5″ Neodymium Marine Towers with Built-in Passive Radiator, 1″ Driver and RGB LED Lights

CF-X6TPneo
General Specifications Nominal Diameter……………………….. 6.5″ Nominal Impedance……………………. 4 ohms RMS Power Handling………………….. 150 Watts MAX Power Handling………………….. 450 Watts Sensitivity (1w/1m)……………………… 93 dB Frequency Response…………………… 70 Hz – 21 KHz Recommended HI Pass Crossover.. 90 Hz
Body / Features Enclosure Material……………………… Injection PC+ABS Marine Grade Type……………………… IP65 + UV Stable RGB LED……………………………………. Integrated LED-RGB Speaker Lighting
Integrated LED-RGB Acrylic Ring Lighting and LED-RGB Back Logo with 6 Core Wires for Lighting and Speaker Grill Type……………………………………. ABS+316 Stainless Metal Mesh Clamps………………………………………. Die-Cast adjustable (1″ ~ 2″) 360 Degree Rotation Mounting Buried Wire or Open Wire Mounting Optional, Included NBR Pad And Stainless Hardware (Screws,Stop Washers,Hexagon wrench, Safety Rope,Screw fastening Glue) Front Logo………………………………….. Can be Rotated For Correct Angle Display Rear Logo…………………………………… Radiator Fixed Position Finish…………………………………………. Gloss Black Carbon Fiber Texture
Woofer Specifications Voice Coil Diameter………………………. 1.5″ Cone Material………………………………. Waterproof Compress Paper+Carbon Fiber Surround Material……………………….. Soft PC Damping Glued Basket Material…………………………… PC Injection Molded Composite Magnet Material………………………….. Neodymium Magnet Grade……………………………… N40H Passive Radiator………………………….. 3.5″ With LED RGB Light
Tweeter Specifications Voice Coil Diameter……………………… 1″ Type…………………………………………….. Compression Driver with CNC Solid Aluminum Horn Diaphragm Material…………………….. PEN Magnet Material………………………….. Neodymium Crossover……………………………………. 12dB with Over Power Protection

CF-X6TPneo

Thiele & Small Parameters

Equivilant Volume

Vas……… 8.5 L

Excursion (one way) Xmax….. 3 mm

Free Air Resonance Fs……….. 75 Hz

Total Factor

Qts……….0.783

Speaker Measurements Overall Diameter…………………………..6.93″ / 176.1mm Overall Depth………………………………..11.42″ / 290.2mm Overall Height……………………………….10.7″ / 271.7mm

2.40″/60.9mm

4.13″/104.9mm

ØØ12.0.0″”//2550.4.8mmmm TO

10.7″/271.7mm
3.51″/89.2mm

Ø6.93″/176.1mm

11.42″/290.2mm

Pair 6.5″ Wakebord Pod Tower Speaker
