just play

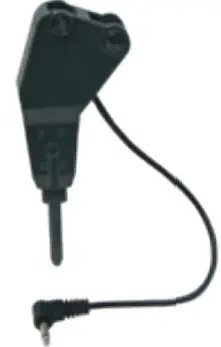

Schalengreifer Abbruchhammer

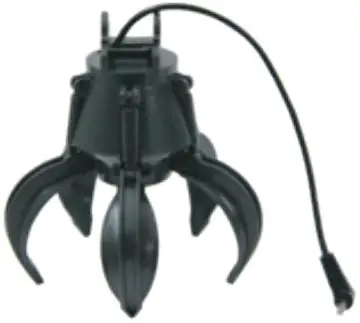

No. 412196 Schalengreifer
No. 412197 Abbruchhammer

Contents hide

1 Instruction

2 Certificate of Conformity

3 Assembling the Demolition Hammer

4 Assembling the gripper

5 Features Gripper

6 Documents / Resources

6.1 References

7 Related Posts

Instruction

6+ Suitable for children over 6 years.
Warning: – Not suitable for children under 36 months.
RISK OF SUFFOCATION!
– Contains small parts which can be swallowed. Keep away necessarily from children.
– This device is not intended for use by individuals (Including children) with reduced physical sensory, mental abilities, lack of experience and / or knowledge, unless they are supervised in how the device is to be used.

Certificate of Conformity

Hereby JAMARA e.K. declares that the products „Gripper, Demolition Hammer, No. 412196,
412197” for use as an accessory for the article „Digger VOLVO EC160E, No. 405055” comply with Directives 2014/30/EU, 2011/65/EU and 2009/48/EC. The full text of he EU Declaration of Conformity is available at the following Internet address: www.jamara-shop.com/Conformity

– Read the complete instructions and security instructions carefully before using the model.
Caution! Please fully and carefully read warnings/ safety instructions.
These are for our own security and can avoid accidents/injuries.

Assembling the Demolition Hammer

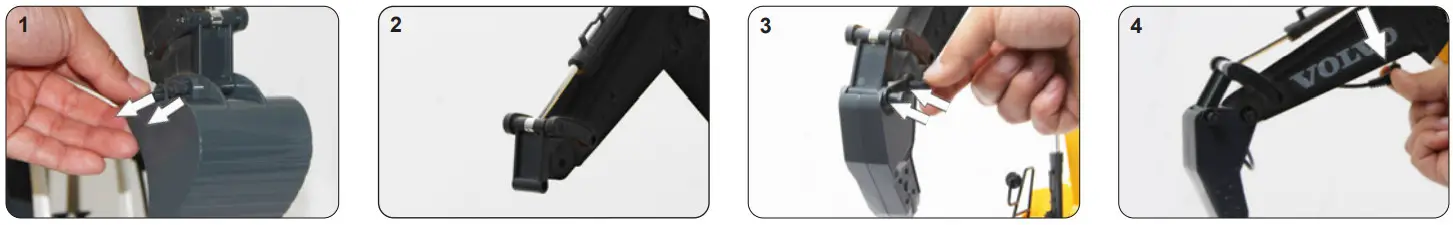

Push the two pins through the hole (see pic 1), the shuffle will loosen (see pic 2).
Assemble the demolition hammer on the gripping arm and tighten it with the two pins (see pic 3).
Insert the cable in the applicable connector (see pic 4).

Features Demolition Hammer

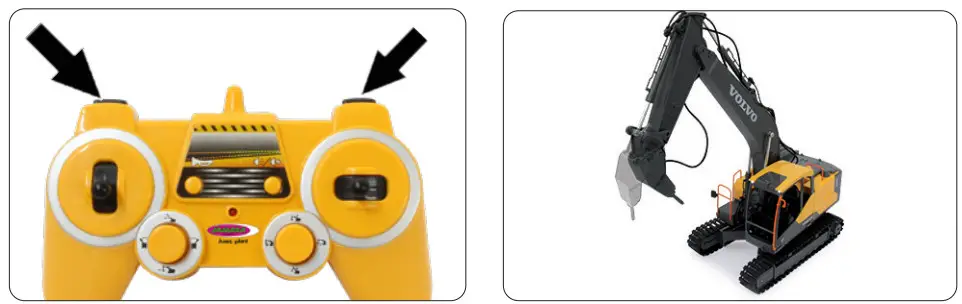

If you press one of the buttons the demolition hammer will start hammering. Hold the button pressed

Assembling the gripper

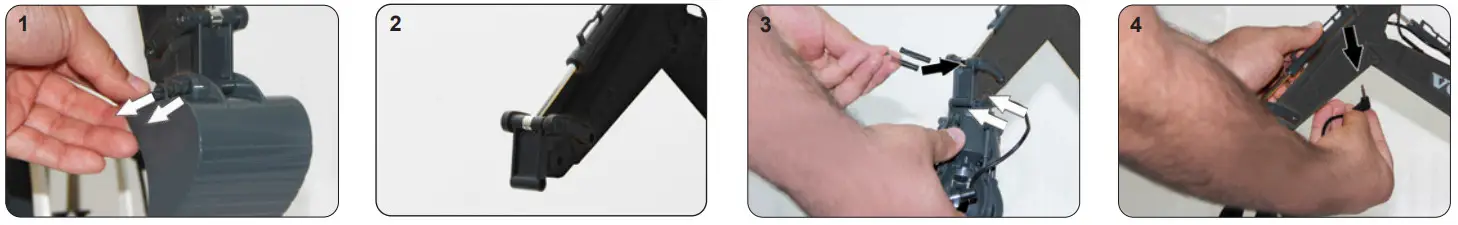

Push the two pins through the hole (see pic 1), the shuffle will loosen (see pic 2).
Assemble the gripper on the gripping arm and tighten it with the two pins (see pic 3).
Insert the cable in the applicable connector (see pic 4).

Features Gripper

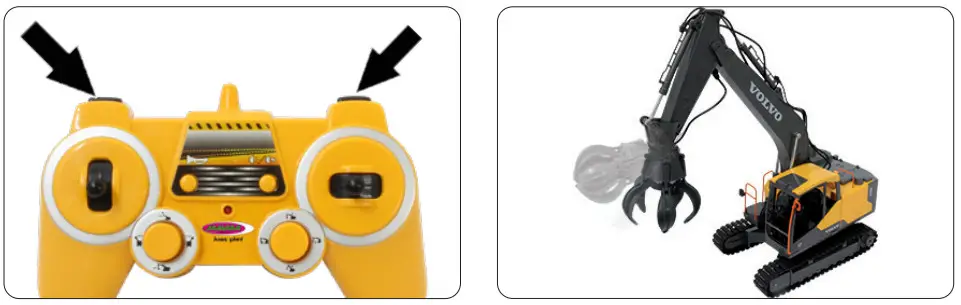

If you press one of the buttons the gripper will open and close. Hold the button pressed.

All rights reserved. Copyright JAMARA e.K. 2021
Copying or reproduction in whole or part, only with the expressed permission of JAMARA e.K.
Disposal restrictions
Electrical appliances must not be disposed of in domestic waste and must be disposed of separately.
You are obliged to take out the batteries, if possible, and to dispose of the electrical equipment at the communal collection points. Should personal data be stored on the electrical appliance you must remove them by yourself.
