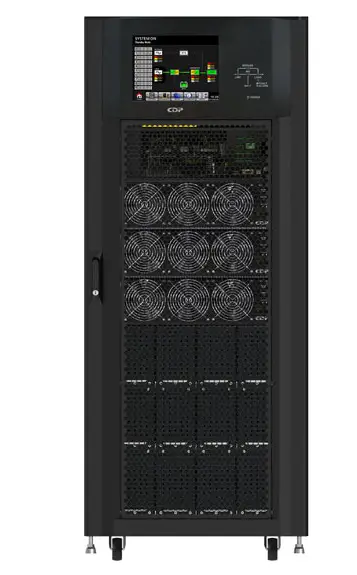

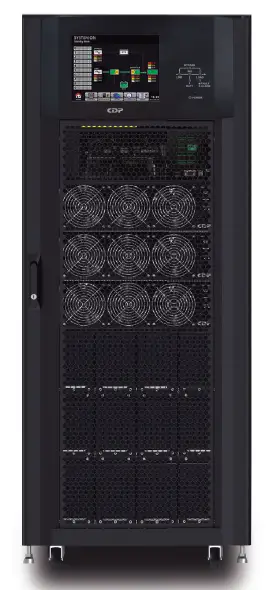

CDP UPO33-HM3AX Chicago Digital Power
Feature
- True double-conversion
- SP technology guarantees high performance
- 1O” LCD for comprehensive UPS information
- Active power factor correction
- 5OHz/6OHz frequency converter mode
- ECO mode operation for energy saving [ECO]
- Emergency power off function [EPO]
- Generator compatible
- SNMP+USB multiple communications
- 3-stage extendable charging design for optimized battery performance
- Maintenance bypass available
Specification
| PHASE | 3-phase in/3-phase out | |
| CABINET CAPACITY | 60KW | |
| BATTERY TYPE | Built in Battery | |
| ONE POWER MODULE CAPACITY | 20KVA/20KW | |
| MAX. POWER MODULE NO. | 3 x 20kVA | |
| MAX. BATTERY SET NO | 120 pcs (12 Trays) | |
| Voltage | 3 x 120 VAC (Ph+N) | |
| Voltage Range | 156-253 VACat 100% load, 121 -155 VACat 70%load | |
| Frequency Range | 40Hz-70Hz | |
| Power Factor I | ea 0.99 @ 100% load | |
| Output Voltage | 3 x 120 VAC (Ph+N) | |
| AC Voltage Regulation (Batt. Mode) | ±1% | |
| Frequency Range (Synchronized Range) | 46~54Hz or 56~64Hz | |
| Frequency Range (Batt. Mode) | 50 Hz± 0.1 Hzor60 Hz± 0.1Hz | |
| Current Crest Ratio | 3:1(max.) | |
| Harmonic Distortion | as 1.5 % THD (Linear Load) as 4 % THD (Non-linear Load) | |
| Transfer Time I | AC mode to Battery mode | zero |
| Inverter to Bypass | zero | |
| Waveform (Batt. Mode) | Pure Sine Wave | |
| Overload I AC Mode | 110% for 1 hr, 125% for 10 min, 150% to 1 min, >150% for200 ms | |
| EFFICIENCY | Up to 96% | |
| Nominal Voltage | 240 with neutral +/-120V (12V x20 pcs) | |
| Float Charging Voltage | 2.25V /Cel | |
| Boost Charging Voltage | 2.35V I Cel | |
| Temperature Compensation | Yes | |
| Maximun Charging Current | 8A for each power module (user adjustable) | |
| LCD Panel | UPS status, load level, battery level, inpuVoutput voltage, backup time and fault conditions | |
| ALARM | ||
| Battery Mode | Sounding every 4 seconds | |
| Low Battery | Sounding every second | |
| Overload | Sounding twice every second | |
| Fault | Continuously sounding | |
| Cabinet Dimension (mm) | 1100 X 600 X 1475 (DX W X H) | |
| Net Weight (kgs) | 675 | |
| Operation Temperture | 0-40°C | |
| Operation Humidity | <95% and non-condersing | |
| IP CLASS | IP 20 | |
| SmartUSB | Supports Windows® 2000/2003/XPNista/2008, Windows® 7/8, Linux and MAC | |
| Optional SNMP | Power management from SNMP manager and web browser | |
| Safety | UL 1778 / CSA C22 / NO 107, 3 -05 | |
| EMC | FCC PART 15, SUPPORT B class A | |
*Wthe UPS is installed or used in a place where the altitude is above than 3000m, the output power must be derated 1% per 100m
Specifications are subject to change without notice
