Carson Desert Warrior 3.0 2.4 Ghz Assembled 100% Ready-to-run Model Instruction Manual

Desert Warrior 3.0
2.4 GHz
ASSEMBLED 100% READY-TO-RUN MODEL
Instruction Manual

ATTENTION

Important information
Before using your product for the first time or ordering any spare parts, check that your manual is fully up-to-date. This manual contains the technical appendices, important instructions for correct start-up and use, and product information, all fully up-to-date before going to press. The contents of this manual and the technical data of the product can change without prior notice. For the latest version of your manual, see: www.carson-modelsport.com

Dear Customer
We congratulate you on buying this CARSON product, which is designed and manufactured using state-of-the-art technology. According to our policy of continuous development and product improvement, we reserve the right to make changes in specifications regarding equipment, material, and design at any time without notice. Specifications or designs of the actual product may vary from those shown in this manual or on the box. The manual forms part of this product. Should you ignore the operating and safety instructions, the warranty will be void. Keep this guide for future reference.

Limited Warranty
This product is warranted by CARSON against manufacturing defects in materials and workmanship under normal use for 24 months from the date of purchase from authorized franchisees and dealers. In the event of a product defect during the warranty period, return the product along with your receipt as proof of purchase to any CARSON store. CARSON will, at its option, unless otherwise provided by law:
(a) Correct the defect by repairing the product without charging for parts and labor;
(b) Replace the product with one of the same or similar designs.
All replacement parts and products, and products on which a refund is made, become the property of CARSON. New or reconditioned parts and products may be used in the performance of warranty services. Repaired or replaced parts and products are warranted for the remainder of the original warranty period. You will be charged for repair or replacement of the product made after the expiration of the warranty period.

The Warranty does not cover:

• Damage or failure caused by or attributable to acts of God, abuse, accident, misuse, improper or abnormal usage, failure to follow instructions, improper installation or maintenance, alteration, lightning, or another incidence of excess voltage or current;
• Damage caused by losing control of your model;
• Any repairs other than those provided by a CARSON authorized service facility;
• Consumables such as fuses or batteries;
• Cosmetic damage;
• Transportation, shipping or insurance costs; or
• Costs of product removal, installation, set-up service adjustment or reinstallation;
• Any changes to plugs and cables, open the housing and damage the sticker.

This warranty gives you specific legal rights, and you may also have other rights which may vary according to the country of purchase.

Declaration of conformity: TAMIYA-CARSON Modellbau GmbH & Co. KG hereby declares that the radio equipment type 500404213 conforms to Directive 2014/53/EU. The complete text for the EU declaration of conformity is available at the following Internet address. www.carson-modelsport.com/de/produkte.htm

The meaning of the symbol on the product, packaging, or instructions. Electrical appliances are valuable products and should not be thrown in the dust bin when they reach the end of their serviceable life! Help us to protect the environment and conserve resources and bring this device to a corresponding disposal point/ dealer free of charge. For disposal-related queries, contact the organization responsible for waste disposal or your specialist retailer. The end-user is responsible for deleting personal data on old devices.

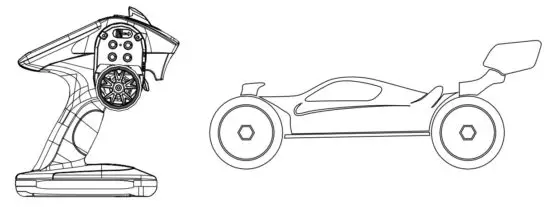

INCLUDED ITEMS ACCESSORIES

• Model
• Transmitter

SAFETY PRECAUTIONS

Safety Instructions and Intended Use
This product is designed exclusively for hobby use and may only be used on tracks and areas intended for this purpose. No persons or animals may be transported with this model. To avoid operator errors, it is mandatory that the user manual is read before use! These models may only be used with bodywork that is correctly fitted. When removing the bodywork, please note that, during operation, certain parts can become very hot. Please note that various models can generate very high noise levels and should, therefore, not be operated in your immediate proximity. Please make sure, before every driving session, that the tank is correctly closed or the power pack is correctly inserted. To avoid the faulty operation of the control system causing the model to run out of control, it must be checked that the transmitter and model batteries are in good condition. It is essential to check that the model is correctly assembled both before and after use; if need be, tighten nuts and bolts.

This model is not a toy!

• This product is not a toy, its operation must be learned step by step.
• Children under 14 years of age should operate the model only if supervised by an adult.
  Operating RC models is a fascinating hobby that, however, must only be exercised with proper precautions and care. Since the weight of this model is considerable and it can reach a very high speed it can, if it runs out of control, cause significant damage and injury for which you, as the operator, are liable.
  Only a correctly assembled model will work and react as expected.
  Never improvise with unsuitable materials but, when the need arises, use only original spare parts. Even if the model is pre-assembled, all joints and fastenings should be checked for correct seating and tightness.

Before use, you must make sure of the following points:

• All rechargeable batteries must be fully charged.
• Before starting, check the radio range.
• Check that the model reacts correctly to the control signals.
• All functional parts of the product are in a faultless condition and have been checked.
• All screw fastenings are firmly seated.
• Do not drive under high-voltage power lines or radio masts or with nearby thunderstorms!
• Atmospheric interference can influence the operation of your model.
• The electrical parts of the model are not water-tight. Do not, therefore, drive it in rain or snow or through puddles or wet grass.
• The remote-controlled model may be driven only in suitable areas and must not be used on the public highway.
• Do not use it near people or animals!
• Do not use it when tired or if your reactions are otherwise impaired.
• Always maintain direct visual contact with your model.
• Regular maintenance and care are required for first-class driving performance.
• The model has parts that become hot in operation, e.g. the top of the motor, and the metal gearbox, amongst many others. Touching these parts during an operation can cause injury.

Pay attention to the charge level indication on your transmitter.

• With power packs or batteries that are half discharged, you can lose control of the model.
• In the transmitter, never mix fully charged batteries, rechargeable or not, with half discharged batteries or rechargeable batteries of different capacities.
• Never try to charge non-rechargeable batteries (dry cells), only batteries specified as rechargeable can be charged.

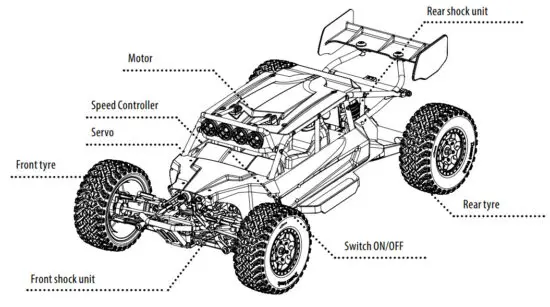

CHASSIS

REMOVING THE BODY

• Remove hook pin
• To remove the body – swing to open

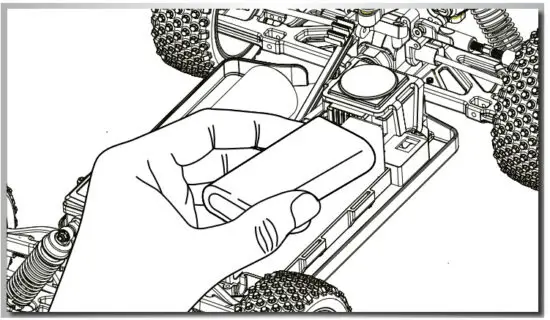

INSERTING THE DRIVE BATTERY

1. To remove the body – swing to open.
2. Insert the battery.
3. Fix it with the mounting brackets.

Advice

• Non-rechargeable batteries are not to be recharged.
• Rechargeable batteries are to be removed from the toy before being charged.
• Rechargeable batteries are only to be charged under adult supervision.
• Batteries are to be inserted with the correct polarity.
• Exhausted batteries are to be removed from the toy.
• The supply terminals are not to be short-circuited.
• Regular examination of transformer or battery charger for any damage to their cord, plug, enclosure and other parts.

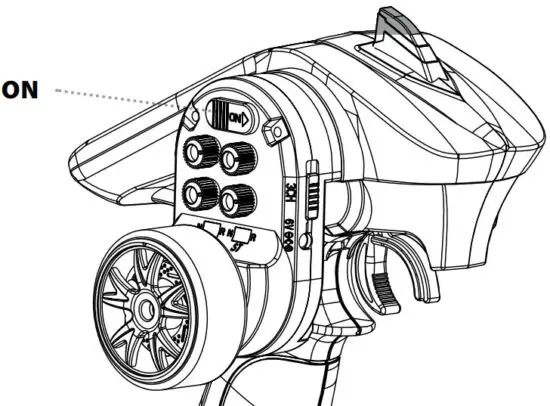

TURN ON THE RC SYSTEM

CAUTION!
Always turn the transmitter´s power switch ON first!

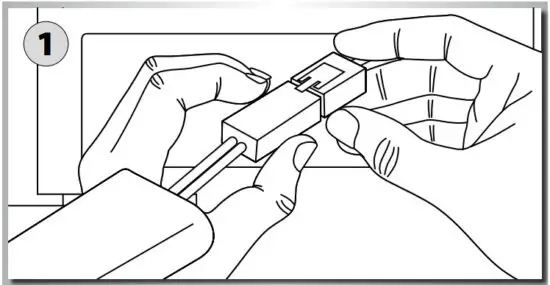

1. Schließen Sie die Fahrakkus an.
2. Schalten Sie den Empfänger ein.
3. Setzen Sie die Karosserie auf und sichern Sie diese mit den Karosseriesplinten.

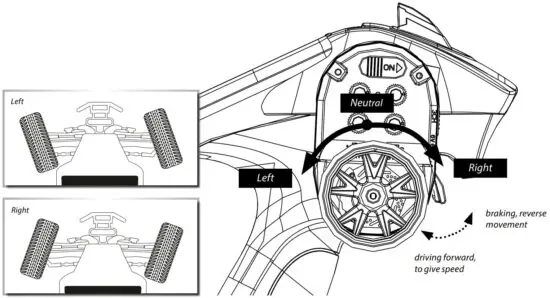

HOW TO CONTROL YOUR MODEL

• Raise the tires off the ground
• Turn the steering wheel to the right and left as far as it will go. The wheels are to follow the steering direction.
• If the wheels operate in the opposite direction, operate the servo Reverse switch (ST in position REV).
• To regulate the driving speed, actuate the throttle/brake
  – backward (forward driving, accelerating) or
  – forwards (braking, reversing)

TROUBLESHOOTING

ASSEMBLY INSTRUCTIONS

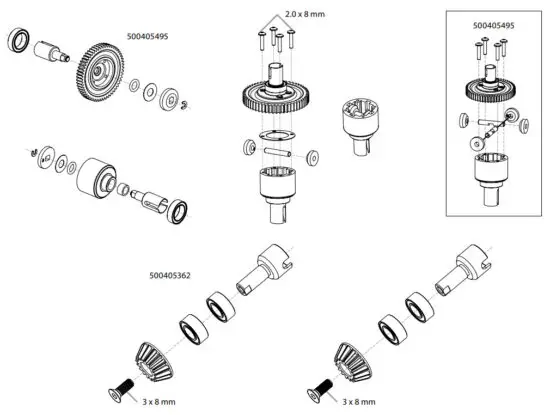

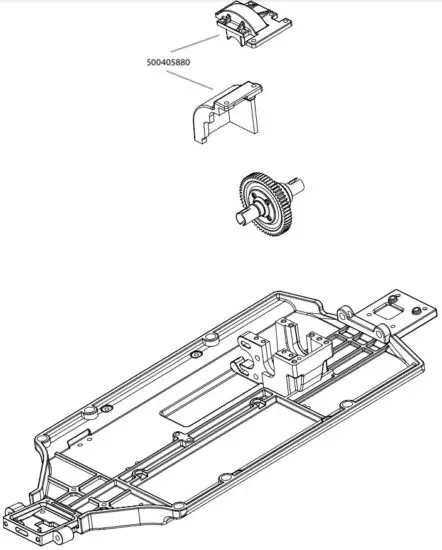

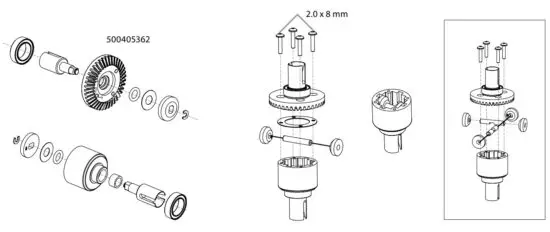

DIFFERENTIAL CENTER

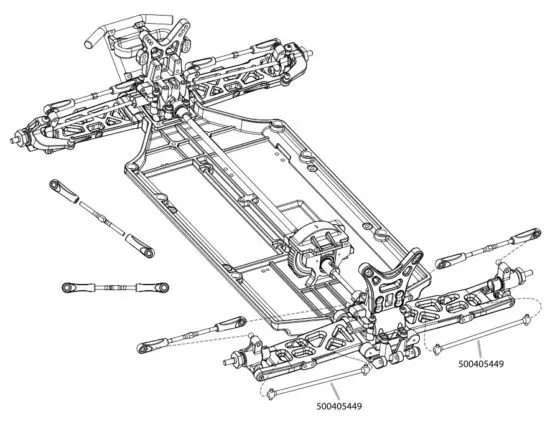

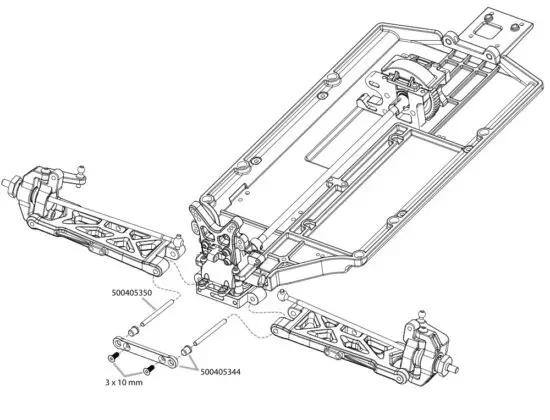

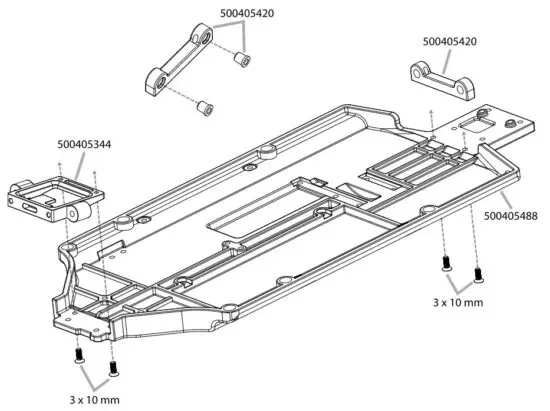

CHASSIS

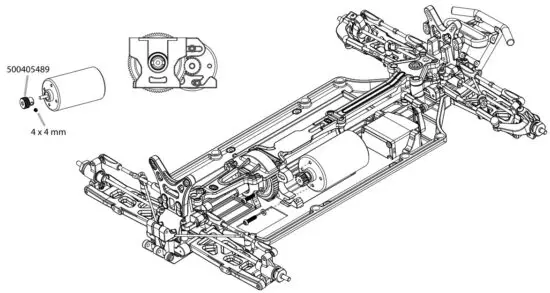

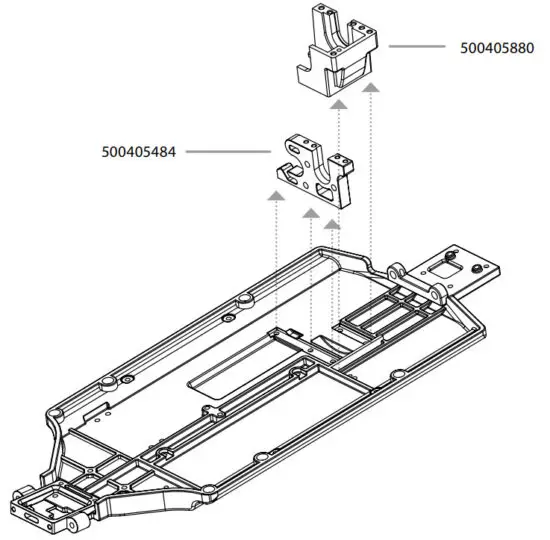

MOTOR MOUNT

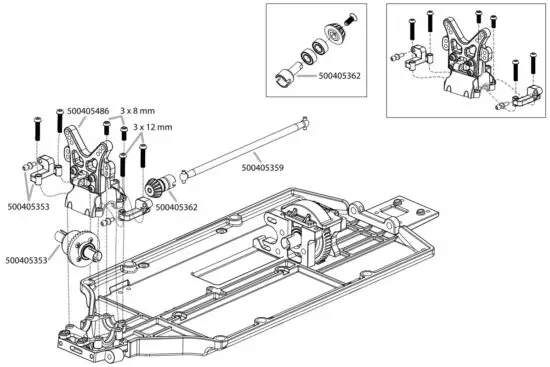

CENTER DIFFERENTIAL

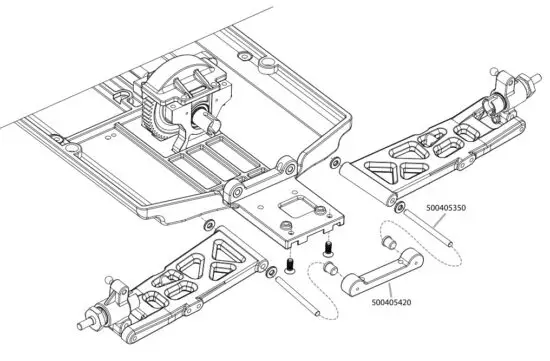

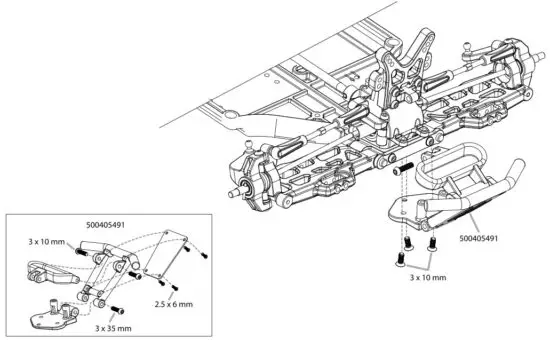

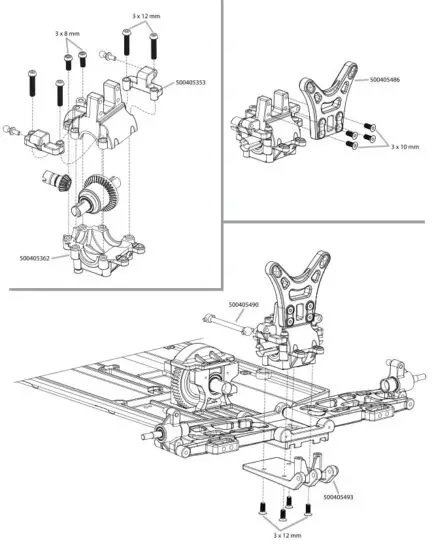

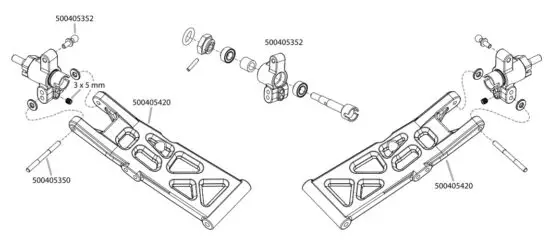

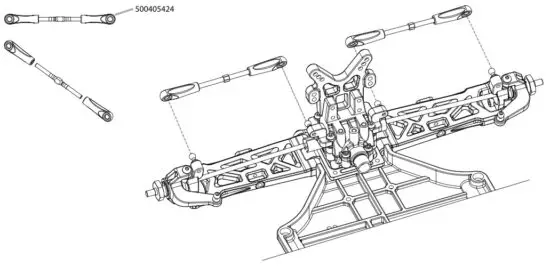

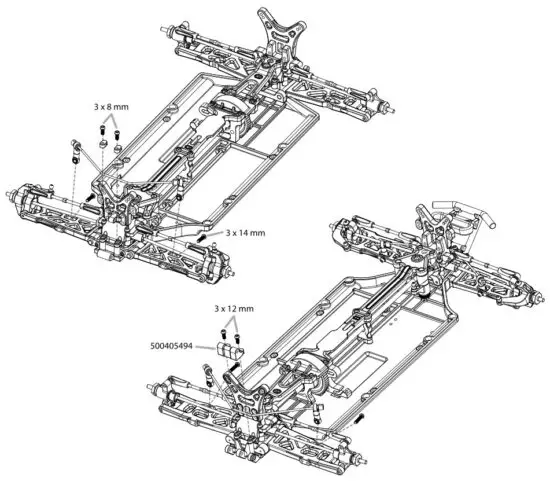

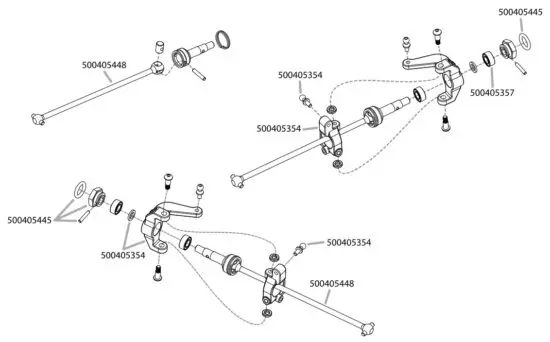

ASSEMBLING FRONT UNIT

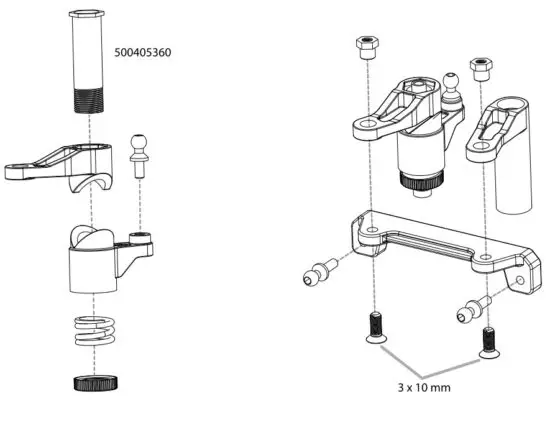

SERVO SAVER

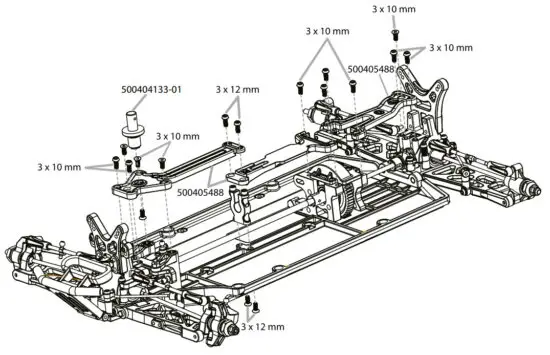

ASSEMBLY UPPER DECK

ANTI ROLL-BAR

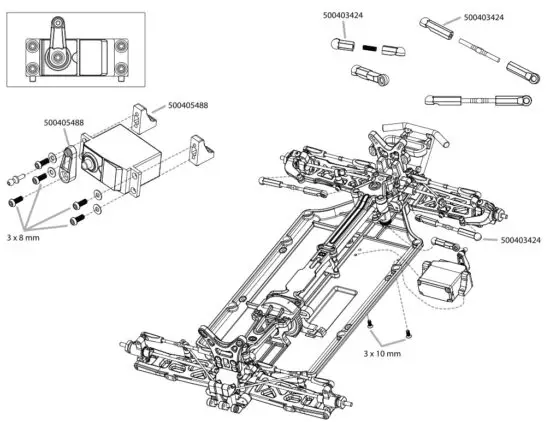

STEERING SERVO

ASSEMBLY ENGINE

RC-BOX

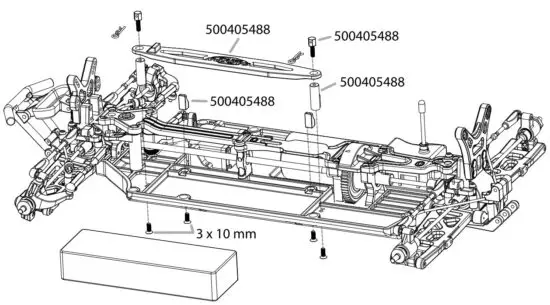

BATTERY-HOLDER

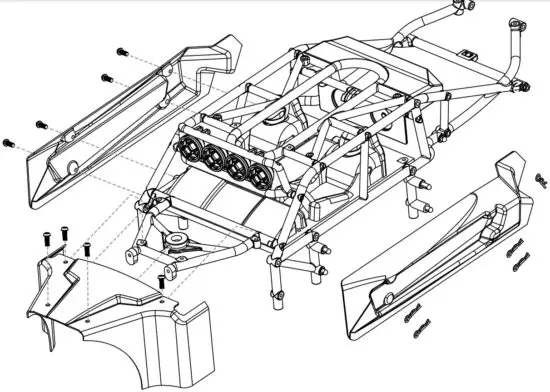

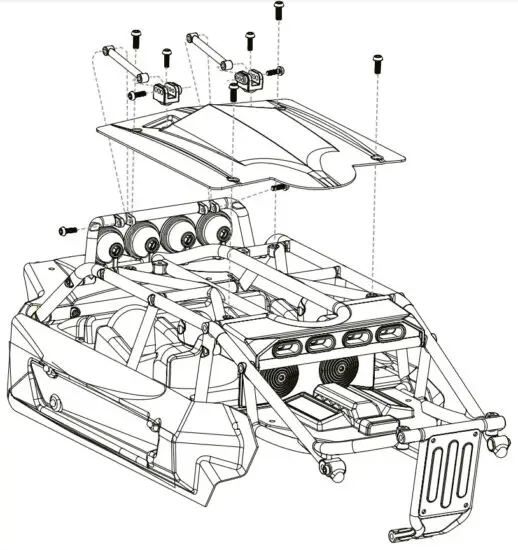

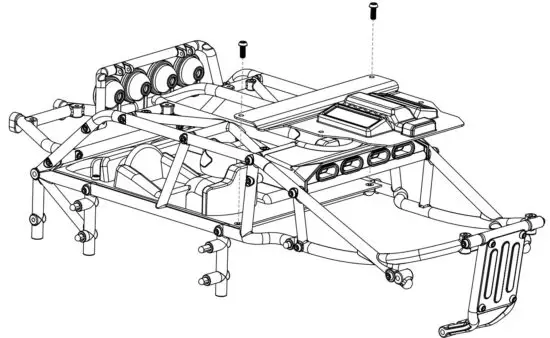

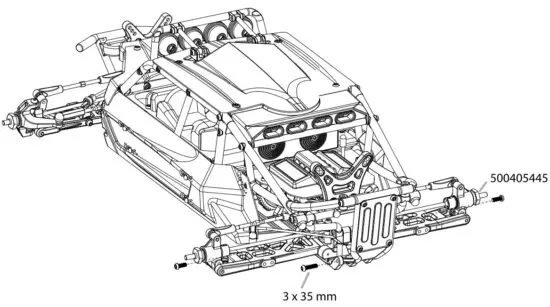

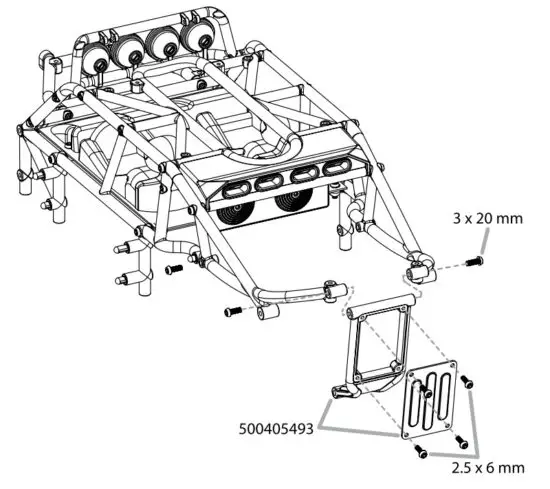

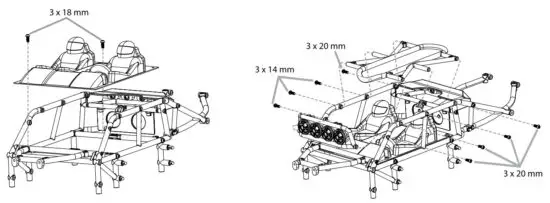

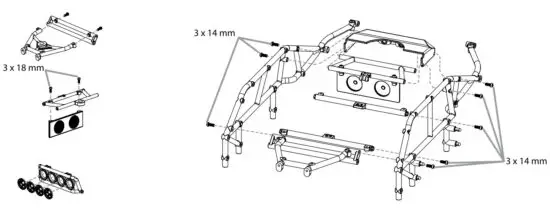

ASSEMBLY ROLL CAGE

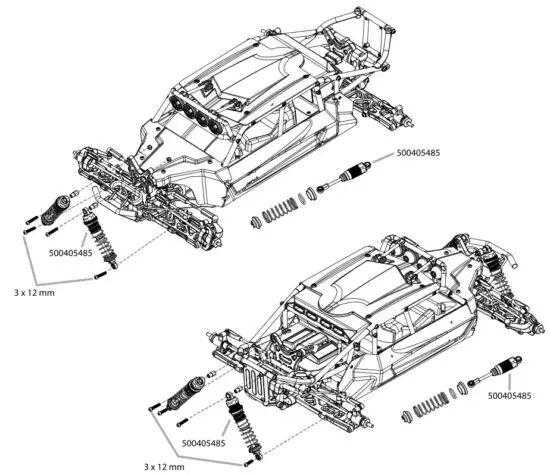

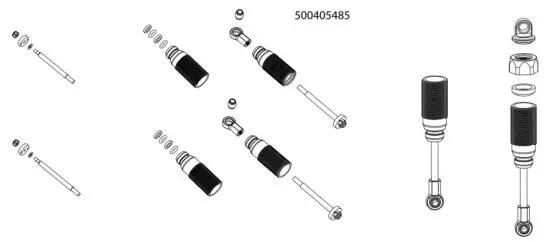

ASSEMBLY DAMPERS

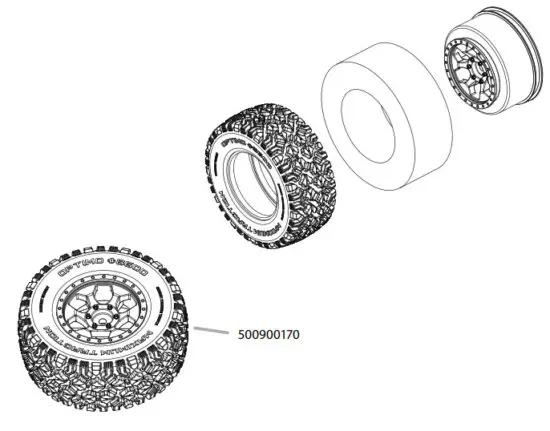

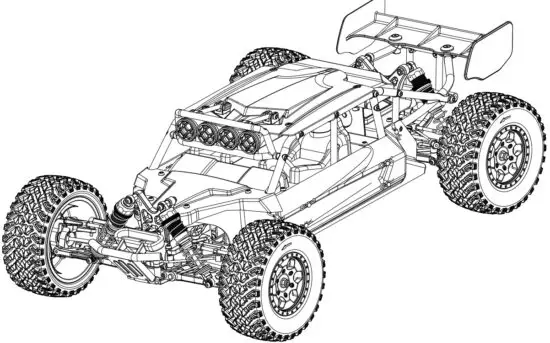

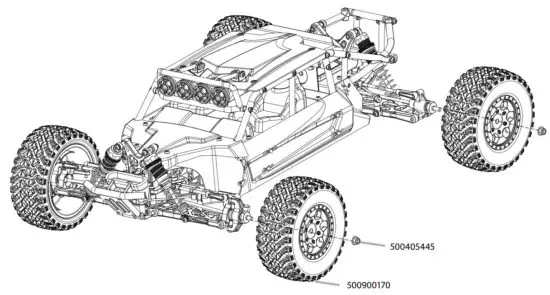

WHEELS

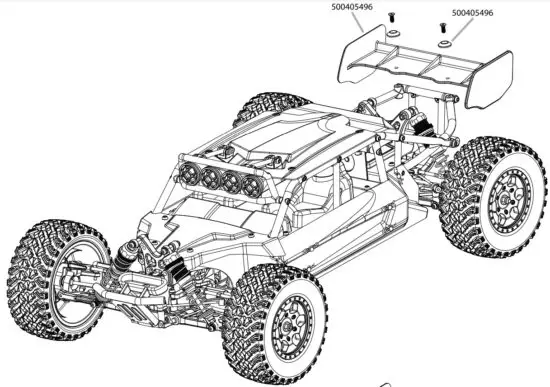

WING

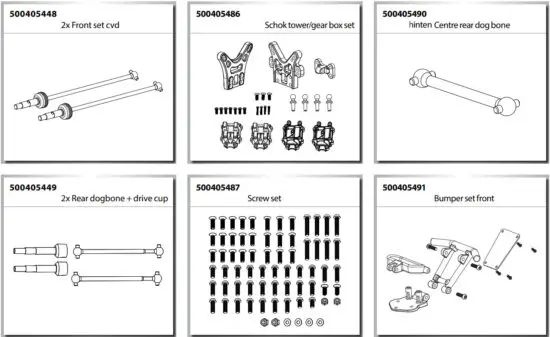

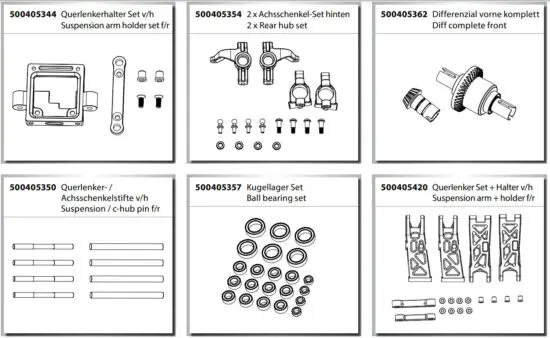

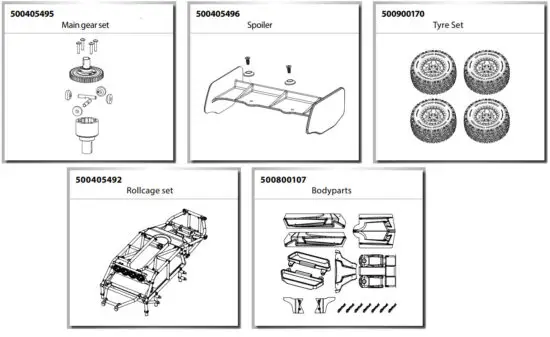

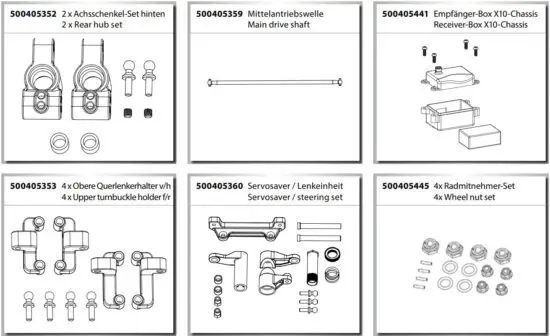

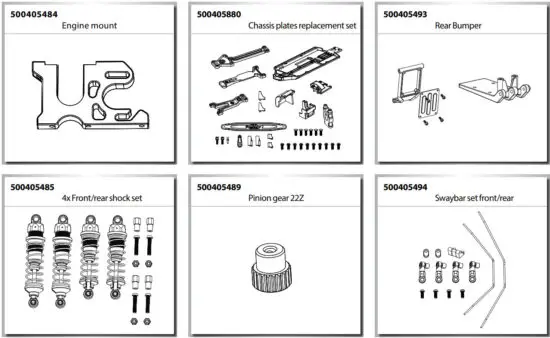

SPARE PARTS
