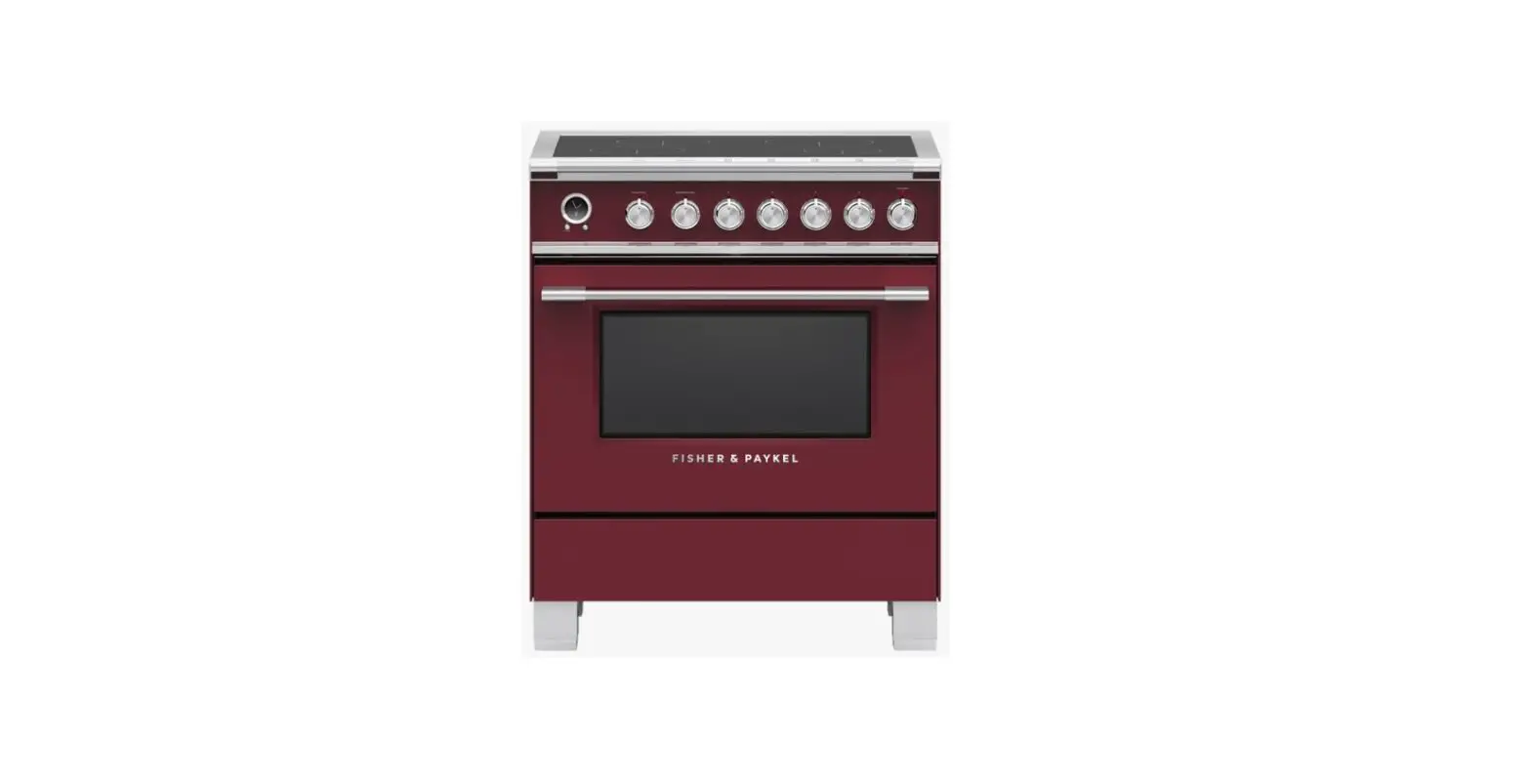

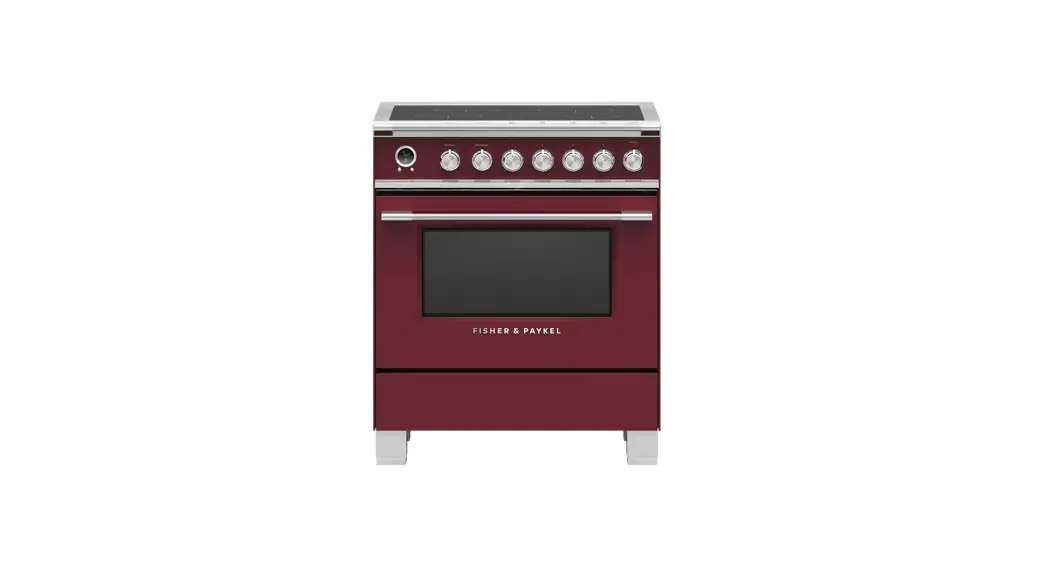

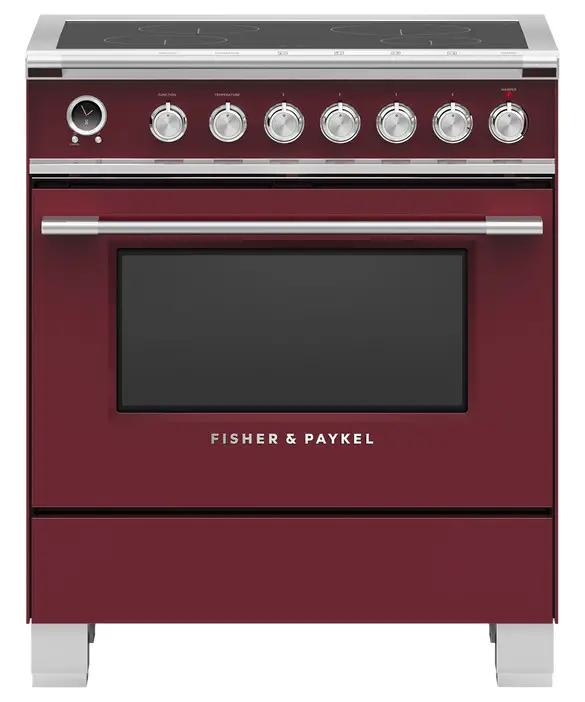

OR30SCI6R1 30 Inch 4 Zones Self Cleaning Induction Range
User Guide
Blending heritage styling and contemporary performance, including a convection oven and an instant-response induction cooktop.
- Four induction cooking zones with immediate heat response and precise control
- Convection oven with 3.5 cu ft total capacity and nine oven functions including Roast and Aero™Pastry
- The self-cleaning function breaks down food residue for an easy clean
- Non-tip full-extension shelves for safe removal of hot dishes
DIMENSIONS
| Height | 35 3/4 – 37 5/8″ |
| Width | 29 7/8″ |
| Depth | 25 1/4″ |
FEATURES & BENEFITS
Outstanding Performance
Discover the flexibility to get creative in the kitchen with nine oven functions including Bake, Roast, and Aero™ Pastry with Pizza Bake.
Power & control
The induction cooktop provides instant and immediate control from the highest to the gentlest heat. The finely tuned cooktop controls let you sear, stir fry or simmer a delicate sauce to perfection.
Generous capacity
The generous 3.5 cu ft total capacity for this range gives you plenty of space to cook multiple dishes at the same time.
Quality and durability
Every detail has been carefully crafted, from the heritage design cues, to the solid, perfectly balanced soft-close door, and to the chromed cast zinc dials. They all add up to an exceptional, premium range.
Easy to clean
The self-clean function reduces grease and food residue to easily removable light ash and the cooktop simply needs a quick wipe to keep it looking good as new. The oven door and runners can also be removed for easy cleaning.
Safe and sound
Designed for your safety and convenience, this range features full extension telescopic sliding shelves, a triple-glazed CoolTouch door, and a child lock.
SPECIFICATIONS
| Accessories | |
| 2-pc grill system (Broil pan and | • |
| Broil pan | • |
| Full Extension Telescopic | 2 sets (part 578776) |
| Full extension sliding shelves | 2 sets (part 578776) |
| Hob rear trim | 3″ (part 81656) |
| Kick strip, stainless steel | Part 81660 |
| Cleaning | |
| Acid resistant graphite enamel | • |
| Drop down grill element | • |
| Flat easy clean glass surface | • |
| Pyrolytic proof shelf runners | • |
| Pyrolytic self-clean | • |
| Removable oven door | • |
| Removable shelf runners | • |
| Controls | |
| Audio feedback | • |
| Automatic cooking/minute | • |
| Automatic pre-set | • |
| Celsius/Fahrenheit | • |
| Electronic clock | • |
| High-resolution display | • |
| Laser etched graphics | • |
| Precise electronic temperature | • |
| Sabbath mode | • |
| Toughened fused glass | • |
| Turned stainless steel clock | • |
| Turned stainless steel dials | • |
| Oven Features | |
| Automatic rapid pre-heat | • |
| Electronic oven control | • |
| Full extension telescopic | • |
| Internal light | 2 x 25W halogen (rear) |
| Soft open/close door | • |
| True convection | • |
| Oven functions | |
| Aero Bake | • |
| Aero Broil | • |
| Aero™ Pastry with Pizza mode | • |
| Number of functions | 9 |
| Pastry Bake with Pizza mode | • |
| Rapid proof | • |
| Roast | • |
| Self-clean | • |
| True Aero | • |
| True convection | • |
| Oven performance | |
| CoolTouch door | Triple glazed |
| Warming drawer power | 220W |
| Power requirements | |
| Amperage | 51A |
| Supply frequency | 60Hz |
| Product dimensions | |
| Depth | 25 1/4″ |
| Height | 35 3/4 – 37 5/8″ |
| Width | 29 7/8″ |
| Rangetop features | |
| Auto heat reduce | • |
| Gentle heat | • |
| Heat settings | 9 |
| Hob rear trim | 3″ (part 81656) |
| Induction cooking technology | • |
| Rangetop Performance | |
| PowerBoost | • |
| Safety | |
| Advanced cooling system | • |
| Anti-tilt bracket | • |
| Balanced oven door | • |
| Catalytic venting system | • |
| Child lock | • |
| CoolTouch door | • |
| Full extension telescopic | • |
| Non-tip shelves | • |
| Pan detection system | • |
| Safety time out | • |
| Spill containment | 18 BTU |
| Spillage auto off | • |
| Surface hot indicators | • |
| SKU | 81964 |
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
