Smart WiFI Humidity and Temperature Thermometer
Thermometer (Wi-Fi)
User Manual

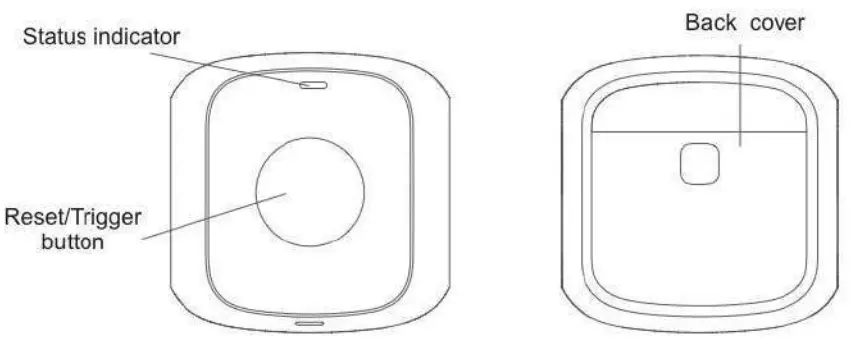

Overview
App Installation
Meshhub Home App is the mobile platform for controlling Linkoze devices. You can search “Meshhub Home” in the mobile application store to install the App.
Activate the Device

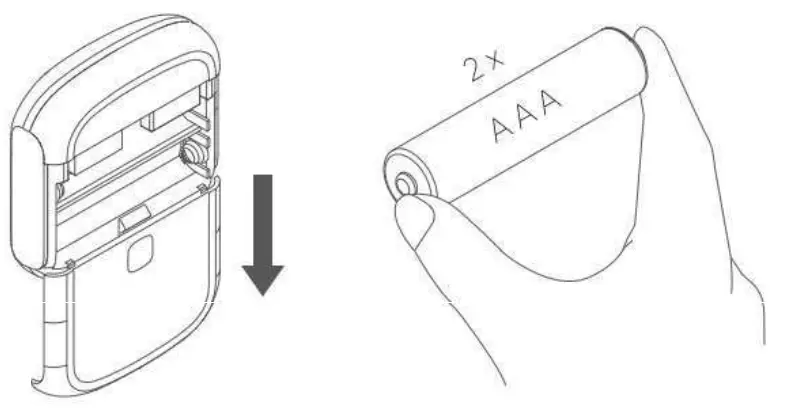

Slide down the rear cover to open the device case. Then put two batteries into the product.
Device Pairing

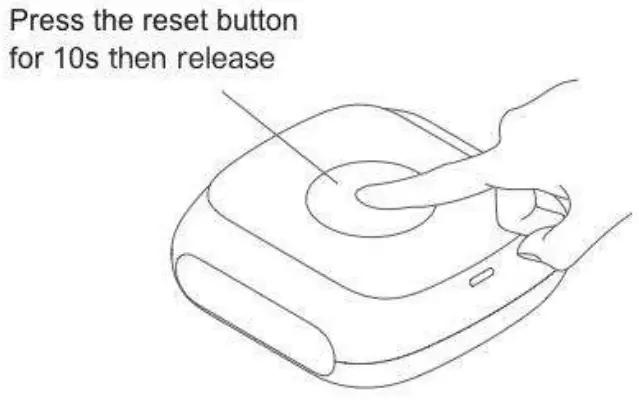

Long press the reset button for 10 seconds and release, the device is ready to be paired when the green LED flashes.

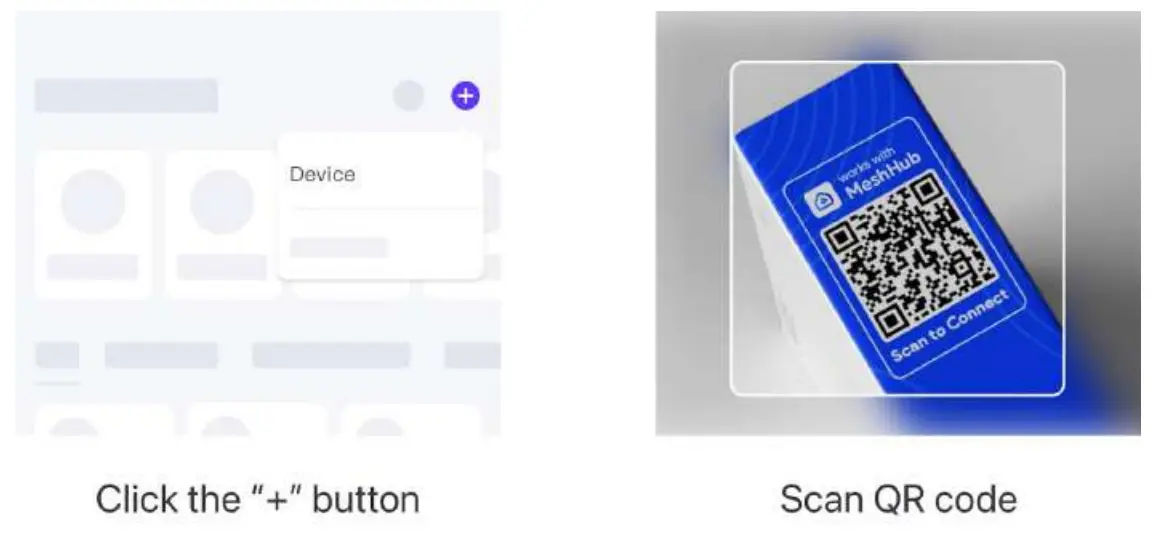

Open the App and click the “+” button on the upper right corner, then click the thermometer button in the “Add a device” panel and follow the instructions in the app to pair the device.

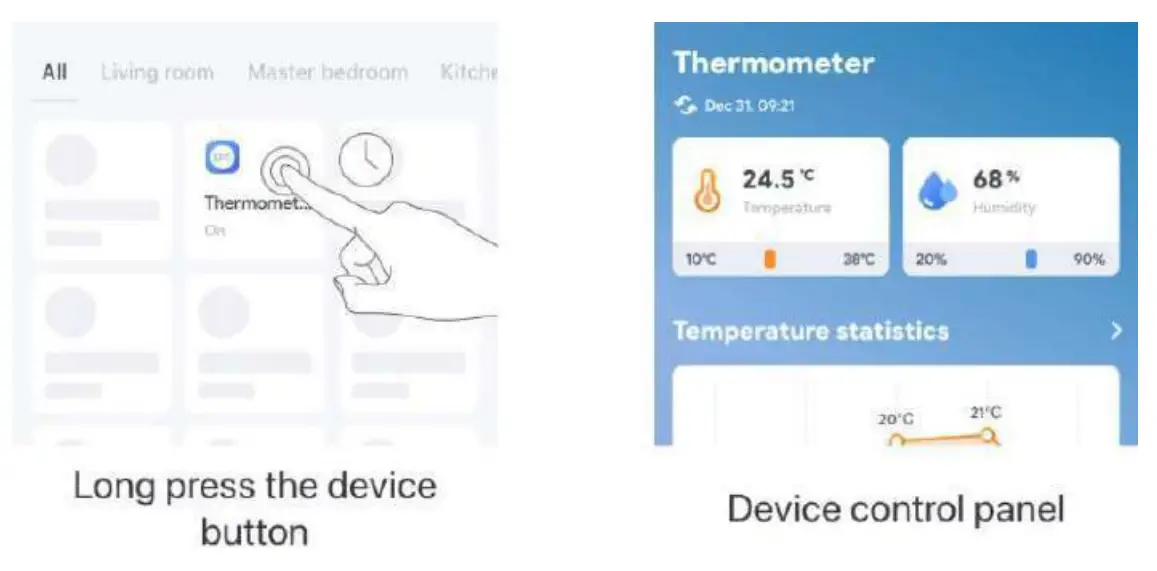

After the thermometer is paired, you can long press the device button on the main page of the App to inspect the thermometer status and view alarm history.
Device Installation
Installation method: Use a 3M sticker to affix the product to the target position.
Automation
The automation function is available in the App to connect different devices. Each automation contains a series of trigger conditions and target actions.
The target actions will be automatically triggered when the conditions are met.

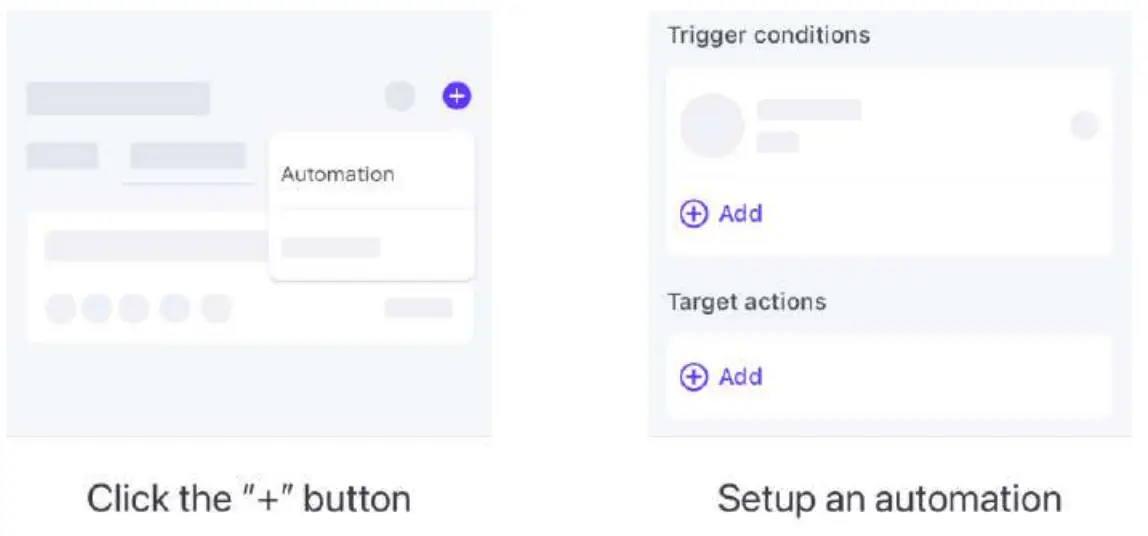

To set up an automation, click the “+” button in the upper right corner of the automation page. You can use the thermometer as a trigger condition and create target actions with other Linkoze appliances.
Specifications
Dimensions: 51 x 51 x 16.5 mm
Weight: 18.5 g
Recommended temperature range: 5 °C – 60 °C
Recommended humidity range: 0 %RH – 100 %RH
Wireless protocol: 2.4GHz Wi-Fi
Working voltage: DC 3V
Battery type: AAA
