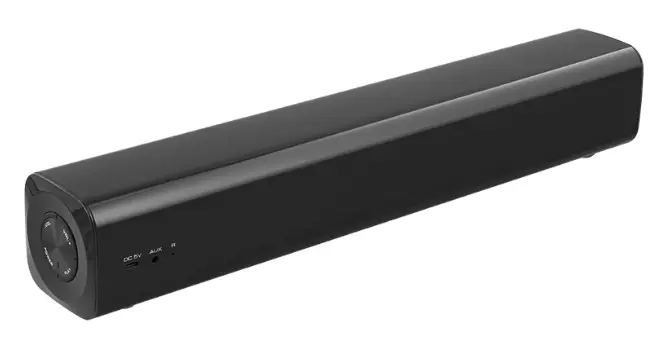

DENVER DSB-2010 Soundbar

Operating Introduction

• Place the Soundbar on flat surfaces. Alternatively, you can wall mount the Soundbar with the screws provided. This Soundbar can be connected to play sound in three different ways:
  • Connect to your Television Headphone Socket
  • Connect to any Bluetooth enabled device
  • Connect to a USB Drive (stick) loaded with music files

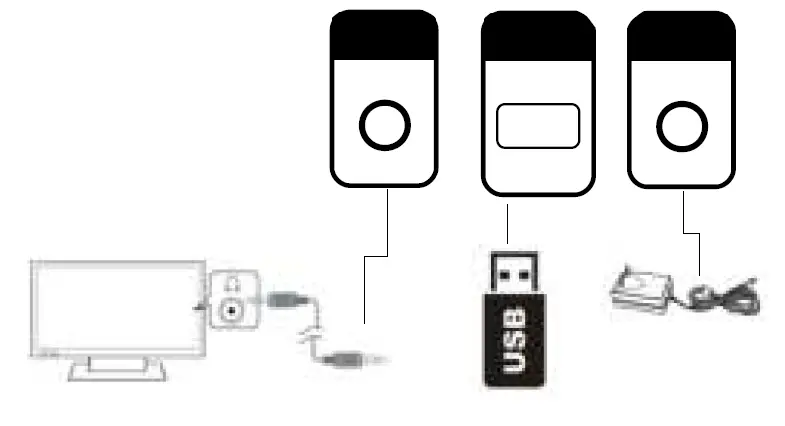

• Cable and external devices connection arrangements:
• At the right hand side of the Sound Bar are the manual control buttons:
  • Press /Mode for Power On/Standby.
  • Hold /Mode to change the mode between: Line In -> Bluetooth -> USB Drive
  • Press/ MUTE for Pause/Play. Hold / MUTE for Mute / No Mute.
  • Press VOL+ /I for Volume up.
  • Hold VOL+ /I for Next USB Drive Song.
  • Press VOL- /  for Volume down.
  • Hold VOL- /  for Previous USB Drive Song.
• Front LED Display showing the different input modes


  				Line In
  				Bluetooth
  				USB drive when USB Drive in (no USB drive will flash Lod and skip to next mode in seconds)

• Front indicator Lights:
  • Red dot: Soundbar in standby
  • bt font: Flashing means Bluetooth is waiting to pair with your Bluetooth enabled device.

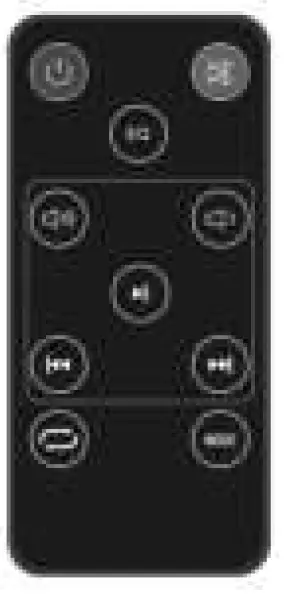

• Remote control buttons


  	Power on / Standby
  	Mute
  +	Volume up
  –	Volume down
  I◄◄	Previous (USB drive audio)
  ►►I	Next      (USB drive audio)
  	Play/Pause(USB drive audio)
  	Repeat (USB drive audio)
  EQ	Equalizer selection
  Mode	Audio source selection

* EQ (Equalizer) Preset Music tone settings to suit personal taste
While playing music continually press the EQ button to toggle between the different presets

Technical Specification

• Power/Amps: Input: AC110~240V, 50/60Hz, Output: DC12V, 2.0A
• Power consumption: 18W/Hour
• Operating frequency range: 40hz-16Khz
• Max output power: 20W (RED Standard)
• Soundbar measurement: 60cm x 6cm x 6cm
• Bluetooth name: DSB-2010

Packing List

• Sound bar
• Manual
• 3.5mm to 3.5MM audio cable
• Screws x 2
• Rremote control with batteries
• Mains Power supply

Please notice – All products are subject to change without any notice. We take reservations for errors and omissions in the manual.

ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/S

Electric and electronic equipment contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment) is not handled correctly. Electric and electronic equipment is marked with the crossed out trash can symbol, seen above. This symbol signifies that electric and electronic equipment should not be disposed of with other household waste, but should be disposed of separately.

All cities have established collection points, where electric and electronic equipment can either be submitted free of charge at recycling stations and other collection sites, or be collected from the households. Additional information is available at the technical department of your city.

Hereby, Inter Sales A/S declares that the radio equipment type DSB-2010 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.denver-electronics.com and then click the search ICON on topline of website. Write modelnumber: DSB-2010.Now enter product page, and red directive is found under downloads/other downloads

Operating Frequency Range:40hz-16Khz
Max Output Power: 20W
