E-Image video GH04 75mm Dual Base Tripod Fluid Head
GH04 75mm Fluid Head
OVERVIEWS

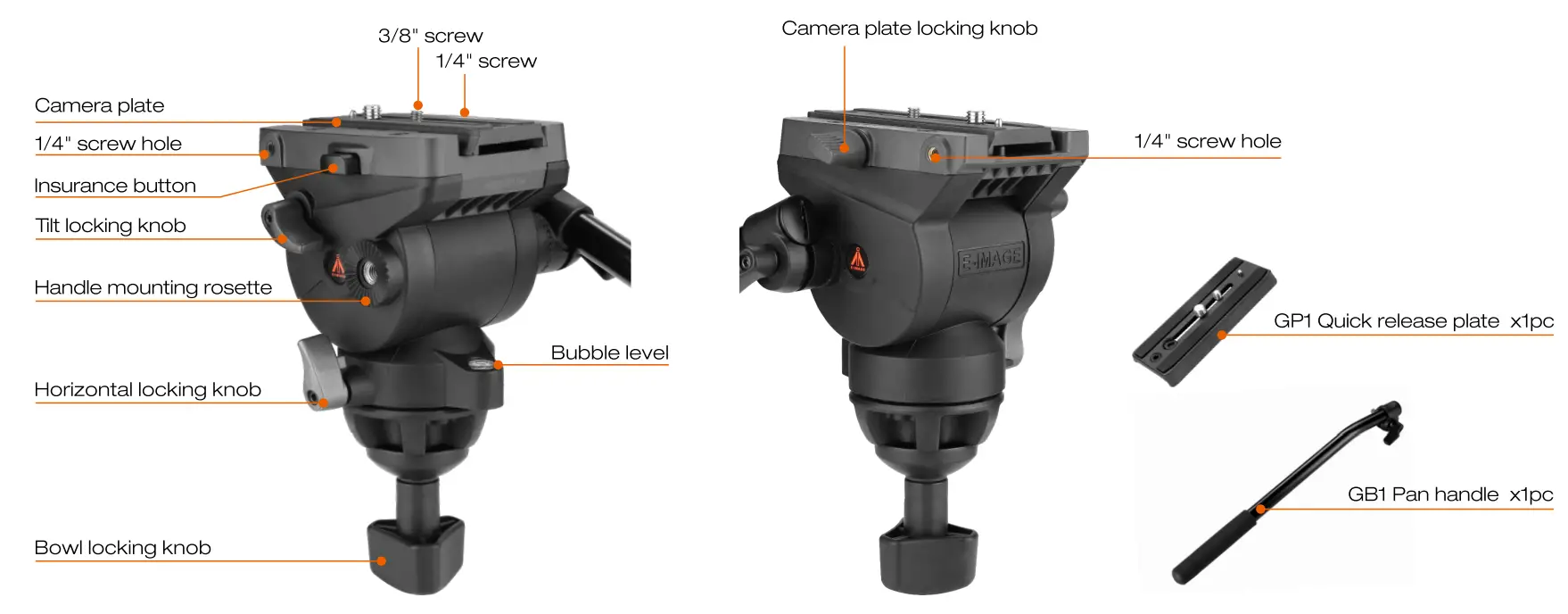

The E-lmage GH04 fluid head has a recommended payload of 6kg (13.2Ibs). And can switch from having a 75mm ball for tripod mounting to having a flat base with a 3/8″-16 mounting point. To transition from ball to flat, simply use the included 3mm alien wrench to loosen the three locking bolts on the underside of the 75mm ball mount and twist the ball mount counter-clockwise. Pan and tilt drag are installed and set at a fixed amount for light cameras.
Features
- Dual-base head with a 75mm ball base and flat base.
- Fixed pan & tilt drag for smooth movement.

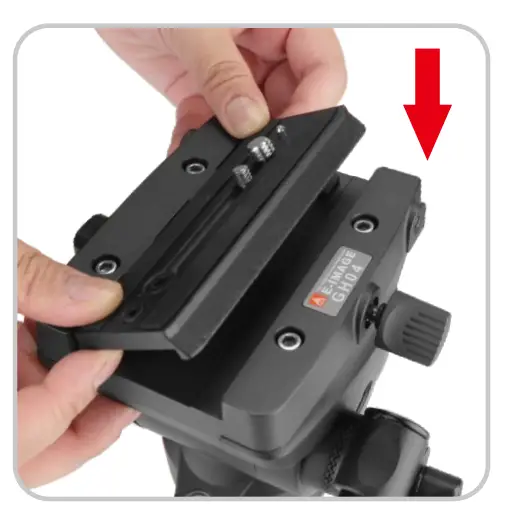

- GP1 quick release plate.

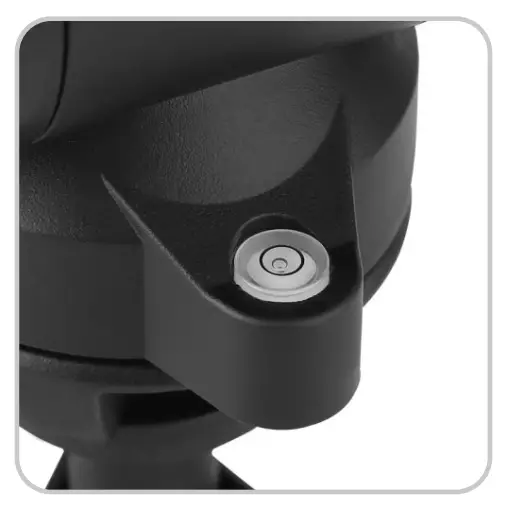

- A built-in bubble level to assist balancing.

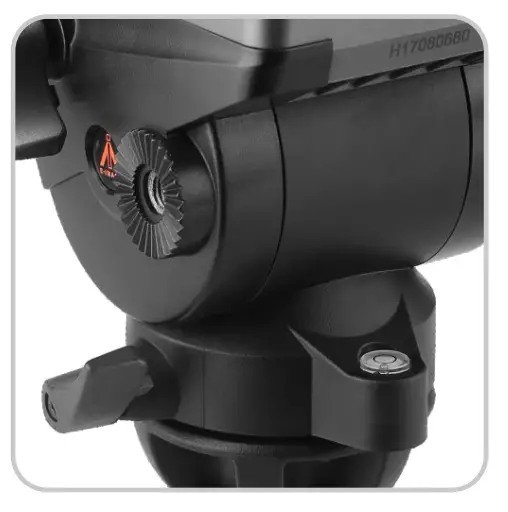

- Additional 1/4″-20 screw hole for articulating accessories.

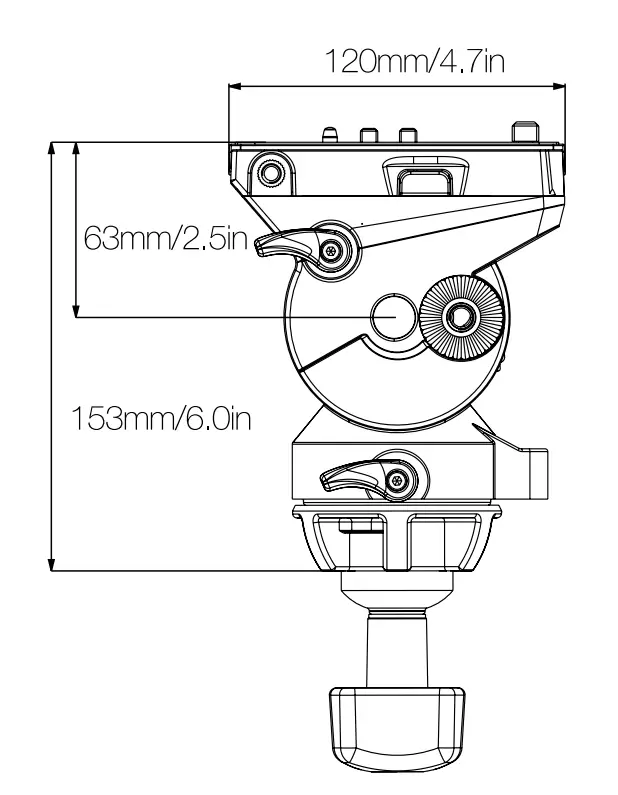

Specifications
 | Payload | 6.0kg I 13.21bs |
 | Counterbalance | Fixed |
 | Grades of pan drag | Fixed |
 | Grades of tilt drag | Fixed |
 | Tilt range | -75°~+90° |
 | Temperature range | -40°C~+80°C |
 | Net weight | 1.6kg / 3.51bs |
 | Bowl size | 75mm |
Counterbalance Graph

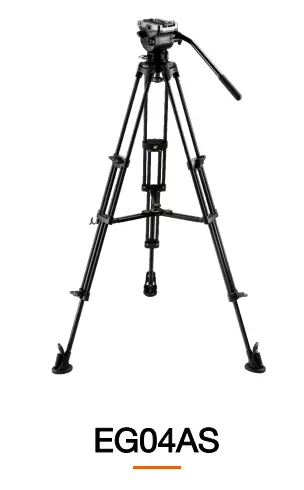

Recommend Kit
| Fluid head | GH04 |
| Tripod | GA752S |
| Bowl size | 75mm |
| Payload | 6kg / 13.2Ibs |
| Counterbalance | Fixed |
| Drag setting | Fixed |
| Net weight | 4.1kg / 9.0lbs |
| Leg material | Aluminum |
| Leg sections | 3 |
| Height range | 77.5-169.Scm I 30 .5-66.?in |
| Transport length | 87.5cm I 34.4in |

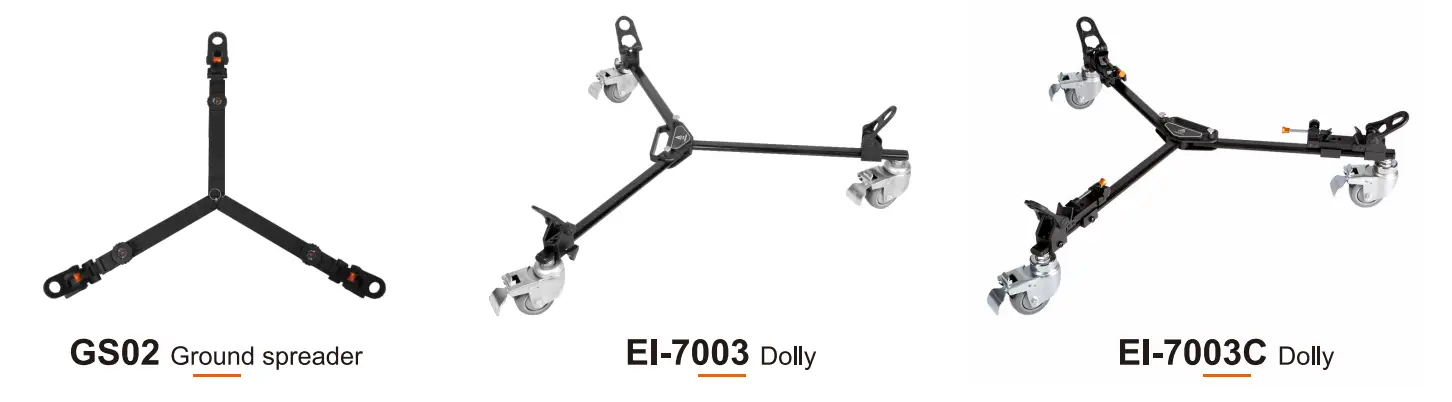

Recommend accessories
