Qingdao Ronco Mechanic Electronic Technology RONCO-RE302 2 Channel Emitter
User Manual
Please read this manual carefully before using the product, and keep it properly

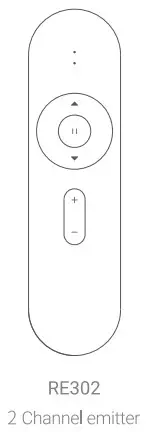

Product description
Package containing: Emitterl,Bracket*1 , Operation manual*1, Screw*2 ,Nut*2
Technical parameters
Product name: 2 Channel emitter
Product model: RE302
Product size: 130*37*15mm
Input voltage: 3.0 V
Transmission distance: Exterior conditions>150m
Interior conditions>35m
Operating frequency: 433.92MHz
Working temperature: -10%-55%
Working humidity: 10%-90%RH, no condensing

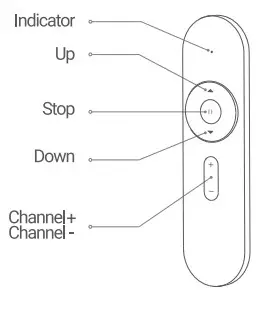

Features
- RE302The indicator light is the chosen channel.
- RE302: All indicator lights on means group control channel.
- Group control channel: Take RE302 as an example, group control can control all the paired motors in the 1,2 channel.
Operation step
| Keystroke | Time | Description |
 | Long press 2 seconds | feature settings |
| Once | Pairing |
 | Long press 2 seconds | Switch direction/ setting confirmation |
 | Long press 2 seconds | Speed regulation+ |
 | Long press 2 seconds | Speed regulation– |
Warnings and precautions
- For fear of shortening the life of the emitter, please avoid dampness and bumps in use. If the emitter range shortens or the emitter becomes insensitive, please replace the old battery with a battery of the same model and recycle the replaced battery.
- Please do not use batteries of different types for fear of explosion.
The warranty type
| Type | Content | Warranty time |
| The whole machine | Remote control | 2 years |
FCC Compliance Notice
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
