Hannspree Ht273hpb Hs-ips Touch Screen Monitor Specifications And Datasheet (+ PDF)

Home » Blog » Hannspree Ht273hpb Hs-ips Touch Screen Monitor Specifications And Datasheet

Contents hide

1 HANNspree HT273HPB HS-IPS Touch Screen Monitor

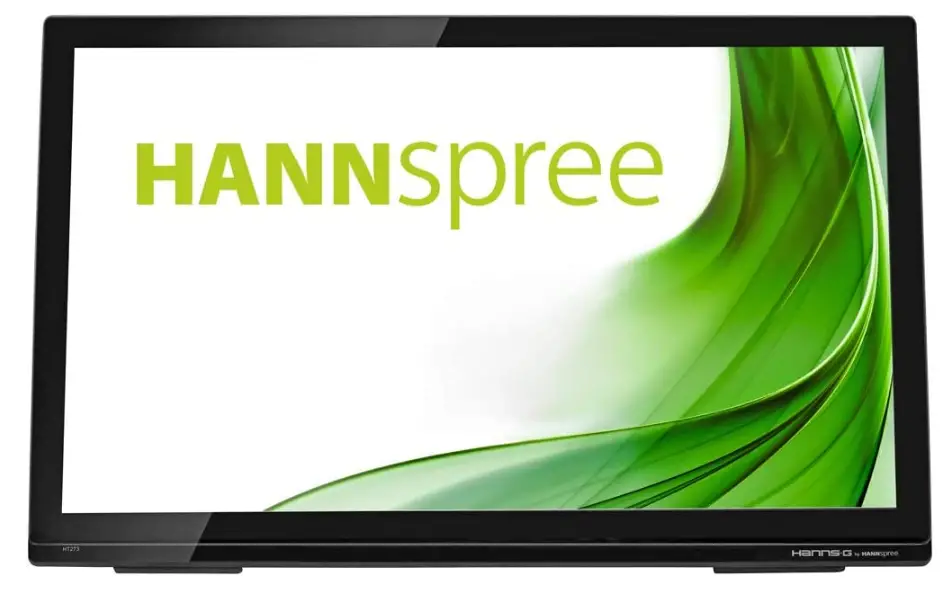

HANNspree HT273HPB HS-IPS Touch Screen Monitor

Key Features

27″ Touch Monitor LED Backlight
10 Point Touch
178 °/ 178° Ultra Wide Viewing Angle
1920 x1080 Full HD Display
Aspect Ratio 16:9
Hard Glass Protection (Hardness ≥7H)
80,000,000:1 Active Contrast
HDMI + VGA Inputs
Built-In Stereo Speakers
Wall Mountable (VESA)
Ergonomic Smart adjustable stand.
Tilt Angle: 10°~55 55°
VESA Mount + Including Landscape and Portrait mounting options

Description

The HANNspree HT273HPB HS-IPS Touch Screen Monitor features a generous 27-inch screen size, allowing for a spacious viewing area. Its HS-IPS (Horizontal Super In-Plane Switching) display technology ensures vibrant and accurate colors with wide viewing angles, making it suitable for various multimedia and professional applications.

With its touchscreen functionality, the HT273HPB monitor offers an intuitive and interactive user experience. The touch input is responsive and precise, enabling seamless navigation and control across applications, making it ideal for creative professionals, designers, and users who enjoy touch-based interactions. The monitor’s anti-glare coating minimizes reflections and glare, ensuring comfortable viewing even in brightly lit environments. This feature helps to reduce eye strain and provides enhanced visibility, making it suitable for both work and entertainment purposes.

The HANNspree HT273HPB monitor supports a maximum resolution of 1920 x 1080 pixels (Full HD), delivering sharp and detailed visuals. Whether you’re watching movies, editing photos, or working on intricate tasks, the monitor provides clear and crisp imagery. Connectivity options include HDMI inputs, allowing you to easily connect the monitor to various devices such as laptops, desktop computers, gaming consoles, and media players. The monitor also includes built-in speakers, providing audio playback without the need for external speakers.

CONNECTIVITY, SPEAKER

VIEWING ANGLE, VESA

TOUCH DISPLAY FEATURES

Specifications

Display Size	68,6cm / 27“ Diagonal
Panel Type	TFT – LED Backlight
Aspect Ratio	16:9
Resolution (H x V)	1920 x 1080 Full HD
Brightness	300 cd/m² (Panel) – 258 cd/m² (Monitor)
Contrast (Typ.)	1.000:1 (Typical)
Contrast (Active)	80.000.000:1 (Active)
Viewing Angle L/R; U/D	178° H – 178° V (CR > 10)
Response Time	8 msec (Typical)
Pixel Pitch	0,311 (H) x 0,311 (V) mm
Touch Type	Projected Capacitive Type – 10-Point Touch
Display Colors	16.7M Colors
Horizontal Frequency	31 ~ 80 kHz
Vertical Frequency	56 ~ 75 Hz
Max Display Frequency	1920 x 1080 @ 60Hz
Input 1	D-Sub (VGA)
Input 2	HDMI
Input 3	–
Built-in Speakers	Yes, 2W x 2; Earphone Audio Out x 1
Power Consumption	On: 16,5W; Stand-by: 0,3W; Off: 0,3W
Power Range	External Power Supply. Input: AC 100 ~ 240 Volt; 50 ~ 60 Hz. Output: 12V – 3A
Product Dimensions	653,2 x 52,1 x 410,7 mm (W x D x H)
Packing Dimensions	720 x 144 x 525 (W x D x H)
Net / Gross Weight	7,1 Kg / 8,36 Kg
Bezel & Color Plan	Front bezel, back cover, hinge cover, IO cover, TP- cover, black texture

VESA Mounting	100 x 100 mm
Monitor Stand	Smart Adjustable Stand (“book“ type)
Tilt / Kensington Lock	10° ~ 55° / Yes
Display Protection	Thickness 2,0 mm
Hardness / Transmittance	≥7H Toughened hard panel surface / ≥86%
Controls	Menù, Bri (+), Vol (-), Input/Enter, Power
Color	Warm, Natural, Cool, User Mode
Preset Mode	PC, Movie, Game, ECO Modes
On Screen Display	12 OSD Languages
Accessory	Power Supply with Cable; HDMI Cable (1,5m); USB Cable (1,8m); Warranty Card; Quick Start Guide
Orientation	Landscape, Portrait

Supplier‘s Name	HANNspree
Model Name	HT273HPB
Energy efficiency class for standard Dynamic Range (SDR)	D
Annual Energy Power Consumption (kWh/1000h)	17 kWh/1000h
The on-mode power demand for Standard Dynamic Range (SDR)	16,5 W
Off-mode power demand (W)	0,3 W
Standby mode power demand (W)	0,3 W
Screen Diagonal (cm/inches)	68,6cm / 27“
Resolution	1920 x 1080

© 2021 HANNSpree Europe Holdings B.V. Specifications and design as well as accessories are subject to change without notice. Screenshots are simulated. Actual products may differ slightly from those illustrated on this promotion material. Please refer to actual samples for the final selection. The products displayed in this promotional material may not be available for purchase in your particular country or locality. Please check with your local HANNspree authorized representatives for the availability of specific products in your area. All brand, product, Service names, and logos are trademarks and/or registered trademarks of their respective manufacturers and Companies.
