EPOS Expand80 Bluetooth speakerphone dongle USB User Manual
Bluetooth® speakerphone EXPAND 80

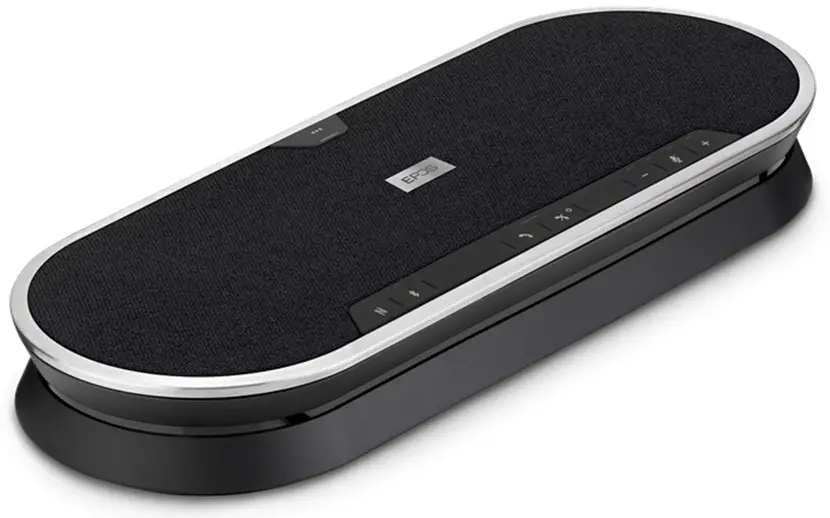

Speakerphone EXPAND 80

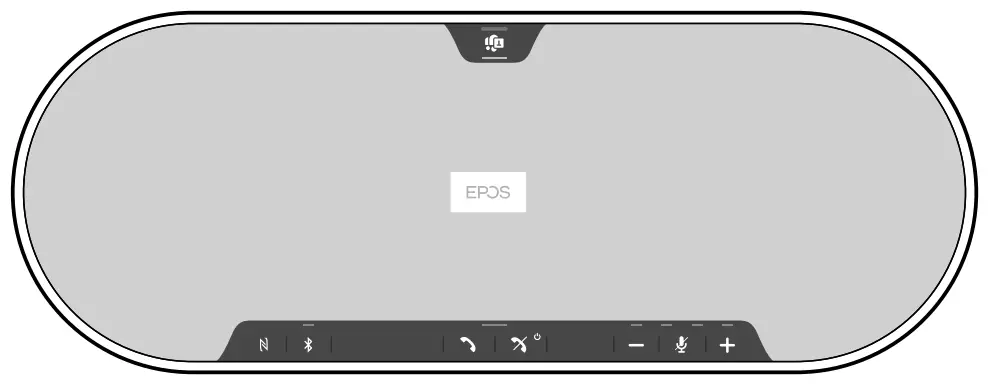

Speakerphone EXPAND 80T
Dimensions (L x W x H): 315.6 x 118.6 x 46.1 mm / 12.4 x 4.7 x 1.8 in
Weight: 980 g / 34.57 oz
Speaker type: Neodymium magnet
Speaker frequency response: Communication (USB / Bluetooth) 150 – 7,500 Hz
Media streaming (USB / Bluetooth) 50 – 20,000 Hz
Microphone type: Beamforming Digital MEMS Enhanced Omni microphones (6 microphones)
Microphone frequency response: 150 – 7,500 Hz (USB / Bluetooth)
Connectors:
- Power supply socket
- USB-C® socket
- 2x jack socket 3.5 mm for EXPAND 80 Mic
- Kensington Lock support
Max. magnetic flux density: 52.5 mT version 5.0 / class 1
Range: up to 25 m (device dependent)
Output power: max. 10 dBm
Power supply unit PS – UNI 01
Nominal input voltage: 100 – 240 VAC
Nominal input current: max. 0.5 A
Mains frequency: 50 – 60 Hz
Nominal output voltage: 5.9 VDC
Nominal output current: 2.4 A
Weight: approx. 113 g / 3.99 oz / 0.25 lbs

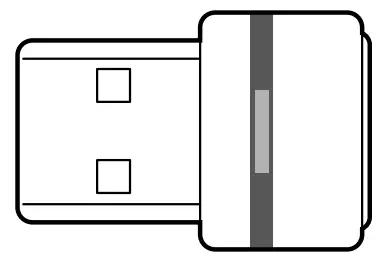

Bluetooth dongle BTD 800 USB
Dimensions: (W x H x D) 22 x 16 x 6 mm / 0.87 x 0.63 x 0.24 in
Weight: 2 g / 0.07 oz / 0.004 lbs
version: 4.2 / class 1
Range: up to 25 m (device dependent)
Bluetooth frequency range: 2402 – 2480 MHz
Output power: max. 8 dBm (EIRP)
General data
Temperature range Operation: + 10 °C to +40 °C / +50 °F to +104 °F
Storage: -20 °C to +60 °C / -4 °F to +140 °F
Relative humidity Operation: 20 to 85%
Storage: 10 to 95%
Trademarks
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sennheiser Communications A/S is under license.
The N-Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.
USB Type-C® and USB-C® are trademarks of USB Implementers Forum.
In compliance with:
| EXPAND 80 | EXPAND 80T (SCBT19) | BTD 800 USB | ||
| USA | FCC ID: R3USCBT19 | FCC ID: R3UBTD800 | |
| Canada | IC: 2099D-SCBT19 | CAN ICES-3(B)/NMB-3(B) | IC: 2099D-BTD800 | CAN ICES-3(B)/NMB-3(B) | |
| Europe |
| ||
| Australia/ New Zealand |
| ||
| Singapore |
| ||
| Taiwan |
|
|
|
| Japan | 201-200491 | 201-125772 | |
| Vietnam | |||
| Thailand |  This radio communication device is exempted from license to have and use radio communication device or set up radio communication station according to the Notification of NBTC Re: Radio communication devices and radio communication station exempted from license of radio communication according to the Radio Communications Act B.E. 2498 (1955)NBTC Telecommunication| Supervision for public | Call center 1200 (free call) | ||
CCAF20LP1470T3
CANADA & USA
Statements regarding FCC and Industry Canada
This device complies with Part 15 of the FCC rules and with Industry Canada license-exempt RSS standard(s). Operation is subjected to the following two conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation.
RF Radiation Exposure Information
Since the radiated output power of this device is far below the FCC radio frequency exposure limits, it is not subjected to routine RF exposure evaluation as per Section 2.1093 of the FCC rules. The device complies with FCC and Innovation, Science and
Economic Development Canada’s RF radiation exposure limits set forth for controlled / uncontrolled environment. The product should be installed and operated with minimum distance of 20 cm between the radiator and your body. Use of other accessories not verified by the manufacturer may not ensure compliance with FCC and Innovation, Science and Economic Development Canada’s RF exposure guidelines
Further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available.
The transmitters must not be co-located or operated in conjunction with any other antenna or transmitter.
Communications A/S
27, DK-2750 , Denmark, www.eposaudio.com, Printed in China, 08/20, 770-00254/A01.
