SONY DVP-NC65K DVD Player
EXPLODED VIEWS
NOTE:
- -XX and -X mean standardized parts, so they may have some differences from the original one.
- Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.
- The mechanical parts with no reference number in the exploded views are not supplied.
- Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED) R R Parts Color Cabinet’s Color - Abbreviation
- AUS: Australia/New Zealand Model
- E: Latin America Model
- MX: Mexican Model
- SP: Singapore Model
- RUS: Russian Mode
- TH: Thailand Mode
The components identified by mark or dotted line with mark are critical for safety. Replace only with part number specified.

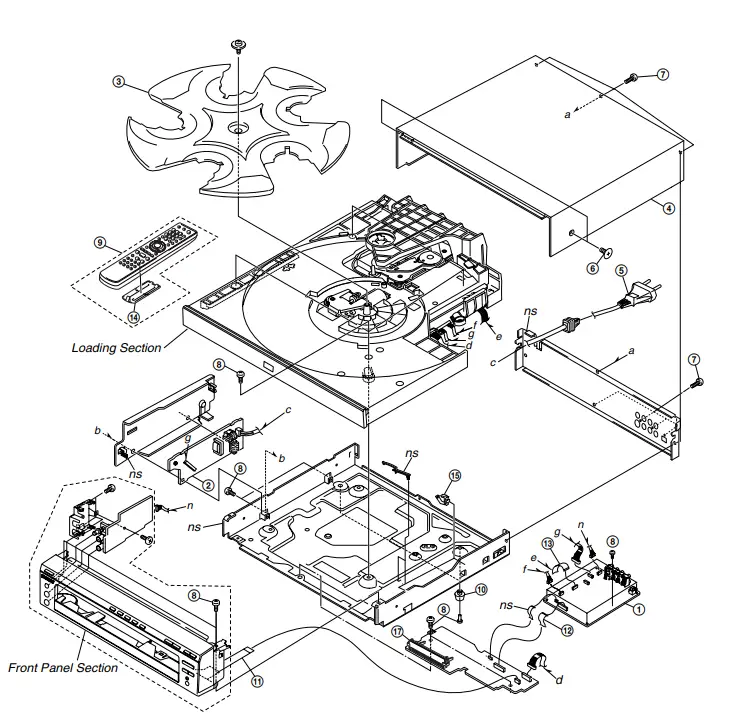

MAIN SECTION
ns : not supplied

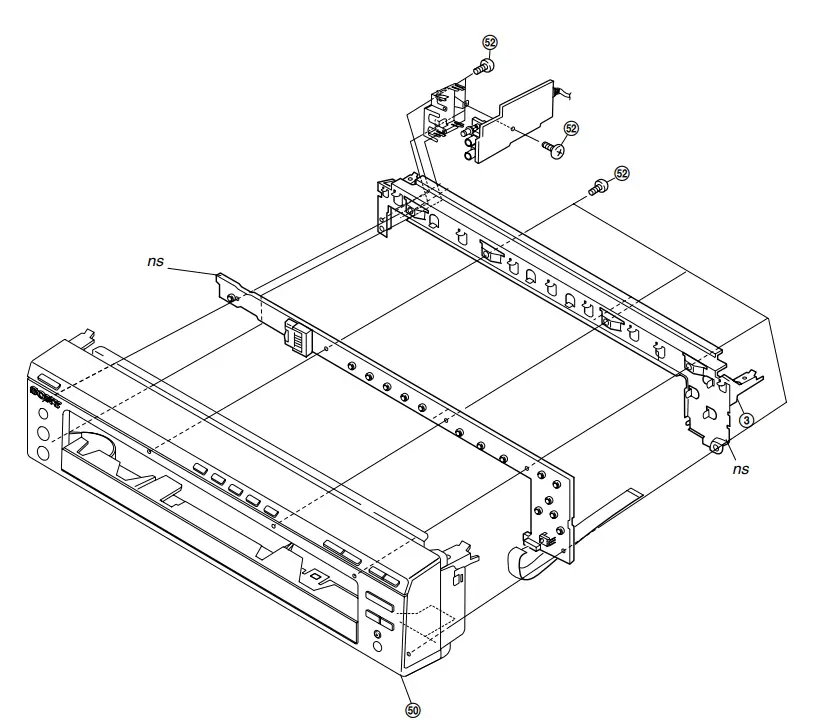

FRONT PANEL SECTION

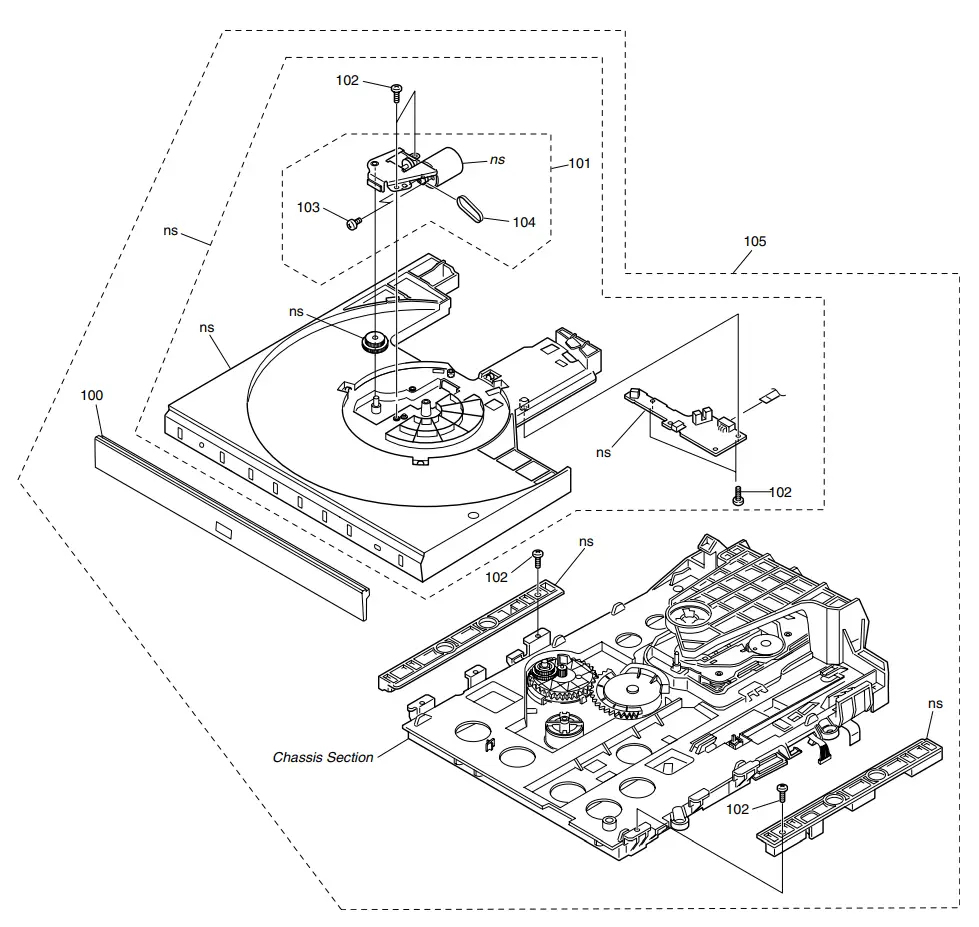

LOADING SECTION

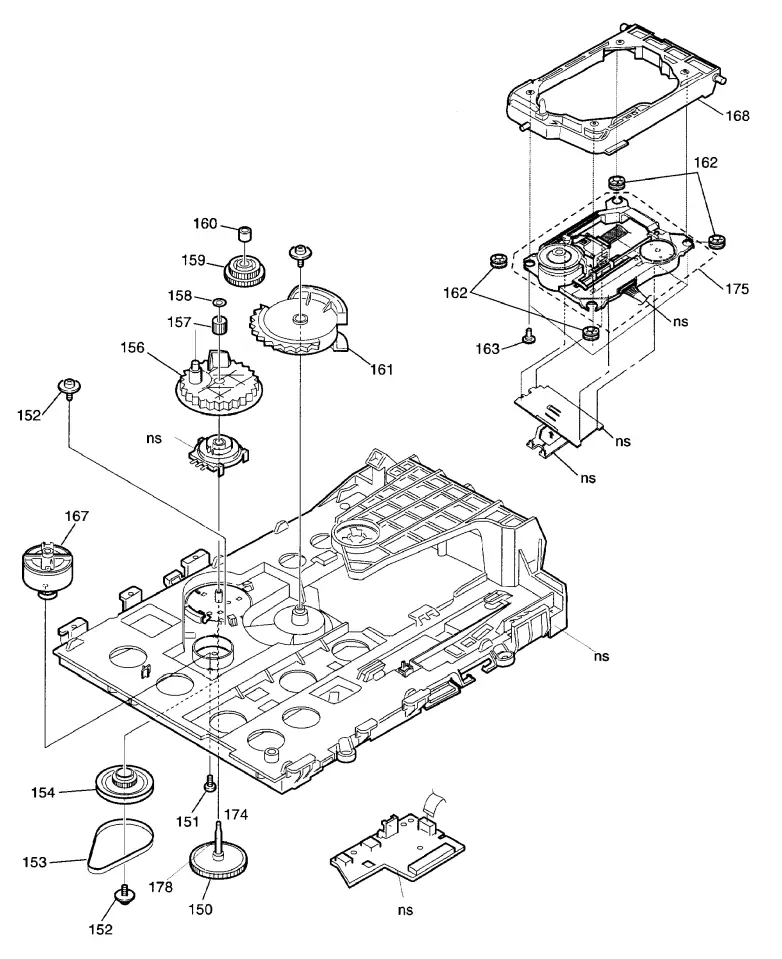

CHASSIS SECTION
