QUICK REFERENCE GUIDE > OM24NDBB1
Convection Speed Oven 24”
Series 9 | Minimal
Black
The perfect addition to the kitchen, this Convection Speed Oven provides a variety of fast cooking options including True Convection and Broil.
- 1.3 cu ft total capacity
- Intuitive display with nine oven functions
- Full-width grill function
- Easy clean interior

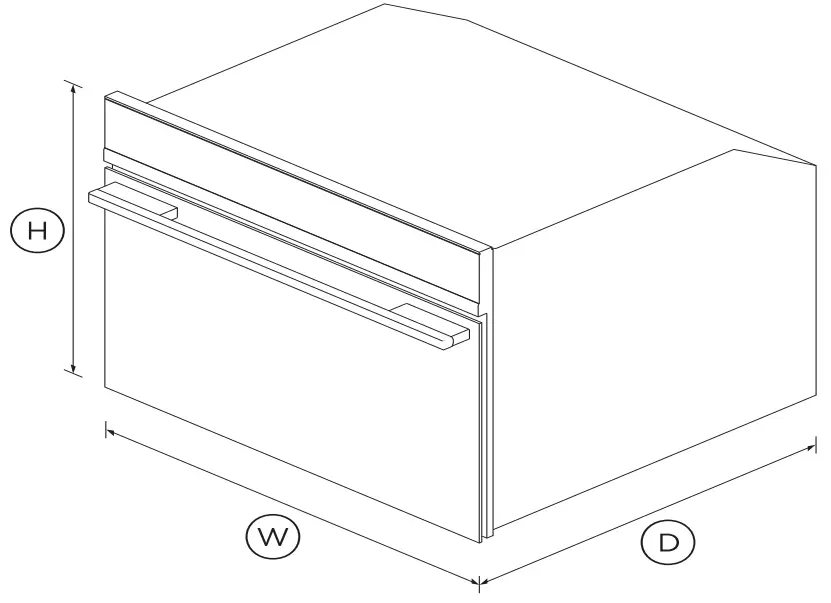

DIMENSIONS
| Height | 18 1/16″ |
| Width | 23 1/2″ |
| Depth | 22 1/8″ |
FEATURES & BENEFITS
Sized to suit
This compact 24″ Convection Speed Oven can be placed almost anywhere. Companion products share the same dimensions and can be installed in multiple configurations to suit your kitchen design and preference.
Cooking flexibility
Choose from nine cooking modes including True Convection and Broil. With both microwave and convection oven technology in the same oven, you have more flexibility for your culinary creations.
Easy to use
The intuitive touch display shows you all the information you need, allowing you to easily program in your desired cooking mode and duration.
Beauty of choice
With the choice of stylish stainless steel or elegant black trim, our Companion products help you achieve a coherent kitchen aesthetic that suits your design style.
Easy cleaning
This Convection Speed Oven has formed side racks and a stainless steel interior that are easy to clean.
Safe and sound
The CoolTouch door is safe to touch from the outside, protecting your hands and the surrounding cabinetry.
SPECIFICATIONS
Accessories
| Baking pan | 1 |
| Glass turntable | 1 |
| Optional 30″ trim kit | Part 81939 |
| Optional lower trim kit | Part 81662 |
| Wire shelf | 1 |
Capacity
| Shelf positions | 3 |
| Total capacity | 1.3cu ft |
| Usable capacity | 1.2cu ft |
Cleaning
| Easy clean stainless steel | • |
| Easy to clean formed side | • |
Consumption
| Microwave energy | 1.65kWh |
Controls
| Audio feedback | • |
| Automatic cooking/minute | • |
| Celsius/Fahrenheit | • |
| Electronic capacitive touch | • |
| High-resolution touch display | • |
| Intuitive information display | • |
| Multi-language interface | • |
| Precise electronic temperature | • |
| Recipe and food-based | • |
| True convection oven | • |
Functions
| Broil | • |
| Convection Broil | • |
| Defrost by time | • |
| Defrost by weight | • |
| Microwave + broil | • |
| Microwave + ring | • |
| Microwave cooking | • |
| Number of functions | 9 |
| Ring + broil | • |
| True convection | • |
| Microwave power levels | 6 |
Performance
| Broil power | 1500W |
| Fan Element Power | 1500W |
| Microwave power | 900W |
| Microwave power levels | 6 |
Power requirements
| Amperage | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 208 – 240V |
Product dimensions
| Depth | 22 1/8″ |
| Height | 18 1/16″ |
| Width | 23 1/2″ |
Safety
| ADA compliant | • |
| Control panel key lock | • |
| CoolTouch door | • |
| SKU | 81926 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
