6′ 30-Amp 4-Wire Dryer Cord
5304492442
User Manual
5304492442 6ft 30-Amp 4-Wire Dryer Cord
WARNING
ELECTRICAL SHOCK HAZARD
Failure to disconnect power source before servicing could result in personal injury or even death.
WARNING
ELECTRICAL HAZARD
Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing.
- Turn off power supply to outlet.

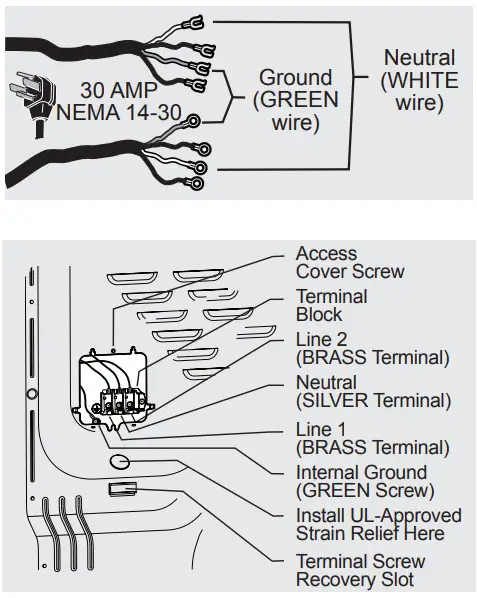

- Remove the screw securing the terminal block access cover in the lower corner on the back of the dryer.
- Install a UL-approved strain relief according to the power cord/ strain relief manufacturer’s instructions in the power cord entry hole below the access panel. At this time, the strain relief should be loosely in place.
- Thread an UNPLUGGED, UL-approved, 30 amp. power cord, NEMA 14-30 type DRT or SRDT, through the strain relief.

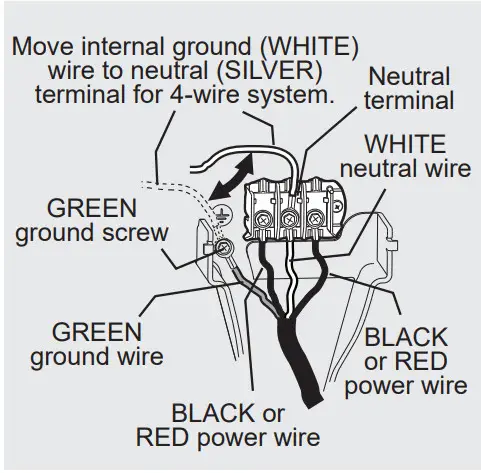

- Disconnect the internal (WHITE) dryer harness ground wire from the (GREEN) ground screw next to terminal block.
- Attach the ground (GREEN) power cord wire to the cabinet with the ground (GREEN) screw. Tighten the screw securely.
- Move the internal dryer harness ground (WHITE) wire to the terminal block and attach it along with the neutral (WHITE) power cord wire conductor to center, SILVER colored terminal on the terminal block. Tighten the screw securely.
- Attach the RED and BLACK power cord conductors to the outer, BRASS colored terminals on the terminal block. Tighten both screws securely.
WARNING
ELECTRICAL SHOCK HAZARD
DO NOT make a sharp bend or crimp wiring/conductor at connections. - Follow manufacturer’s guidelines for firmly securing the strain relief and power cord.
- Reinstall the terminal block cover.
NOTE
If a terminal screw falls during cord installation, it can be retrieved in the terminal screw recovery slot below the access panel.
5304492442
