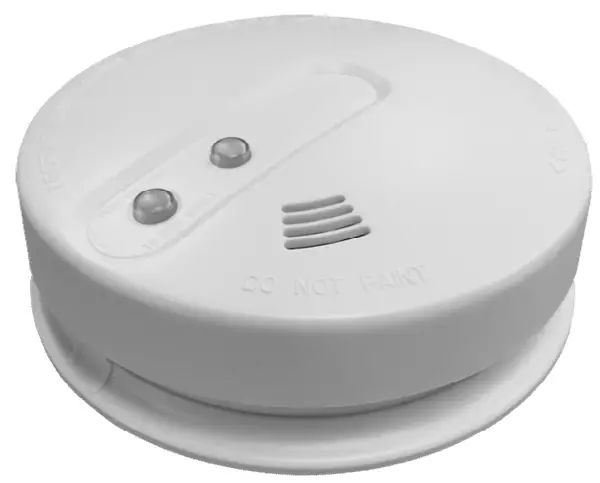

HM-SMOKE230
FEATURES:
-Auto-reset when smoke clears
-Self test/hush button
-9 Volt battery backup (non charging)
-Low battery and missing battery warning
-85 db internal warning sounder
-Inter connectable
-CE approved
-Photo Electric

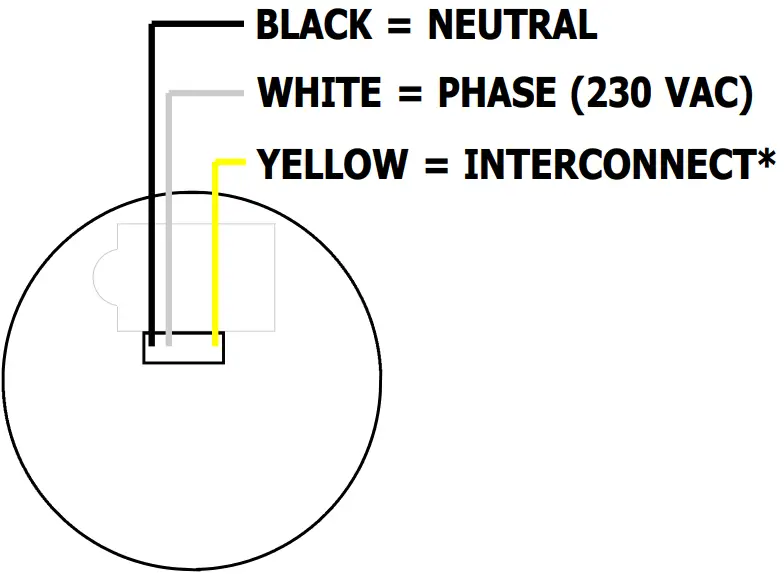

*If the Interconnect wire is not needed please insulate the end.
SPECIFICATION:
Operating Voltage. 230VAC 50Hz
Current Standby 10uA
Current Alarm 35uA
Operating Temp. -10°C ~ +50°C
Dimensions. Dia.128mm x 38mm
INTER CONNECTING SMOKES
When the HM-SMOKE230’s are wired in inter connectable mode, if one of the smoke detectors is triggered, all smokes in the circuit with go into alarm and activate there sounders.
Danger
High Voltage
Do not unplug cable until power is isolated.

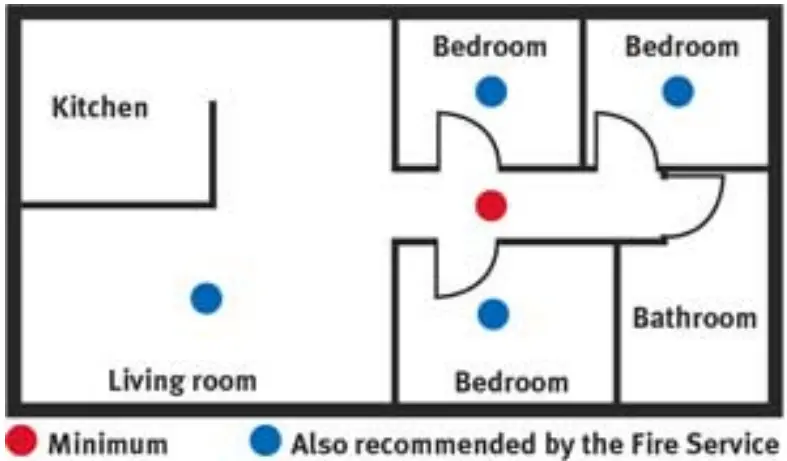

Suggested Mounting Locations
Smoke alarms must be located in escape routes on all levels within the household unit.
On levels containing sleeping spaces, they must be installed within the sleeping space, or within 3 metres of every sleeping space door. And they must be audible through closed doors.
Always Refer to NZS 4514:2009 or the latest standard for full installation recommendations.

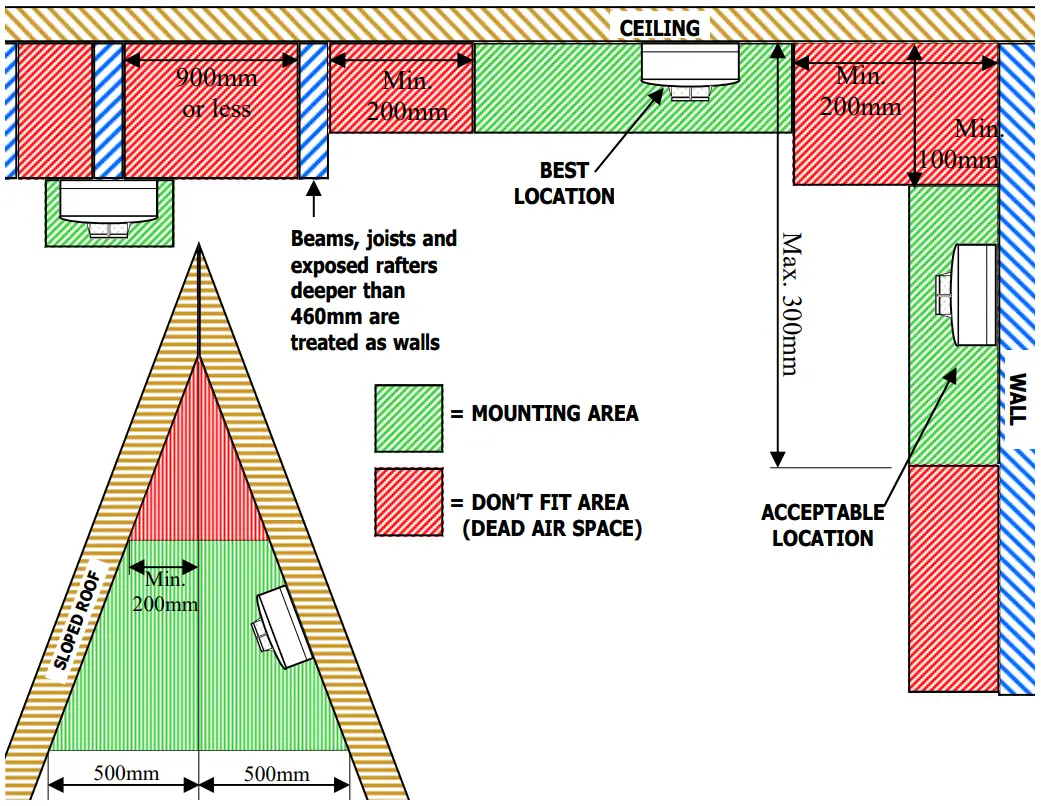

Note. Smoke Detectors should be mounted a minimum of 400mm away from Air Con. or forced air vents.
Test at least once a month.
Always Refer to NZS 4514:2009 or the latest standard for full installation recommendations.
ARROWHEAD ALARM PRODUCTS Ltd.
1A Emirali Road, Silverdale 0932
AUCKLAND
Ph. 09 414 0085
www.aap.co.nz
v1.04
