Redmi Note 10 JE
XIG02
Quick Start Guide
For disclaimers, refer to “Notes on Usage”.
Descriptions in this manual are based on Android™ 11.
For the latest edition, refer to “(Instruction manual)” (Japanese) available on your carrier’s homepage.

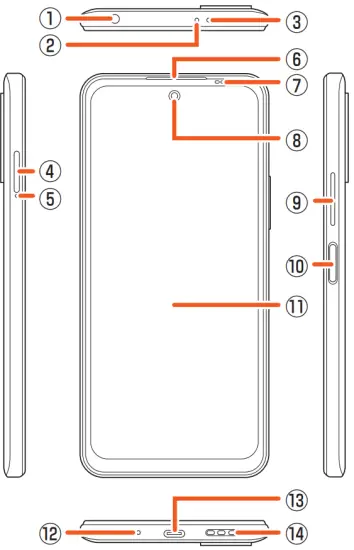

Names and functions of parts
- Headset connection terminal
- Infrared sensor
- Second microphone*1
Reduces noise for calling. - microSD memory card/SIM card tray
- Tray removal hole
- Earpiece/Speaker
- Proximity sensor/Light sensor*2
- Front camera
- Volume key
- Power key/Fingerprint recognition sensor*2
- Display (Touch panel)*3
- Mouthpiece/Microphone*1
- USB Type-C™ connection terminal
- Speaker
- Flash/Light
- Wi-Fi®/GPS/Bluetooth® antenna*4
- Primary camera
- 4G/5G antenna*4
- Depth camera
- Macro camera
- 4G antenna*4
- NFC antenna location
- Back panel*5
*1 Do not jab with a sharp object such as a needle. Doing so may cause a malfunction.
*2 Note that covering these parts with stickers or fingers, etc. may hinder product performance.
*3 The display has a protective sheet (complimentary sample) already adhered.
*4 The antenna is built into the main unit. Covering around the antenna by your hand may affect the quality of call/communication.
*5 The back panel is not removable. Trying to remove case may cause breakage or malfunction. Battery is built in and is not removable.
Attaching SIM card
Before attaching SIM card, make sure to turn off the product.

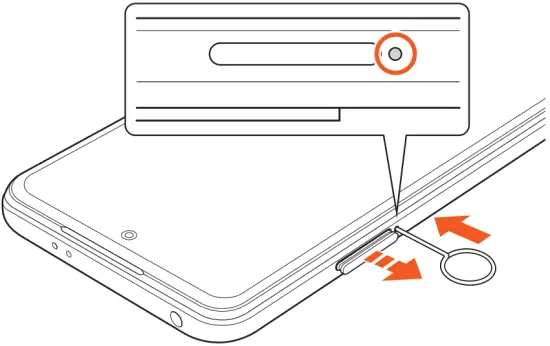

1 Insert SIM removal pin (complimentary sample) into tray removal hole straight

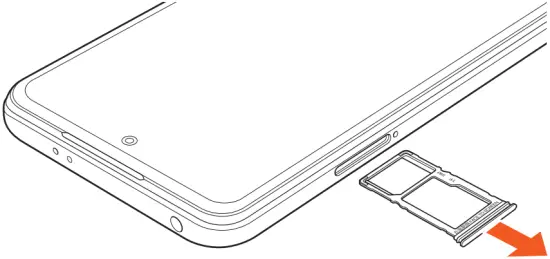

2 Pull out microSD memory card/SIM card tray straight

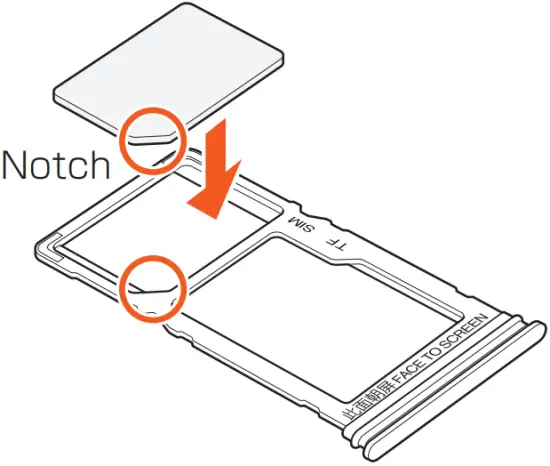

3 Hold the SIM card with its IC (metal) chip downward and insert in microSD memory card/SIM card tray
Note location of notch.
Make sure SIM card is in tray securely.
4 Press microSD memory card/SIM card tray straight into the product
Make sure there is no gap between the main unit and the microSD memory card/ SD card slot cover.
Turning the power on/off
- Turning the power on
1 Long-press the power key for at least 4 seconds
The lock screen appears.
Swipe (flick) the screen to unlock. An initial settings wizard appears the first time the product is powered on after purchase. Follow the onscreen instructions to set functions.
- Turning the power off
- With screen on, long-press the power key for at least 2 seconds
- [Power off]→[Tap to Power off]
- Forcing the product to turn off and restart
1 Long-press the power key for at least 10 seconds
Switching to English Display
Switch the language displayed on the screen to English.
- Home screen→[(Settings)]→[(Additional settings)]→[ (Languages & input)]→[(Languages)]
- [English]
The message (Applications, mail transmission/reception, and downloads may be terminated.) appears, confirm the content and then tap [OK].
Packaged items
Before you start using the product, make sure that you have all these packaged items with the product.

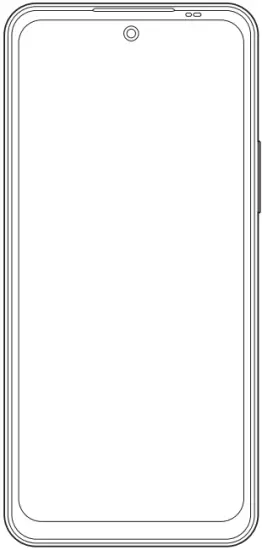

- Main unit (protective sheet (complimentary sample) pre-adhered)

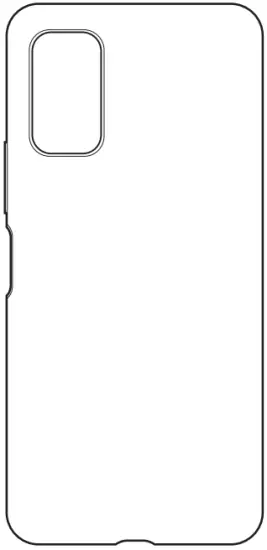

- Soft case (complimentary sample)

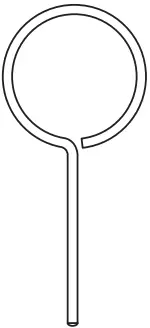

- SIM removal pin (complimentary sample)
- (Quick Start Guide) (Japanese)
- (Notes on Usage) (Japanese)
These items are not included in the package.
• microSD memory card • Earphones
• AC adapter • USB Type-C cable
memo
Purchase a specified charger (sold separately). The battery is built into the product. Illustrations used in this manual are just images for explanations. They may be different from actualones.
Mobile phone and PHS operators collect and recycle unused telephones, batteries and battery chargers at stores bearing the logo regardless of brand and manufacturer to protect the environment and reuse valuable resources.
ImporterXiaomi Technology Japan Co., Ltd.
ManufacturerXiaomi Communications Co., Ltd.
August 2021, 1st Edition
