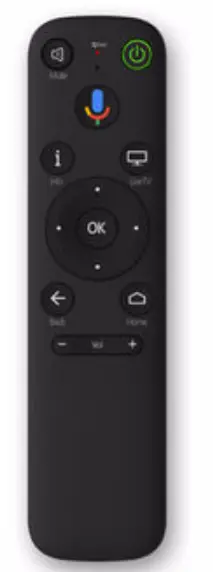

Huizhou Hedesheng Electronics 12FYBX01 Bluetooth Remote Controller
IMPORTANT INFORMATION
- Power Supply Specifications
- Apply AAA 1.5V*2 alkaline battery to the remote control by polarity.
- The normal function of remote control
- The remote control interface includes 13 keys and 1 indicator lamp. The operation and indication are as follows:
State Operational content Indicator related status No chain status
Click the button Red light flashes 5 times Long press button Red light flashes 5 times Chain state
Press any key of remote control, press Changliang, release and extinguish
The red light is always on
Bluetooth pairing Press the pairing key 3 s red light slow flashing Matching success A red light lasts 3 s and goes out pairing failure red light flashing 60 s timeout extinguished Low state
If the battery voltage of the remote controller is lower than the rated requirement (2.4 V), press any key
Red light flashes 5 seconds
- The remote control interface includes 13 keys and 1 indicator lamp. The operation and indication are as follows:
- Pairing operation
- Long hold down the key indicator light after extinguishing,3 seconds after the indicator light slowly flashing, waiting for pairing; Code success: indicator lights 3 s, and exit pairing mode, the indicator lights out; Code failure: timeout 30 seconds automatically exit code mode; Equipment Name: UBTRC‐1″
- Sleep mode and wake‐up
- the remote control is connected to the host normally, no operation immediately enters standby (shallow sleep).
- the remote control is not connected to the host (unpaired or beyond communication range), no operation for 10 seconds into standby (deep sleep)
- in sleep mode, support to press any key to wake up.
- Note: in shallow sleep mode, press the button to wake up and respond to the host.
- Low Power Warning
- Vbat<=2.4 V, the remote control is in low power state; under low power state, the key is released, and the indicator lamp flashes 5 times to prompt;
- Vbat<=2.2 V, the remote control is closed MCU, it is forbidden to continue to use the remote control;
FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- this device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment . This transmitter must not be colocated or operating in conjunction with any other antenna or transmitter
