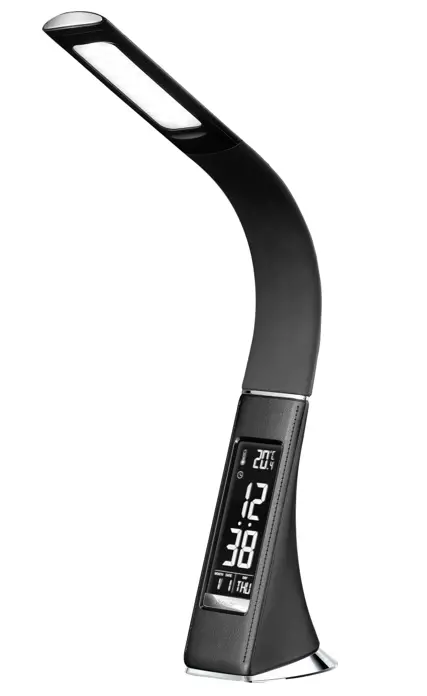

Paul Neuhaus Business Desk Lamp Instructions

Business Desk Lamp
Instruction ManualPaul Neuhaus GmbH
Olakenweg 36 -59457 Werl
Germany

Instruction

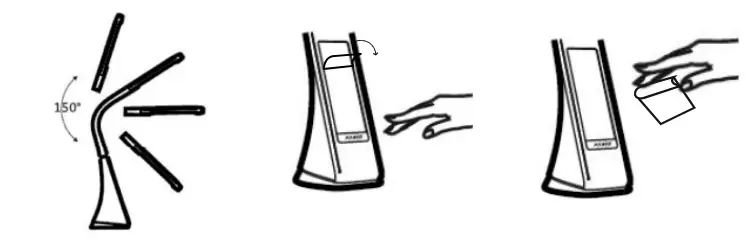

The range of activity for lamp arm and chimney:

• Please control the base of the lamp when adjusting the angle.
• The arm of the lamp has an activity range of 150 degrees. (It may break by over-adjusting.)

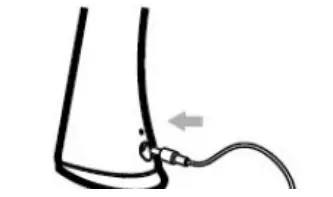

Connect the adapter at the back of the lamp.

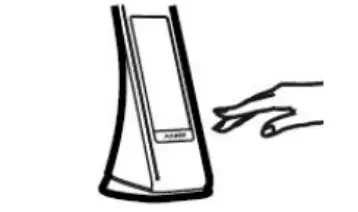

Touch the key to turn the light on/off and dim the light in 3 steps.

Battery replacement

Function

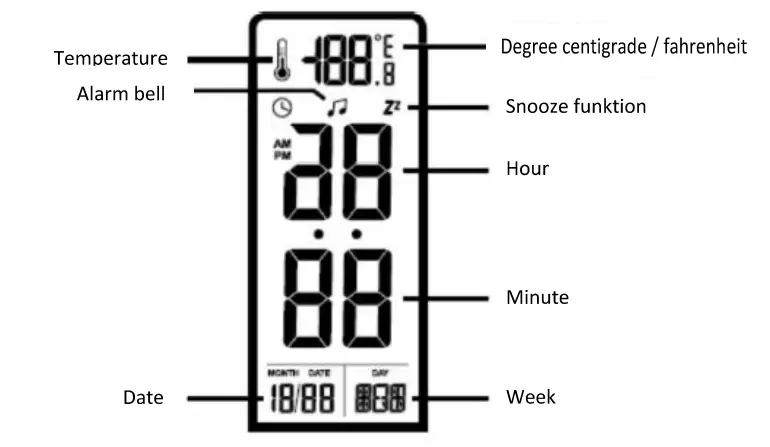

Calendar and alarm setting options

Calendar and alarm setting options

• In normal mode: Press”S” (SET) to enter the date and time mode. Press “S” (SET) again to enter the next setting. The sequence of settings is as follows:
  Hour Minute Year Month Day
  Press A and V to change the week.
• In setting mode: Press “M” (MODE) or do not operate for 60 seconds and the mode will switch back to normal
• In normal mode: Press A to switch between 12 and 24 hours format
• In normal mode: Press V to switch between the units (degree Fahrenheit/degree centigrade)

Alarm setting

• In normal mode: Press “M” (MODE) to enter the alarm mode
• In alarm mode: Press”S” (SET) to enter the alarm setting. Press S” (SET) again to set. The sequence of settings is as follows:
  Hour Minute Time until the snooze function starts
  Sound Press and V to set.
• In alarm mode: Press/\ and V to open or close snooze and alarm. Press the key again to enter the next setting. The sequence of settings is as follows: Open the alarm – Open the snooze function – Close the alarm and the snooze function
• When the alarm starts, it lasts 1 minute (modifiable factory setting). Afterward, the snooze function starts automatically, but you can also press, V or “M” (MODE) to start the snooze function manually. Press “S” (SET) to close the alarm without activating the snooze function.

Specification

Attention

• Do not self-disassemble the product to avoid electric shocks.
• Please use the adapter and the power socket, which is specified by the vendor to maintain normal working.
• Please do not over-adjust the joint activity parts to avoid damage.
• Please don’t use the light in a high-temperature or high-humidity environment.
• Please don’t straightly look at the LED light source to avoid eye damage.
• In case the below conditions occur, please pull out the power cord and stop using the light:
  o The power cord or the power plug breaks.
  o The lamp holder damps or rains.
  o The shell or the joint of the lamp holder breaks.
  o The lamp smokes or sparks.
  o The light is abnormally flickering or the LED bulb breaks.
