Starrydays Ergonomic Office Chair Proline Instruction Manual

Starrydays Ergonomic office chair Proline Instruction Manual

Parts list

（According to the actual size; each type of screw and gasket have a spare)

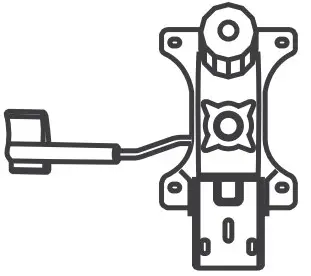

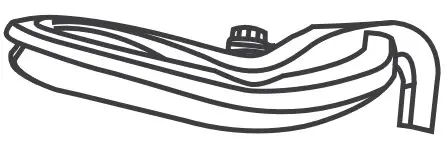

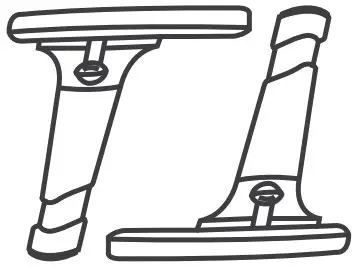

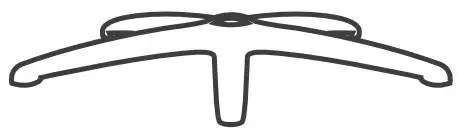

Castores*5 pcs	Bace*1 pc	Mechanism *1 pc	Armrest*1 pair

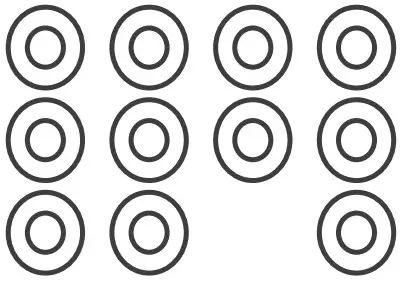

Seat cushion*1 pc	Backrest*1 pc	Headrest*1 pc	Samll shim 10+1 pcs

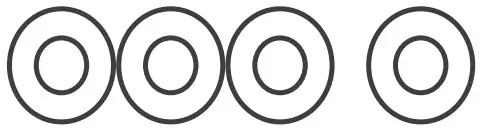

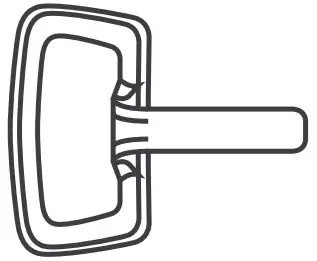

Hex wrench*1 pc	Big shim 3+1 pcs	Gaslift*1 pcs	Back plate screw (M8*45) 3+1pcs

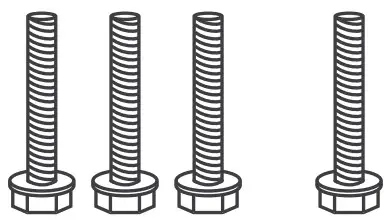

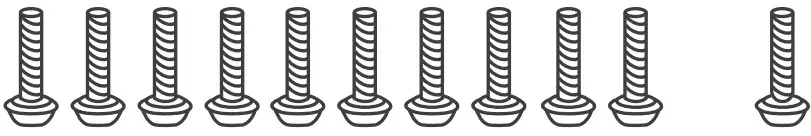

Armrest screw / mechanism screw (M6*20)10+1pcs

Note: before installing the chair, please sort the screws and measure the screw length for installation.

Installation diagram

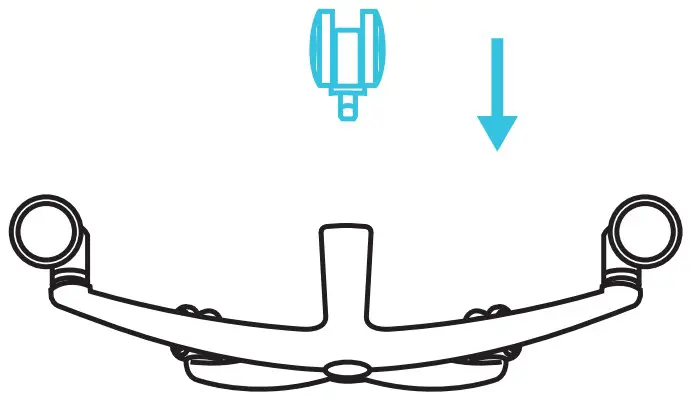

1. Put the castor into the basev by pressing.

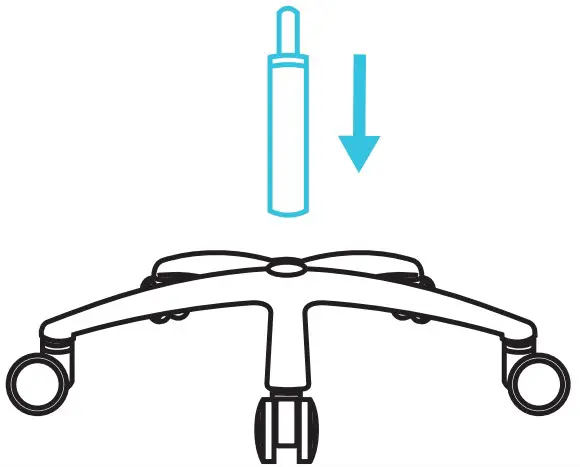

2. Insert the gaslift to the base.

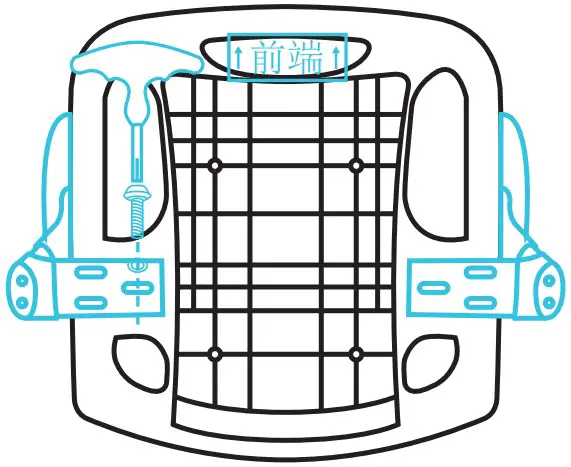

3. Fix the armrest to the seat cushion with 6pcs samll shim and 6pcs(M6*20)screws, Pay attention to distinguish before and after.

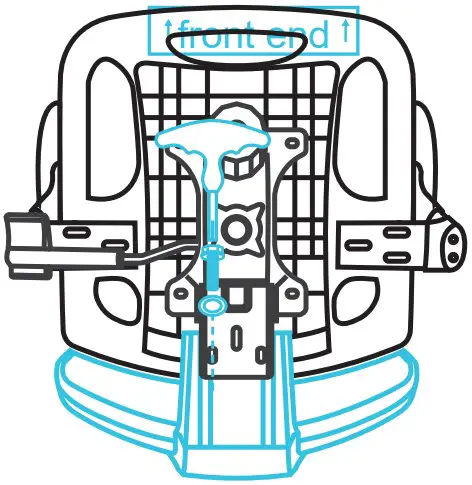

4. Fix the mechanism to the seat cushion with 4pcs small shim and 4pcs (M6*20) screws,Pay attention to distinguish before and after.

5. Fix the back plate to the seat cushion with 3pcs big shim and 3pcs (M8*45) screws.

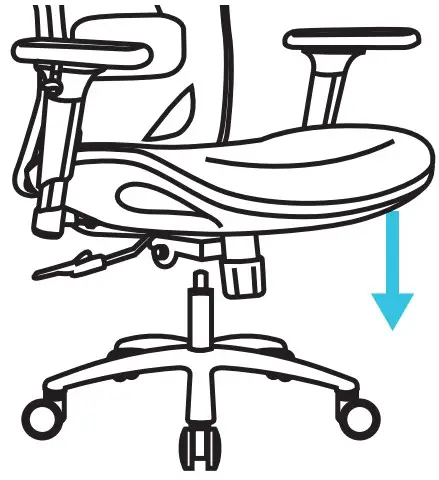

6. Put the upper part of chair to the gas lift.

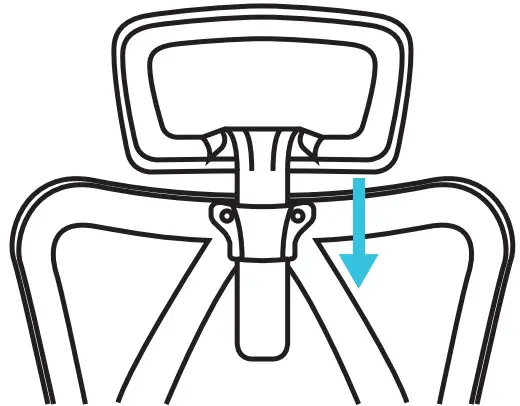

7. Fix the headrest to the backrest.

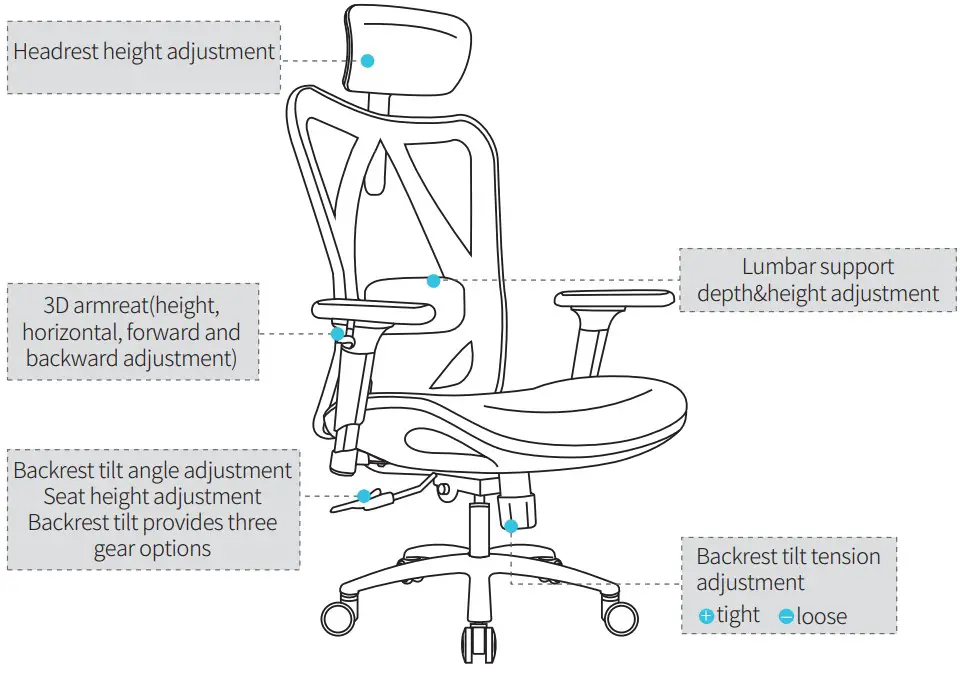

Function diagram
