43234691 RATTAN WARDROBE 5 TIER ADJUSTABLE SHELVES
WARNING: DO NOT STAND, SIT OR LEAN ON THIS UNIT. DO NOT USE THIS UNIT AS A STEP LADDER OR AS A CHOPPING SURFACE. KEEP AWAY FROM CHILDREN AND BABIES. ADULT ASSEMBLY REQUIRED. USE ONLY ON A FLAT SURFACE. ADULT ASSEMBLY REQUIRED. DO NOT USE THIS UNIT UNLESS ALL BOLTS AND SCREWS ARE FIRMLY SECURED.

CARE INSTRUCTIONS: TO BE ASSEMBLED ON A CLEAN, DRY AND SMOOTH SURFACE. WIPE CLEAN WITH A SOFT DAMP CLOTH. NEVER USE SCOURERS, ABRASIVES OR CHEMICAL SOLVENTS. CHECK AND TIGHTEN ALL PARTS REGULARLY. KEEP AWAY FROM MOISTURE AND DIRECT SUNLIGHT. STORE IN A DRY PLACE. FOR INDOOR AND DOMESTIC USE ONLY.

MAXIMUM SAFE LOAD: 5KGS FOR EACH SHELF.

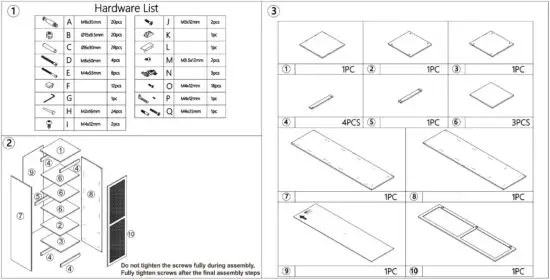

FIG 1 Assembly Instructions.JPG

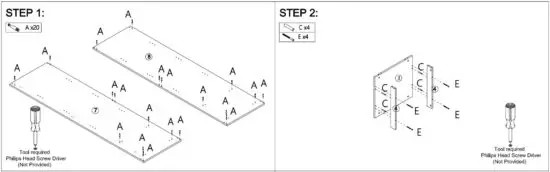

FIG 2 Assembly Instructions.JPG

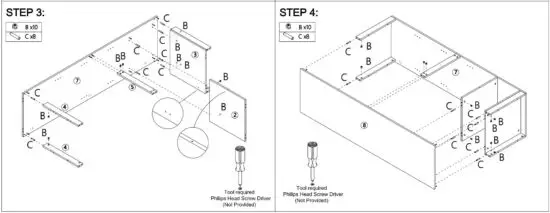

FIG 3 Assembly Instructions.JPG

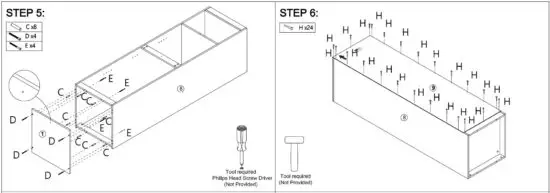

FIG 4 Assembly Instructions.JPG

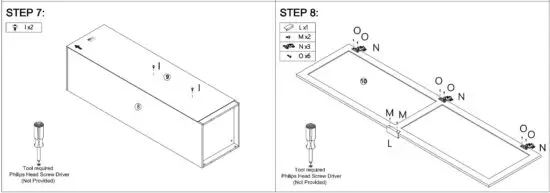

FIG 5 Assembly Instructions.JPG

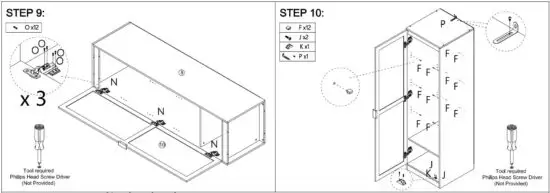

FIG 6 Assembly Instructions.JPG

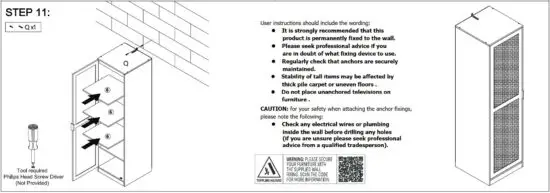

FIG 7 Assembly Instructions.JPG

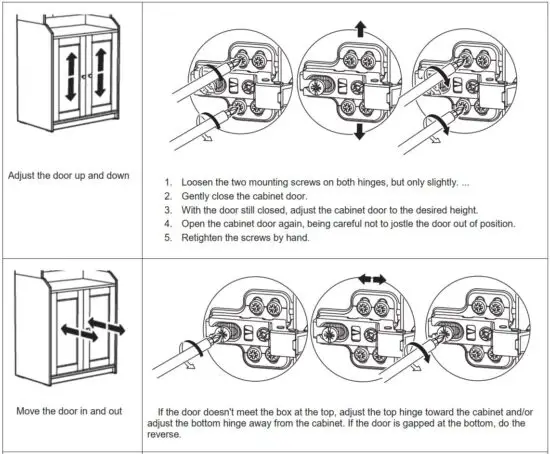

Hinger Adjustment Tips
Noted: The door might be scraping, bumping, misaligned when first assembly.
Please follow the below tips:

FIG 8 Hinger Adjustment Tips.JPG

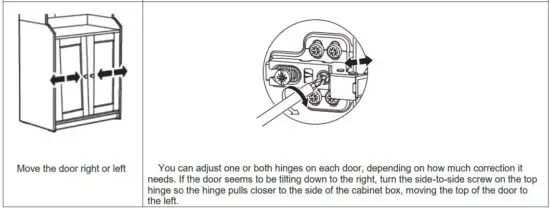

FIG 9 Hinger Adjustment Tips.JPG
