Apuro Ct931-a Crepe Maker Instruction Manual

CT931-A Crepe Maker
Instruction Manua

CT931-A Crepe Maker

Model: CT931-A

Safety Instructions

• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components on this product.
• Consult Local and National Standards to comply with the following:
  – Health and Safety at Work Legislation
  – Fire Precautions
  – Wiring Regulations
  – Building Regulations
• Caution! Hot surface! Do not touch!
  The temperature of the cooking surface may be high when the appliance is operating.
• DO NOT immerse the appliance in water.
• DO NOT clean with jet/pressure washers.
• DO NOT move or carry the appliance when it is switched on.
• DO NOT leave the appliance unattended during operation.
• Always use oven gloves when cooking or carrying out any adjustments to the appliance.
• Do not obstruct any ventilation openings in the appliance body.
• During and after cooking, the unit is still hot. Never touch the surface to avoid scalding.
• Always switch off and disconnect the power supply to the appliance when not in use.
• This appliance must only be used in accordance with these instructions and by persons competent to do so.
• Keep all packaging away from children. Dispose of the packaging in accordance with the regulations of local authorities.
• If the power cord is damaged, it must be replaced by an Apuro agent or a recommended qualified technician in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Apuro recommends that this appliance should be periodically tested (at least annually) by a Competent Person. Testing should include, but not be limited to Visual Inspection, Polarity Test, Earth Continuity, Insulation Continuity, and Functional Testing.

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your Apuro product.

Pack Contents

The following is included:

• Apuro Crepe Maker
• Instruction manual
  Apuro prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage. Should you find any damage as a result of transit, please contact your Apuro dealer immediately.

Installation

• Place the unit on a heat-resistant surface. Avoid placing it on or close to flammable materials. Maintain a distance of 20cm (7 inches) between the appliance and walls or other objects for ventilation.
• Keep the unit away from splashing water and the countertop’s edge.

Note: Before using it for the first time, clean the appliance with warm soapy water. Let dry completely.

Operation

Making Crepes

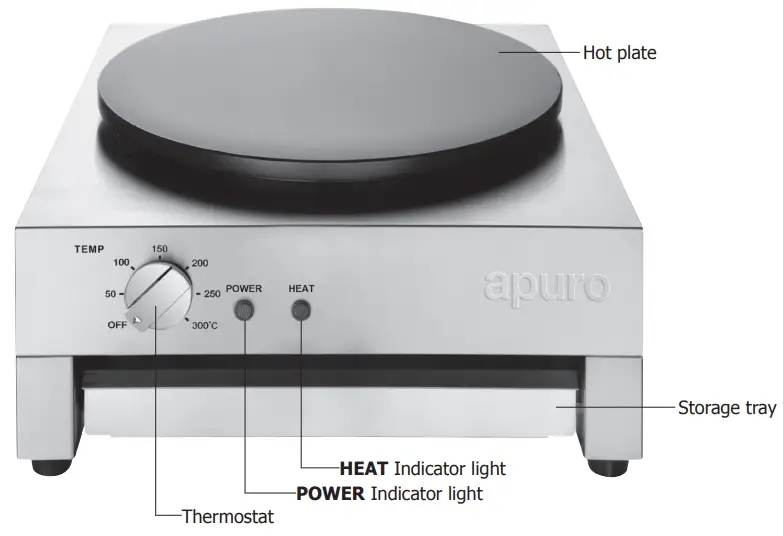

1. Connect the appliance to the mains power supply. The POWER indicator light (green) turns on.
2. Set the thermostat to the desired temperature (50°C-300°C). The HEAT indicator light (orange) turns On and the appliance begins to heat up.
3. When the set temperature is reached, the HEAT indicator light turns Off.
4. Pour the required amount of batter mixture on to the hot plate.

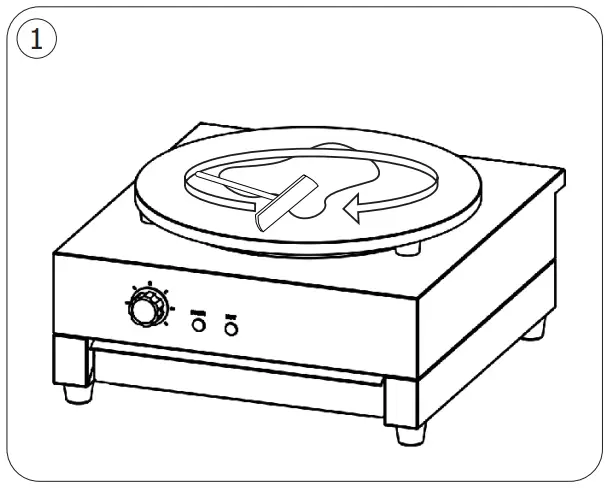

5. Spread the mixture in a circular motion around the hotplate with a spreader [Fig. 1].
6. Cook on one side before flipping with a spatula to cook the other side of the crepe.
7. Turning off: After use, set the thermostat to the OFF position and disconnect the appliance from the power supply.

Overheating protection
This appliance is features overheat protection. Should the temperature exceed safe levels the appliance will automatically cut off power.
The thermal Cut-out switch is located on the rear of the appliance. To reset the appliance after a sufficient cool-down period:

1. Unscrew the reset switch cover.
2. Press the small reset switch down until it clicks, using a blunt pointed instrument.
3. The appliance is now reset and can be used as normal.

Cleaning, Care & Maintenance

Always switch off the appliance, disconnect the power supply and allow it to cool before cleaning or performing maintenance.

• If necessary wipe the exterior with a soft cloth and warm soapy water.
• Dry thoroughly after cleaning.

Troubleshooting

A qualified technician must carry out repairs if required.

Technical Specifications

Note: Due to our continuing program of research and development, the specifications herein may be subject to change without notice.

Electrical Wiring

The plug is to be connected to a suitable main socket. This appliance is wired as follows:

• Live wire (colored brown) to the terminal marked L
• Neutral wire (colored blue) to the terminal marked N
• Earth wire (colored green/yellow) to terminal marked E

This appliance must be earthed.If in doubt consult a qualified electrician.
Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required, they must be readily accessible.

Compliance

The product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.
Apuro parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.
Apuro products have been approved to carry the following symbol:
All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Apuro. Every effort is made to ensure all details are correct at the time of going to press, however, Apuro reserve the right to change specifications without notice.

DECLARATION OF CONFORMITY

 Conformiteitsverklaring

I, the undersigned, hereby declare that the equipment specified above conforms to the above Territory Legislation, Directive(s), and Standard(s).

Date	1st June 2021
Signature
Full Name	Ashley Hooper	Josie Holt
Position	Technical & Quality Manager	Commercial Manager/ Responsible Supplier
Producer Address	Fourth Way, Avonmouth, Bristol, BS11 8TB United Kingdom	15 Bagdally Road, Campbelltown NSW 2560
