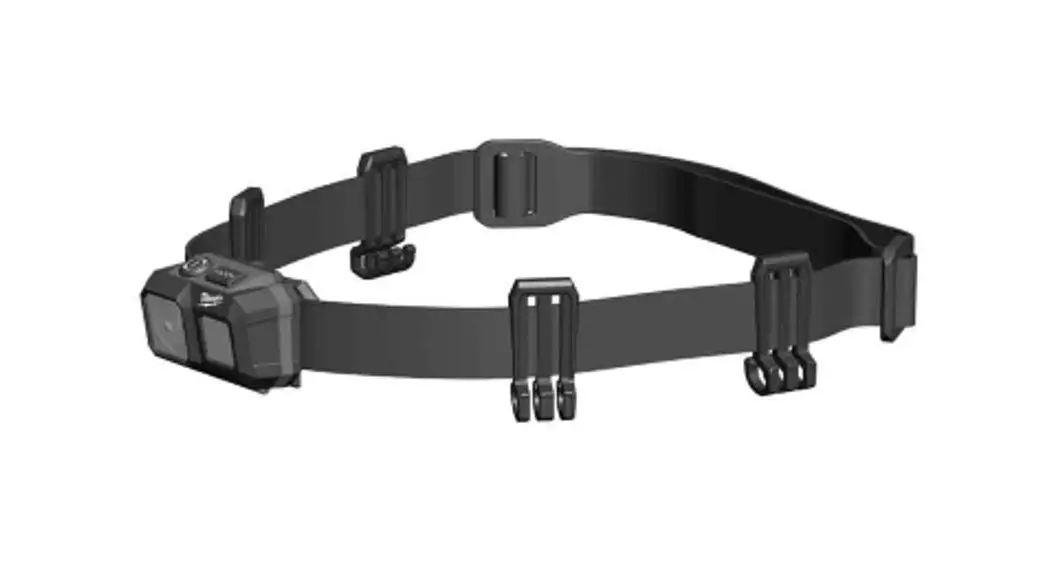

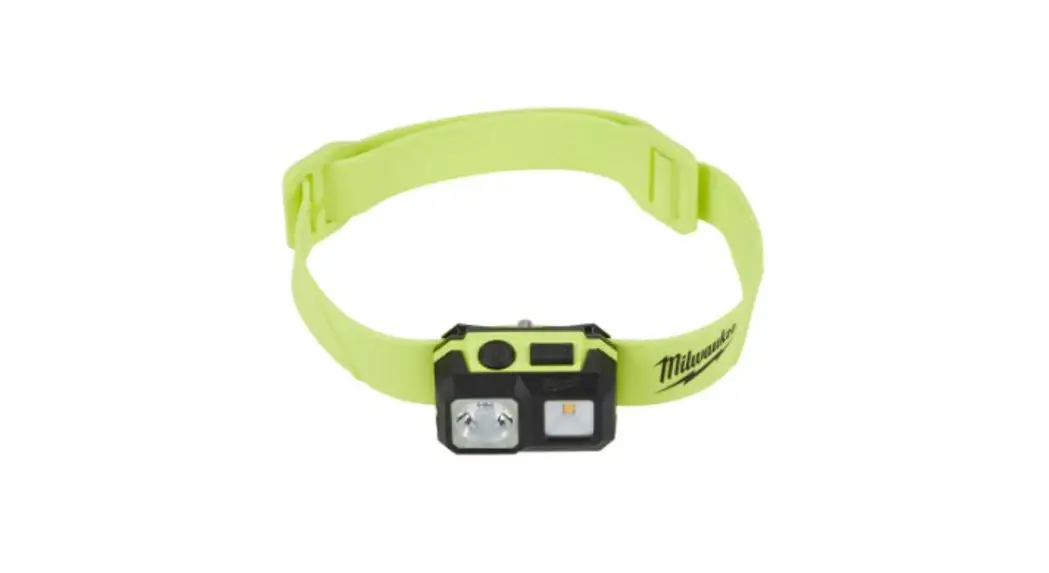

Milwaukee Ishl-led Alkaline Intrinsically Safe Headlamp Instruction Manual

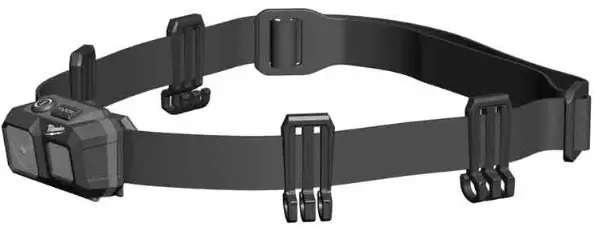

ISHL-LED Alkaline Intrinsically Safe Headlamp
Original instructions

ISHL-LED Alkaline Intrinsically Safe Headlamp

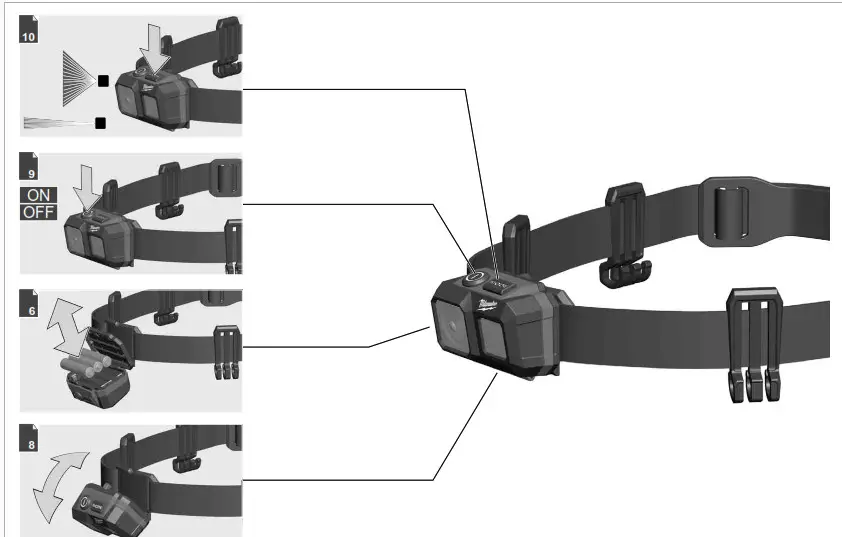

Picture section with operating description and functional description
Text section with Technical Data, important Safety and Working Hints and description of Symbols

The batteries shall not be removed or replaced in a hazardous area.
The battery compartment shall not be opened in a hazardous area.
Only the following battery models are permitted to be used in conjunction with this lamp: Duracell MN2400, Energizer E92
Do not use leaking or damaged batteries.

MODE memory: the selected operating mode is available again when switching on again.

TECHNICAL DATA

HEADLIGHT ISHL-LED

WARNING Read all safety warnings, instructions, illustrations and specifi cations provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fi re and/or serious injury.
Save all warnings and instructions for future reference.

SAFETY INSTRUCTIONS HEAD LIGHT

Warning: Do not direct the light beam at persons or animals and do not stare into the light beam yourself (not even from a distance). Staring into the light beam may result in serious injury or vision loss.
This lamp is intended for use in explosive atmospheres.
Use the product only within the specifi ed range of ambient temperature.
Always cone rm the ratings of this product with the known or potentially hazardous environment in which it will be used.
The product should be inspected on a regular basis for visible damage. The integrity of the product housing shall be very ed. If the product shows any sign of damage or  defect the lamp must be switched off and removed from the explosive atmosphere immediately.
Maintain labels and nameplates. These carry important information. If unreadable or missing, contact a
MILWAUKEE service facility for a free replacement.
Use only identical replacement parts. Other parts or substitutions may impair this products intrinsic safety.
The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.
SAFETY INSTRUCTIONS BATTERY

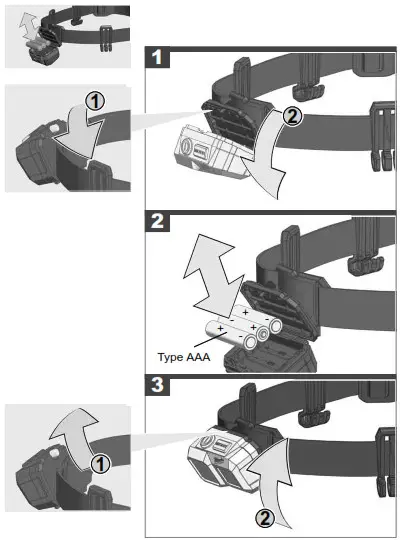

This tool is designed to be powered by 3 LR03 / AAA batteries properly inserted into the instrument. Do not attempt to use with any other voltage or power supply.
Do not leave batteries within the reach of children.
Do not mix new and used batteries. Do not mix brands (or types within brands) of batteries.
Only use Energizer E92 or Duracell MN2400 batteries.
If the light will not be used for a long time, remove the batteries as a protection against corrosion.
Do not use rechargeable batteries.
To prevent the risk of fi re or explosion, do not open battery compartment in a hazardous atmosphere. Only change batteries in known non-hazardous areas.
Install batteries according to polarity (+ / –) diagrams.

EC DECLARATION OF CONFORMITY

We declare as the manufacturer under our sole responsibility that the product described under “Technical Data” fulfills all the relevant regulations and the directives 2011/65/EU (RoHS), 2014/30/EU, 2014/34/EU and the following harmonized standards have been used:
IEC 60079-0 Ed. 7
IEC 60079-11 Ed. 6
EN IEC 60079-0:2018
EN 60079-11:2012
EN IEC 55015:2019+A11:2020
EN 61547:2009
EN IEC 63000:2018
The notify ed body performed EU-type examination, performed quality assurance and issued the cretic cate.
Notti ed Body:
UL International Demo A/S,
Boomerang5A
2750 Ballarpur, Denmark
Notti ed Body No.: 0539
Certify cation-No.: UL 20 ATEX 2425
Certify cation-No.: IECEx UL 20.0097
II 1 G Ex IA IIC T4 Ga
Winnenden, 2022-09-26

Alexander Krug
Managing Director

Thomas Benkelman
IECEx / ATEX Authority
Authorized to compile the technical file
Techtronic Industries GmbH
Max-Edyth-Straße 10
71364 Winnenden
Germany

MAINTENANCE

The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.
Use only Milwaukee accessories and spare parts. Should components need to be replaced which have not been described, please contact one of our Milwaukee service agents (see our list of guarantee/service addresses).
If needed, an exploded view of the tool can be ordered.
Please state the machine type printed as well as the six-digit No. on the label and order the drawing at your local service agents or directly at: Techtronic Industries GmbH, Max-Edyth-Straße 10, 71364 Winnenden, Germany.

SYMBOLS

CAUTION! WARNING! DANGER!
Please read the instructions carefully before starting the machine.
Do not stare at the operating light source.
Hazardous location lighting
IP64 Protection against dust deposit / Protection from splashed water
Use in potentially explosive atmospheres, according to directive 2014/34 / EU
Class III electrical protection.
Do not dispose of waste batteries, waste electrical and electronic equipment as unsorted municipal waste. Waste batteries and waste electrical and electronic equipment must be collected separately.
Waste batteries, waste accumulators and light sources have to be removed from equipment.
Check with your local authority or retailer for recycling advice and collection point.
According to local regulations retailers may have an obligation to take back waste batteries and Waste electrical and electronic equipment free of charge.
Your contribution to re-use and recycling of waste batteries and waste electrical and electronic equipment helps to reduce the demand of raw materials.
Waste batteries, in particular containing lithium and waste Electrical and electronic equipment contain valuable, recyclable materials, which can adversely impact the environment and the human health, if not disposed of in an environmentally compatible manner.
Delete personal data from waste equipment, if any.
European Conformity Mark
Ukraine Conformity Mark
Eurasian Conformity Mark

Copyright 2022
Techtronic Industries GmbH
Max-Edyth-Str. 10
71364 Winnenden
Germany
+49 (0) 7195-12-0
www.milwaukeetool.eu
Techtronic Industries (UK) Ltd
Parkway
Marlow, SL7 1YL UK
(10.22)
4931 4704 95
