Countertop Automatic Soap/Sanitizer 641527
INSTRUCTION MANUAL
Model # 641527
Global Industrial Countertop Automatic Soap/Sanitizer Dispenser, Spray 12 oz. – White/Chrome
Model # 641528
Global Industrial Countertop Automatic Soap/Sanitizer Dispenser, Foam 12 oz. – White/Chrome
Model # 641529
Global Industrial Countertop Automatic Soap/Sanitizer Dispenser, Gel 12 oz. – White/Chrome

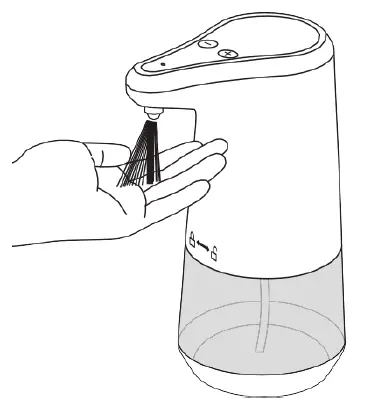

Model # 641527 (spray dispenser): Use thin liquids.

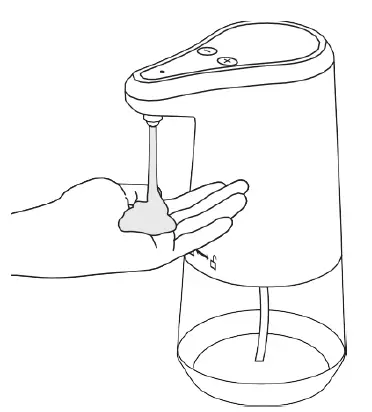

Model # 641528 (foam dispenser): Use foaming liquid refills or a 2:3 soap to water ratio.
Model # 641529 (gel dispenser): Use thick liquids.
Read these instructions carefully and keep them safe.
- DO NOT soak under water. Clean the dispenser with a wet towel.
- DO NOT use the device in the shower.
- Don’t hold the dispenser upside down with liquids inside.
- Clean the dispenser before replacing soap to prevent clogs.
- DO NOT drop the dispenser. Dispenser can leak or malfunction if dropped, punctured, or damaged.
- DO NOT expose the device to direct sunlight, heat, excessive humidity or corrosive environments.
- Ensure the battery case is closed securely

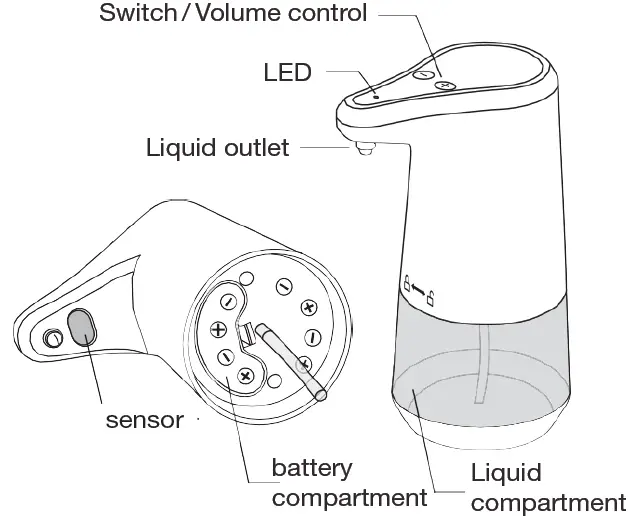

Product Details
- When the batteries are low, the LED will turn red.
- Only use AA Alkaline batteries. Rechargeable batteries can be used.
- All 4 AA Alkaline batteries used in the device should be from the same brand.
- Do not mix old and new batteries.
- Replace all 4 AA Alkaline batteries at the same time.
- Remove batteries from the device if the device will not be used for a long time to prevent battery leaks.
Instructions

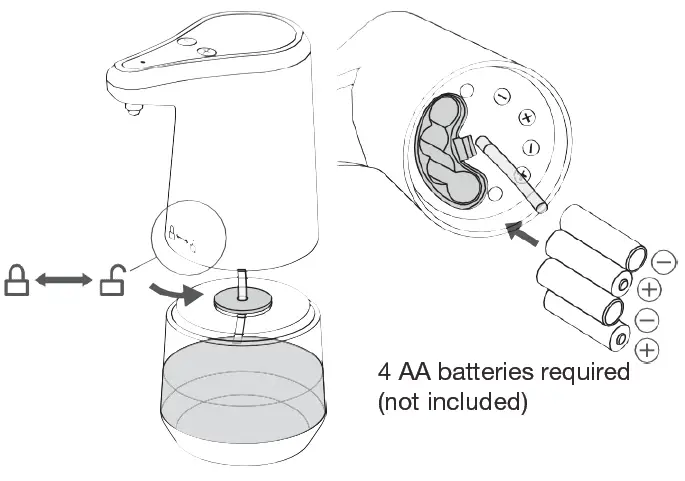

- Turn the head of the dispenser counterclockwise to open. Insert 4 AA Alkaline batteries.
- Pour liquid into the bottle and reinstall the head by turning it clockwise until it clicks.
- Press and hold the
button for 2 seconds to turn on the device. The LED will turn green. - Press the button to increase the amount dispensed and the
button to decrease the amount dispensed. Model # 641527 (spray dispenser) and model # 641528 (foam dispenser) have 2 levels. Model # 641529 (gel dispenser) has 5 levels. - Press and hold the button for 2 seconds to turn off the device. The LED will turn red.
