Kodak STEREO CAMERA Field Case User Manual
PARTS LIST
| FIG. | [ PART NO. | PART NAME
| REQD 1 |

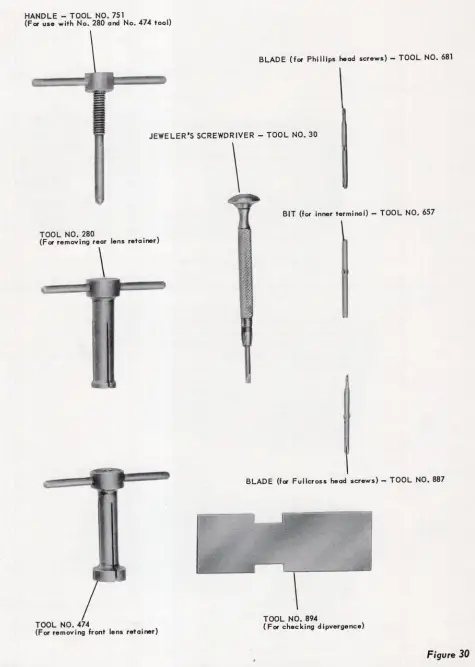

| 29 | 30 | Screwdriver – Jeweler’s | |
| 29 | 780 | Tool – Fxpnnsinn fnr renr lens retniner | 1 |
| 29 | 474 | Tool – Expansion for front lens retainer | 1 |
| 29 | 657 | Bit – Jeweler’s screwdriver (For inner terminal, use with tool No. 30) | 1 |
| 29 | 681 | Blade – Phillips head screw (For use with No. 30 screwdriver) | 1 |
| 29 | 751 | Handle (For use with No. 474 and No. 280 tool) | 1 |
| 29 | 887 | Blade – Fulicross head screw (For use with No. 30 screwdriver) | 1 |
| 29 | 894 | Special Ground Glass For Checking Dipvergence | 1 |
| 16 | 79023 | Lockwasher – Tripod socket screw | 1 |
| 2 | 110034 | Rivet – Back hinge to back (2), Back latch to back (2) | 4 |
| 16 | 110038 | Rivet – Film magazine spring to case | 2 |
| 16 | 110510 | Rivet – Film magazine spring to case | 2 |
| 10 | 116284 | Screw – Film guide spring, Phillips pan head, tapping type F, No. 2-56 x 3/16 inch, | |
| steel, ni•kel | I | ||
| 9 | 116703 | Washer – Counter post | 1 |

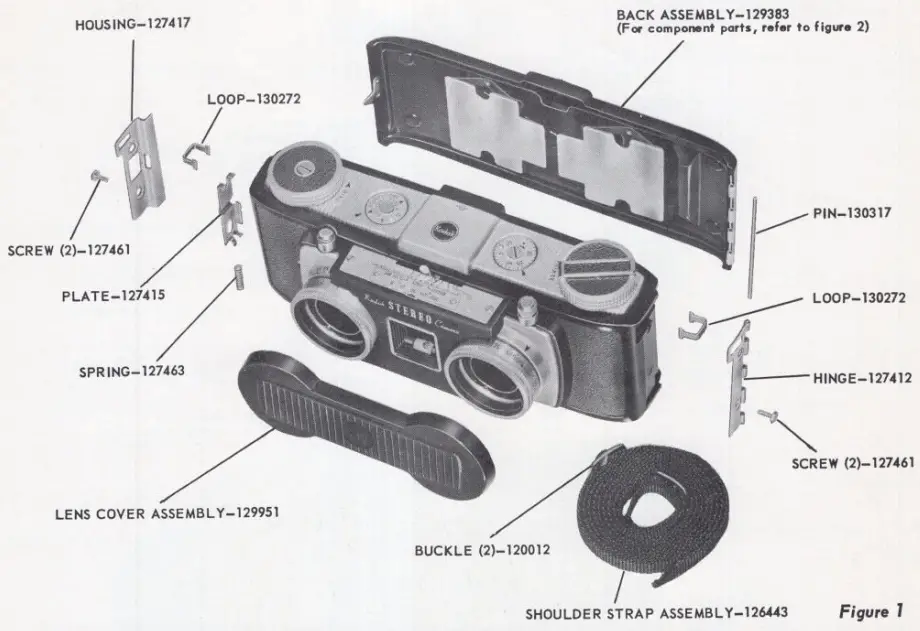

| 1 | 120012 | Buckle – Shoulder strap | 2 |
| 4 | 120923 | Washer – Counter dial (old style) | 1 |
| 3 | 121836 | Screw – Wind (1), Rewind ( 1 ) | 2 |
| 4A | 121907 | Washer – Counter dial, spring (new style) | 1 |
| 7 | 122834 | Screw – Negative lens retaining mask to front housing, Phillips pan head, | |
| No. 2-56 x 1/4 inch, steel, rustproof | 2 | ||
| 10 | 123056 | Screw – Sprocket bearing cover to case, Phillips pan head, No. 2-.56 x 1/4 Inch, | |
| steel nickel | 2 | ||
| 3 | 123755 | Screw – Cover assembly to case, Phillips flat head, tapping type F, No. 2-56 | |
| x 1;’4 inch, steel, nickel | 2 | ||
| 16 | 124589 | Screw – Tripod socket to case, Phillips pan head, No. 2-b6 x .5/ 16 inch, steel, rustproof | 2 |
| 11 | 125348 | Washer – Metering control cam screw | 1 |
| 4A | 125356 | Washer – Counter dial (new style) | |
| 8 | 125882 | Screw – Upper and lower mirror brackets to case, Phillips pan head, No. 2-56 | |
| x 1/8 inch, steel, rustproof | 4 | ||
| 1 | 126443 | Shoulder Strap Assembly | 1 |
| 7 | 127392 | Bezel – Finder | 1 |

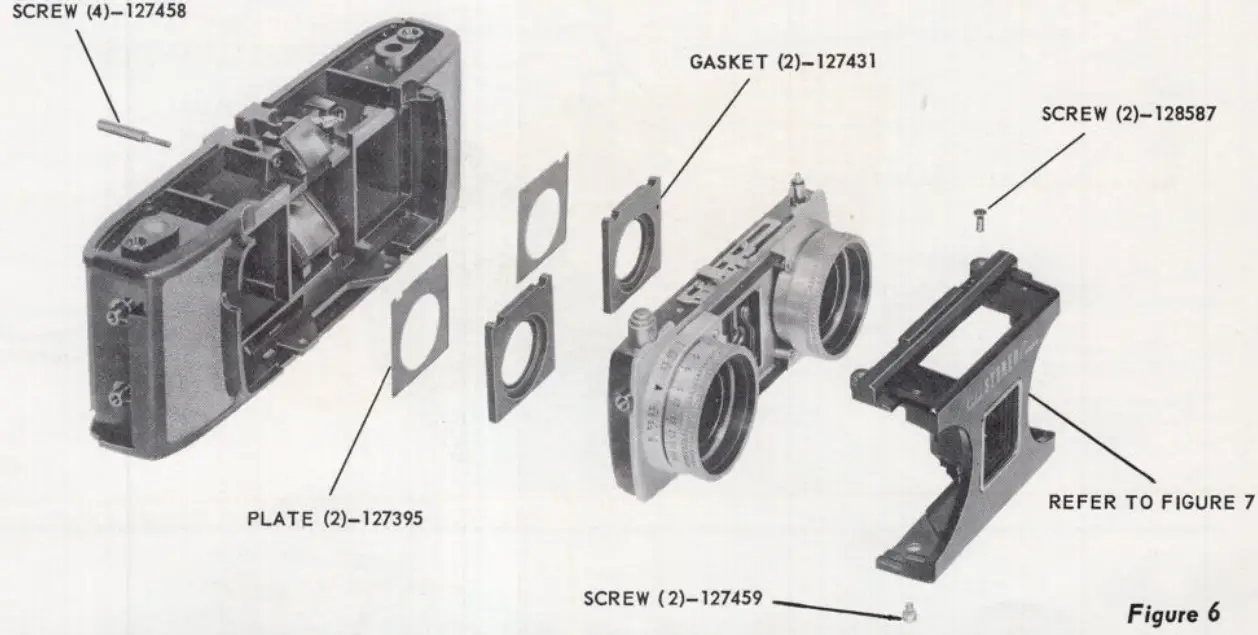

| 6 | 127395 | Plate – Shutter gasket | 2 |
| 12 | 127396 | Washer – Ratchet | 1 |
| 8 | 127397 | Bracket – Lower mirror | 1 |
| 8 | 127398 | Bracket – Upper mirror | 1 |
| 12 | 127399 | Baffle – Light | 1 |
| 12 | 127400 | Plate – Ratchet separating | 1 |
| 3 | 127405 | Spring – Finder eye lens | 1 |
| 11 | 127410 | Panel – Bottom (English) | 1 |
| 1 | 127412 | Hinge – Case | 1 |
| 2 | 127413 | Hinge – Back | 1 |
| 2 | 127414 | Latch – Back | 1 |
| 1 | 127415 | Plate – Latch | 1 |
| 1 | 127417 | Housing – Latch plate | 1 |
| 7 | 127419 | Retainer – Negative lens | 1 |
| 13 | 127420 | Lever – Rewind | 1 |
| 12 | 127422 | Ratchet – Metering | 2 |
| 3 | 127423 | Spring – Rewind shaft retainer | 1 |
| 7 | 127426 | Housing – Front | 1 |
| 3 | 127427 | Cover – Finder lens | 1 |
| 10 | 127428 | Cover – Sprocket bearing | 1 |
| 7 | 127429 | Lens – Negative | 1 |
| 6 | 127431 | Gasket – Shutter | 2 |
| 14 | 127432 | Cam – Metering control | 1 |
| 7 | 127433 | Vial – Bent level | 1 |
| 16 | 127435 | Socket – Tripod | I |
| 127436 | Post – Counter pawl (old style) | 1 | |
| 16 | 127440 | Spring – Film magazine | I |
| 127446 | Shaft – Rewind | I | |
| 11 | 127447 | Post – Bottom panel | I |
| 12 | 127448 | Screw – Ratchet lock | 1 |
| 11 | 127456 | Screw – Metering cam control | 1 |
| 127458 | Screw – Shutter to case | 4 | |
| 127459 | Screw – Front housing to case, bottom | 2 | |
| 1 | 127461 127463 | Screw – Case hinge (2), Latch plate (2) Spring – Plate latch locking | 4 I |
| 127465 | Spring – Counter pawl | 1 | |
| 13 | 127467 | Spring – Double pawl | |
| 13 | 127468 | Spring – Rewind lever | |
| 13 | 127469 | Spring – Metering control lever | |
| 127861 | Hinge – Rewind crank | ||
| 127864 | Spring – Rewind crank | ||
| 127865 | Pin – Rewind crank hinge | ||
| 13 | 128576 | Spring – Pivot lever | |
| 128580 | Screw – Counter dial post and ratchet assembly to cover (old style) | ||
| 128582 | Dial – Counter (old style) | ||
| 128584 | Screw – Exposure plate and speed slide yoke assembly to case | 2 | |
| 11 | 128585 | Screw – Bottom panel to case, Phillips flat head, No. 2-56 x 3/16 inch, steel, nickel | 2 |
| 128586 | Screw – Diaphragm pointer assembly to shutter diaphragm slide | ||
| 128587 | Screw – Front housing to case, top, Phillips flat head, No. 2-56 x 1/4 inch, steel, rustproof | 2 | |
| 3 | 128731 | Washer – Winding knob | |
| 3 | 128732 | Washer – Rewind knob | |
| 13 | 128736 | Washer – Pivot lever stud | |
| 4 | 129335 | Counter Dial Post and Ratchet Assembly (old style) | 1 |
| 13 | 129336 | Shutter Setting Crank and Pivot Lever Assembly | 1 |
| 3 | 129339 | Rewind Knob Assembly | 1 |
| 3 | 129340 | Winding Knob Assembly | 1 |
| 5 | 129343 | Diaphragm Pointer Assembly | 1 |
| 2 | 129346 | Film Retaining Pad Assembly (Chrome) | 2 |
| 12 | 129350 | Take-Up Tube Assembly | 1 |
| ,4A | 129379 | Top Panel and Film Indicator Dial Assembly (English) | 1 |
| 3 | 129381 | Rewind Crank Assembly | 1 |
| 4,15 | 129382 | Case Assembly | 1 |
| 1 | 129383 | Back Assembly | 1 |
| 2 | 129385 | Covering – Back | 1 |

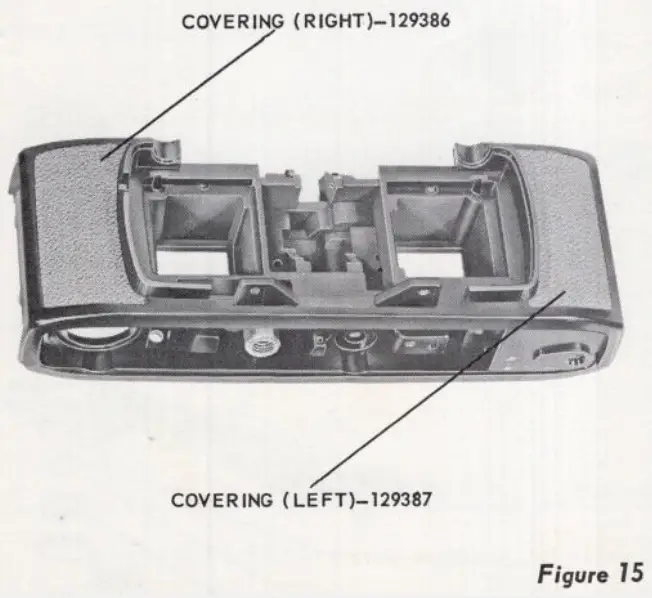

| 15 | 129386 | Covering – Case, right | 1 |
| 15 | 129387 | Covering – Case, left | 1 |
| 3 | 129482 | Flash Post Cap Assembly | 1 |
| 2 | 129492 | Spring – Pad booster | 1 |
| 2 | 129494 | Rivet – Fi Im retaining pad assembly to back | 2 |
| 12 | 129515 | Spring – Rewind lever | 1 |
| 9 | 129541 | Ring – Counter pawl retaining | 1 |
| 7 | 129896 | Mask – Negative finder lens | 1 |
| 11 | 129929 | Link – Shutter setting | 1 |
| 13 | 129930 | Spring – Metering lock lever | 1 |
| 1 | 129951 | Lens Cover Assembly | 1 |
| 11 | 130008 | Screw – Mechanism plate to case | 2 |
| 16 | 130267 | Spring – Film magazine | 1 |

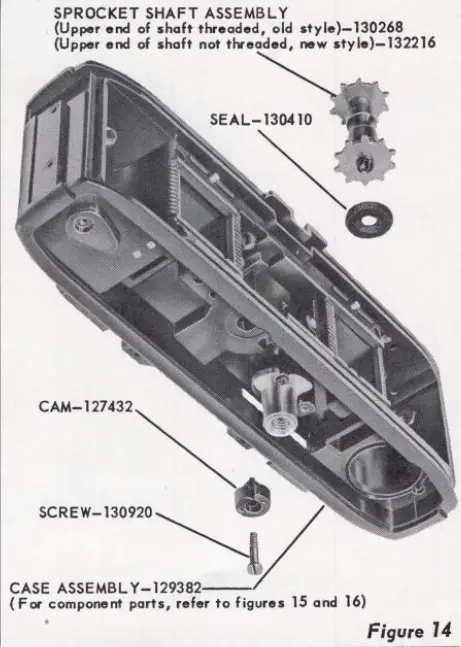

| 14 | 130268 | Sprocket Shaft Assembly (old style) | 1 |
| 9 | 130271 | Pawl – Counter | 1 |
| 1 | 130272 | Loop – Case strap | 2 |
| 10 | 130273 | Spring – Film guide • | 1 |
| 3 | 130275 | Washer – Winding shaft, spring | 1 |
| 3 | 130276 | Shaft – Winding | I |
| 1 | 130317 | Pin – Hinge | 1 |
| 3 | 130400 | Washer – Rewind knob screw | 1 |
| 14 | 130410 | Seal – Light. | 1 |
| 11 | 130523 | Pin – Roller bearing | 1 |
| 11 | 130524 | Roller – Film | 1 |
| 4 11 | 130604 | Washer – Counter dial, spring (old style) | 1 |
| 130909 | Panel – Bottom (Spanish) | 1 | |
| 5 | 130915 | Exposure Plate and Speed Slide Yoke Assembly (Spanish) | 1 |
| 14 | 130920 | Screw – Metering cam to sprocket shaft assembly | 1 |
| 11 | 130921 | Lever – Shutter setting | 1 |
| 13 | 131043 | Pawl – Rewind | I |
| 13 | 131044 | Stud – Rewind pawl | I |
| 13 | 131046 | Stud – Pivot lever assembly | I |
| 2 | 131066 | Rivet – Film retaining pad assembly and booster spring | 2 |
| 5 | 131845 | Exposure Plate and Speed Slide Yoke Assembly (English) | I |
| 4,4A | 132100 | Screw – Counter dial post and ratchet assembly to cover (new style) | I |
| 9 | 132102 | Post – Counter pawl (new style) | 1 |
| 9 | 132103 | Pin – Sprocket shatt spiral | 1 |
| 4A | 132104 | Dial – Counter (new style) | I |
| 14 | 132216 | Sprocket Shaft Assembly (new style) | 1 |
| 4A | 132217 | Counter Dial Post and Ratchet Assembly (new style) | 1 |
| 12 | 133154 | Mechanism Plate Assembly | I |
| 2 | 133239 | Film Retaining Pad Assembly (Black) | 2 |
| 4,4A | 134131 | Top Panel and Film Indicator Dial Assembly | 1 |
| 3 | 801377 | Lens – Eye | 1 |
| 8 | 801378 | Mirror – Lower | I |
| 8 | 801379 | Mirror – Upper | I |

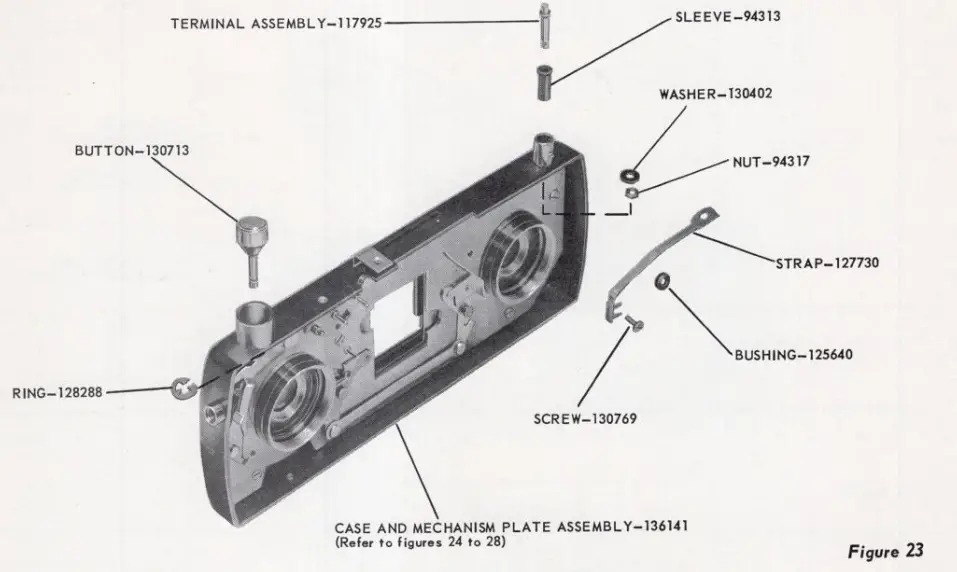

| 27 | 94312 | Body – Terminal | 1 |
| 23 | 94313 | Sleeve – Terminal insulating | 1 |
| 23 | 94317 | Nut – Terminal | 1 |
| 23 | 102956 | Screw – Mechanism plate retaining | 2 |
| 27 | 110101 | Rivet – (-lick stop spring | 1 |
| 25 | 116128 | Washer – Blade spacer | 4 |
| 26 | 117656 | Wing – Diaphragm | 12 |
| 24 | 117663 | Stud – Retard sector (1), Escapement pinion (1) | 1 |
| 25 | 117665 | Blade – Shutter | 6 |
| 24 | 117682 | Stud – Bulb lever | 1 |
| 24 | 117697 | Spacer – Bulb lever | 1 |
| 23 | 117925 | Terminal Assembly | 1 |
| 24 | 122356 | Stud – Blade latch | 1 |
| 22 | 122476 | Screw – Drive ring retaining spring | 2 |
| 21 | 122495 | Spring – Main drive | 1 |
| 21 | 122503 | Pinion and Star Wheel Assembly | |
| 25 | 122542 | Stud – Blade pivot | 4 |
| 24 | • 123175 | Stud – Main drive spring | 1 |
| 23 | 125640 | Bushing – Contact strap | 1 |
| 27 | 127698 | Stud – Diaphragm pointer slide | 2 |
| 2/ | 12/699 | Spring – Diaphragm click stop | 1 |
| 2/ | 12//00 | Spring – (-lick stop | 1 |
| 27 | 127701 | Bushing – Cable release | I |
| 27 | 127702 | Bushing – Trigger button | 1 |
| 26 | 12/109 | Plate – Diaphragm retainer | 1 |
| 26 | 127710 | Slide – Diaphragm pointer | bi |
| 19,26 | 127711
| Screw – Diaphragm pointer slide (2), Speed pointer (2) | |
| 18 | 127714 | Mount – Front lens | 2 |

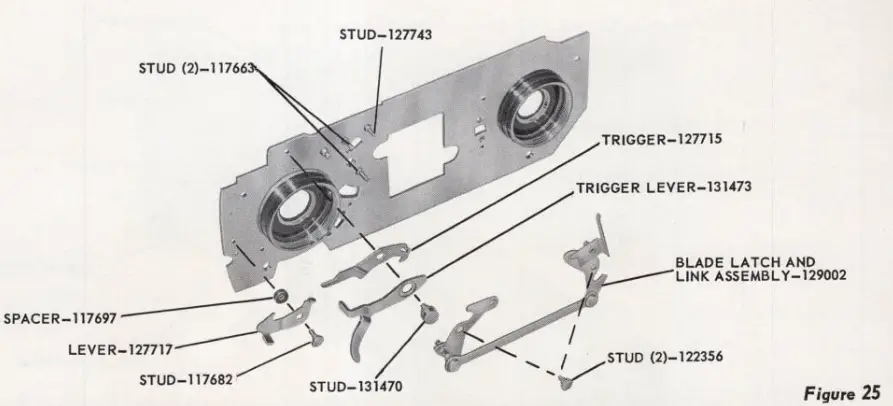

| 24 | 127715 | Trigger | 1 |
| 24 | 127717
| Lever – Bulb | 1 |
| 22 | 127718 | Drive Ring Assembly | 1 |
| 19 | 127721 | Cover Assembly | 1 |
| 26 | 127728 | Diaphragm Pointer Assembly | 2 |
| 23 | 127730 | Strap – Flash contact | 1 |
| 19 | 127731 | Speed Control Lever and Link Assembly | 1 |
| 19 | 127735 | Stud – Bezel | 4 |
| 19 | 127736 | Stud – Focus mount stop | 2 |
| 19 | 127737 | Screw – Cover retaining | 2 |
| 17 | 127738 | Bezel (RH) | 1 |
| 17 | 127739 | Bezel (LH) | 1 |
| 17 | 127740 | Strap – Focusing | 1 |
| 17 | 127741 <‘ | Screw – Name plate to lens mount | 4 |
| 18 | 127742 | Ring – Rear lens clamping | 2 |
| 24 | 127743 | Stud – Retard pallet | 1 |
| 18 | 127747 | Ring – Front lens clamping. | 2 |
| 17 | 127752 | Plate – Name, lens | 2 |
| 17 | 127909 | Screw – Focusing mount (2), Bezel retaining (4) | 6 |
| 23 27 | 128288 128905 | Ring – Trigger button retaining Lever – Trigger lock | 1 |
| 27 | 128907 | Stud – Trigger lock lever | |
| 26 22 | 128939 128945 | Spring – Trigger lock lever Spring – Bulb lever | 1 |
| 24 | 129002 | Blade Latch and Link Assembly | |
| 21 | 129004 | Retard Sector Assembly | |
| 19 | 129005 | Speed Control Ring Assembly | |
| 21 | 130018 | Spring – Sector return | |
| 24 | 130019 | Stud – Main drive spring | |
| 21 22 | 130021 130144 | Retard Pallet Assembly Screw – Drive ring protector | 1 |
| 27 | 130188 | Rivet – Diaphragm click stop retaining | 2 |
| 17 | 130280 | Ring – Insert | 2 |
| 23 | 130402 | Washer – Insulating | 1 |
| 18 | 130414 | Washer – Focusing mount spring | 2 |
| 22 | 130708 | Spring – Drive ring retaining | 2 |
| 21,22 | 130709 | Spring – Blade closing | 2 |
| 23 | 130713 | Button – Trigger | 1 |
| 23 | 130768 | Screw – Mechanism plate locating | 3 |
| 23 18 | 130769 131074 | Screw – Insulating bushing to mechanism plate Washer – Center lens retaining | 1 2 |
| 24 | 131470 | Stud – Trigger lever | |
| 22 | 131471 | Spring – Trigger lever | |
| 22 | 131472 | Spring – Trigger | |
| 109433 | Cap | 3 | |
| 109434 | Socket | 3 | |
| 109436 | Stud | 3 | |
| 117843 | Post | 3 | |
| 123187 | Screw | 1 | |
| 129755 | Cover Assembly | 1 | |
| 129756 | Case Assembly | 1 | |
| 129760 | Label | 1 | |
| 29 | 109433 | Cap | 3 |
| 29 | 109434 | Socket | 3 |
| 29 | 109436 | Stud | 3 |
| 29 | 117843 | Post | 3 |
| 29 | 123187 | Screw | 1 |
| 2 | 129755 | Cover Assembly | 1 |
| 29 | 129756 | Case Assembly | 1 |
| 29 | 129760 | Label | 1 |
Assembly
