Cal-royal Btn-112 Door Bottom Sweep Instruction Manual

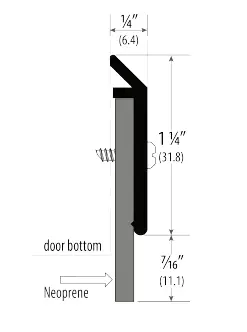

CAL-ROYAL BTN-112 Door Bottom Sweep

Installation Guidelines

1. Determine the required length, mark and cut the door bottom sweep to full width of the door.
2. Close the door and place door bottom sweep along the outside bottom edge of door so that it makes contact with a threshold. Mark door in the center of slotted holes.
3. Dill pilot holes in the door at marks.
4. Fasten door bottom sweep to door with screws.
5. Adjust to ensure firm contact with threshold / above the finish floor.

Packaging includes

• – Screws for wood and metal doors

Tools Required

• Power tool drill
• Measuring tape
• Marker
• Caulking gun
• Cutting tools (hacksaw & plier)
• Screw driver

TESTING/RATINGS

Gasketing material for fire doors intended for application to UL listed steel frames andor classified steel covered Composite type, and hollow metal type fire doors rated up to 3hrs; wood and plastic covered composite type fire
doors rated up to 1-1/2 hrs; and wood core type fire doors rated up to 20 minutes. 43ZY
