Design and Quality IKEA of Sweden
UDDARP Washing Machine
405.237.66
Instructions

Installation

Read the safety booklet and refer to assembly instruction. The manufacturer does not accept any responsibility for damage or injury through failure to comply with the safety pracaution.
Make sure that all transit nolts are removed.
Make sure thet hoses and cable are correctly connected.
The appliance must be handled and installed by two or more persons – risk of injury. Use protective gloves to unpack and install – risk of cuts.
When installing the appliance make sure that the four feet are stable and resting on the floor, adjusting them as required, and check that the appliance is perfectly to level using a spirit level.
If the appliance is being installed on wood or “floating” floors (certain parquet and laminate materials), secure a 60 x 60 x 3 cm (at least) sheet of plywood to the floor then place the appliance on top of this.
Connect the water inlet hose(s) to the water supply in accordance with the regulations of your local water company. The washing machine is fitted with transport bolts to prevent any possible damage to the interior during transport. Before using the machine, it is imperative that the transport bolts are removed.
After their removal, cover the openings with the 4 enclosed plastic caps.

Product description

DETERGENT DISPENSER

1. Main wash compartment
   • Detergent for the main  wash.
   • Stain remover.
   • Water softener.
   • If powder detergent is used, the “removable plastic partition A” is not needed and it could be placed in the slot B.
   • Removable plastic partition (A) comes in a plastic bag as  a fitting with caps.
2. Prewash compartment
   • Detergent for the prewash.
3. Softener compartment
   • Fabric softener.
   • Liquid starch.
   Pour softener or starch solution only up to the “MAX” mark.
4. Release button  (press to remove the detergent dispenser for cleaning)

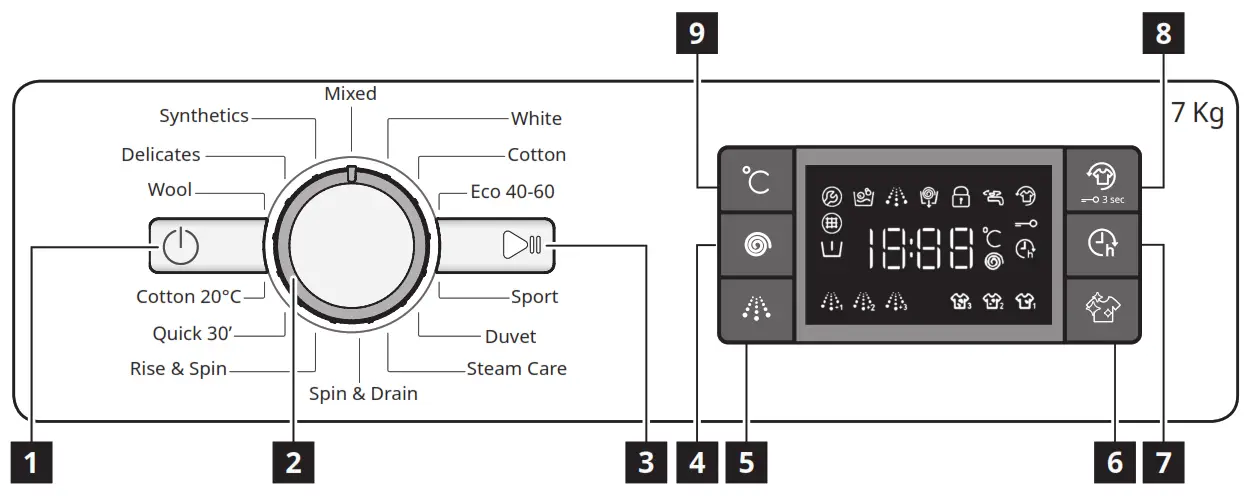

Control Panel

1. “ON/OFF” button
2. Programme selector
3. “Start/Pause” button
4. “Spin” button
5. “Intensive rinse” button
6. “Clean+” button
7. “Start delay” button
8. “Fresh Plus” / “Key lock“ button
9. “Temperature” button

The options/functions are not available with all washing programmes and an option/function can exclude another one, in these case the appliance doesn’t allow an incompatible setting.
DISPLAY INDICATORS

	Door locked	This indicator will light up • after you have started a programme • the porthole door is locked.
	Fresh Plus	This indicator will light up • after you press Fresh Plus button.
	Start delay	This indicator will light up • after you press Start delay button.
	Key lock	This indicator will light up • after the “Key lock” function is activated, which is done by pressing the 8 key for 3 seconds.
	Washing phase indicator	This indicator shows the current programme phase, running from left to right through wash, rinse and drain. The illuminated indicator light shows which phase is in progress.
	Call Service	Failure: Call After-sales service • Refer to “What to do if…” section. • If the indicator persist, call After-sales service.
	Water filter clogged	Failure: Water filter clogged • Water cannot be drained; water filter might be blocked.
	No water	Failure: No water • No or not sufficient inlet water.

First Use

Remove any manufacturing debris:

• Select the “Cotton” programme at a temperature of 60°C.
• Pour a small quantity of detergent powder into the main wash compartment of the detergent dispenser (maximum 1/3 of the quantity the detergent manufacturer recommends for lightly soiled laundry).
• Start the programme without adding any laundry (with empty drum).
• See section “DAILY USE” for more information on how to  select and start a programme.

Programme Chart

Max load 7 Kg Power consumption in off-mode 0.5 W / in left-on mode 8.0 W

Detergents and additives

Recommended detergent

Residual dampness % (*)

Energy consumption kWh

Total water lt

Laundry temperature °C

Programme

Temperatures

Max. spin speed (rpm)

Max load (kg)

Duration (h : mm)

Prewash

Main wash

Softener

Powder

Liquid

Setting

Range

Mixed

40°C

– 40°C

1000

7.0

1:00

–

–

–

–

–

White

60°C

– 90°C

1200

7.0

2:30

(90°)

52

1.36

75

55

Cotton

40°C

– 60°C

1200

7.0

3:40

–

50

0.98

75

45

Eco 40-60

40°C

40°C

1151

7.0

3:25

–

53

0.89

47

35

1151

3.5

2:40

–

53

0.58

45

34

1151

2.0

2:10

53

0.51

39

33

Sport

40°C

– 40°C

600

3.5

1:30

–

–

–

–

–

–

Duvet

30°C

– 30°C

1000

3.0

1:30

–

–

–

–

–

–

Steam Care

–

–

–

1.0

0:20

–

–

–

–

–

–

–

–

–

Spin & Drain

–

–

1200

7.0

0:10

–

–

–

–

–

–

–

–

–

Rinse & Spin

–

–

1200

7.0

0:55

–

–

–

–

–

–

–

–

Quick 30’

30°C

– 30°C

800

3.5

0:30

–

–

73

0.19

31

27

Cotton 20°C

20°C

– 20°C

1200

7.0

1:50

–

–

52

0.16

64

22

Wool

40°C

– 40°C

800

1.5

1:15

–

–

–

–

–

–

Delicates

30°C

– 30°C

–

1.0

1:20

–

–

–

–

–

–

Synthetics

40°C

– 60°C

1200

4.0

2:55

–

35

0.86

60

43

Dosing required  Dosing optional

This data may differ in your home due to changing conditions in inlet water temperature, water pressure etc.
Approximate programme duration values refer to the default setting of the programmes, without options. The values given for programmes other than the Eco 40-60 programme are indicative only.
Eco 40-60 – Test wash cycle in compliance with EU Ecodesign regulation 2019/2014. The most efficient programme in terms of energy and water consumption for washing normally soiled cotton laundry.
Note: spin speed values shown on the display can slightly differs from the values stated in the table.
For all Test Institutes
Long wash cycle for cottons: set wash cycle Cotton with a temperature of 40°C.
Synthetic program along: set wash cycle Synthetics with a temperature of 40°C.
* After programme end and spinning with maximum selectable spin speed, in default programme setting. Sensor Technology – the sensor technology adapts water, energy and programme duration to your wash load.

Daily Use

PREPARING THE LAUNDRY
Empty pockets

• Coins, paper clips, etc. could damage the load and the washing machine components.
• Tissues will break down during the wash cycle, and the fragments will have to be subsequently removed by hand.

Close all zippers, buttons, and hooks. Tie all ribbons or belts

• Insert the smaller garments (e.g. nylon hosiery, belts, etc.) and garments with hooks (e.g. braziers) into a fabric bag or a pillowcase with a zipper.
• Remove any rings from curtains, or else place the curtains inside a fabric bag together with the rings.

HOW TO USE THE WASHING MACHINE

1. Load laundry
   Open the door and load the laundry. Load the articles one at a time loosely into the drum, without overfilling. Observe the load sizes given in the “PROGRAMME CHART” table. Overloading the machine will result in unsatisfactory washing results and  creased laundry.
2. Close door
   Make sure that no laundry gets stuck between door glass and rubber seal. Close the door so that you can hear it click shut.
3. Open water tap
   Make sure that the washing machine is connected to the water mains. Open the water tap.

Press the “ON/OFF” ,the“Start/Pause” lamp flashes slowly.

Change temperature, if needed
Press the “Temperature” button to progressively lower the temperature setting until cold wash has been set (“- -“ will be shown on the display). Pressing the button again sets the highest possible setting.

Change spin speed, if needed
Press the “Spin” button to progressively decrease the spin speed until the spin cycle is turned off (“0” will be shown on the display). Pressing the button again sets the highest possible setting.

Select functions, if needed
Press the button to select the function; the respective symbol on display illuminates.
Press the button again to cancel the option; the light extinguishes.

If the selected function is incompatible with the programme set, the incompatibility will be signalled by a buzzer (3 beeps) and the corresponding indicator light will flash.
If the selected function is incompatible with another previously set function, only the most recent selection will remain active.

5. Add detergent
Pull out the detergent dispenser and add detergent (and additives/softener) into the relative compartments as described in section “DETERGENT  DISPENSER”. Observe the dosing recommendations on the detergent pack.

Correct dosing of detergent / additives is important, because:

• it optimizes the cleaning result
• it avoids irritating residues of surplus detergent in your laundry
• it saves money by avoiding waste of surplus detergent
• it protects the washing machine by avoiding calcification of components
• it respects the environment by avoiding unnecessary environmental burden.

6. Delaying the start of a programme

• To set the selected programme to start at a later time (Max 24h), press the button to set the desired delay time.
• The symbol lights on the display when this fuction is enabled. To cancel the delayed start, press the button again untile the value ‚‘‘0‘‘ is shown on the display.

• Press the start/pause button.
  The machine will lock the door ( symbol on) and the drum will start to rotate; the door will be unlocked ( symbol OFF) and then locked again ( symbol on) as preparation phase of each washing cycle. The “Clicking” noise is part of the door locking mechanism. Water will enter the drum and start the washing phase once the door is locked.

 The remaining programme duration can vary. Factors like  unbalance in the wash load, or foam formation, can have an effect on the programme duration.

• Press “Start/Pause” (confirmation “beep”)to put the running programme on pause.
• Change your settings.
• Press“ Start/Pause” (confirmation “beep”) again to continue the programme.

If you have changed the programme, do not add detergent for the new programme.
To prevent that a running programme is changed by accident (for instance by children), use the “Key lock”.

• Press “Start/Pause”   to pause a running programme.
• Provided water level or temperature is not too high, the “Door locked” indicator light turns off. You can open the door, for example to add more laundry, or to remove laundry which was loaded by mistake.
• Press “Start/Pause” to proceed with the programme.

9. Cancelling a running programme, if needed

• Press and hold the “ON/OFF“ button: a count down is shown in the display until the washing machine stops.
• If the water level and temperature are low enough, the door unlocks and may be opened.
• The door remains locked if there is water in the drum.
  To unlock the door, switch the washing machine on, select the “Spin & Drain” programme and turn the spin option off by setting the spin speed to “0“.
• The water is emptied and the door unlocks at the end of the programme.

Pause a running programme

To pause the wash cycle, press the “Start/Pause” ; the indicator light will go off and the remaining time on display flash. To start the wash cycle from the point at which it was interrupted press the button again.

Hints and Tips

RULES FOR SEPARATING LAUNDRY

• Fabric type / indications on label (cotton, mixed fibres, synthetic, wool, hand wash items).
• Colour (separate coloured garments from whites, wash new coloured items separately).
• Size (wash items of different sizes in the same load to improve washing efficacy and weight distribution in the drum).
• Delicates (place small items – such as nylon stockings – and garments with clasps – such as braziers – in a laundry bag or in a pillow case with a zip).

WASH SYMBOLS ON GARMENT LABELS
The value given in the tub symbol is the maximum temperature possible for washing the garment.

	Normal mechanical action
	Reduced mechanical action
	Much reduced mechanical action
	Hand wash only
	Do not wash

CLEAN THE WATER FILTER REGULARLY

• This is needed to prevent the filter from blocking and preventing the water from draining correctly.

SAVING ENERGY AND PROTECTING THE ENVIRONMENT

• Keeping within the load limits indicated in the “PROGRAMM CHART” will optimise energy, water and detergent consumption and reduce washing times.
• Do not exceed the detergent quantities recommended by the detergent manufacturer.
• Save energy by using a 60 °C instead of a 90 °C wash programme, or by using a 40 °C instead of a 60 °C wash programme. We recommend using the “ Cotton “ the 60 °C programme for cotton garments, which is longer, but uses less energy.
• To save energy and time when washing, select highest spin speed available for the programme to reduce the residual water remaining in the garments at the end of the wash cycle.
• Pretreat any stains with an appropriate stain remover, or else dampen any dried-on stains with water prior to washing, as this will reduce the need to use a high temperature wash programme.

Accessories
The Stacking Kit is available at IKEA stores
STACKING KIT
By which your dryer can be fixed on top of your washing machine to save space and to facilitate loading and unloading your dryer in the higher position.

DOOR

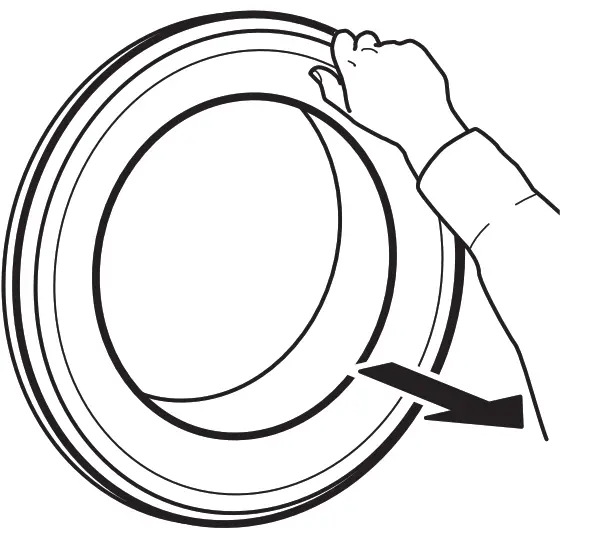

To open the door, pull the handle.

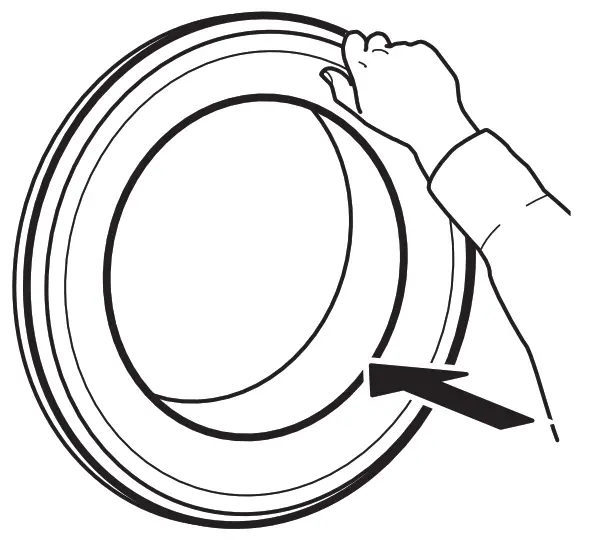

To close the door, hold the handle and push so that you can hear it click shut.

What to do if…

The washing machine may sometimes not work properly for certain reasons. Before calling the After-sales service, it is recommended to check to see if the problem can be easily resolved using the following list.

Technical data

To download the full version visit www.ikea.com
