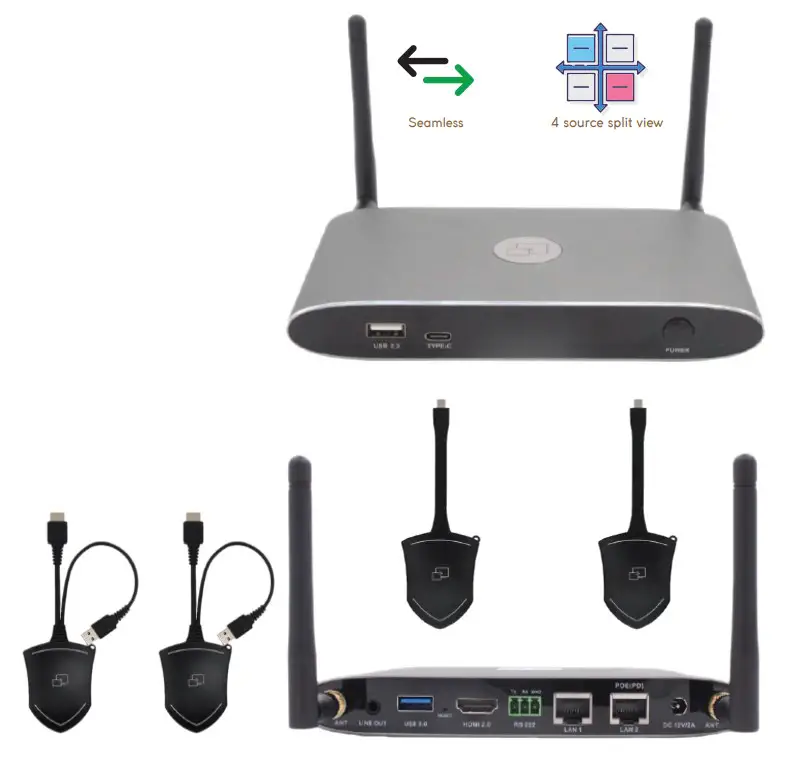

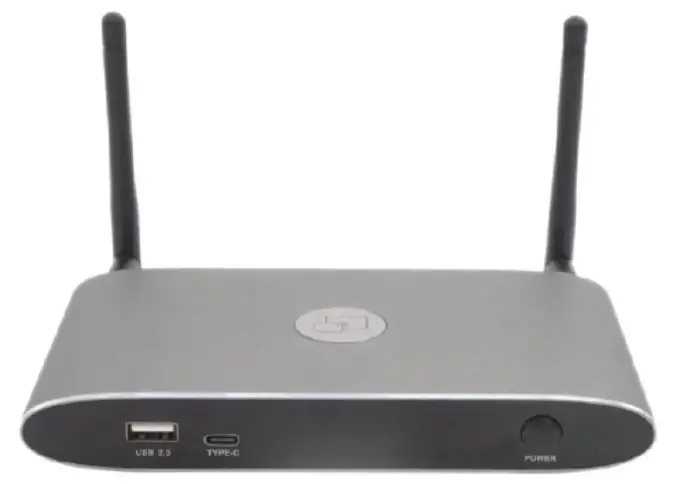

AWP-4T1S Wireless Presentation Switch
Instructions
HIGH-END INTERACTIVE DISPLAY
ANGUSTOS PRESENTATION SWITCH
ANGUSTOS flexible presentations switches are customized with many unique features to meet various demands from traditional presentation devices switching to advanced collaboration in corporate or education usage.
This series features user friendly control methods with plug-and-play principal, This even support the wireless touch back on interactive whiteboard/touch screen, support up to 4 split screen view at the same time for collaboration presentation.
Future-proof with Type-C connector for direct or wireless dongle help to eliminate messy cable routing in the meeting room. The series also support cooperate rate data security with dual network, encryption on both input and outputs plug-in.
ANGUSTOS APS SERIES
- Media – Telecom – Broadcast
- Education – Training
- Manufacturing – Quality Control
- Retail – Advertising
- Meeting Room – Conference
- Healthcare visual system
- Entertainment
- Government – Control Room
FEATURES
- Wireless presentation switch with multiple connections
- Direct connection to device, no cable messy – up to 30m
- Wireless content input up to 1080P, HDMI 2.0 output
- Support native wireless mirroring (Airplay, Miracast, Chromecast)
- Support plug-in-display HDMI/Type-C dongles
- Support Android. MAC and Windows APP
- Support MPiP™ 4 split screen view. Seamless 20ms switch
Support wireless touch back on interactive whiteboard/touch screen - Best-in-class data security with dual network (Gigabit/100Mbps)
- AES / WPA2 encryption for LAN connection.
- Power over Ethernet (POE) supported
- OSD control with preview function.
- Support whiteboard and annotation.
- 3.5mm audio port for speaker set up
- RS-232 support (phoenix)
SYSTEM SPECIFICATION
| HDMI output | HDMI female x 1 |
| Video output resolution | 3840 x 2160 @ 60Hz |
| 1920 x 1080 @ 60Hz | |
| HDMI Standard | HDMI 1.4 / 2.0 |
| Wireless resolution | 1080p@60Hz / 30Hz |
| HDCP Standard | HDCP 1.4 / 2.2 |
| Audio Out | 3.5mm female x 1 |
| Ethernet | RJ-45 x 2 (Gigabit / 100Mbps) |
| USB | USB 3.0 x 1 |
| USB 2.0 x 1/ Type-C (2.0) x 1 | |
| Anti-glare , 7H hardness | |
| Audio Input | Airplay, Windows, WMH |
| Audio Output | 3.5 mm Audio out |
| HDMI audio out | |
| Control Port | 3.5mm Phoenix / RS-232 |
| Total video on screens (max) | 16 (4 split + 12 thumbnail) |
| Simultaneous connection | 16 |
| Playback frame rate | 20 – 60 FPS |
| Latency | 20 – 100 ms |
| WIFI Data Rate | 1200Mbps |
| Wireless protocol | IEEE 802.11 b/g/n/ac |
| Frequency | 2.4 GHz & 5 GHz |
| WIFI Antenna | MIMO 2×2 |
| Power | AES WPA PSK, WPA2 PSK |
| WIFI Encryption | Web GUI, Telnet, RS-232 |
| Control Method | IEEE802.3af |
| PoE support | DC 12V / POE |
| Dimension | 165 x 100 x 24.5mm |
| Weight | 0.4 kg |
| Power consumption | 10 ~ 15 Watt |
| Temp (Working ) | 0~45°C |
| Temp (Storage ) | -20~60°C |
| Humid (Working/Storage) | 0-90% RH – non condensing |
| Power Rate for adapter | 100 – 240 VAC. 50-60Hz |
| Wirelss distance (Optimal) | 100 – 240 VAC. 50-60Hz |

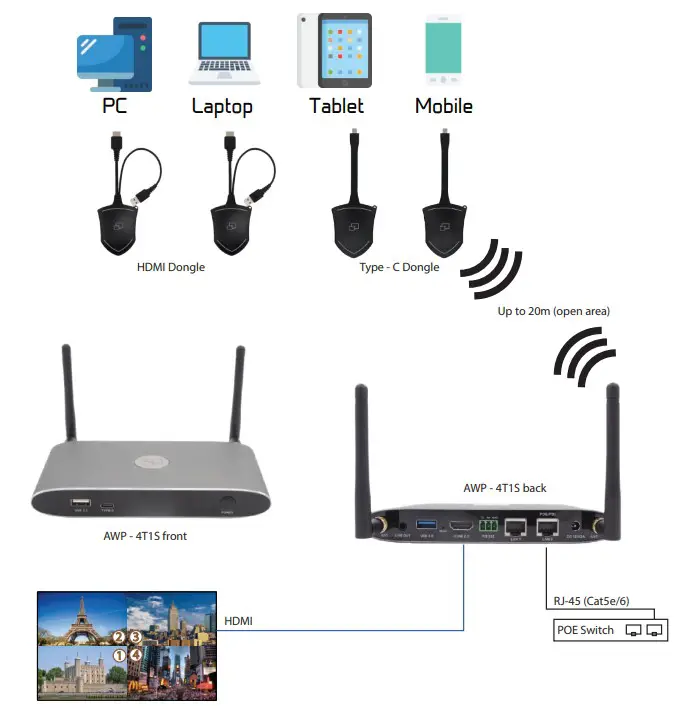

CONNECTION DIAGRAM
