Perixx Periboard-734 2.4g Bluetooth Wired Mechanical Rechargeable Mini Keyboard User Manual

perixx PERIBOARD-734 2.4G Bluetooth Wired Mechanical Rechargeable Mini Keyboard

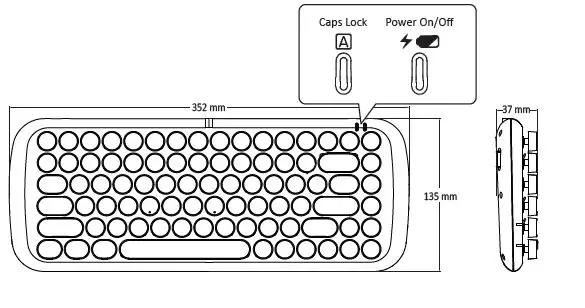

Product Illustration

LED indicators

How do you connect PERIBOARD-734?

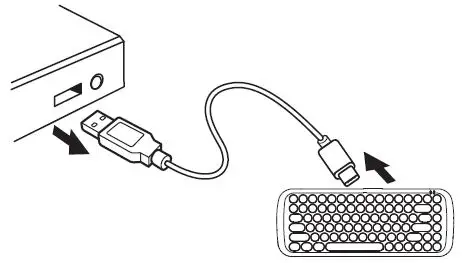

Wired mode

Wireless mode

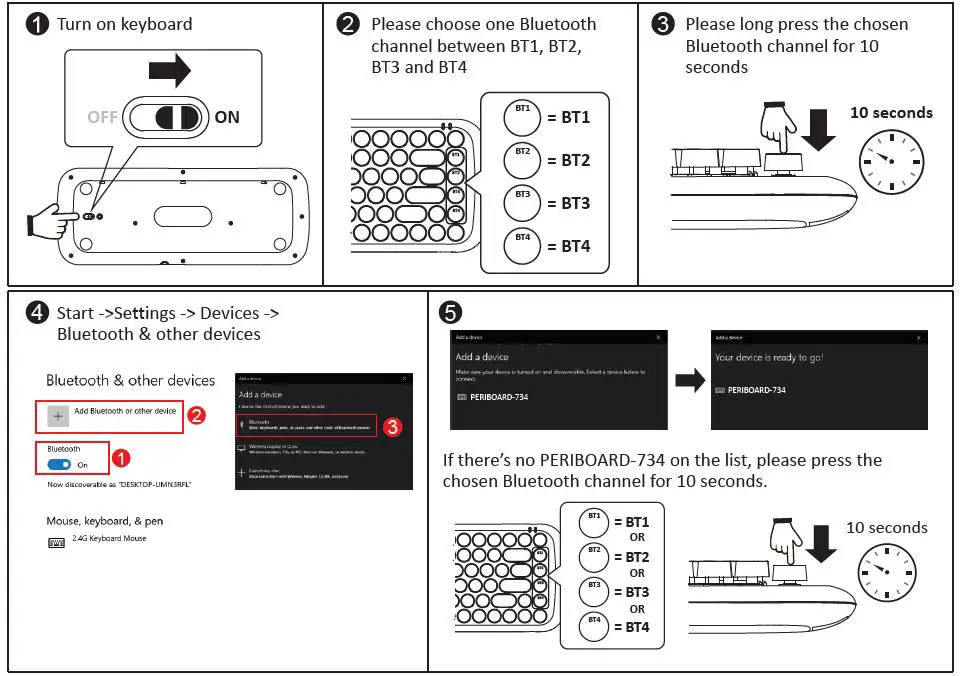

Windows Bluetooth

1. Turn on keyboard

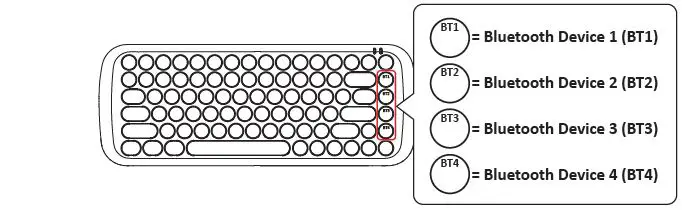

2. Please choose one Bluetooth channel between BT1,BT2, BT3 and BT4
3. Please long press the chosen Bluetooth channel for 10 seconds
4. Start ->Settings -> Devices -> Bluetooth & other devices
5. If there’s no PERIBOARD-734 on the list, please press the chosen Bluetooth channel for 10 seconds.

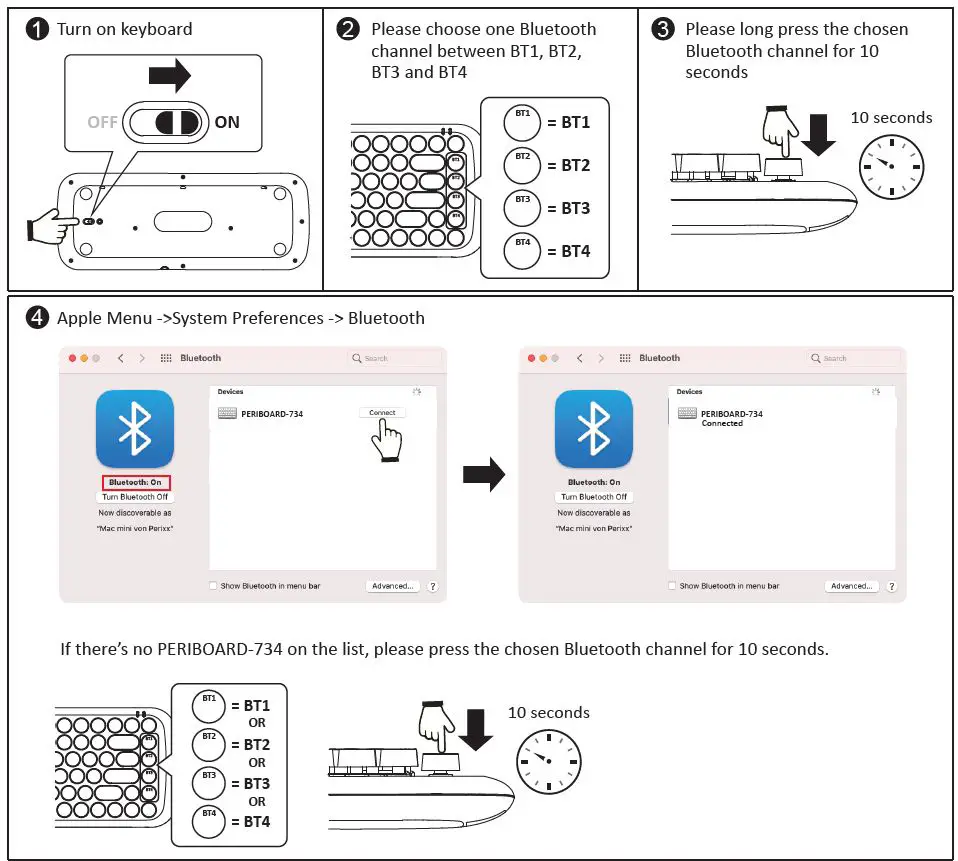

Mac Bluetooth

1. Turn on keyboard
2. Please choose one Bluetooth channel between BT1, BT2,BT3 and BT4
3. Please long press the chosen Bluetooth channel for 10 seconds
4. Apple Menu ->System Preferences -> Bluetooth
   If there’s no PERIBOARD-734 on the list, please press the chosen Bluetooth channel for 10 seconds.

If the Bluetooth pairing fails, please remove PERIBOARD-734 from the list of paired devices and redo it from Step-1.

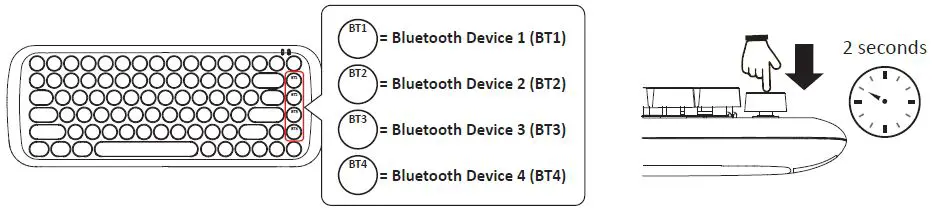

How do you switch between BT1, BT2, BT3 and BT4?

1. Unplug the charging cable
2. Press the Bluetooth channel that you want to use

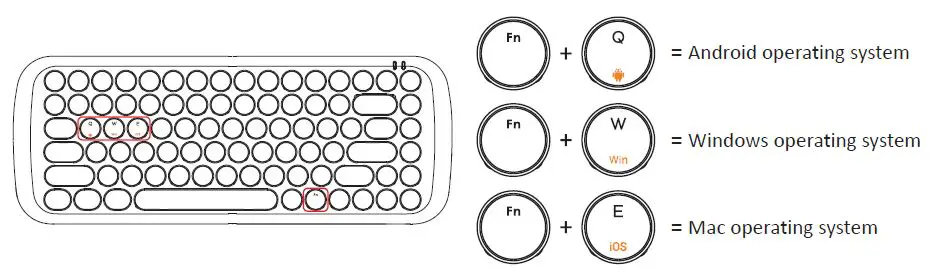

How do you switch between three different operating systems?

Specification

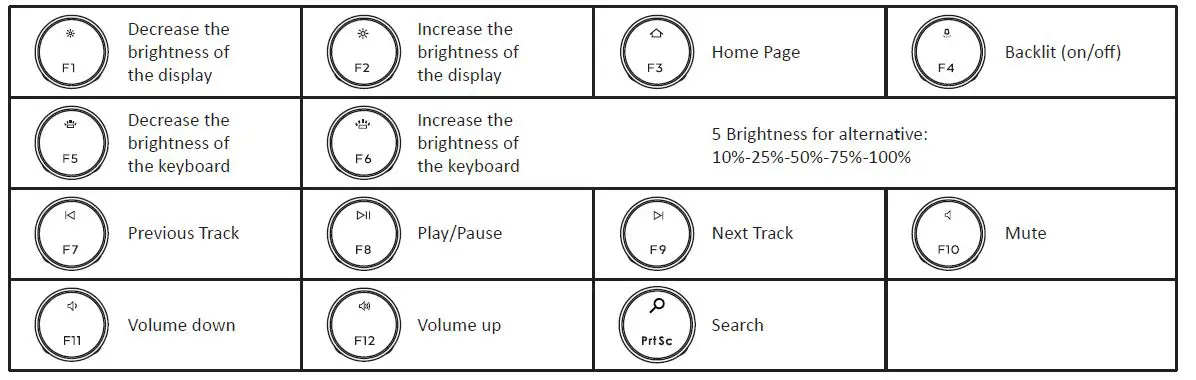

Multimedia keys (Windows, iOS and Android)

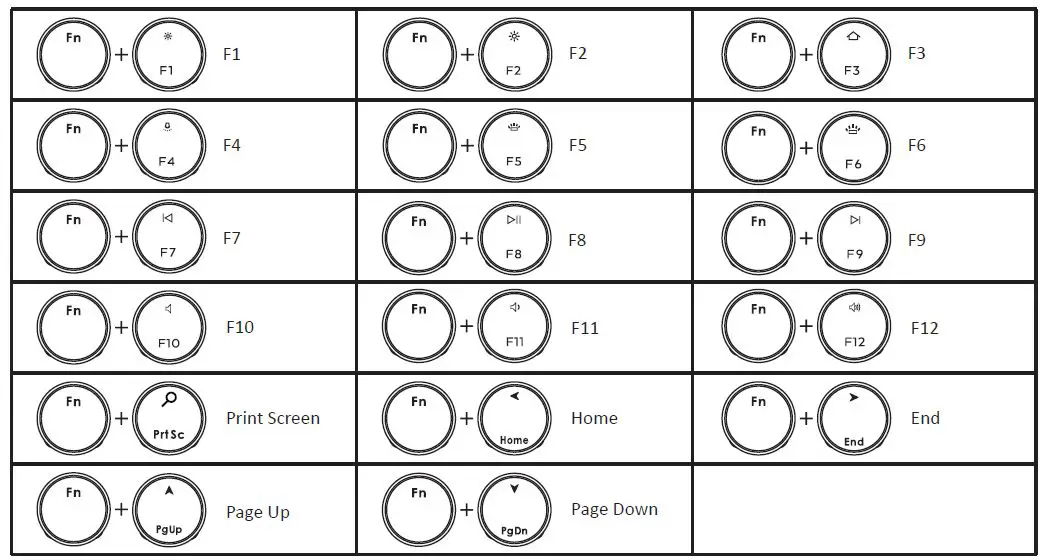

Windows

FCC Warning

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

NOTE 1:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

NOTE 2:
Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Caution

• The manufacturer and re-resellers are not responsible for any technical malfunctions, damage, or personal injury incurred by:
  • Any attempt to dismantle, change or modify the product in any manner
  • Malfunction or damage is due to misuse or improper alteration or repair.
  • Malfunction or damage caused by external influence such as falling
  • Malfunction or damage is caused by fire, salt, gas, earthquake, lightning, wind, water, or other natural calamities, or abnormal voltage.
    Malfunction or damage is caused by other devices connected to the products.
  • Malfunction or damage is caused by high temperature, humid, greasy, dusty and hazardous environment.
• You are cautioned that changes or modifications not expressly approved by Perixx Computer GmbH could void your authority to operate the equipment.
• All brand names, trademarks and logos are the properties of their respective owners.

Please Note: Long-term repetitive use of any keyboard and mouse could cause injury to the user. Perixx recommends users avoid excessive use of this or any keyboard and mouse.

Important Safety Instructions

• Avoid Dropping.
• Do not disassemble.
• This product is suitable for moderate climates only.
• The maximum ambient temperature during use of this product must not exceed 40 degree.
• Open flame sources, such as candles, must not be placed on this product.
• Only use a dry cloth or brush to clean this product.
  Perixx offers a one-year limited warranty with an optional one-year extension.
