Viking 57085 12 Volt Jump Starter Plus Air Compressor User Guide

VIKING 57085 12 Volt Jump Starter Plus Air Compressor

CHARGE BATTERY

IMPORTANT

YOU MUST CHARGE COMPLETELY BEFOR FIRST USE , AFTER EVERT JUMP START , AND EVERY 30 DAYS

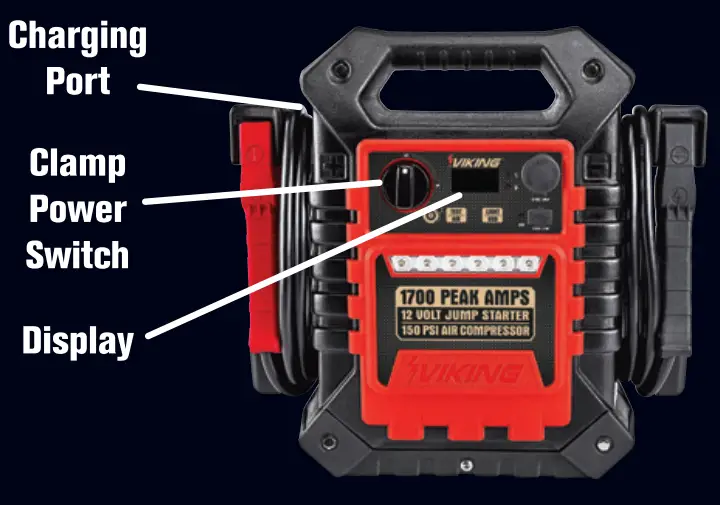

1. Turn Starter’s clamp power switch Off.
2. Plug charging cord into grounded 12VAC outlet .plug other end  of Cord into charging port.
3. charge until display reads ful. then Store out of children’s reach.

JUMJJP START VEHICLE

WARNING

To prevent serious injury:

1. Do not touch positive and negative battery clamps together.
2. Do not Connect to the negative terminal of the battery.
3. Read manual before set up  and / or use.

IMPORTENT

IF VEHICLE DOES NOT START WITHIN 5 SECUSRE , TURN CLAMP POWER WAIT AT LEAST 3MINUTS , THEN TRY AGAIN

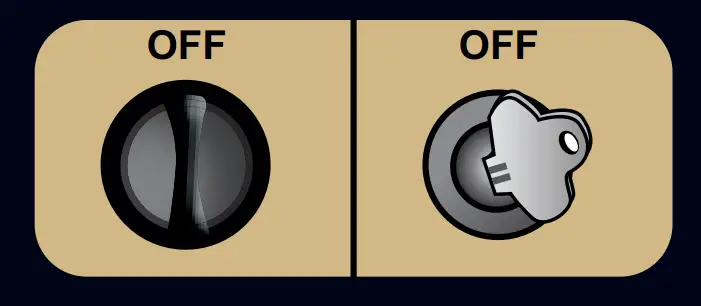

1. 1. Turn jump Starter’s clamp power switch off.
   2. Turn vehicle’s Ignition Off.

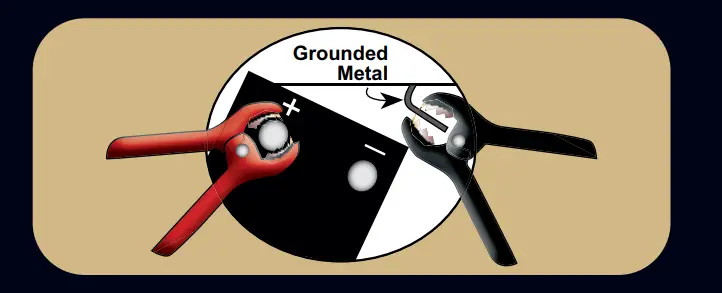

   3. Connect Red Positive Clamp . them connect Black Negative clamp to a non -moving metal part of the vehicle

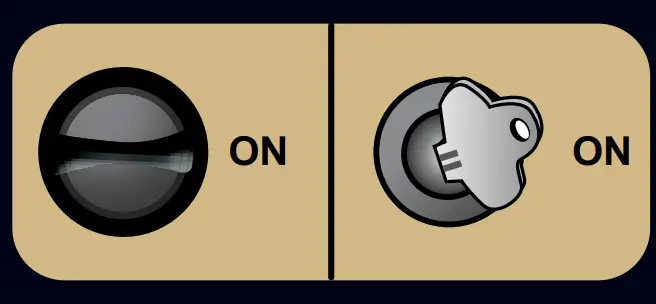

   4. Turn Jump starter’s clamp power swich ON
   5. Turn vehicles Ignition ON


AFTER VEHICLE STARTS

1. Turn Jump starter’s Clamp power switch Off.
2. Remove Black Negative Clamp.
3. Remove Red Positive Clamp
4. Recharge jump starter Immediately

POWER 12 VDC APPLIANCES

1. Determine Appliance Compatibility calculate total wattage needed to run appliance
   Formula: Amps * 12 =Watts
   Use Chart At a Right ass a guideline only
2. Turn jump starter’s Clamp power switch off

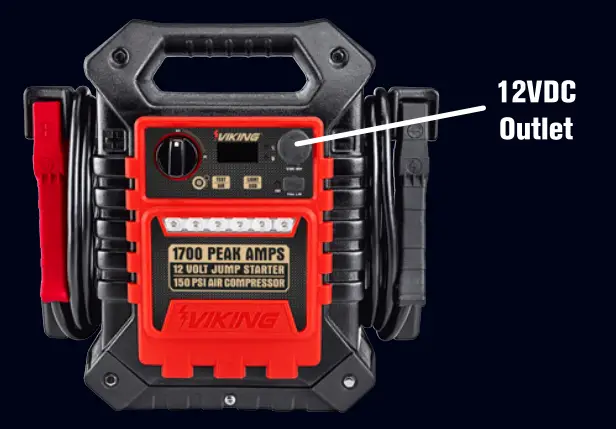

3. Turn Appliance Into 12VDC outlet . then turn power Switch ON.
4. When  Finish, turn Appliance OFF , Then remove Plug from outlet.

OPERATE AIR COMPRESSOR

WARNING

To prevent serious injury:

1. Check the proper inflation level of the object being inflated. 2
2. Monitor the Air Pressure Gauge. 3
3. Do not overinflate.

DUTY CYCLE: 15 min on, 30 min off

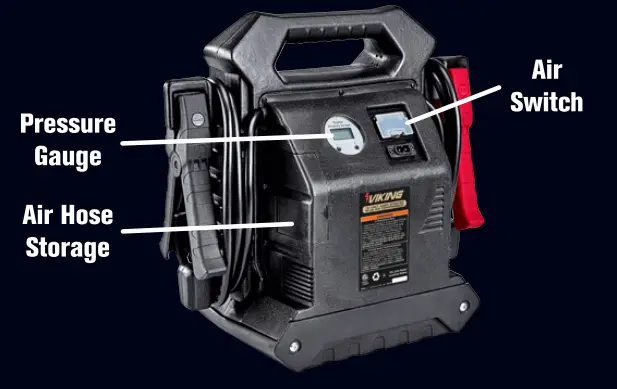

1. Remove Air Hose and install adapter as needed.
2. Press TEST/AIR button on front until -C- appears on display.
3. Attach inflator, then set pressure on Pressure Gauge.
4. To begin inflation, open Air Switch cover on back and turn Switch on.
5. Compressor will shut off when pressure has been reached.
6. Turn Air Switch off
7. Press TEST/AIR button to turn off Compressor power.
