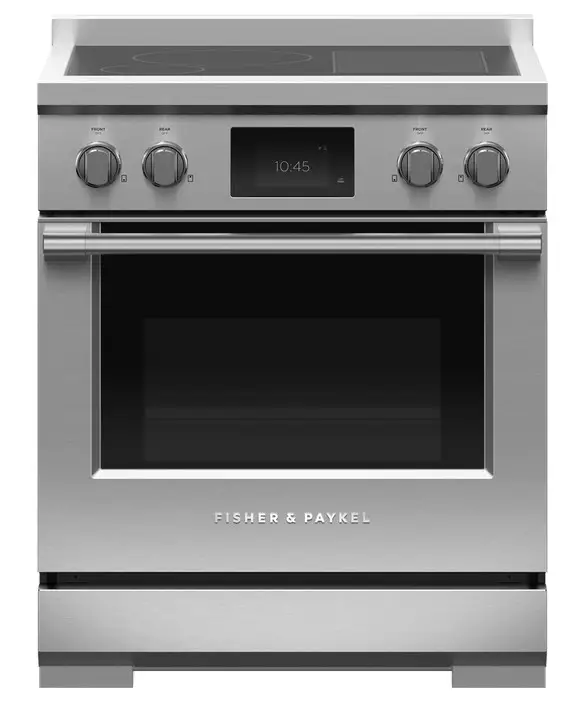

RIV3-304 30 Inch 4 Zones Induction Range
User Guide
With intuitive touchscreen, induction cooktop and a convection oven with 15 functions, cooking on this refined range is a joy.
- Guided cooking using your touchscreen makes it simple to cook by food, function or recipe.
- Ability to pair two of the four induction cook zones to create a large SmartZone 4 cu ft total oven capacity
- Beautiful LED halo-illuminated dials provide information at a glance

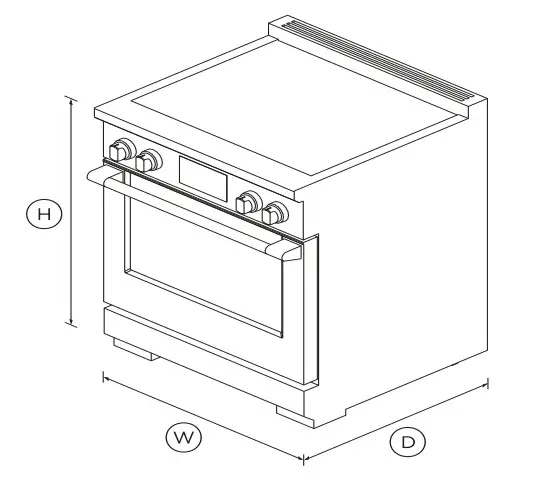

DIMENSIONS
| Height | 35 3/4 – 36 3/4″ |
| Width | 29 7/8″ |
| Depth | 29 1/8″ |
FEATURES & BENEFITS
Cook with confidence
Our touchscreen interface provides an intuitive guided cooking experience that helps deliver perfect results, whether you’ve been cooking all your life or just starting out. Cook with a favorite method, a hero ingredient, or a go-to cooking function or recipe. The screen tilts for improved ergonomics and optimal visibility while cooking.
Generous capacity
Featuring a generous total capacity of 4 cu ft, with enough room to fit a 26 lb turkey, or to cook several dishes at once.
Cooking flexibility
No matter what you’re cooking, you’ve got the right heat to get perfect results. Each of the 15 oven functions have been extensively researched and carefully designed to cater to a broad range of dishes and cooking styles. The handy food probe helps you monitor your progress.
Cooktop power
Instant and immediate control from the highest to the gentlest heat. The finely tuned cooktop controls let you sear, stir fry or simmer to perfection. Since most of the heat generated by the cooktop is transferred into cookware, induction offers an energyefficient cooking option.
Design quality
This range has craftsmanship in every detail, with real stainless steel, high-quality glass, and beautifully weighted, halo illuminated dials. Each cavity features incandescent lights and full extension telescopic racks. From the robust legs to the powerful cooktop, this Range is built to last.
Easy to clean
The oven features a self-cleaning function and self-clean proof side racks, which don’t need to be removed when using this function. The durable induction cooktop surface only needs a quick wipe after use to keep it clean.
SPECIFICATIONS
| Accessories | |
| Square handle option | AH-R30 |
| Capacity | |
| Capacity total (AHAM) | 4L |
| Cleaning | |
| Pyrolytic self-clean | • |
| Controls | |
| Electric circuit | 4 wire |
| High resolution display | • |
| Metal illuminated dials | • |
| Wi-Fi connectivity | • |
| Oven features | |
| Concealed element | • |
| Electronic oven control | • |
| Full extension telescopic | • |
| Internal light | • |
| True convection | • |
| Oven functions | |
| True convection | • |
| Oven performance | |
| Bake power | 3500 |
| Main oven – True convection | 2500W |
| Power requirements | |
| Rated current | 50A |
| Supply frequency | 60Hz |
| Product dimensions | |
| Depth | 29 1/8″ |
| Height | 35 3/4 – 36 3/4″ |
| Width | 29 7/8″ |
| Rangetop features | |
| Gentle heat | • |
| Heat settings | 9 |
| Induction cooking technology | • |
| SmartZone | 1 |
| Zone bridging | • |
| Rangetop Performance | |
| PowerBoost | • |
| Safety | |
| Pan detection system | • |
| Safety time out | • |
| Surface hot indicators | • |
| SKU | 81893 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
